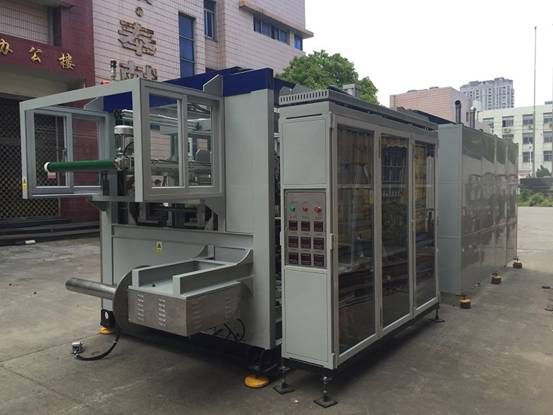

Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
1 / 5
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment
Plastic Pressure Thermo Forming Machine Equipment

Plastic Pressure Thermo Forming Machine Equipment

Customization: Available
Certification: CE
Column number: Four Column
Send Inquiry

Product Description

i

Basic Information

Model NO.
LX3122HF-IM-C330
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
800mm*600mm Max.
Forming Depth
120mm Max.
Dry Run Speed
40cycles/Min Max.
Film Thickness
0.2-2mm
Sheet Width
800mm Max.
Suitable Material
PP PS Pet PVC BOPS
Air Pressure
0.7MPa
Production Range
Container, Clamshell, Tray and Lid
Automaticity
Forming, Cutting, Stacking and Conveying
★

Product Description

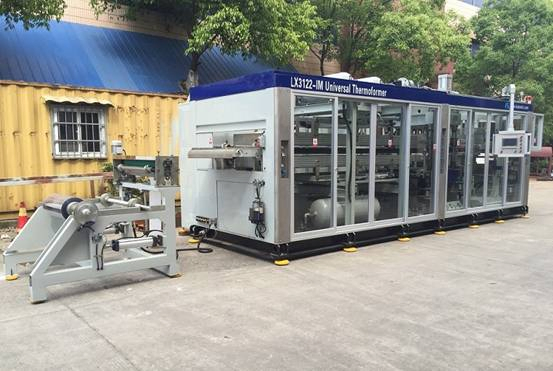

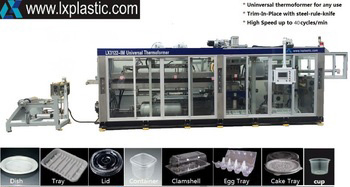

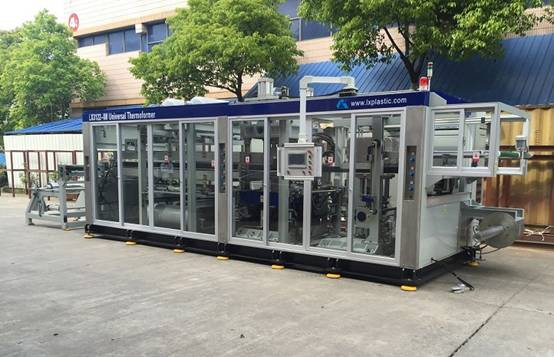

Plastic Pressure Thermo Forming Machine

BRIEF: The HF-IM plastic pressure forming machine is a trim-in-place type thermoforming machine. It utilizes a mold with rule steel knives for performing forming and cutting in the same station. Optional second and third cut-stations are available for post-trim and hole-punch functions.

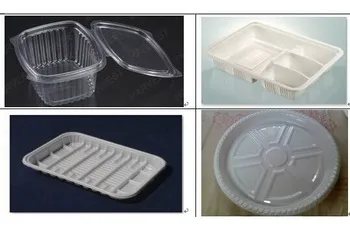

It is ideal for manufacturing parts from PP, PET, PS, etc. It automatically produces disposable rectangular, square, or round shaped roll-edged containers and trays with forming, trimming, and stacking conveying in one operation cycle.

⚙

Design Features

  • Use Steel-Rule-knife for forming and cutting in the same station.
  • Trim-in-place for processing PP, PET, PS, PVC, BOPS materials; specially optimized for PP.
  • Second and Third cut-press options for hole punching and post-trim.
  • Automatic stacking, counting unit, and conveying system.
  • Trim-in-place for parts with rolled edges (turn-down lip).
  • Technology brings a neat and identical trimming/cutting result.
  • Plug assistant included for deep draw forming.
  • Floating knife and free knife available for post-trimming film with high shrinkage rates.
  • Optional extra Contact Heat plate to minimize power consumption.
📋

Technical Specifications

Specification Item LX3122IM Details
Mould Area800*600mm Max
Depth of Draw under sheet120 mm Max
Depth of Draw above sheet30mm Max / 120mm Max
Clamping force750KN
The Second Cut-PressAvailable
Suitable materialPP PET PS PVC BOPS
Sheet Width460 - 850 mm
Material Thickness Range0.2 - 1.5mm
Dry run Speed45 cycles/min Max
Power ConsumptionApprox. 35 kilowatts/hr
Air Consumption2500 Liters/min
Cooling Water Consumption13 Liters/min (15° - 20°C)
Dimensions (L*W*H)9.5m * 2.2m * 2.2m
◈

Operation Process

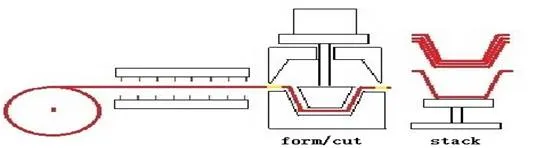

Trim-in-place IM-2in1
Trim-in-place IM-2in1

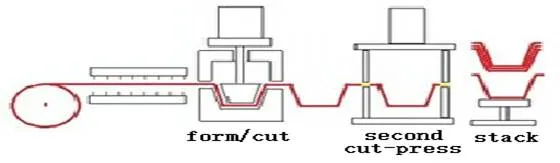

Trim-in-place with second cut-press
IM-3in1 (Optional)

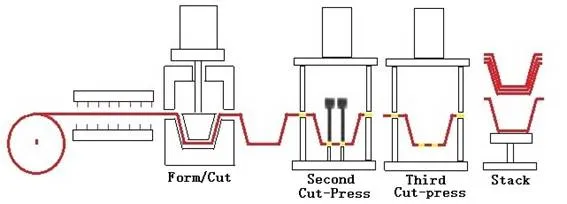

Trim-in-place with multiple cut-press
IM-4in1 (Optional)
🛠

Professional Service

Machine Service Detail
Machine Components
?

Frequently Asked Questions

Q1: What materials are compatible with the LX3122HF-IM machine? A: The machine is designed to process various plastic materials including PP, PET, PS, PVC, and BOPS. It is especially efficient for processing PP.
Q2: What is the benefit of the "Trim-in-place" technology? A: Trim-in-place technology allows forming and cutting to occur in the same station using steel-rule-knives, ensuring neat, identical trimming and high precision for roll-edged parts.
Q3: Can the machine handle deep-draw products? A: Yes, the machine features a plug assistant specifically designed for deep forming draw requirements, with a maximum draw depth of up to 120mm.
Q4: Does the machine support automatic stacking? A: Yes, it includes an integrated automatic stacking and counting unit along with a conveying system for a fully automated production cycle.
Q5: What are the optional configurations for different cutting needs? A: We offer 3-in-1 and 4-in-1 configurations which add a second and third cut-press station for auxiliary functions like hole punching and post-trimming.
Q6: What is the production speed of the LX3122HF-IM? A: The machine achieves a dry run speed of up to 45 cycles per minute, depending on the material and product complexity.
