PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
1 / 5
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine
PP Cup Lid Positive and Negative Pressure Forming Machine

PP Cup Lid Positive and Negative Pressure Forming Machine

Customization: Available
Certification: CE
Column number: Four Column
Send Inquiry

Product Description

Basic Info.

Model NO.
PPBG-520
Molding Method
Pressing
Automatic Grade
Automatic
Max. Forming Depth
70mm
Suitable Material
PP, PS, Pet, PVC
Max. Width of Material
560mm
Max. Forming Width
520mm
Max. Forming Length
320mm
Transport Package
Wooden Pallet
Trademark
POLYPRINT
Production Capacity
12000PCS/Hour
HS Code
8477409000

Product Description

!
Features:

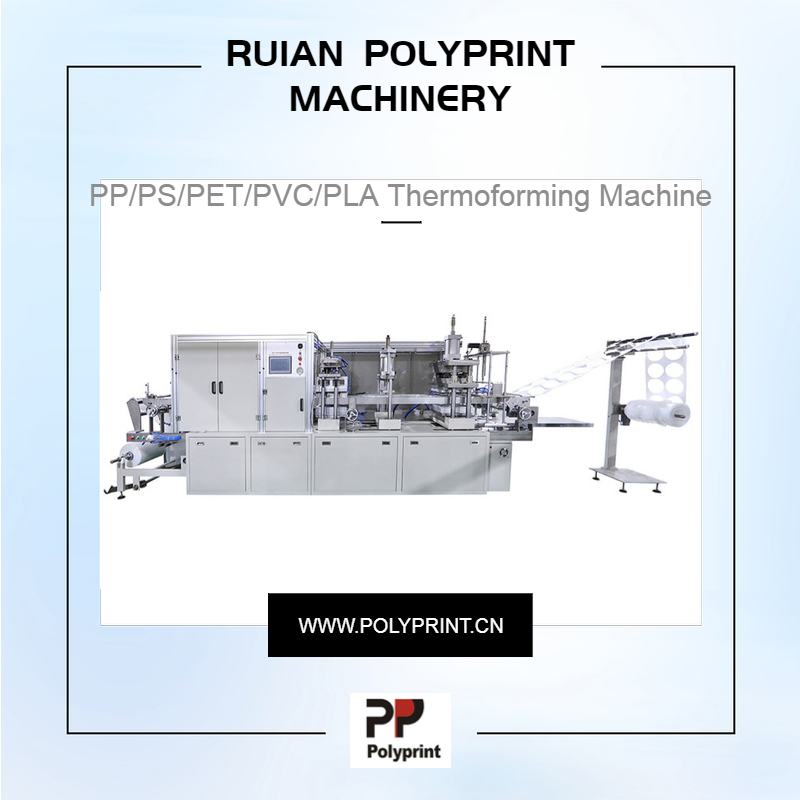

PPBG-520 Automatic Thermoforming Machine is a multi-station automatic machine designed to meet high market demands and food packaging hygiene standards. It effectively solves production challenges for PP, PS, PET, PVC, and PLA products, reducing capital investment and labor input while simplifying the production process. Ideal for food, pharmaceutical, and metal product packaging.

Technical Parameter

No. Description PPBG-520A PPBG-520B
1Suitable ProductsDisposable Plastic lids, clamshell boxes, plates, trays etc.
2Suitable MaterialPP, PS, PET, PVC and PLA
3Max. Width of Material560mm
4Max. Forming Width520mm
5Max. Forming Length320mm
6Max. Forming Depth50mm80mm
7Max. Cutting Speed10-35 Cycles/min
8Material Thickness0.1mm-1.5mm
9Power Supply380V/ 50HZ (Three-phase four-wire)
10Air Pressure0.6-0.8MPa
11Machine Weight4500KG5000KG

Reference Gallery

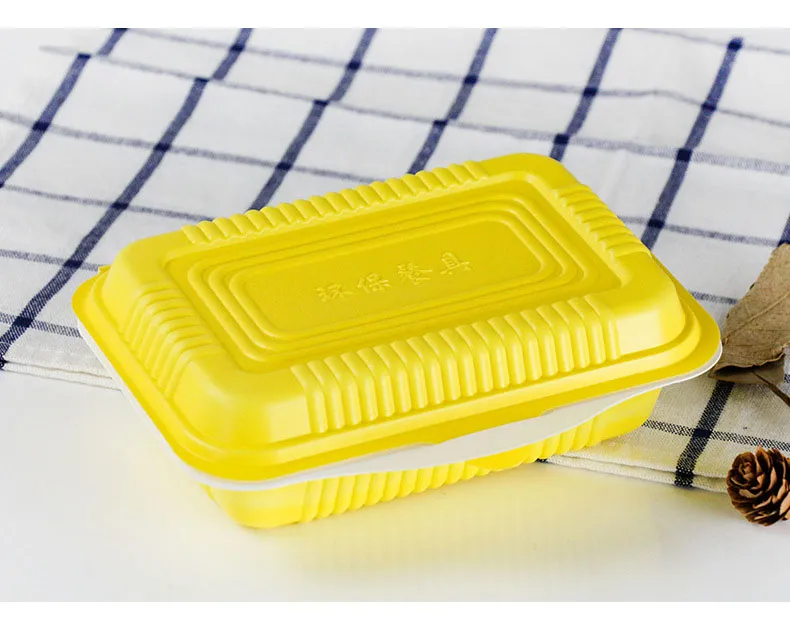

Thermoforming Machine

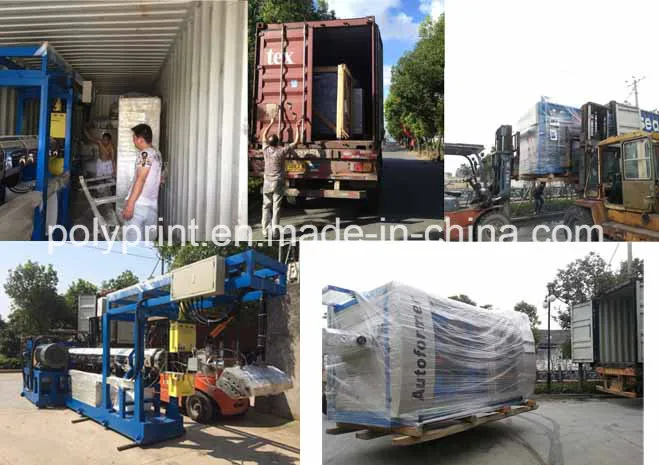

Packaging and Shipping

Our Services

✓
Warranty: 1-year warranty after installation. Free replacement parts provided if broken during the warranty period.
⚙
Installation & Training: 1-2 engineers available for on-site setup and training.
⏱
Quotation: All price quotes are valid for 60 days.

Frequently Asked Questions

What materials can the PPBG-520 process?
The machine is compatible with PP, PS, PET, PVC, and PLA plastic materials.
What is the maximum production capacity?
The machine can produce up to 12,000 pieces per hour depending on the product size and material.
Is the machine fully automatic?
Yes, it is an automatic grade machine designed for multi-station high-efficiency production.
What kind of products can this machine manufacture?

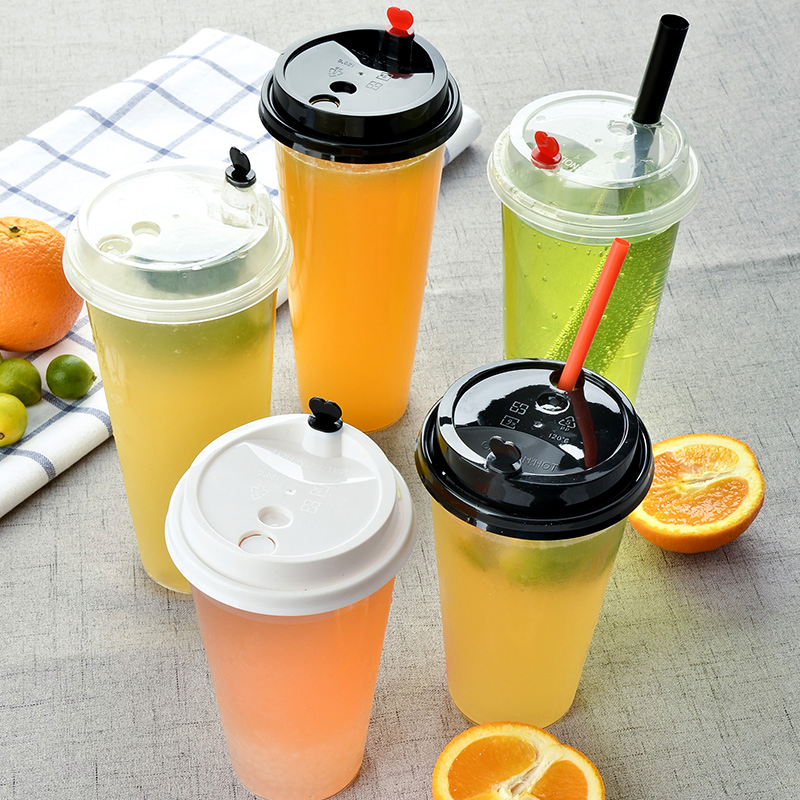

It is ideal for disposable plastic lids, clamshell boxes, plates, egg trays, and various food packaging containers.
What are the power and air requirements?
The machine requires a 380V/50HZ power supply and an air pressure of 0.6-0.8MPa.
What is the difference between Model A and Model B?
The primary difference lies in the maximum forming depth; Model A supports up to 50mm while Model B supports up to 80mm.
