PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
1 / 5
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line
PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line

PP/PS Sheet Extrusion and Plastic Cup Lid Thermoforming Production Line

Customization: Available
Type: Sheet Extruder
Plastic Processed: PP, PS
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
PPSJ
Product Type
Extrusion Line
Screw Diameter
150mm
Max. Capacity
800kg/H
Feeding Mode
One Feed
Screw Structure
Single-Screw / Deep Screw
Automation
Automatic / Computerized
Max. Sheet Width
850mm
Thickness Range
0.4-2.5mm
Valid T-Die Width
1000mm
Origin
China
Certification
CE; SGS
⚙️

Product Features

Note: We could make the machine according to customer's request.

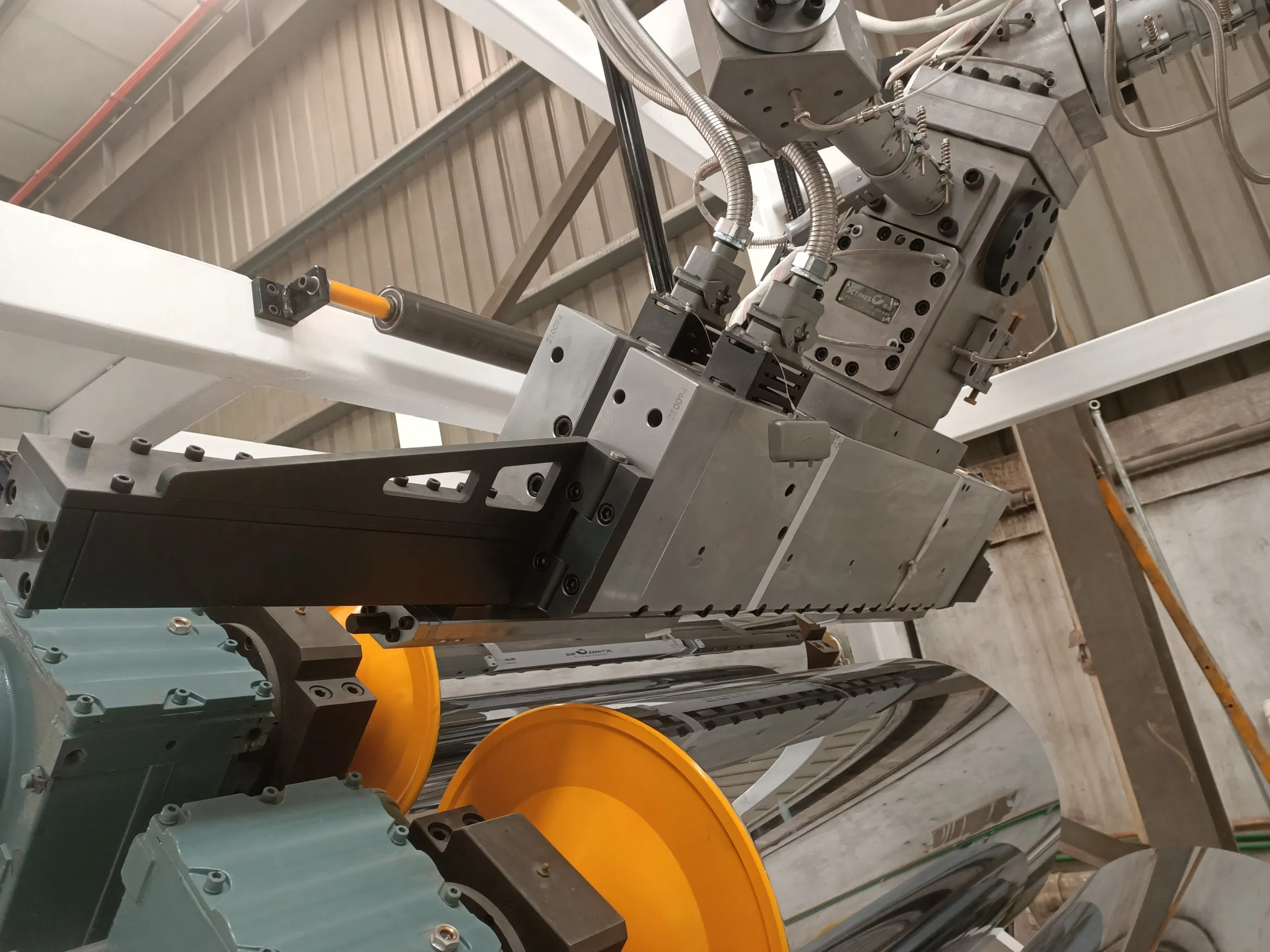

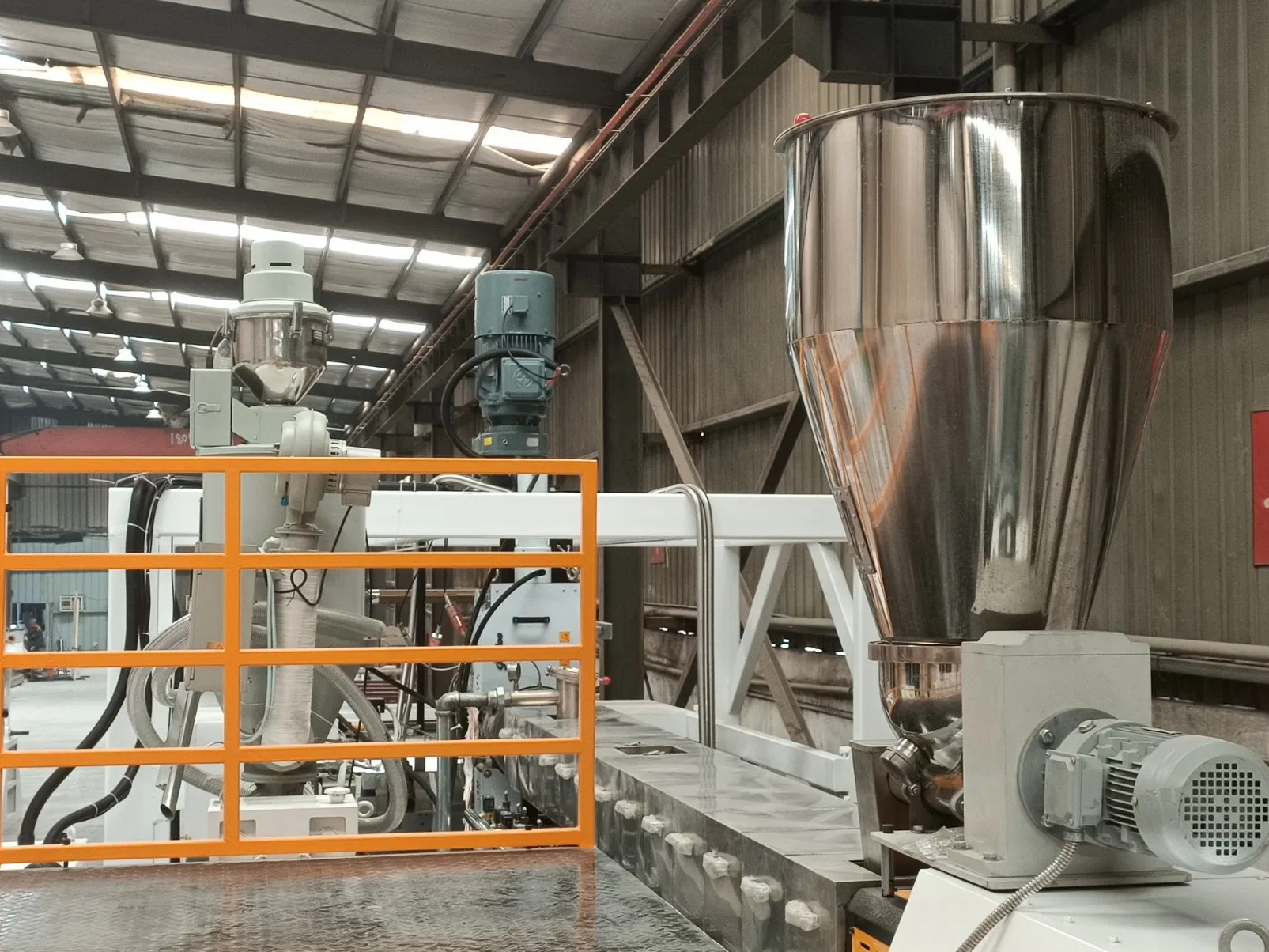

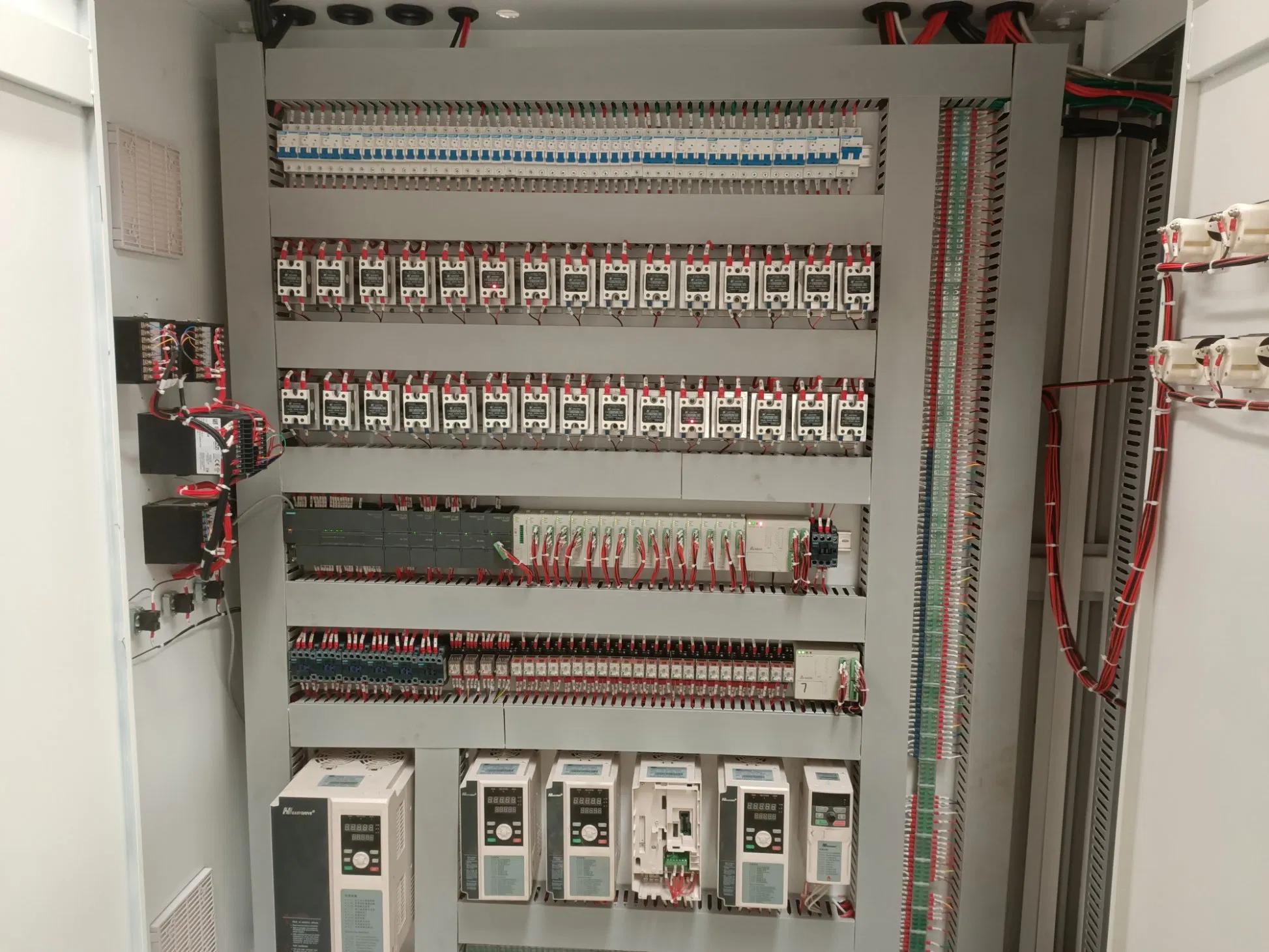

  • The plastic sheet extruder unit combines an Extruder, calender, haul-off unit, winder, and electric control cabinet.
  • Main components (screw, barrel, screen exchanger) use high-grade alloy steel (38CrMoAIA) with nitrogen treatment for superior hardness and corrosion resistance.
  • Screw features a high L/D ratio for equal plasticization and high-output capability.
  • Hydraulic-controlled non-stop fast screen changer with double-sieve improves production efficiency.

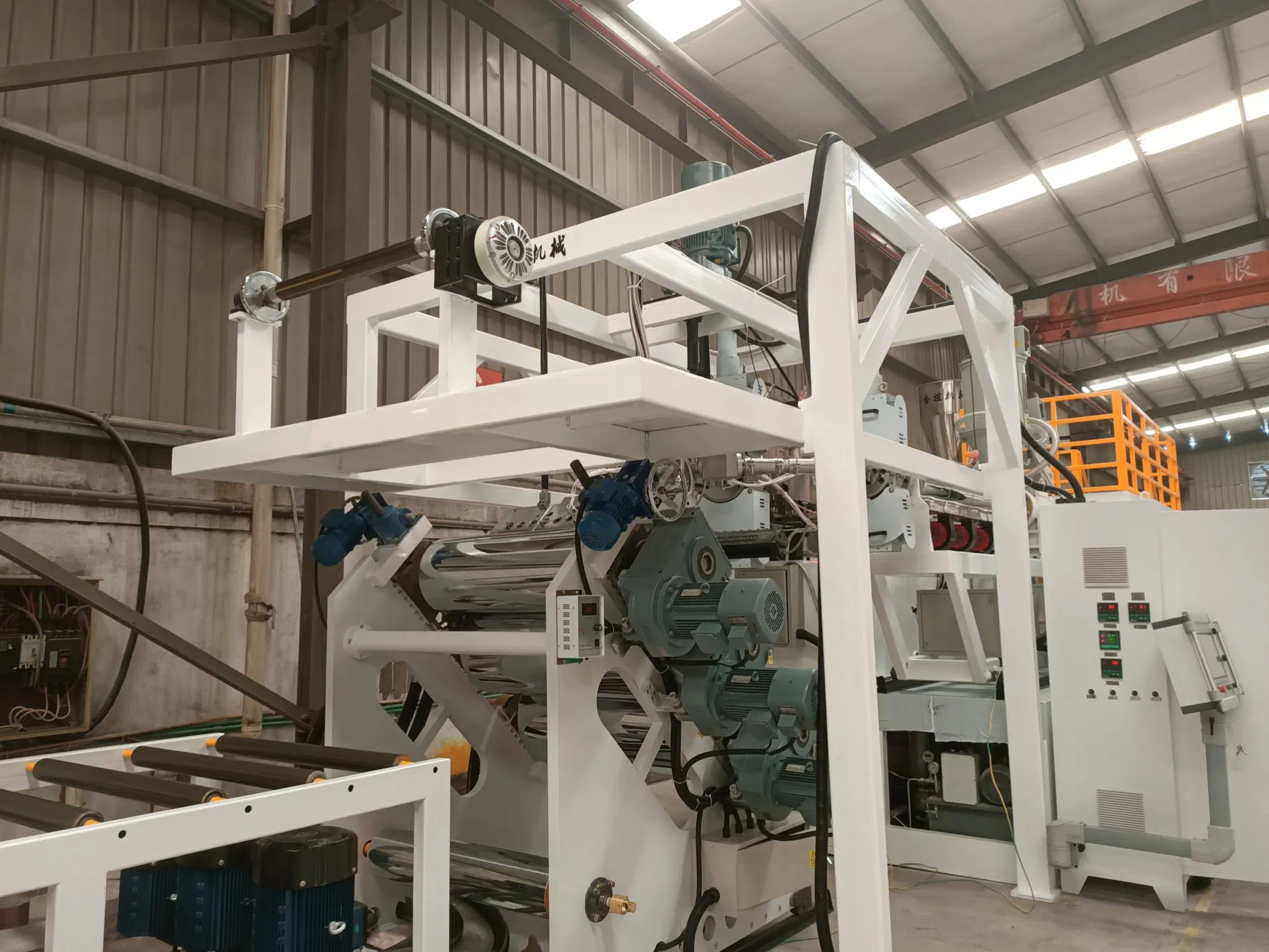

  • Integrated design for Calender, haul-off, and winder ensures aesthetic appearance and fast installation.
  • Stable high-speed operation via square steel structure and direct motor-to-gearbox connection.
  • Usage: Designed for monolayer PP/PS/PE plastic sheet production for disposable cups, lids, dishes, and plates.
📋

Main Technical Parameters

No. Model PPSJ-100 PPSJ-120 PPSJ-150
1Voltage380V, 50HZ (3-Phase)
2MaterialPP, PSPP, PSPP, PS
3Screw Dia.100mm120mm150mm
4Screw L/D33:133:133:1
5Max Capacity300kg/h520kg/h800kg/h
6Main Power75kw132kw200kw
7Sheet Width750mm750mm850mm
8T-die Width850mm850mm1000mm
9Thickness0.3-0.2mm0.3-2.5mm0.4-2.5mm
10Roller Dia.400x1000mm500x1000mm600x1200mm
🖼️

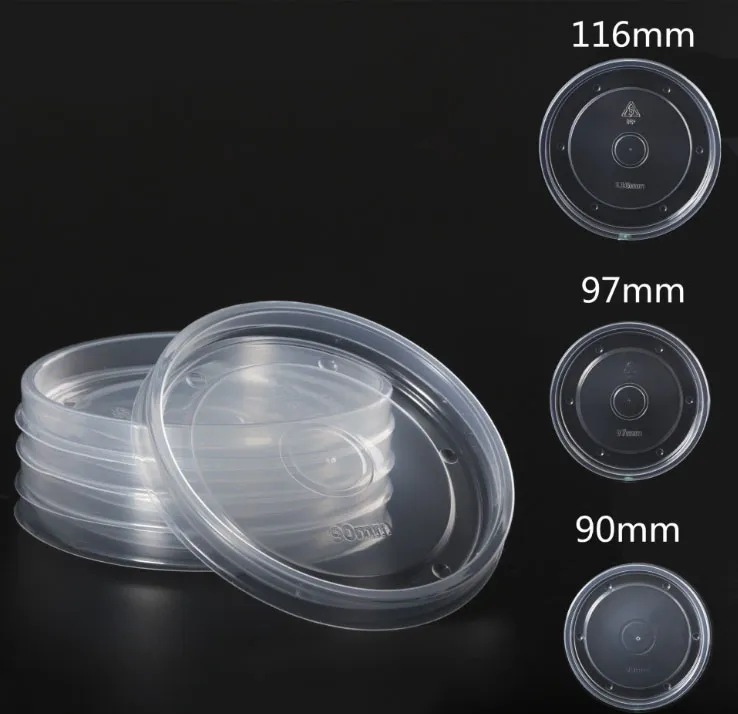

Sample & Packaging Display

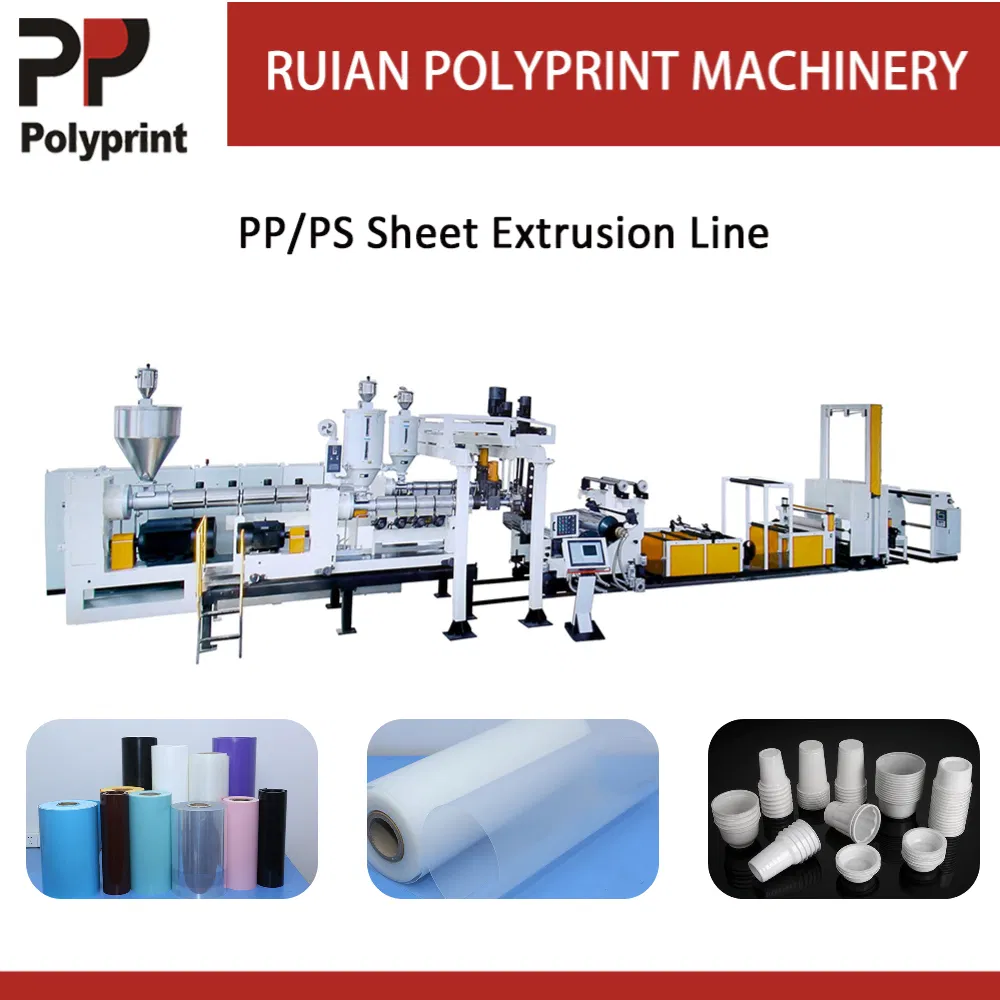

PP/PS Sheet Extrusion Line
Thermoforming Production Line
Packaging and Shipping
🛠️

Our Services

1. Warranty: 1-year warranty after installation. Free replacement parts provided if broken during the warranty period.

2. Installation & Training: 1-2 engineers can be dispatched for setup and training (all charges paid by buyer).

3. Quotation Validity: 60 days from the date of issue.

❓

Frequently Asked Questions

What materials can be processed with this extrusion line?
The machine is specifically designed to handle monolayer PP, PS, and PE plastic materials.
What is the maximum production capacity available?
Depending on the model, the maximum capacity ranges from 300kg/h (PPSJ-100) up to 800kg/h (PPSJ-150).
What are the primary applications for the produced sheets?
The sheets are ideal for manufacturing disposable drinking cups, ice-cream cups, yoghurt cups, lids, dishes, and plates.
How durable are the machine's critical components?
Key parts like the screw and barrel are made from 38CrMoAIA alloy steel with nitrogen treatment, providing high hardness and strong corrosion resistance.
Does the machine support non-stop operation during filter changes?
Yes, it features a non-stop fast screen changer with a double-sieve hydraulic device to maintain production efficiency.
Is technical support available for installation?
Yes, we can provide 1-2 engineers to assist with the installation and configuration of the machine at the buyer's site.
