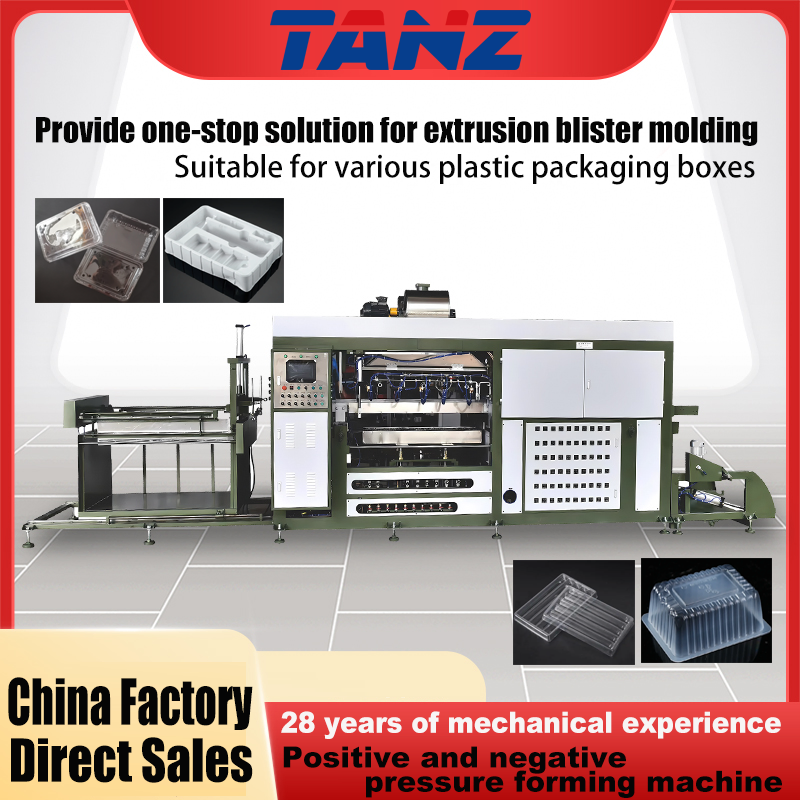

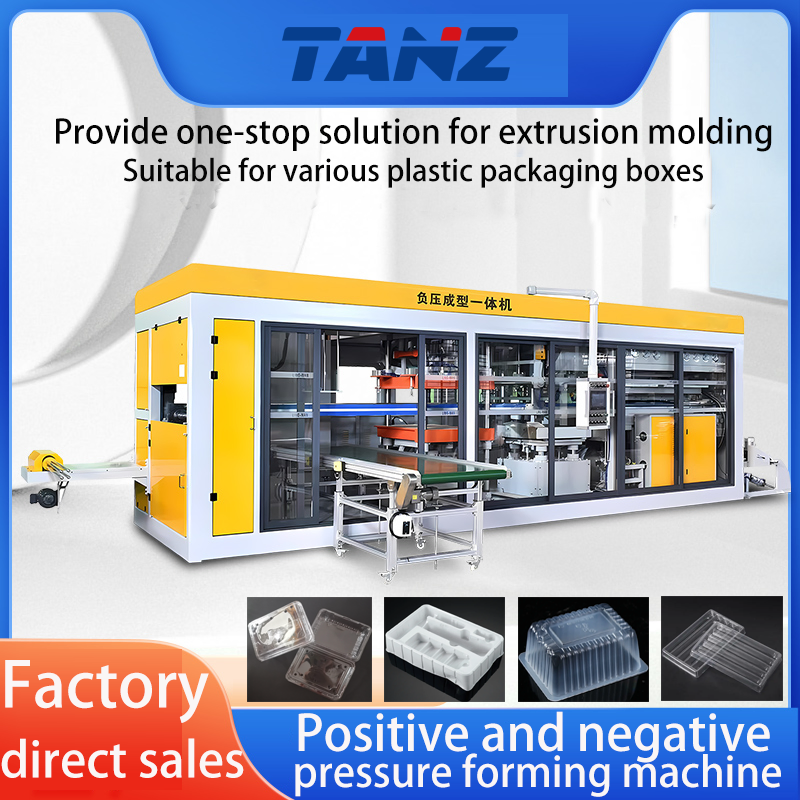

This Integrated Molding Machine is expertly designed for producing high-quality plastic packaging. It integrates energy-saving technology, massive output capacity, and significant labor-saving benefits to streamline your production line.
| Finished Product Width | 400-850mm |
| Forming Width | 420-720mm |
| Molding Height | 0-110mm |
| Operating Voltage | 380V 3N 50HZ |
| Electric Furnace Power | 30KW (Max 40-50KW) |
| Production Speed | 5-20 seconds/mold |
| Maximum Punch Pressure | 50 tons |
| Maximum Pressure to Cut | 50 tons |
| Machine Total Weight | Approx. 9 tons |
| Heating Area | 870*750mm (84 heating bricks) |
The machine is designed for various types of plastic packaging materials suitable for positive and negative pressure blister processing.
The production speed ranges from 5 to 20 seconds per mold, depending on the material thickness and product complexity.
Yes, it comes equipped with a 3HP Chiller and 8 customized cold water spray guns for efficient temperature regulation.
The system utilizes 84 groups of "Aoyi" temperature controls, featuring one touch screen for centralized management.
The machine integrates three primary work stations: Forming, Punching, and Stacking, ensuring a fully automatic workflow.
