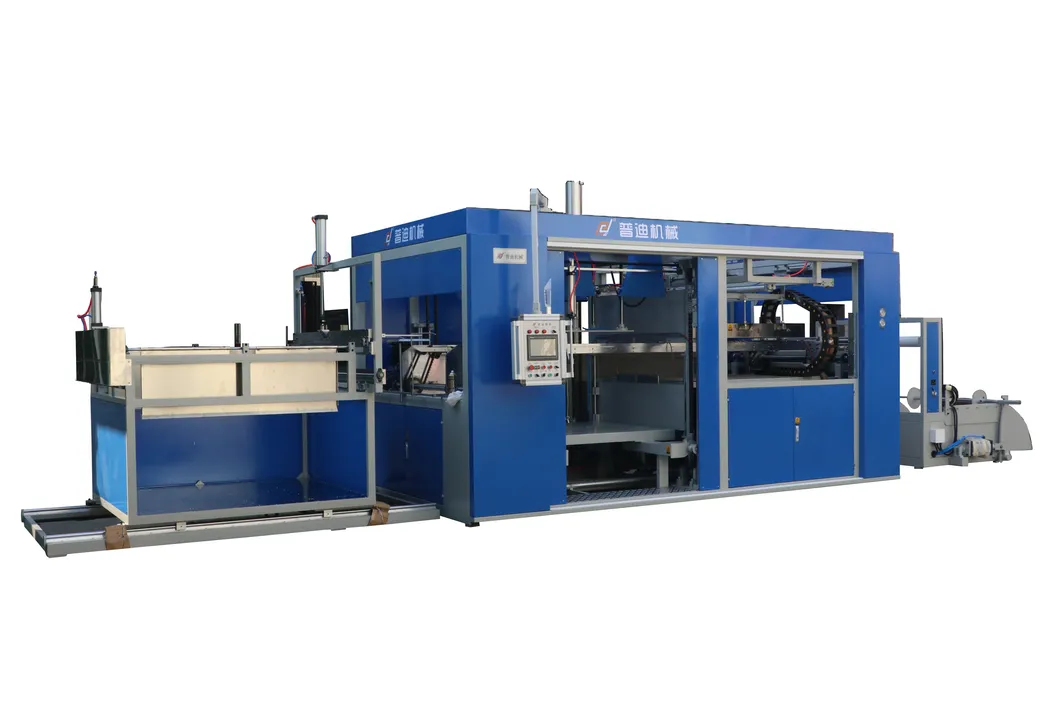

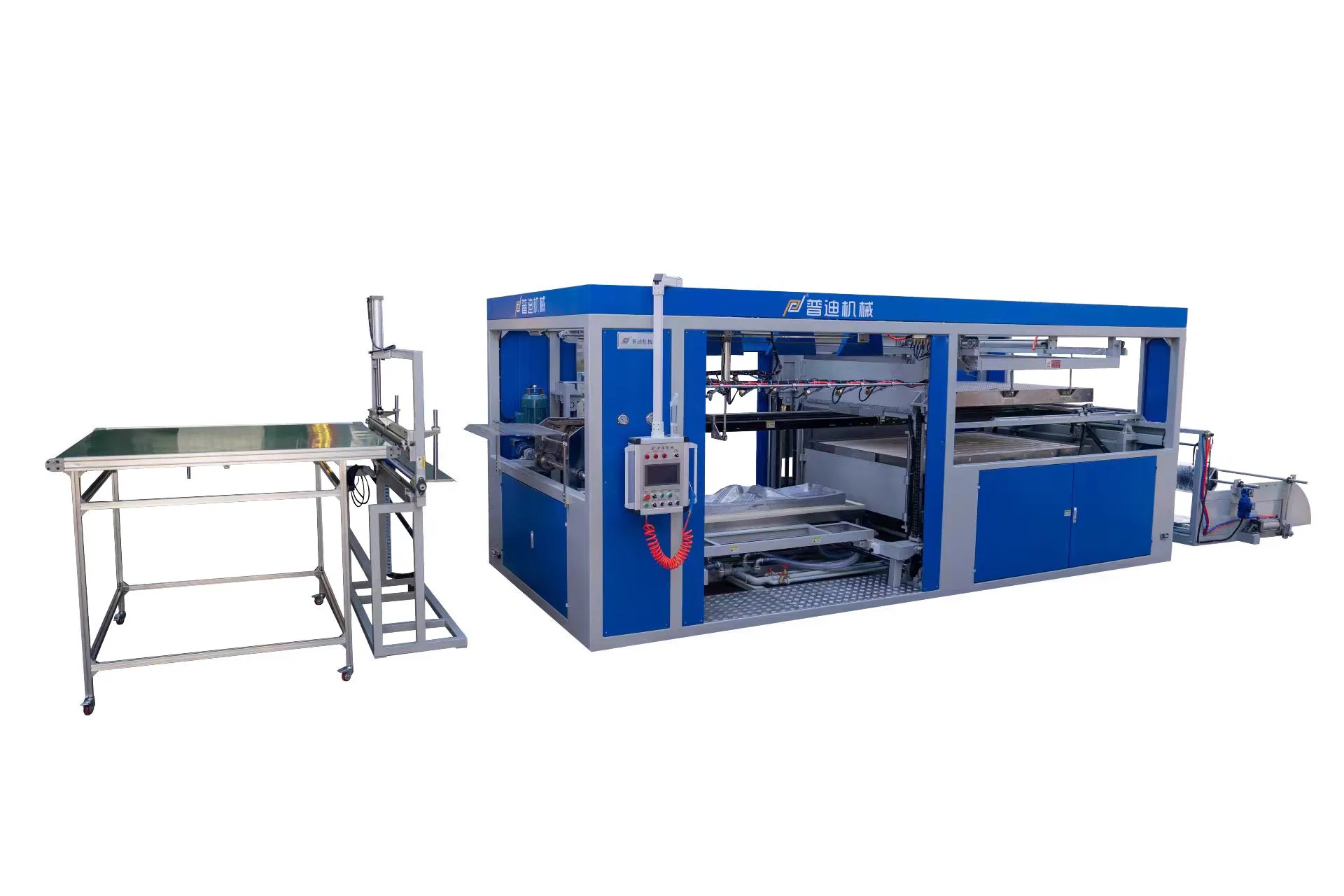

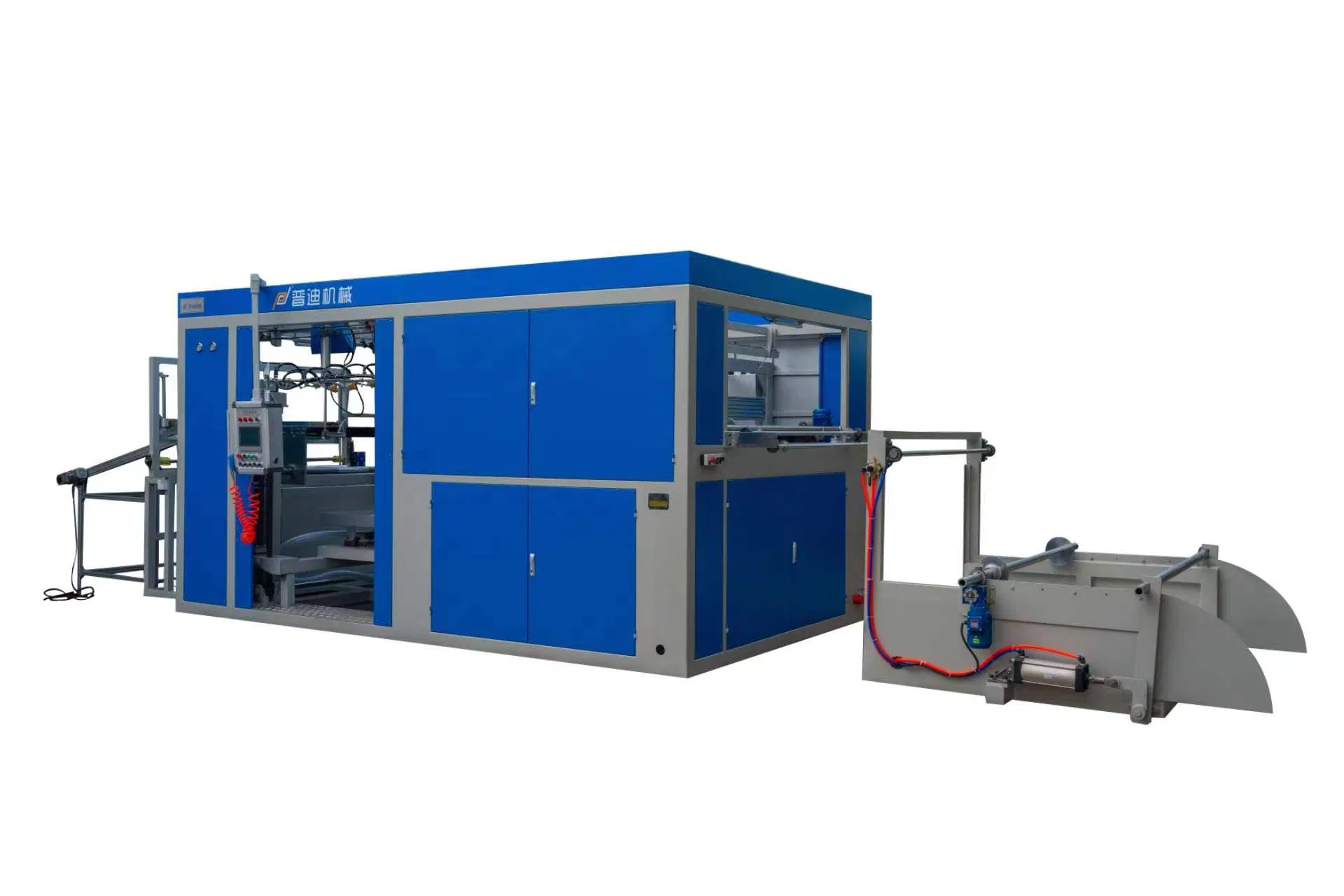

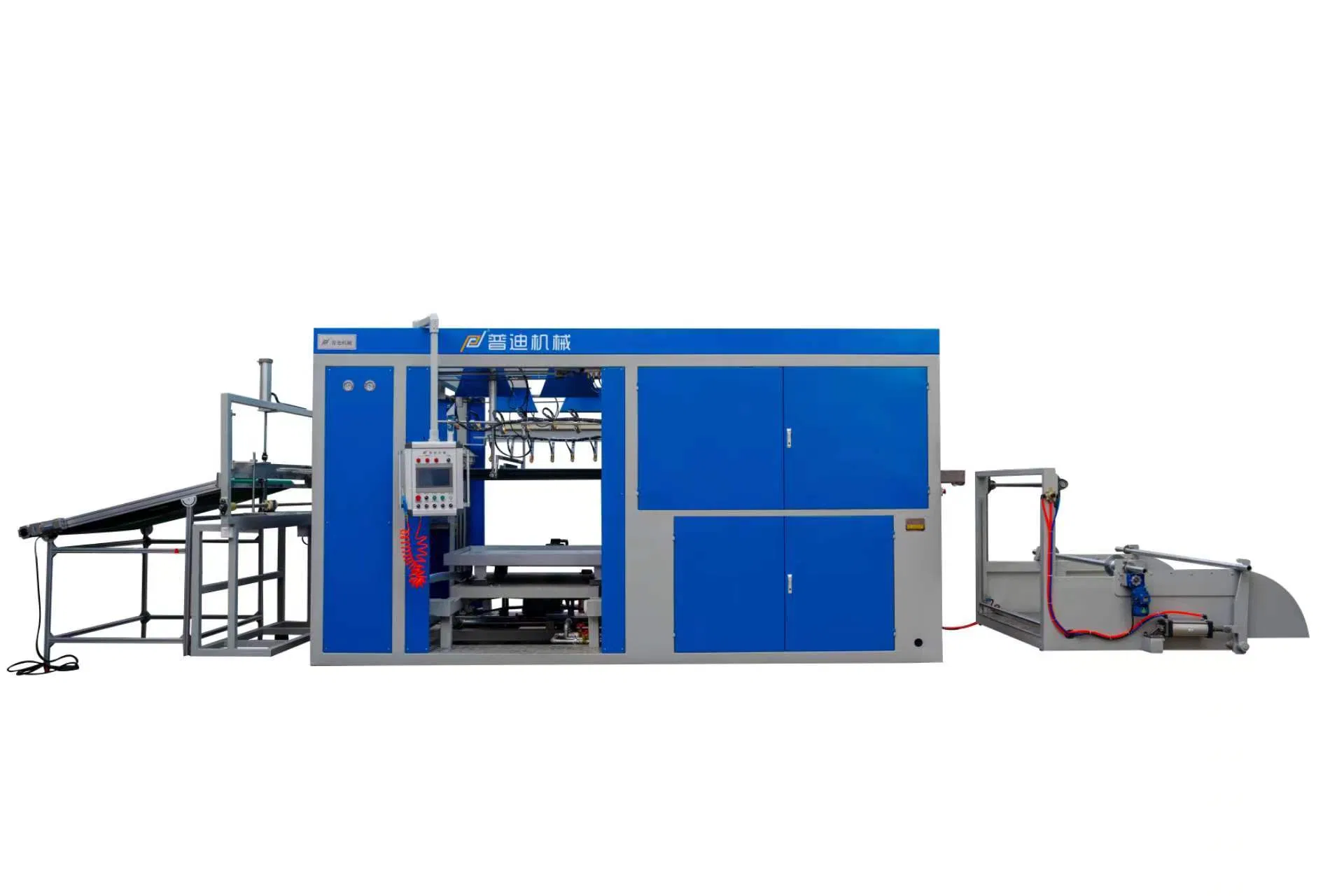

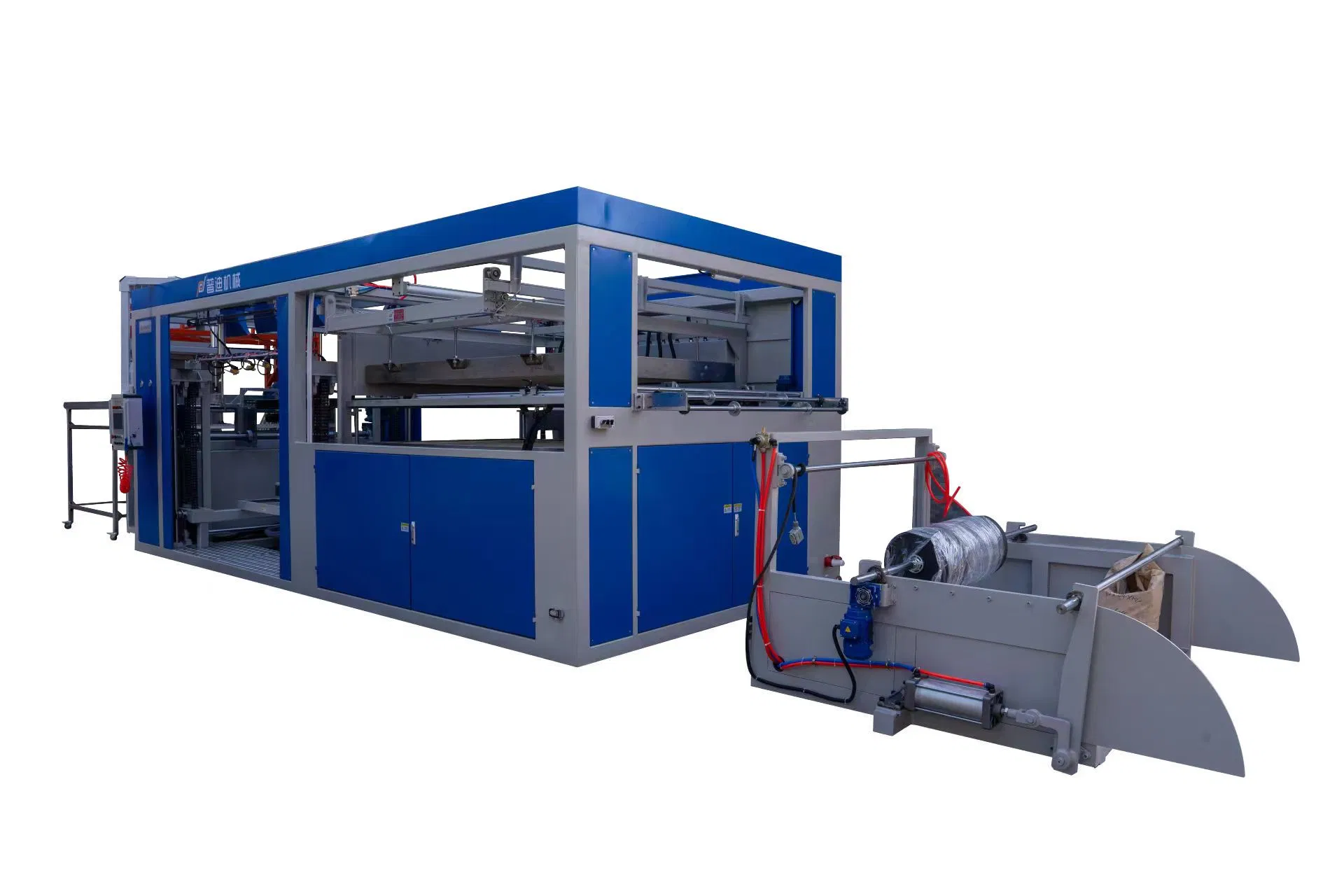

Thick Gauge PVC, TPE Car Mat Making Plastic Thermoforming Machine

1 / 5

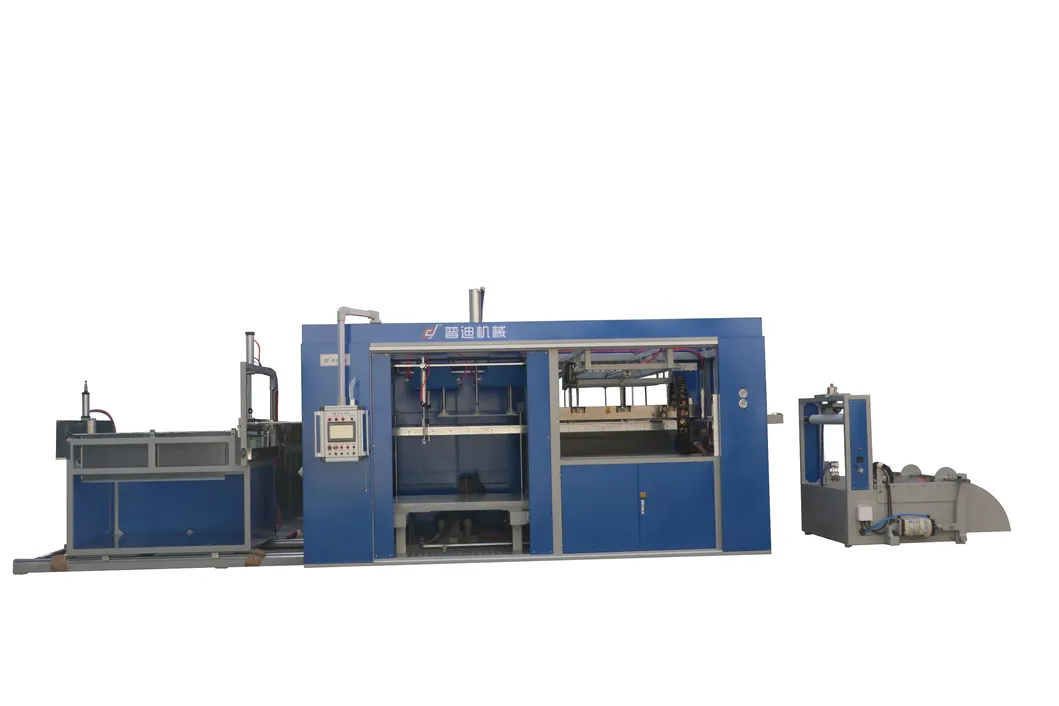

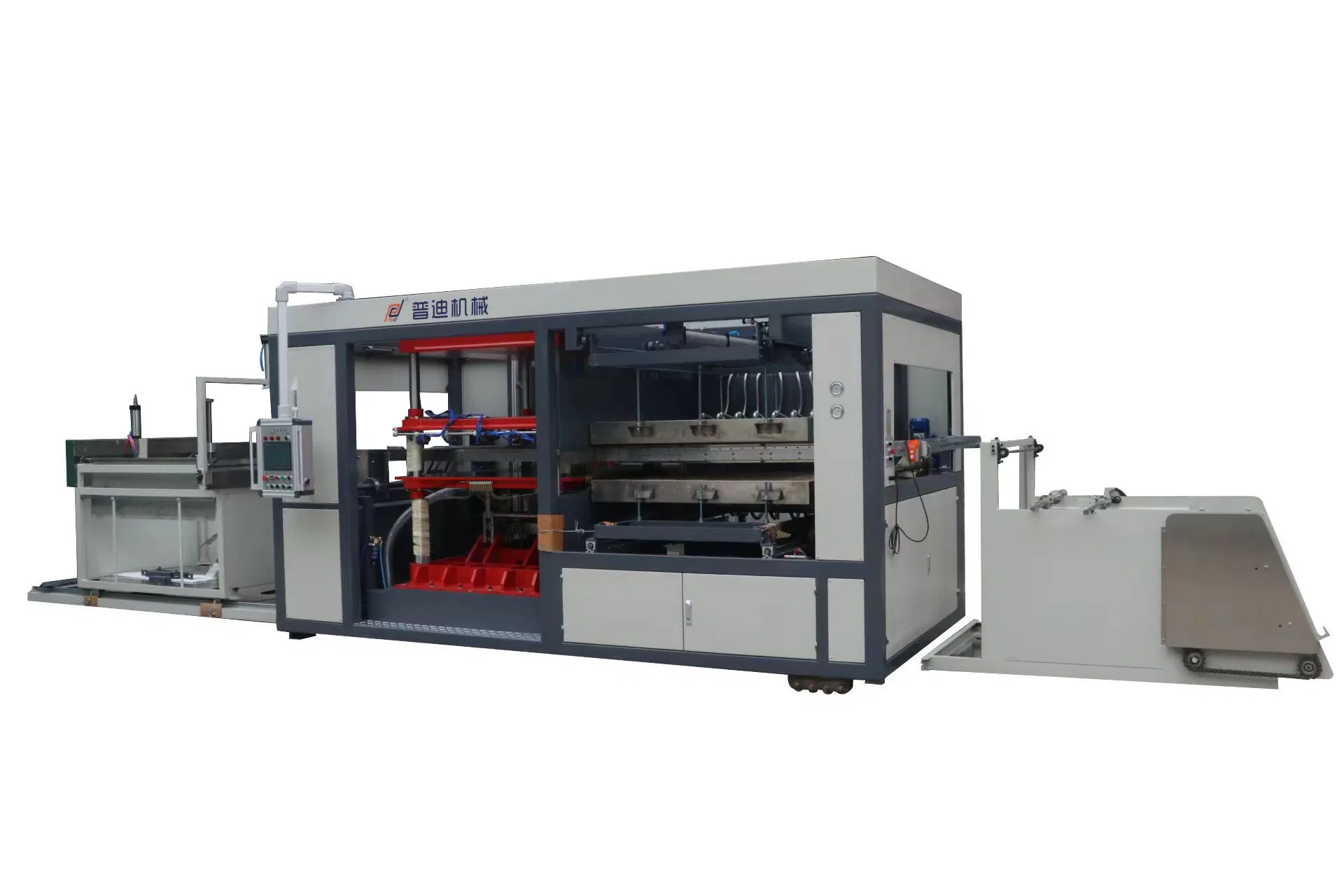

Thick Gauge PVC, TPE Car Mat Making Plastic Thermoforming Machine

Warranty:	1 Year
Automation:	Automatic
Raw Material:	ABS

Send Inquiry

Product Description

Basic Information

Model NO.	PDVF-Cm	Shaping Mode	Die Molding
Driven Type	Electric	Computerized	Computerized
After-sales Service	1 Year	Color	Blue
Output	200PCS/Year	Specification	Forming area: 1600mm*1300mm

Technical Specifications

Item	Technical Specification	Parameters
1	Molding area	1200mm×1800mm
2	Molding thickness	1-5mm
3	Product molding height	300mm
4	Furnace length	1875mm
5	Total power of furnace	90KW
6	Vacuum volume	200m³/h
7	Working efficiency	1 minute/mold (depends on thickness)
8	Machine size	10000mmX2000mmX2500mm

Product Description

Thick sheet vacuum forming machine specializes in high-quality plastic thermoforming. It is widely used for heavy-duty components requiring precision and stability.

Key Machine Features

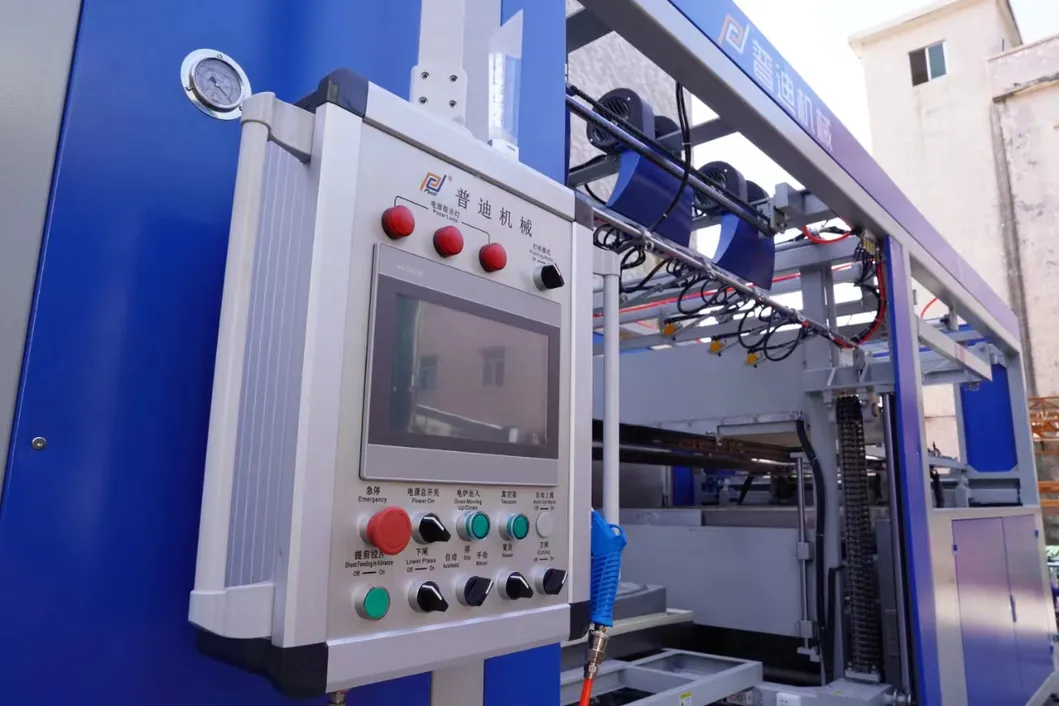

PLC control with touch screen interface for all functions.

Servo motor controlled pulling piece for accurate speed and length adjustment.

Independent mold table lifting driven by servo motor for various product heights.

Energy-efficient electric furnace with voltage temperature control.

Built-in water cooling system with chiller cabinet and heat insulation.

100 groups of memory system for saving production parameters.

Fast mold change time within 5-10 minutes.

Choice between air-cooled and spray cooling systems.

Applications & Build Quality

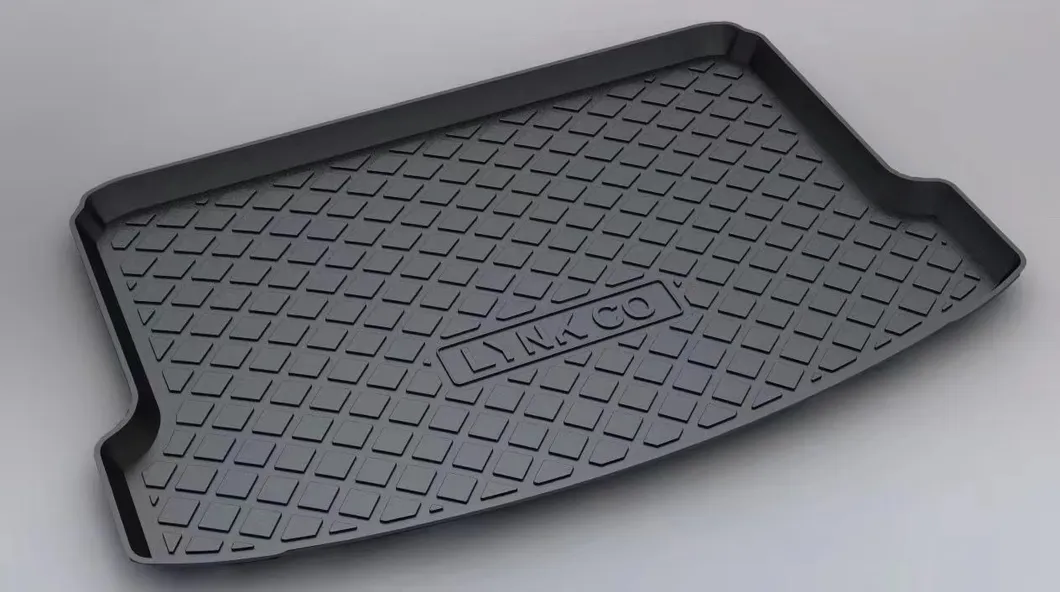

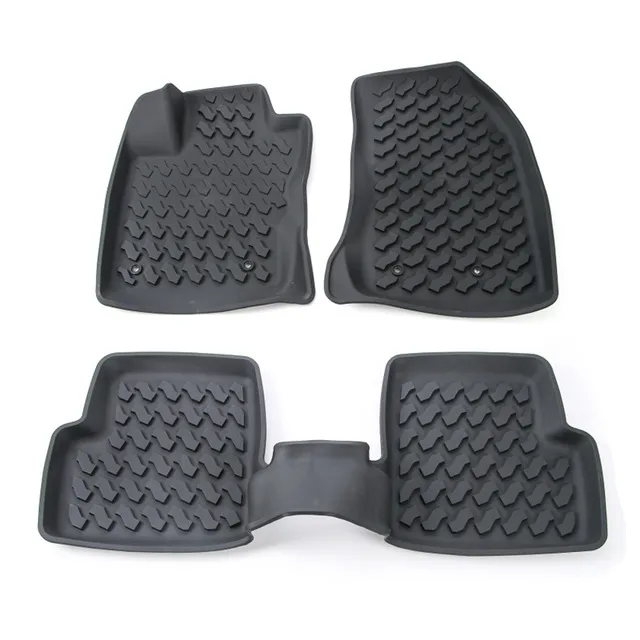

Primary Use: This equipment is specifically designed for producing high-quality automobile foot mats and tail mats.

Machine Body: Constructed from welded steel profiles with high strength and rigidity. All surfaces are treated with antirust bottom spray. The structure uses standardized parts for easy maintenance.

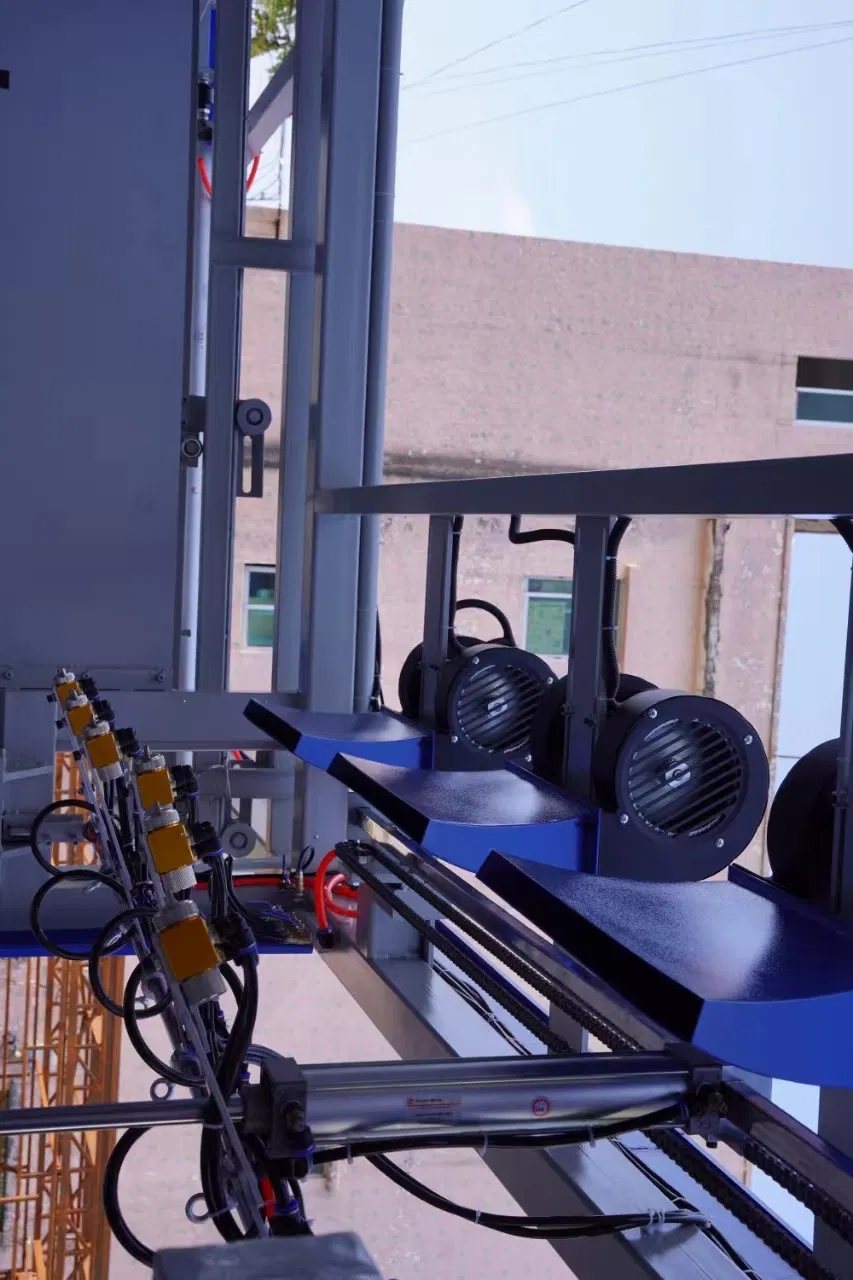

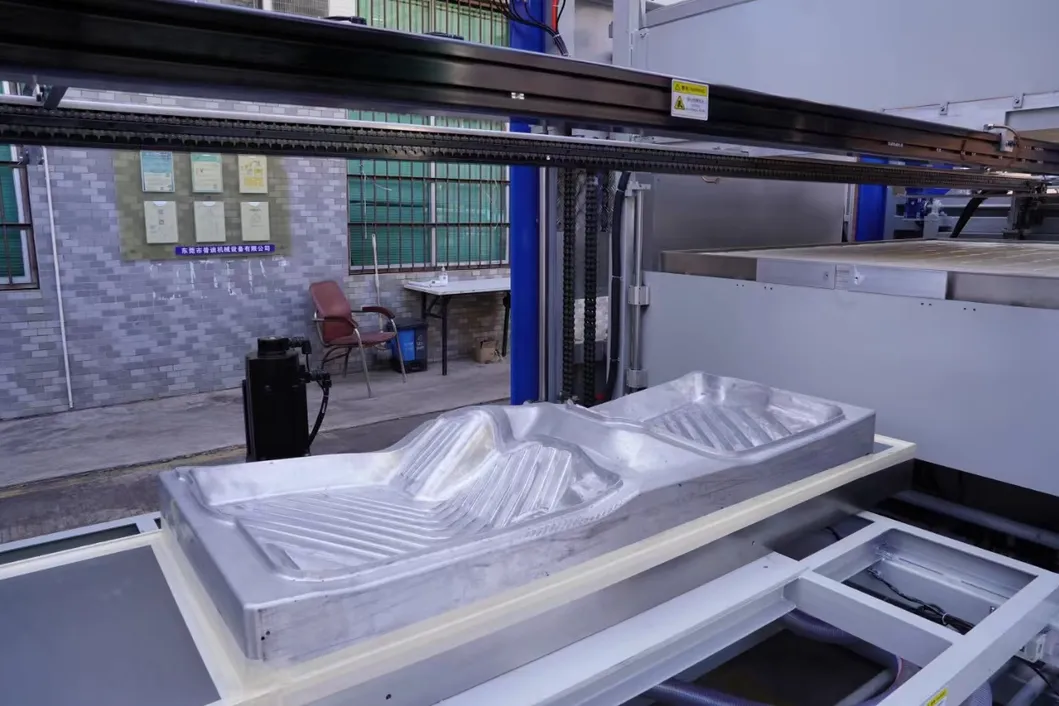

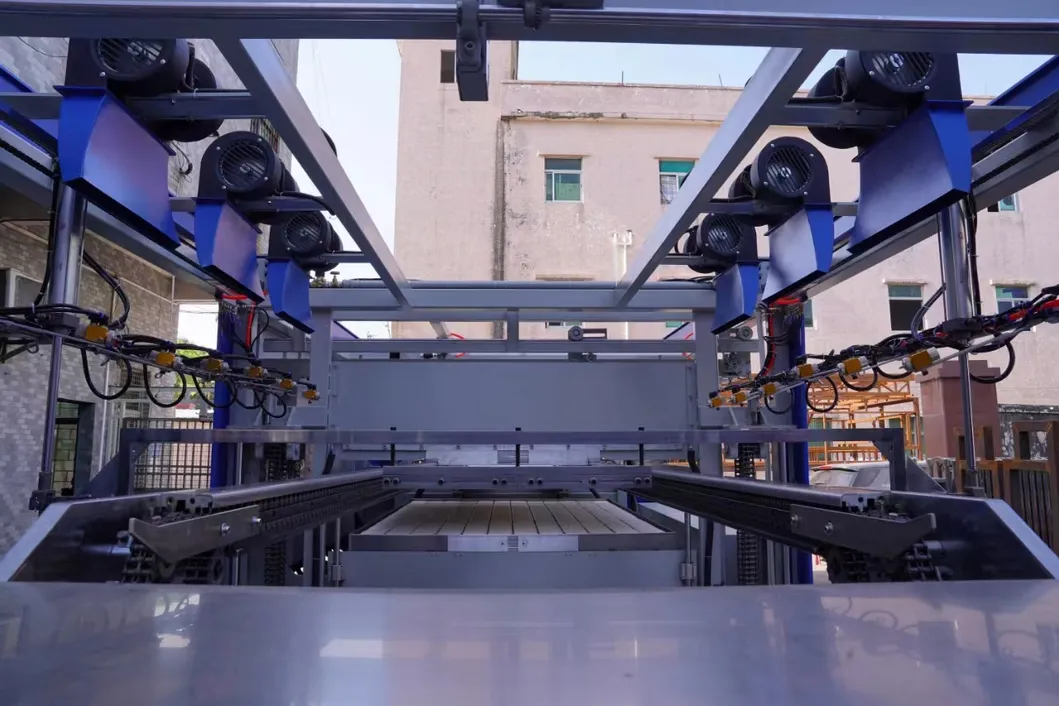

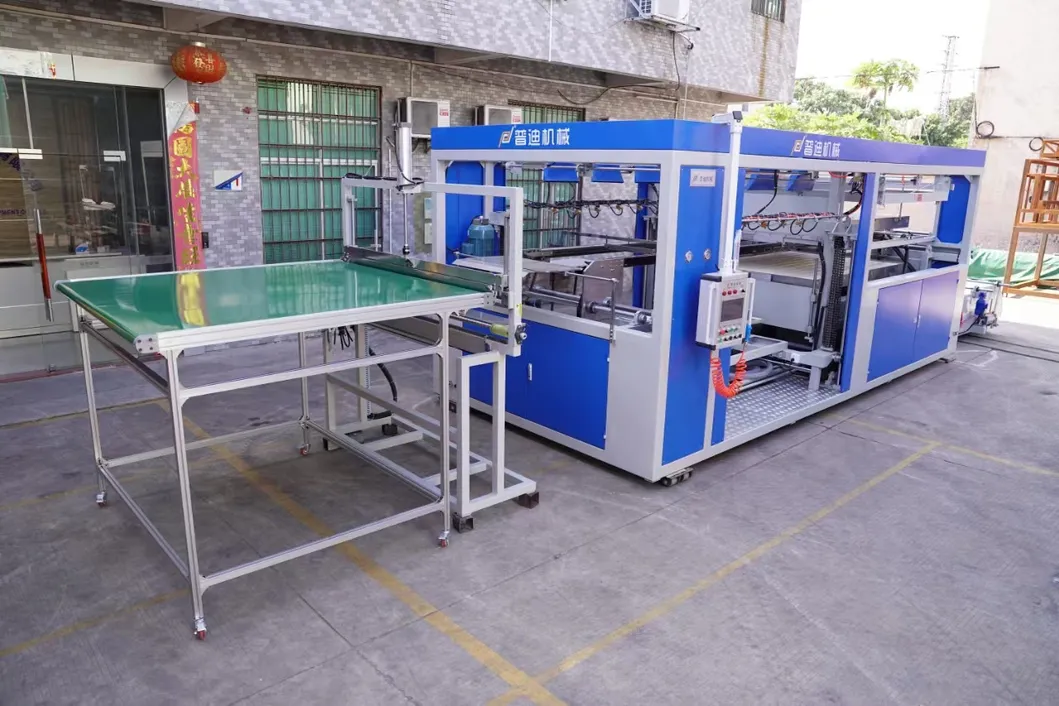

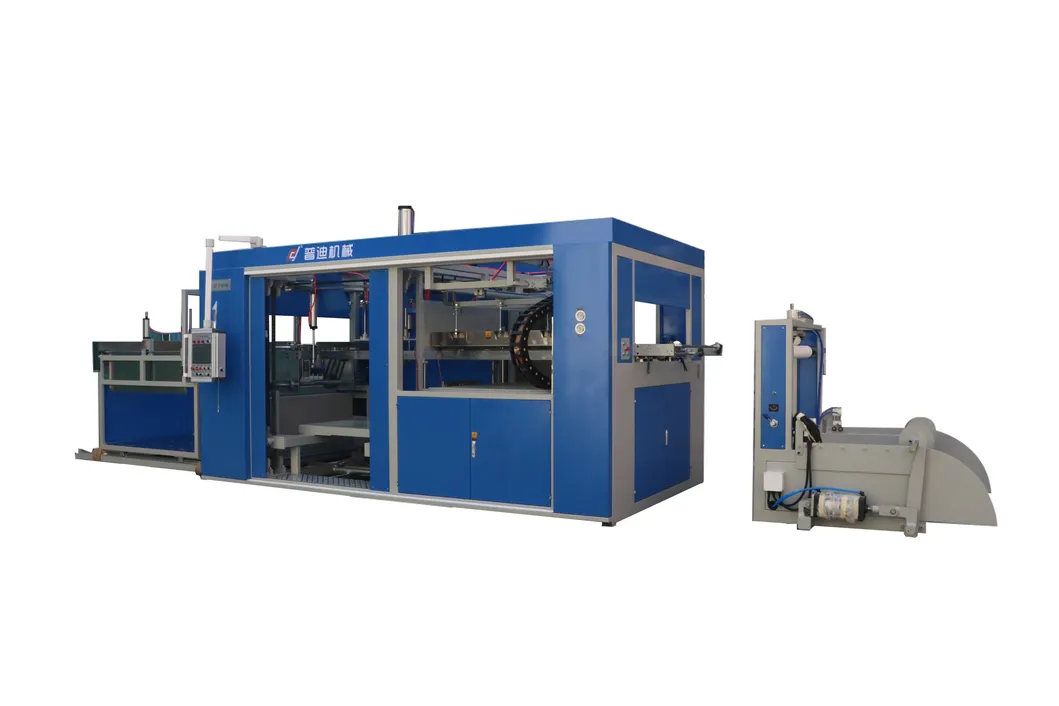

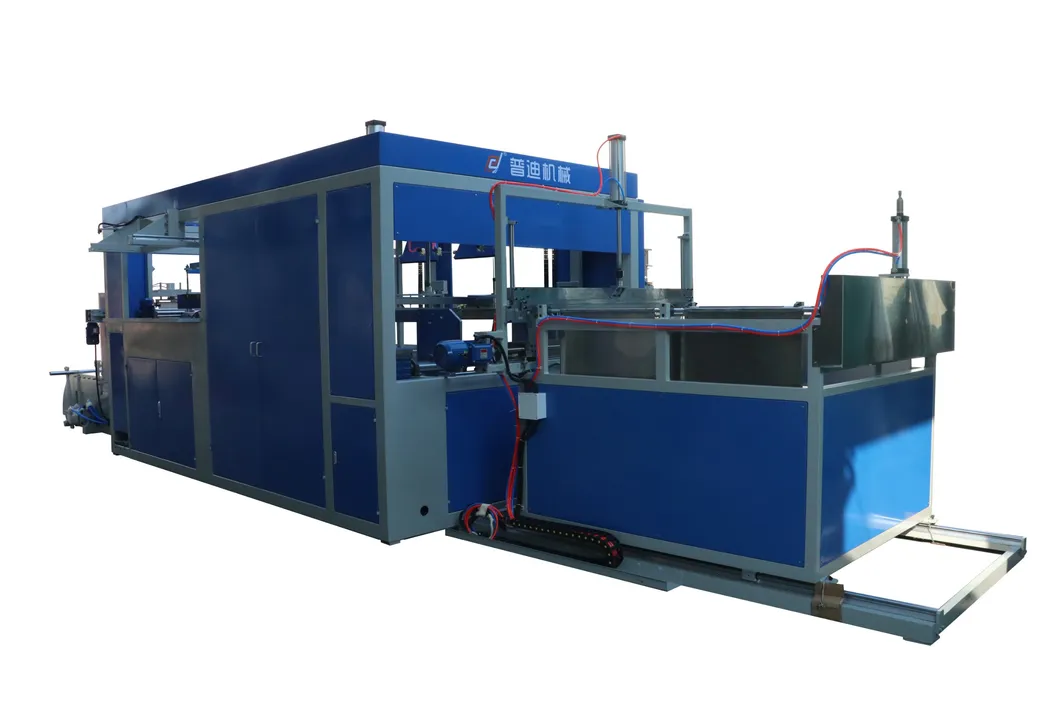

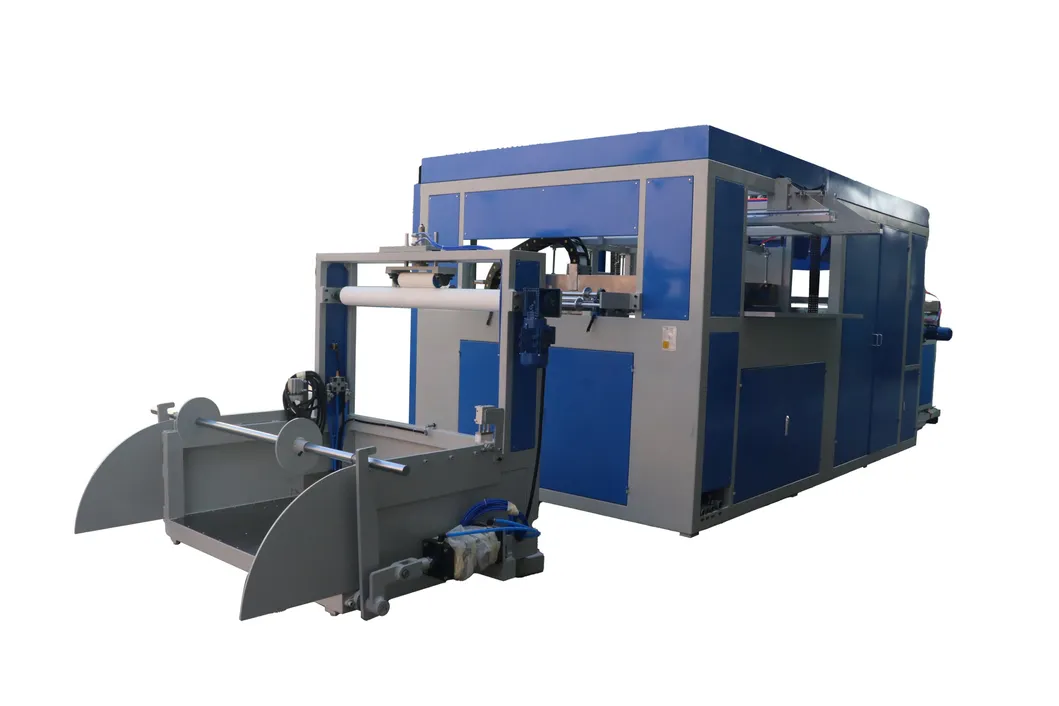

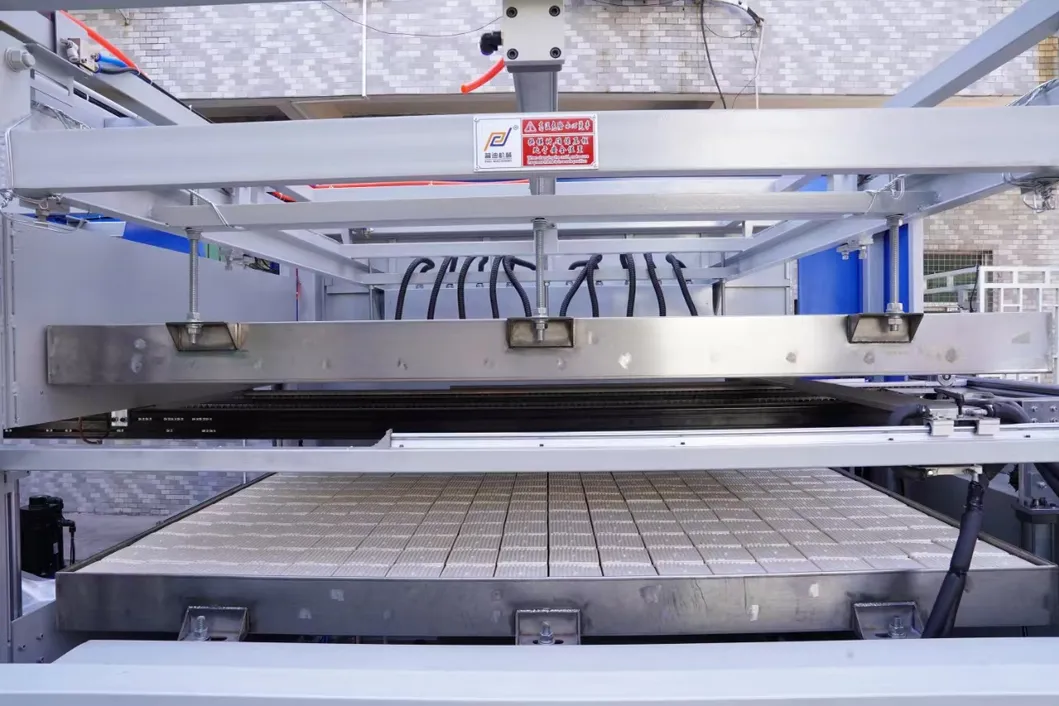

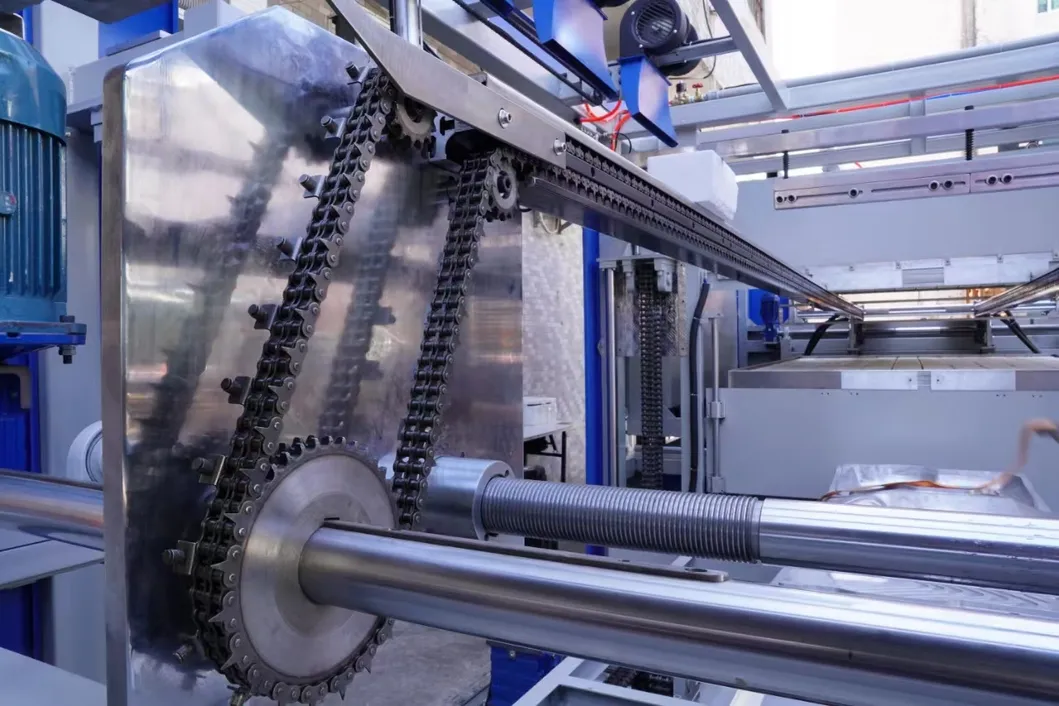

Machine Detail & Components

Service Standards

Pre-Sales

Reasonable investment ratio planning.
Requirement calculation for water, electricity, and gas.
Workshop planning programs.

The Sale

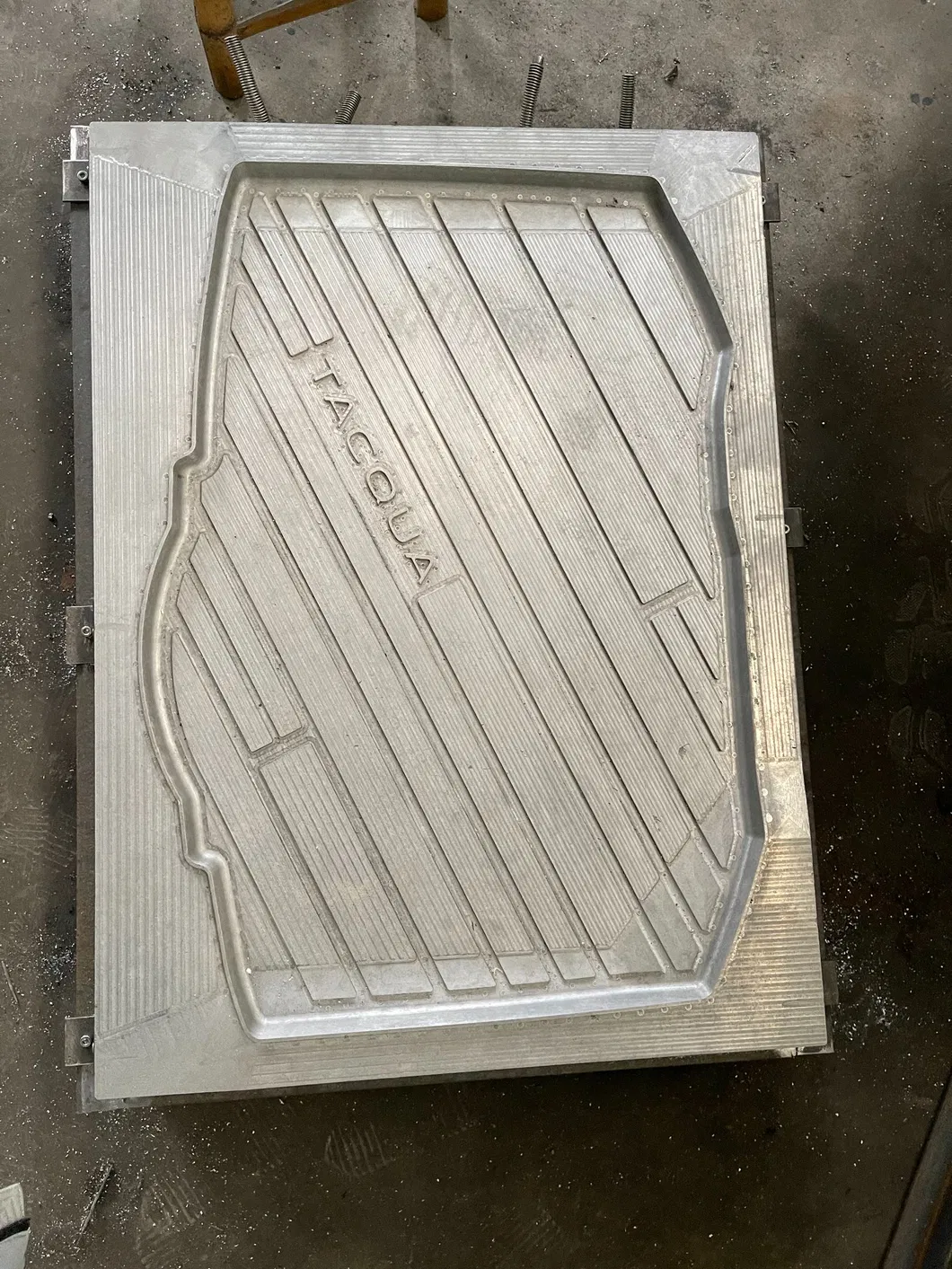

Mold planning and development proposals.
Installation, commissioning, and staff training.
Cost reduction suggestions for newcomers.

After-Sales

One-year warranty for equipment.
Lifetime maintenance support.
Regular follow-up visits.

Frequently Asked Questions

Q1: What materials can this vacuum forming machine process? A: The machine is designed for thick sheet materials such as PVC and TPE, with a thickness range of 1-5mm.

Q2: What is the production cycle time for this equipment? A: The average working efficiency is about 1 minute per mold, depending on the thickness of the plate used.

Q3: How long does it take to change a mold? A: The mold change time is very short, typically taking only 5 to 10 minutes.

Q4: What are the power requirements for installation? A: The machine requires a three-phase five-wire 380V power supply. The total equipment power is approximately 100KW.

Q5: Can the machine store different product settings? A: Yes, the PLC program includes a memory system that can store up to 100 groups of production parameters for easy retrieval.

Q6: What is the maximum height of the molded product? A: The equipment supports a product molding height of up to 300mm.
