Model: PZ-420
Automation: Automatic
Power: Electric
Type: Stretch Film Vacuum Packing Machine
Speed: 6-8 Cycles / Min
Capacity: 4600-5000 Pcs / Hour
| Application | Electronic Component, Drug, Food, Medicine, Hardware etc. |
|---|---|
| Object State | Paste, Powdery, Liquid, Solid, Particle |
| Available Width of Film | 384mm |
| Specification | 6600*1000*1800mm |
| Weight | About 1800 Kgs |

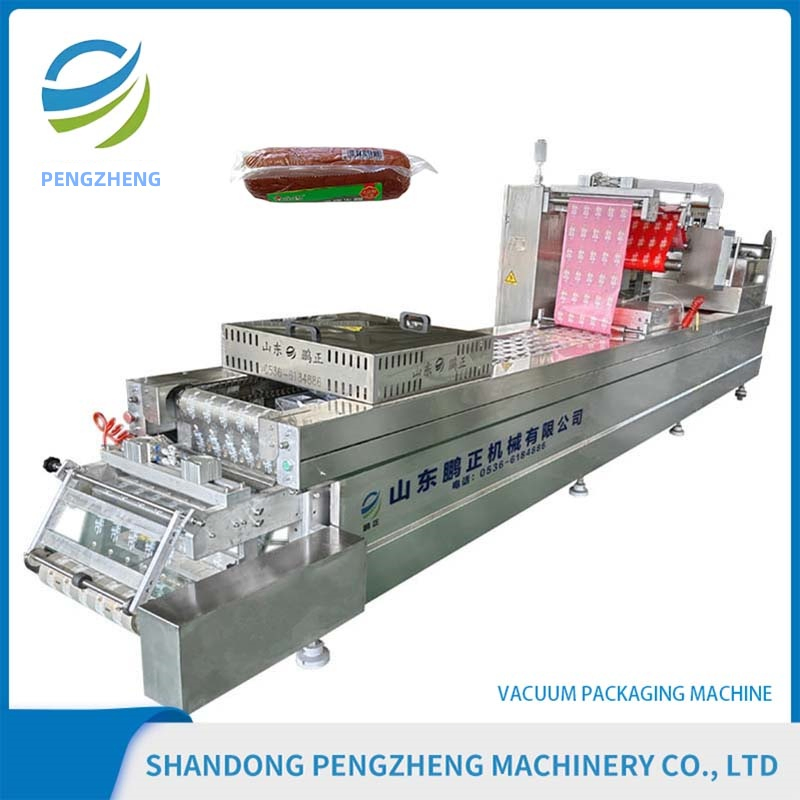

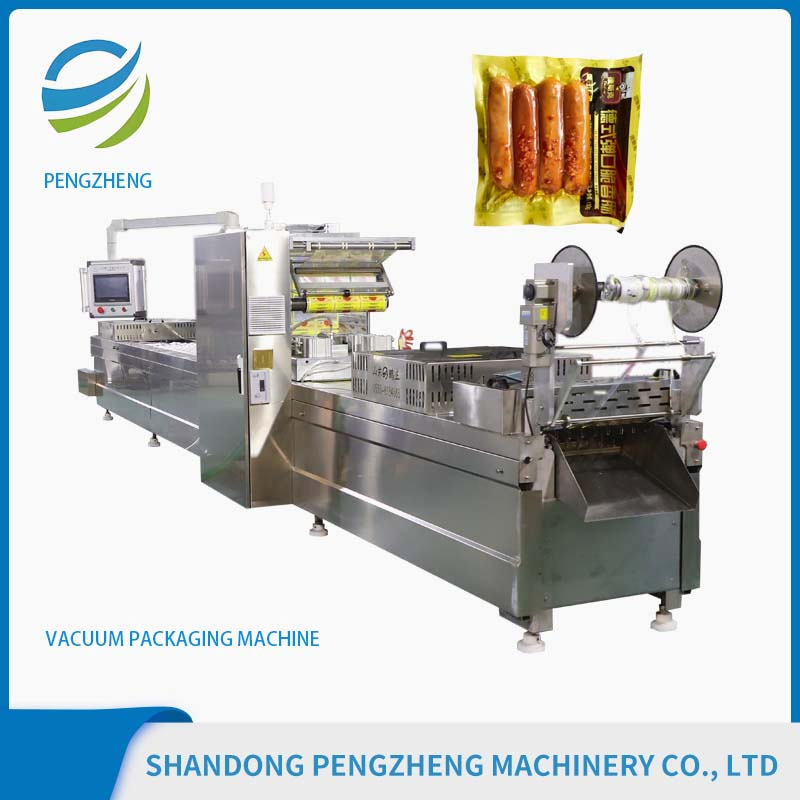

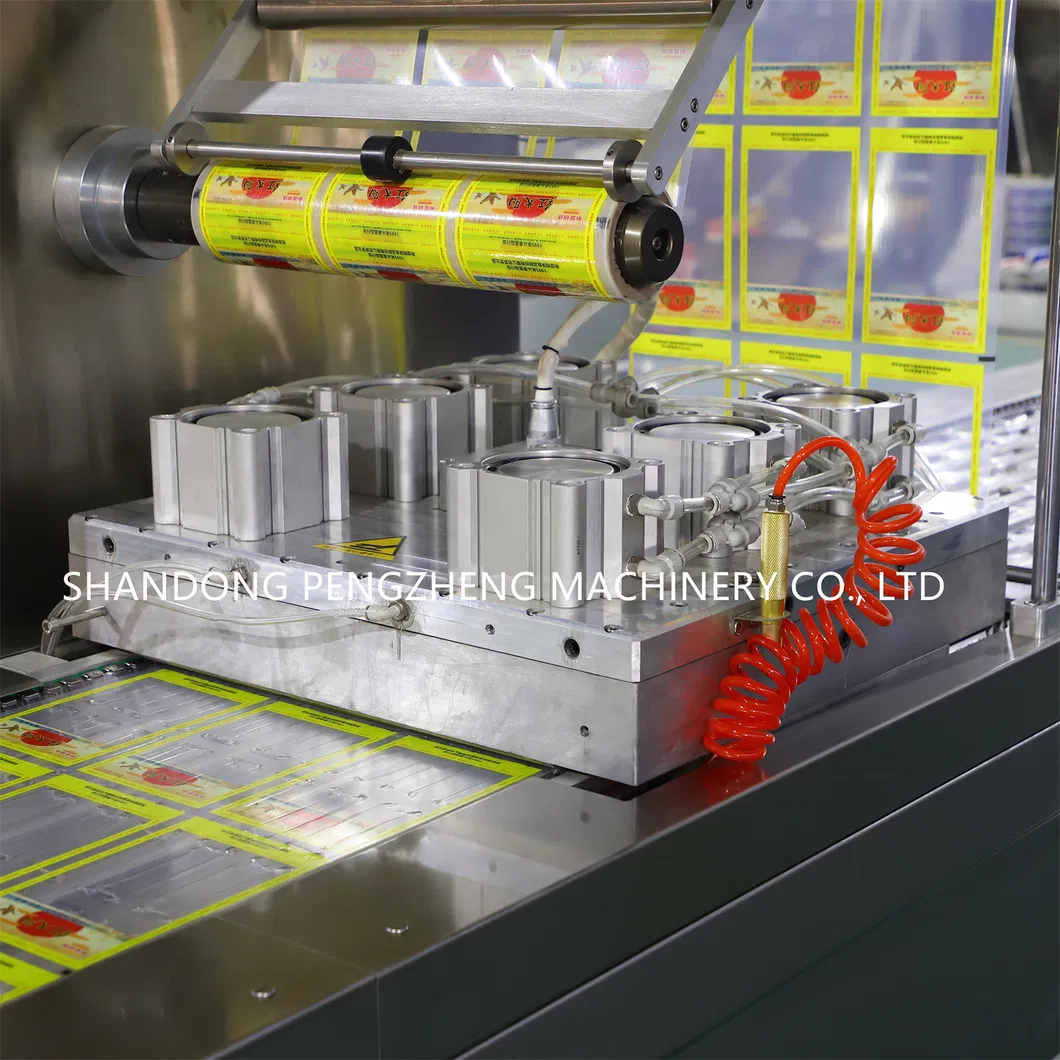

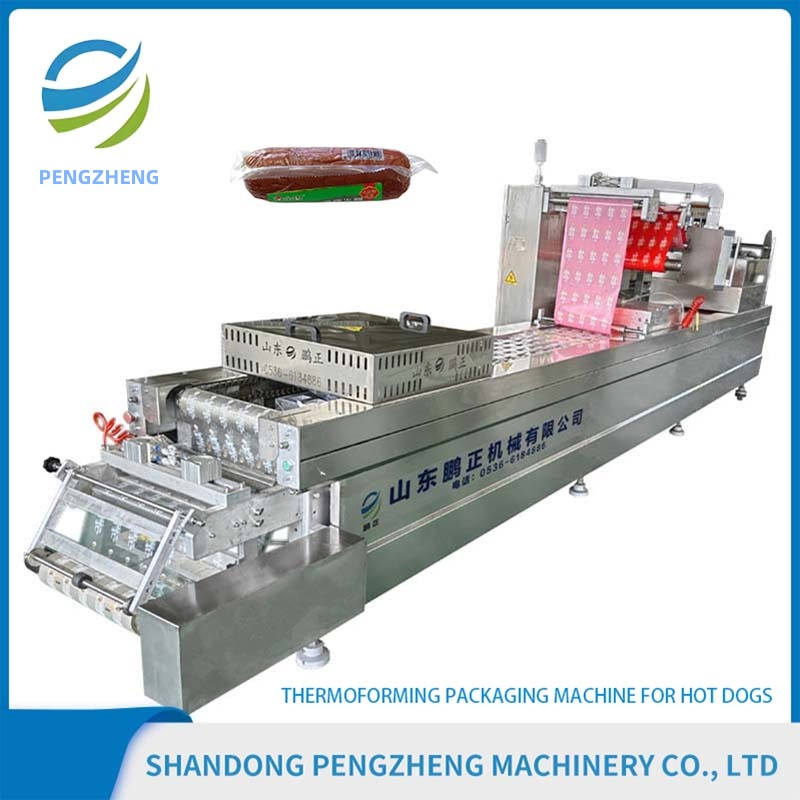

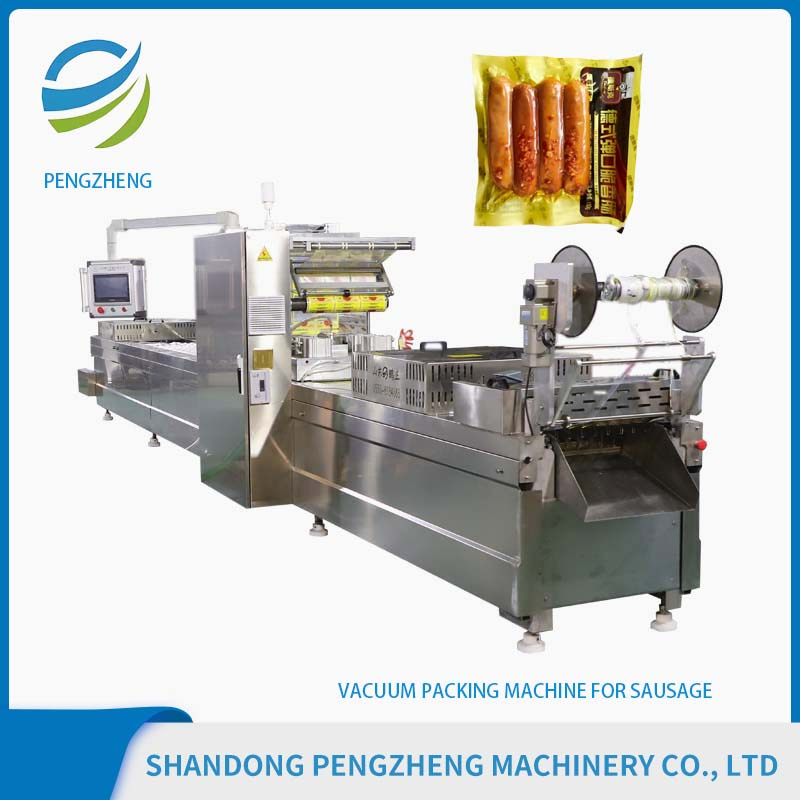

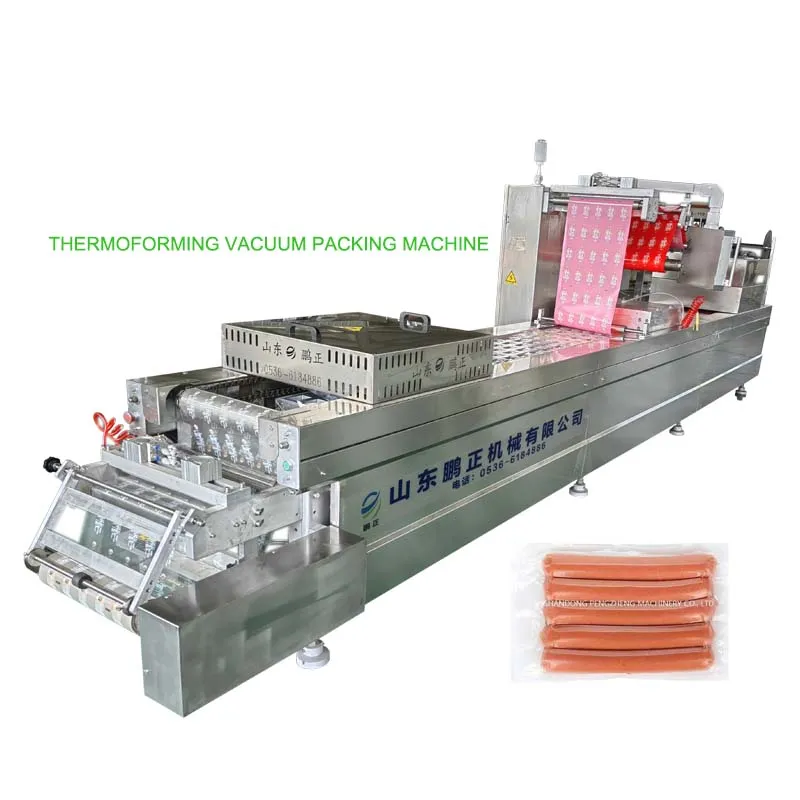

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed to package a variety of products including sausages, fish, shrimp, steak, beef jerky, and even toys. Utilizing advanced thermoforming technology, it ensures airtight packaging to maintain freshness and extend shelf life.
Tailored designs to meet specific industry needs.
Delivering 6-8 cycles per minute for high-volume output.
Integrated sensors and emergency stops for worker security.

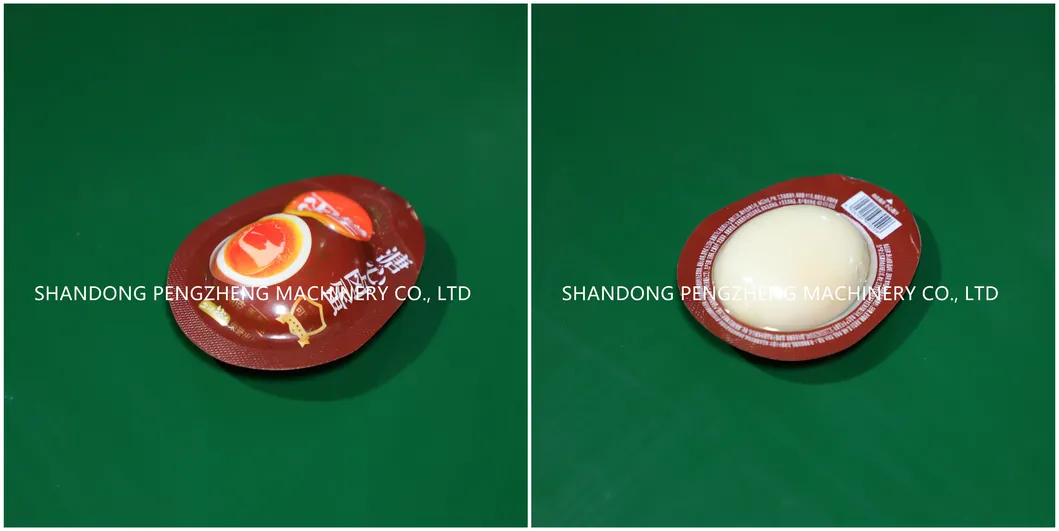

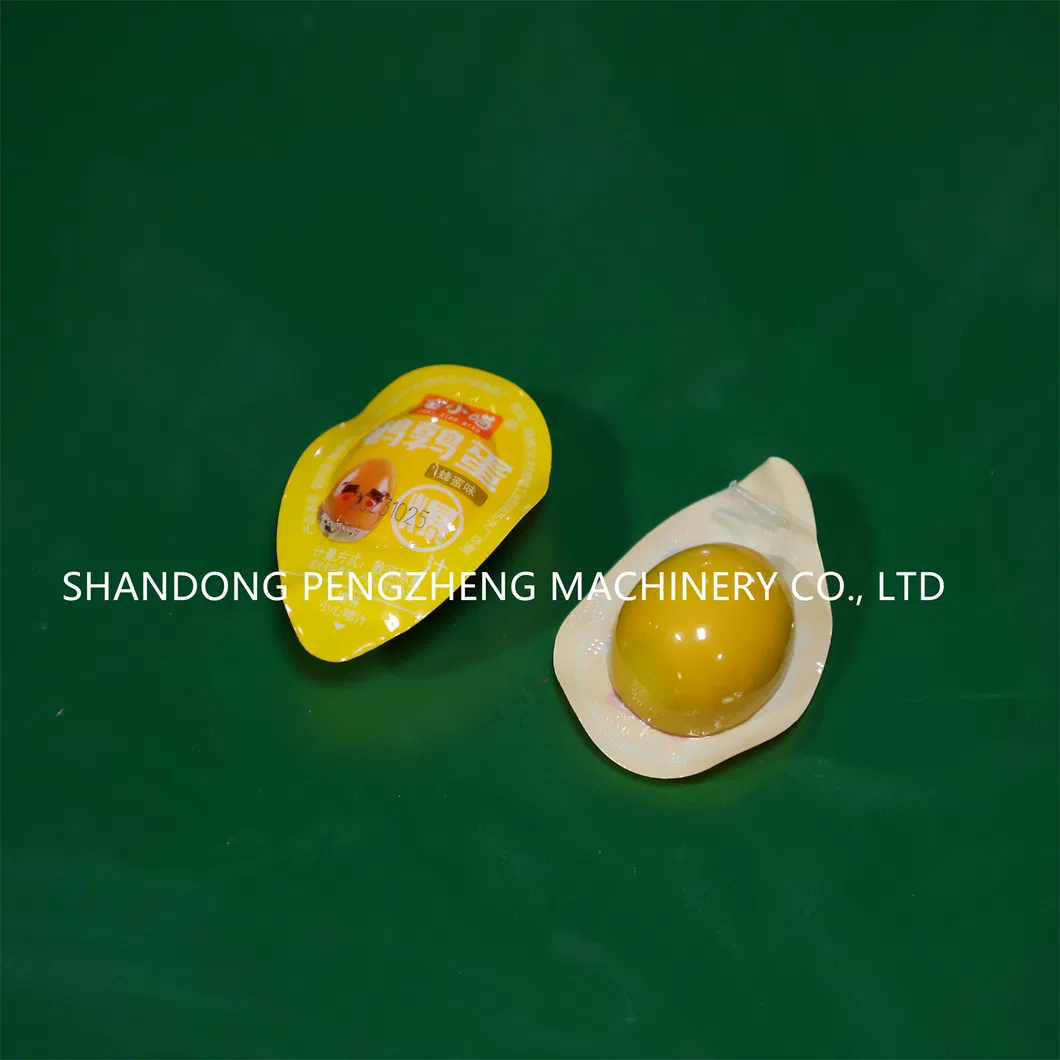

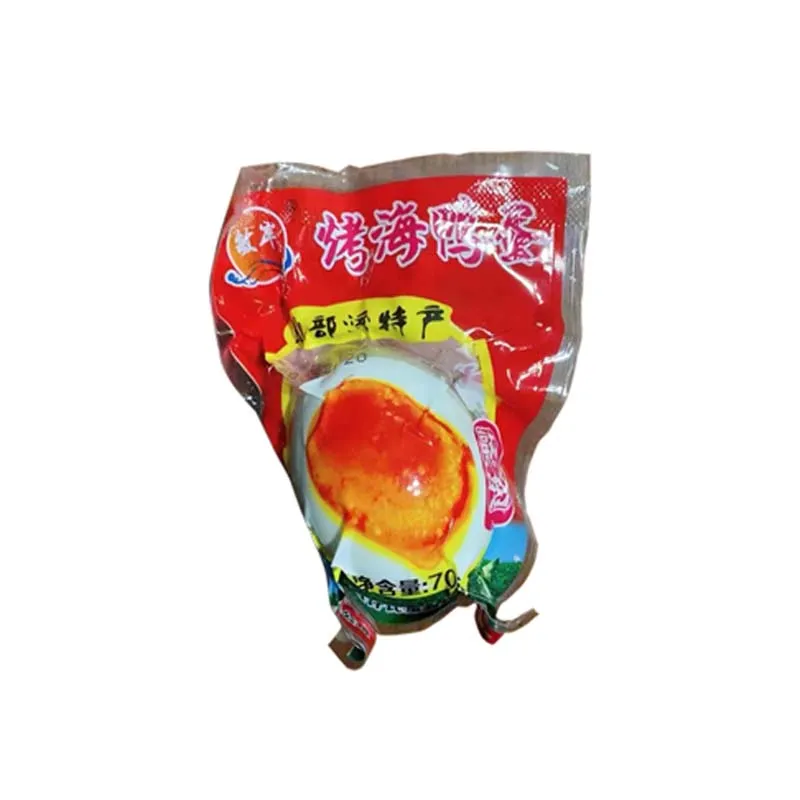

| Details | Traditional Bag | Single Side Stretch | Double Side Stretch |
|---|---|---|---|
| Forming Depth | None | Max 120mm | Uniform & Thicker |
| Efficiency | Low | High | Middle |
| Cost | High | Low | Middle |
| Appearance | Standard | Beautiful Printing | Highly Aesthetic |

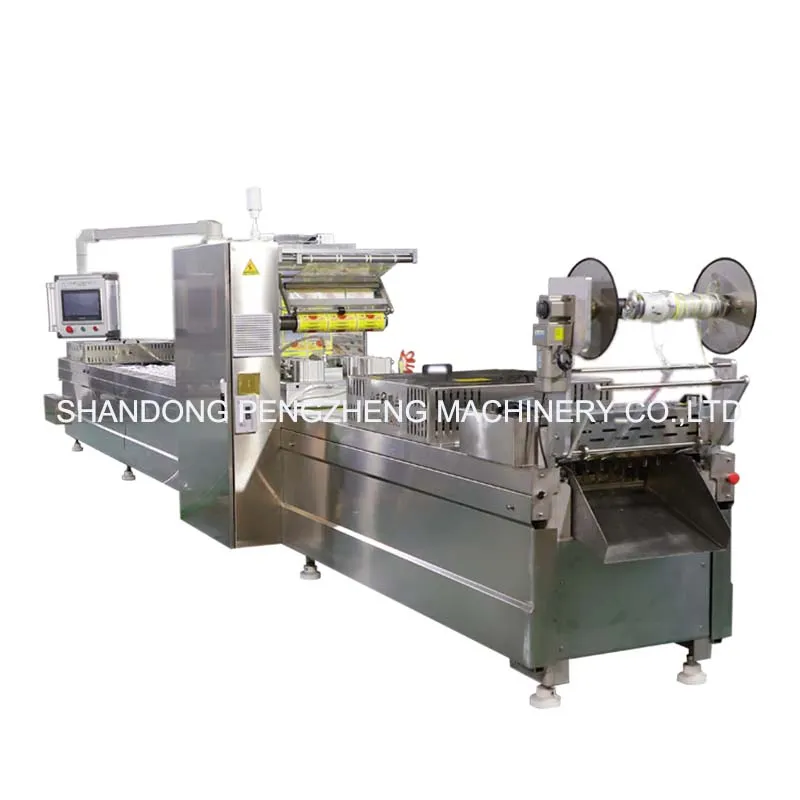

| Main Components | |
|---|---|
| Vacuum Pump | RIETSCHLE (Germany) |
| Electrical Components | Schneider (France) |
| Servo Motor | Schneider (France) |
| Chain | TYC (Taiwan) |
| Working Parameters | |
|---|---|
| Thermoforming Temperature | 70-120 °C |
| Sealing Temperature | 125-150 °C |
| Vacuum Degree | ≤200 Pa |
| Packing Capacity | 4600-5000 pieces/h |
Vacuum sealing extends shelf life by 2-3 times.
Uses up to 40% less film compared to traditional wrapping.
24-hour hotline and lifelong maintenance support.
