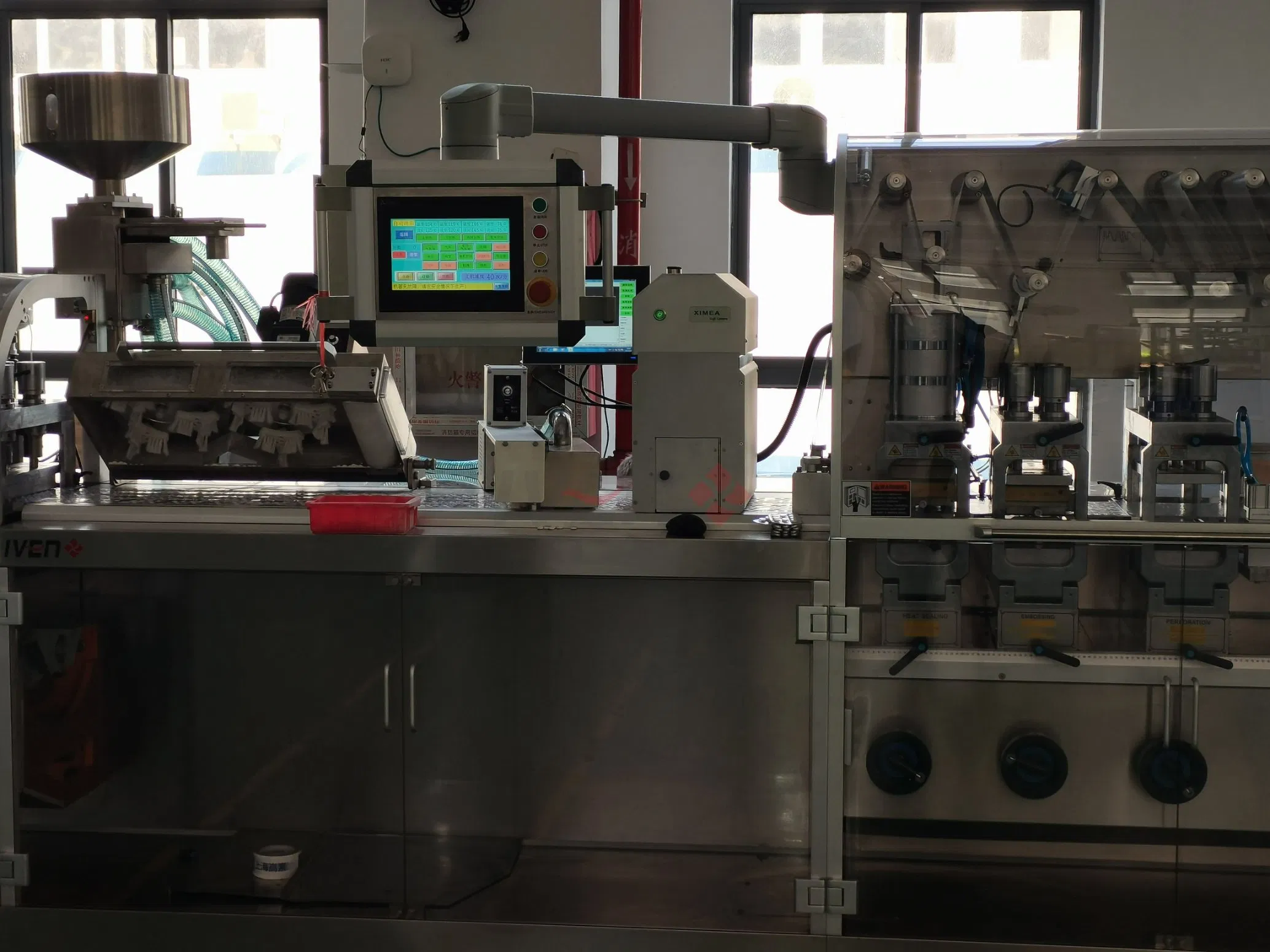

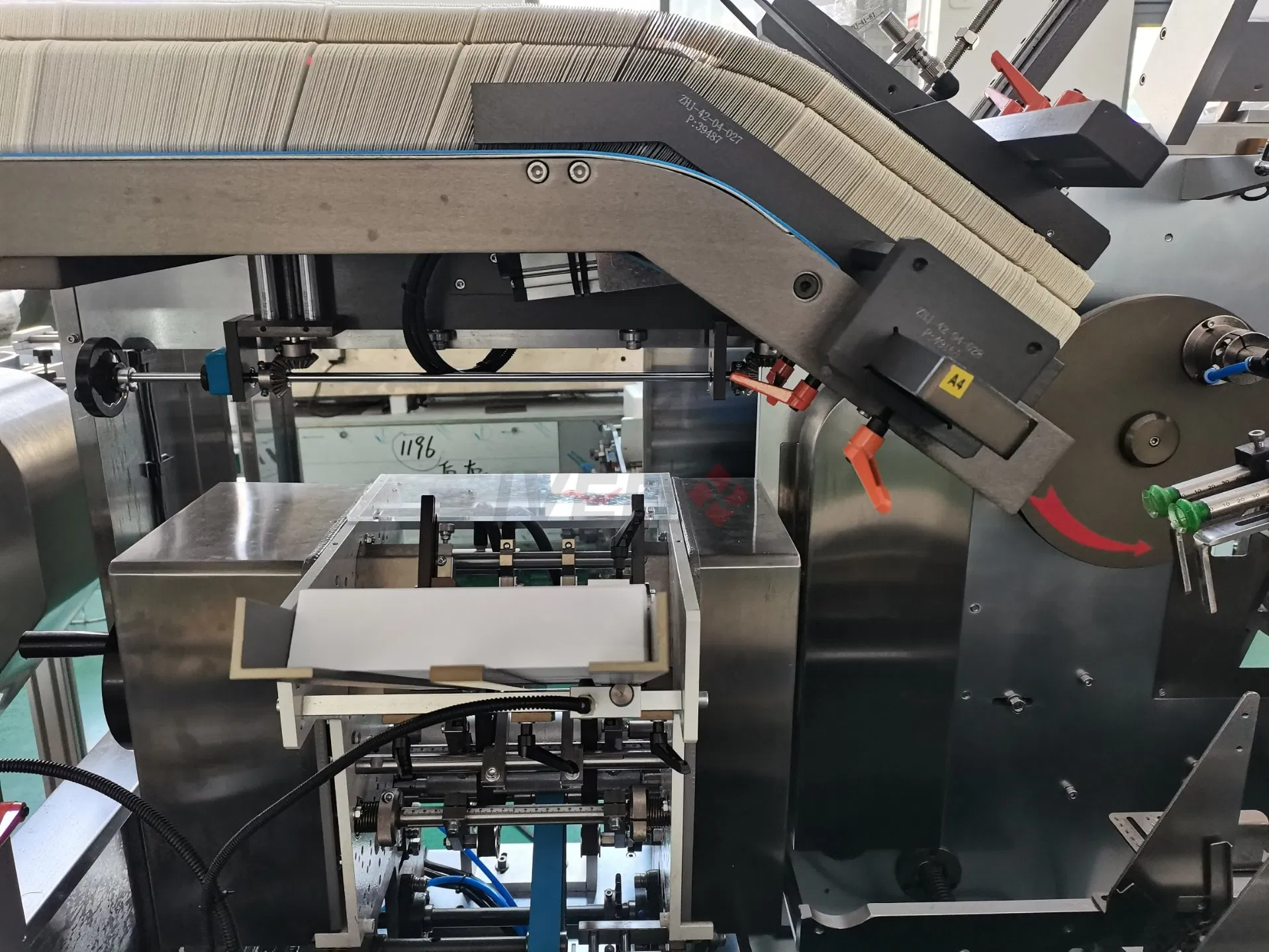

Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
1 / 5
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality
Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality

Rapid and Precise Blister Packaging and Carton Box Production Line with Good Quality

After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year
Automatic Grade: Field Installation, Commissioning and Training
Send Inquiry

Product Description

Basic Info
Model NO.
customized
Application
Drinks, 1 Year
Type
Forming Filling Sealing Machine
Forming Species
Pharmaceutical & Medical
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Liquid
Packaging
Cartons
Packaging Material
Paper
Characteristics
Reliable Sealing, Convenient Use, Beautiful Packing
Usage
Capsule Blister Sheet Packing
Product Material
PVC Pet PP PS Blister
Machine Application
Food, Commodity, Machinery & Hardware
Core Components
PLC, Gearbox
Advantages
High Efficiency; High Productivity
Machine Material
Stainless Steel
Production Speed
10-20 cycle/Min
Origin
China
Product Description

Our Blister packaging and cartoning machines are essential equipment used in the pharmaceutical, healthcare, and food industries for efficient and automated packaging. They play a vital role in ensuring product safety, extending shelf life, and improving overall product presentation.

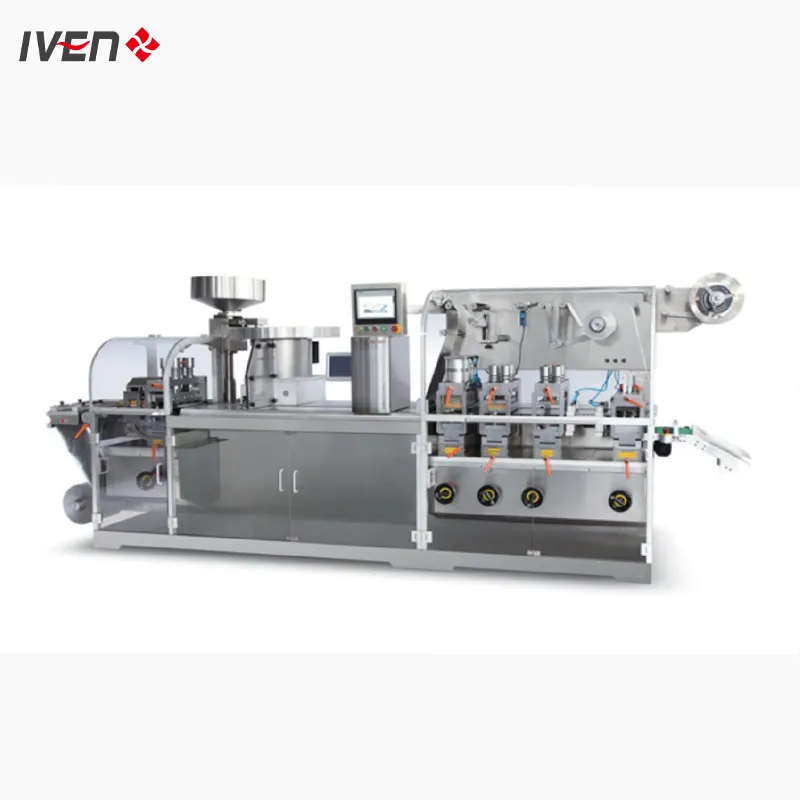

Blister Packaging Line

Application Fields:

  • ✔ Alu-Pvc and Alu-Alu packing for medicines, capsules, and tablets.
  • ✔ Sealed blister packing for syringes, ampoules, and medical products.
  • ✔ Food, electronic parts, and hardware product packaging.
Main Features
  • ✦ Main Drive: Motor located at the back for easy maintenance; synchronous belt drive reduces oil stains.
  • ✦ Guide Rail: Cantilever installation makes it convenient for operators to clean dropped items.
  • ✦ Mould Adjustment: Lathe type guide rail with pinion and rack adjustment; includes position indicators.
  • ✦ Fast Changeover: All moulds (forming, sealing, punching) can be pushed into position by hand without tools.
  • ✦ Material Handling: Air shafts for PVC and aluminum foil; connection devices for fast roll changes.

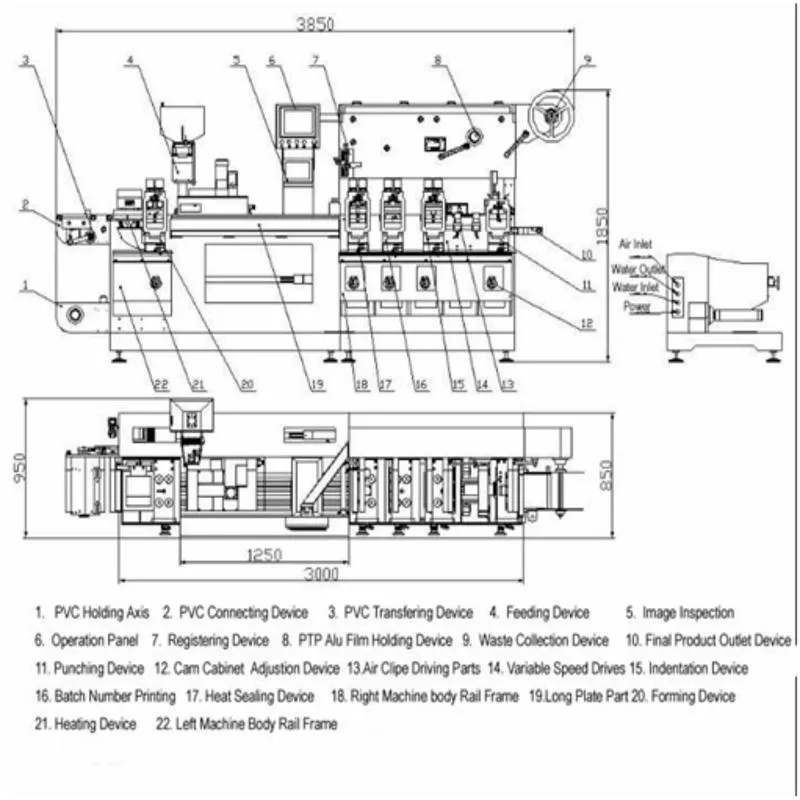

Machine Features

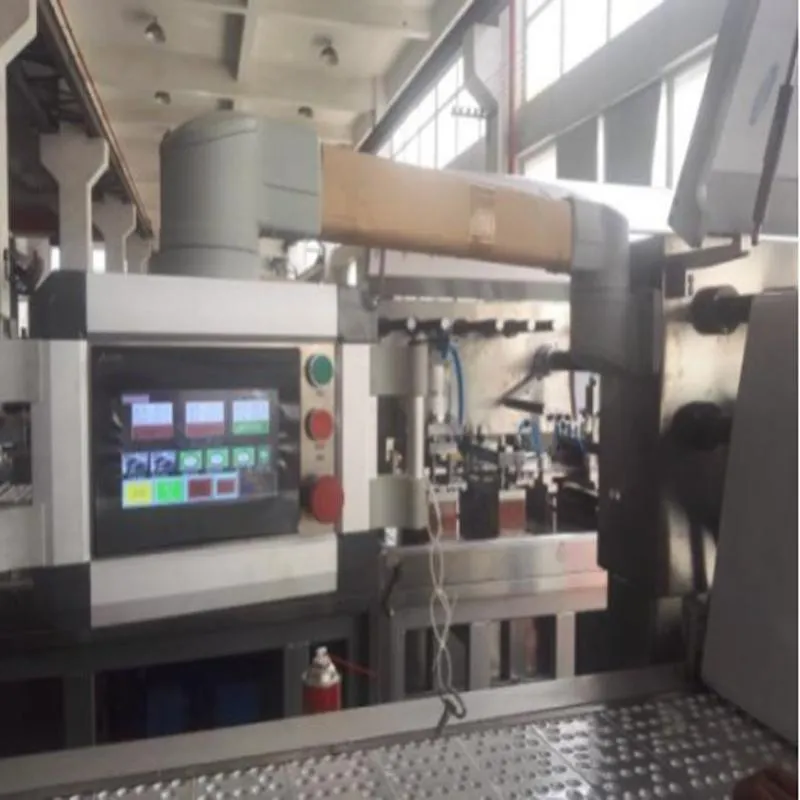

Detail 1

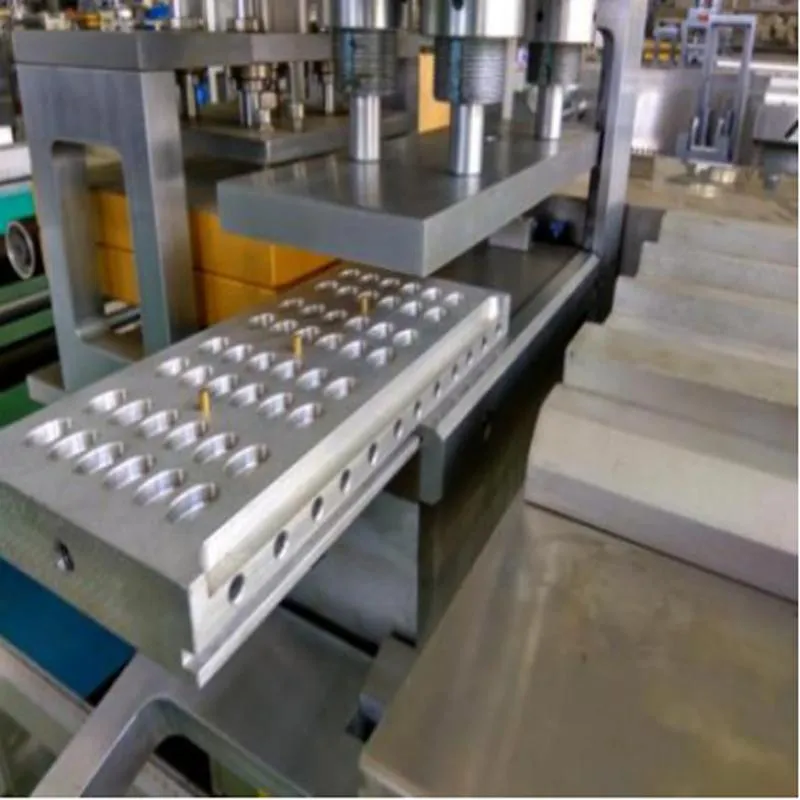

Detail 2

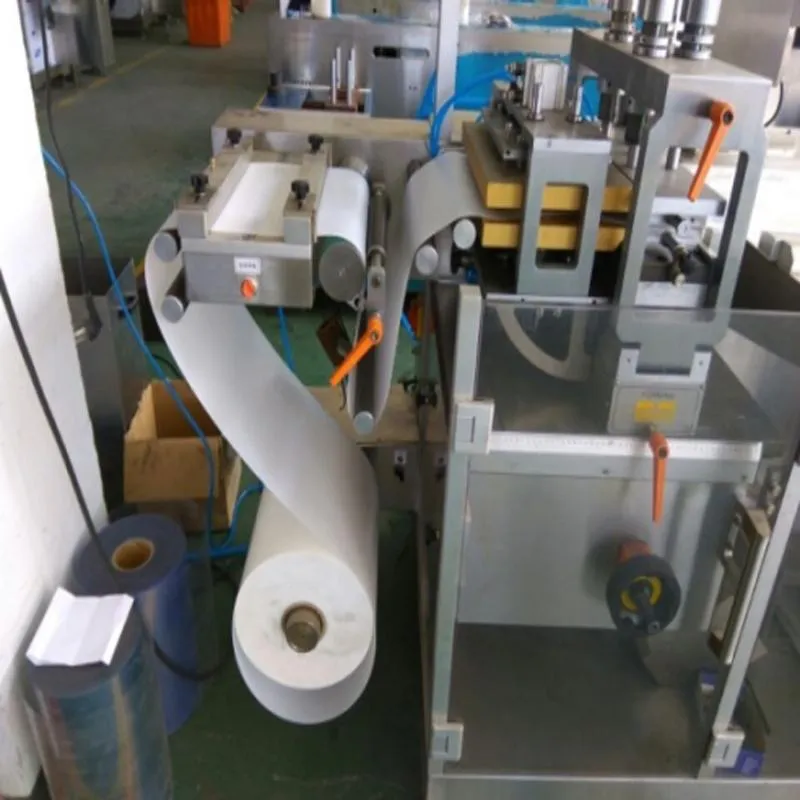

Detail 3
Details of Each Station

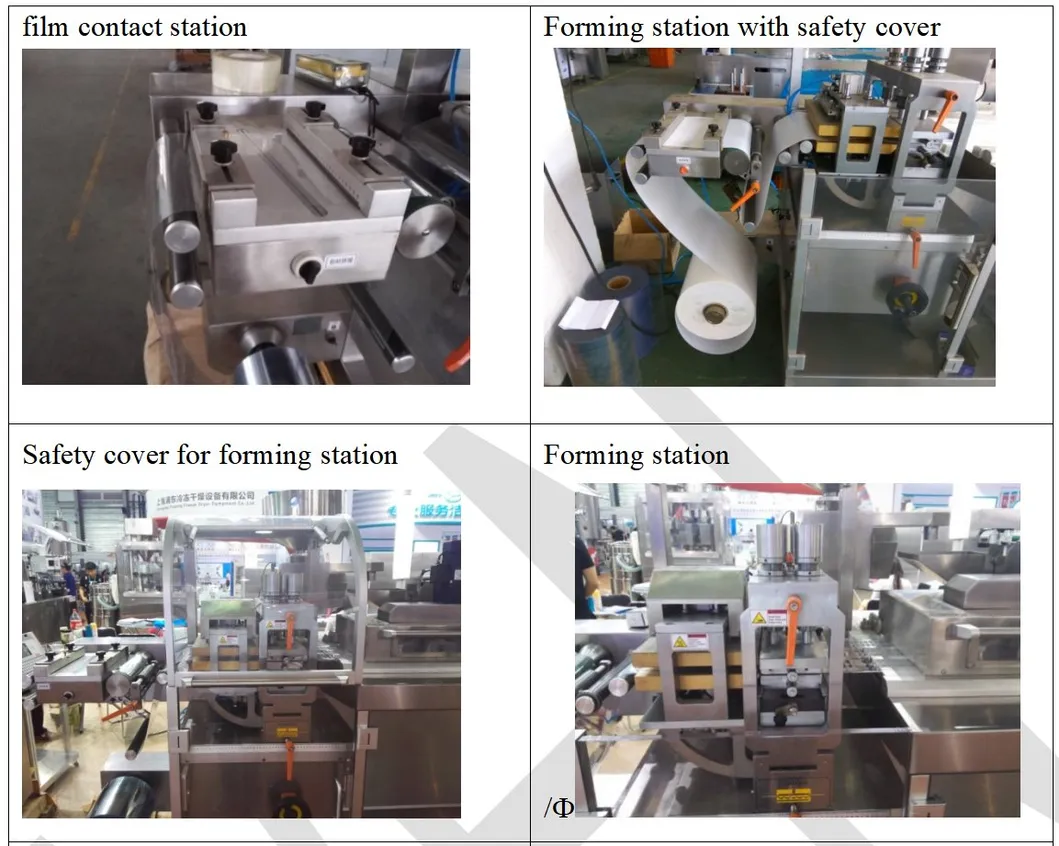

Station 1

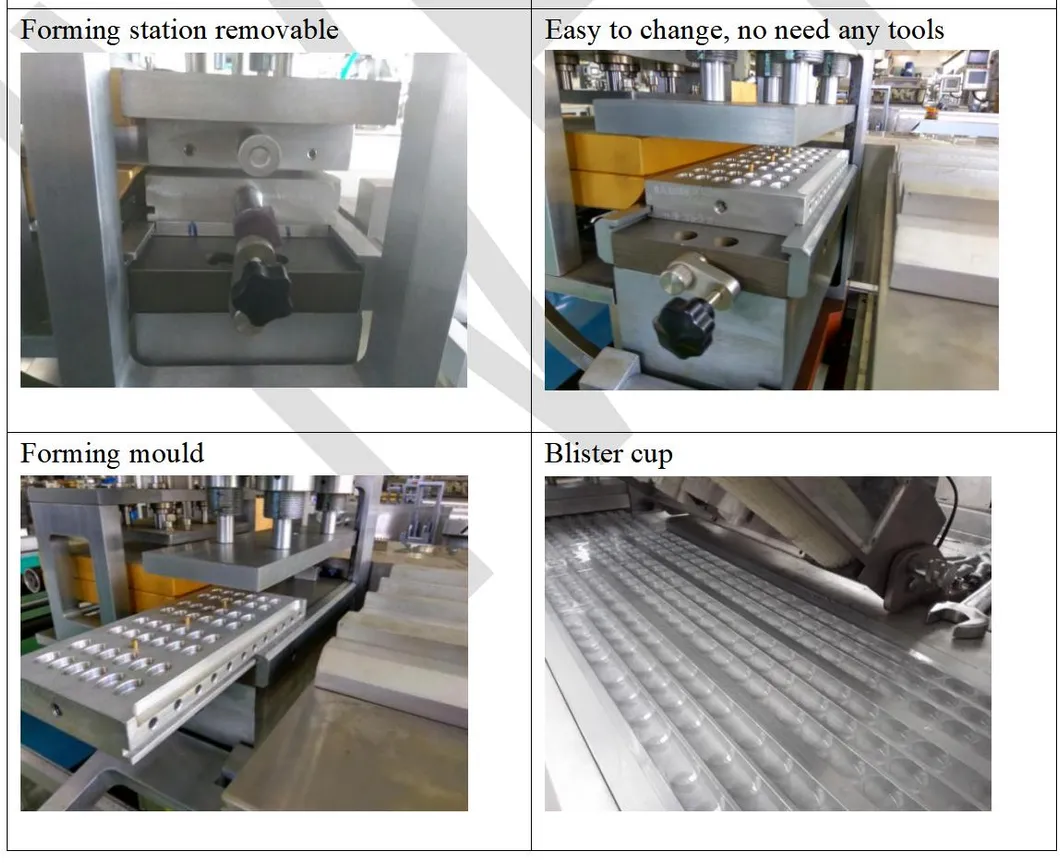

Station 2

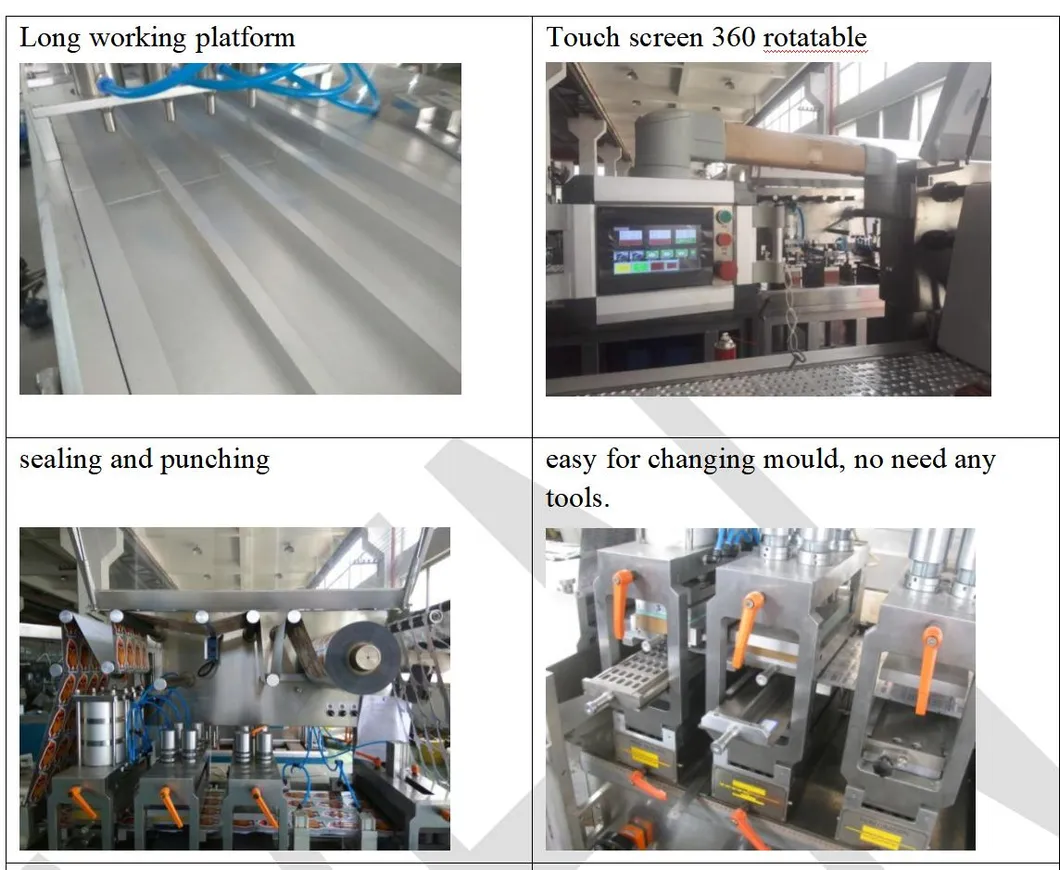

Station 3

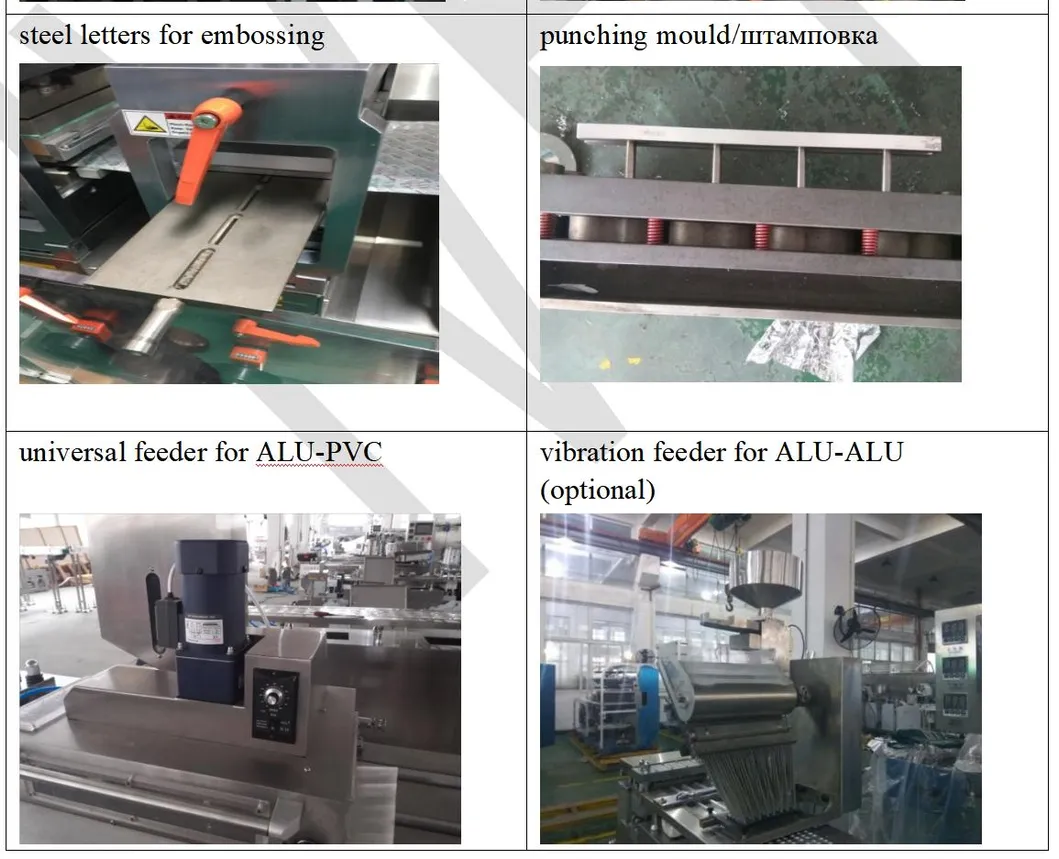

Station 4

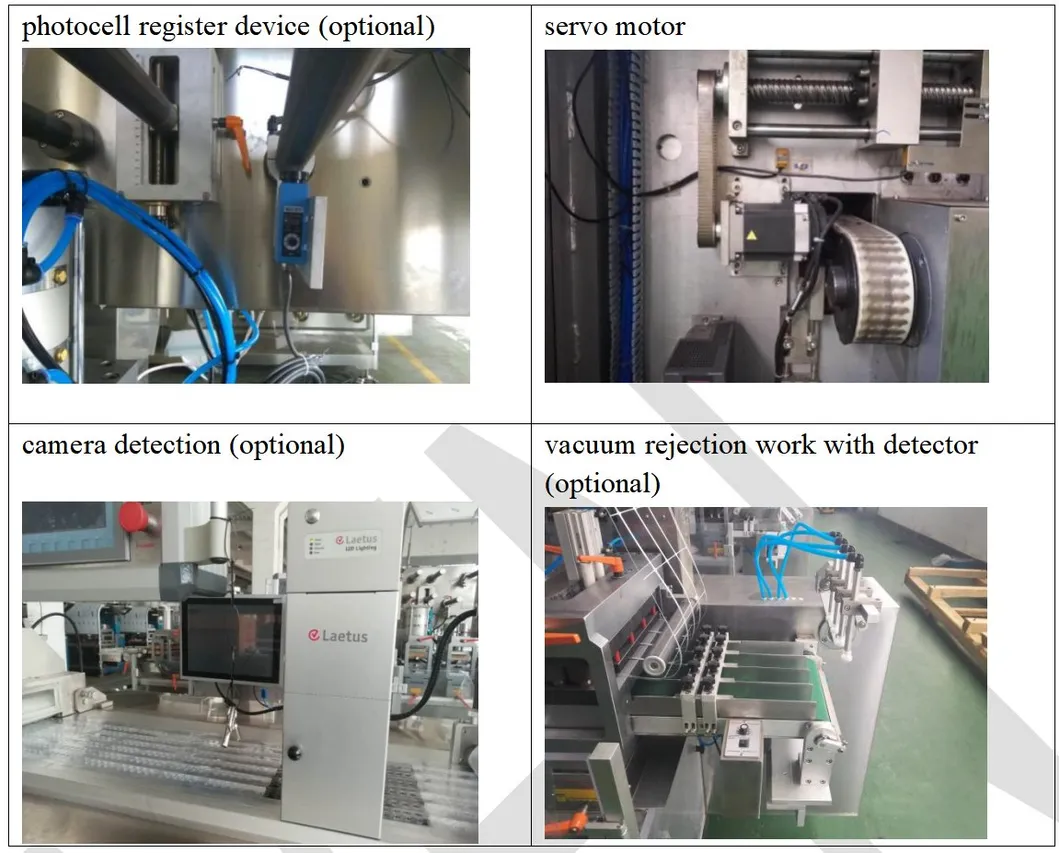

Station 5

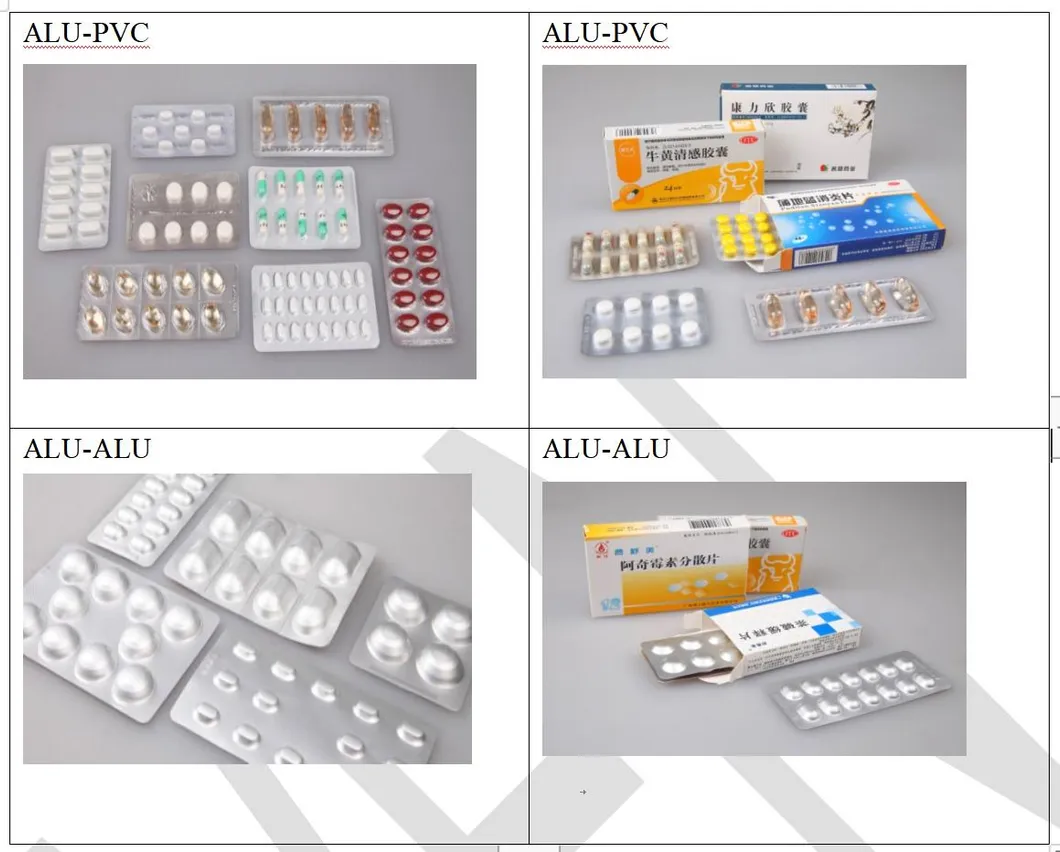

Station 6
Main Technical Parameters
Parameter Item Specification
Punch frequency (time/min)40-50
Capacity (blister/h)4200-15000
Max forming area depth (mm)260*120*26
Stroke(mm)20-120
Standard blister (mm)80*57
Air supply0.4-0.8
Total power380/220v 50hz 10kw
Main motor power (kw)2.2
PVC hard pieces (mm)0.15-0.5*270
PTP aluminum foil (mm)0.02-0.35*270
Mould coolingTap water or recycle water
Overall dimension (mm) (L*W*H)4000*850*1700
Weight (kg)2800
Integrated Engineering Solutions

We provide integrated engineering solutions for pharmaceutical and medical factories worldwide, including:

  • ✔ Project Design
  • ✔ Pharmaceutical Water Treatment
  • ✔ Solution Preparation
  • ✔ IV Solution Production Line
  • ✔ Sterilization Systems
  • ✔ Clean Room & HVAC
  • ✔ Automatic Logistics
  • ✔ Quality Control Labs
Turnkey Project
Project Display
Oversea Projects
Display 1
Display 2
Display 3
Display 4
Display 5
Frequently Asked Questions
What products can this blister packaging machine handle?
The machine is versatile and handles capsules, tablets, syringes, ampoules, food items, and small hardware components.
How is the maintenance of the main drive handled?
The main motor is located at the back for easy access. We use a synchronous belt drive instead of a chain to minimize oil stains and noise.
Can the moulds be changed quickly?
Yes, all moulds including forming, sealing, and punching can be orientation-guided and pushed into position by hand without needing wrenches.
What materials are supported for packaging?
The system supports PVC hard pieces, PTP aluminum foil, cold-forming aluminum foil, and dialytic paper.
Does the machine support high-speed production?
The punch frequency is 40-50 times per minute, with a production capacity ranging from 4,200 to 15,000 blisters per hour depending on the configuration.
Is the machine suitable for clean room environments?
Yes, the machine is made of stainless steel and designed specifically to meet pharmaceutical industry regulatory requirements and clean room standards.
