Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
1 / 5
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality
Reliable Blister Packaging and Carton Box Production Line with Good Quality

Reliable Blister Packaging and Carton Box Production Line with Good Quality

After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year
Automatic Grade: Field Installation, Commissioning and Training
Send Inquiry

Product Description

Basic Specifications
Model NO.
Customized
Application
Drinks, Pharmaceutical & Medical
Type
Forming Filling Sealing Machine
Driven Type
Electric
Material Type
Liquid
Packaging Material
Paper, PVC, Pet, PP, PS
Core Components
PLC, Gearbox
Production Speed
10-20 cycle/Min
Machine Material
Stainless Steel
Packaging & Delivery
Package Size
160.00cm * 150.00cm * 180.00cm
Gross Weight
2200.000kg
Transport Package
Wooden Case; Standard Package
Product Description

This Blister packaging and cartoning equipment is essential for pharmaceutical, healthcare, and food industries. It provides efficient and automated packaging solutions, ensuring product safety, extending shelf life, and enhancing presentation.

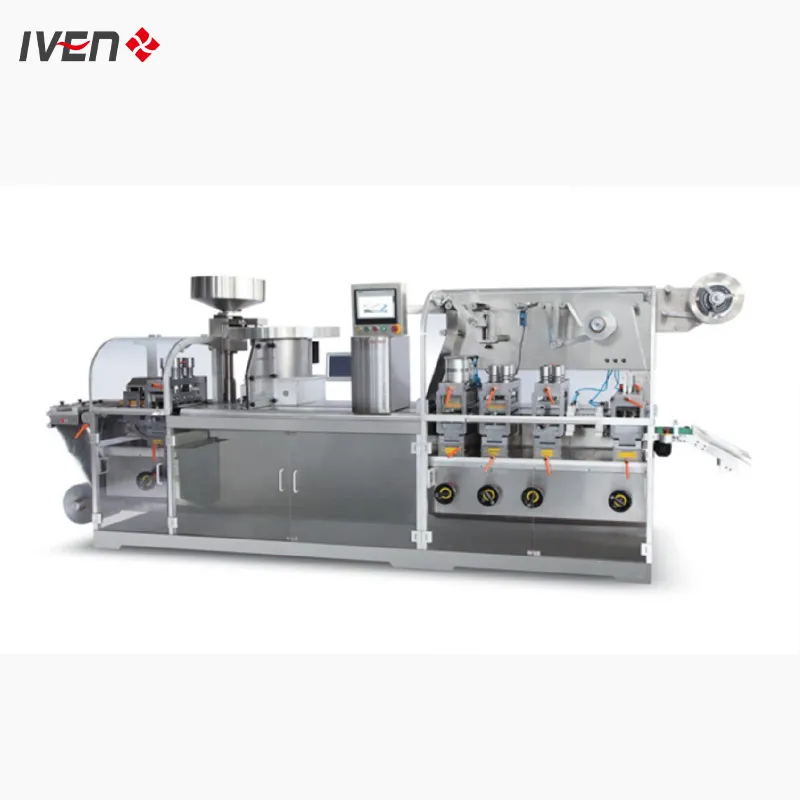

Blister Packaging Machine
🚀 Application Areas:
  • Alu-Pvc and Alu-Alu packing for capsules and tablets.
  • Sealed blister packing for syringes, ampoules, and medical products.
  • Food, electronic parts, and hardware product packaging.
Main Features
⚙️
  • Main Drive: Motor located at the back for easy maintenance; synchronous belt drive reduces oil stains.
  • Guide Rail: Cantilever installation makes it easy to remove dropped materials.
  • Mould Base: Lathe type guide rail with position indicators for fast, tool-free adjustments.
  • Fast Changeover: All moulds (forming, sealing, punching) can be pushed into position by hand.
  • Air Shaft System: Uses air shafts for PVC and aluminum foil with rapid connection devices.

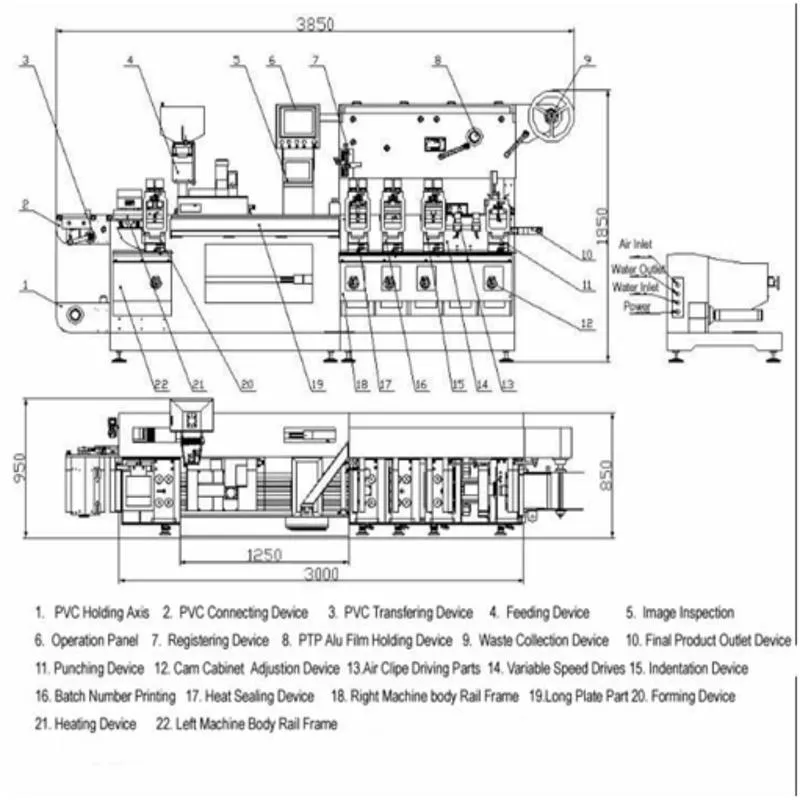

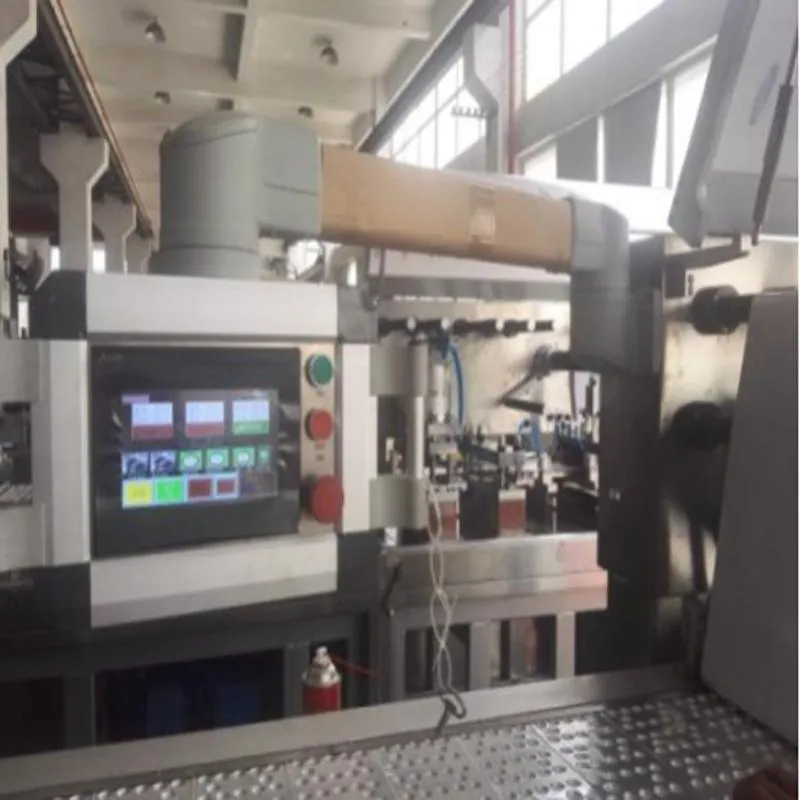

Machine Detail 1 Machine Detail 2
Technical Parameters
Parameter Item Specification
Punch frequency (time/min)40-50
Capacity (blister/h)4200-15000
Max forming area depth (mm)260*120*26
Stroke(mm)20-120
Standard blister (mm)80*57
Total power380/220v 50hz 10kw
PVC hard pieces (mm)0.15-0.5*270
Weight (kg)2800
Overall dimension (L*W*H)4000*850*1700
Station Details & Workflow

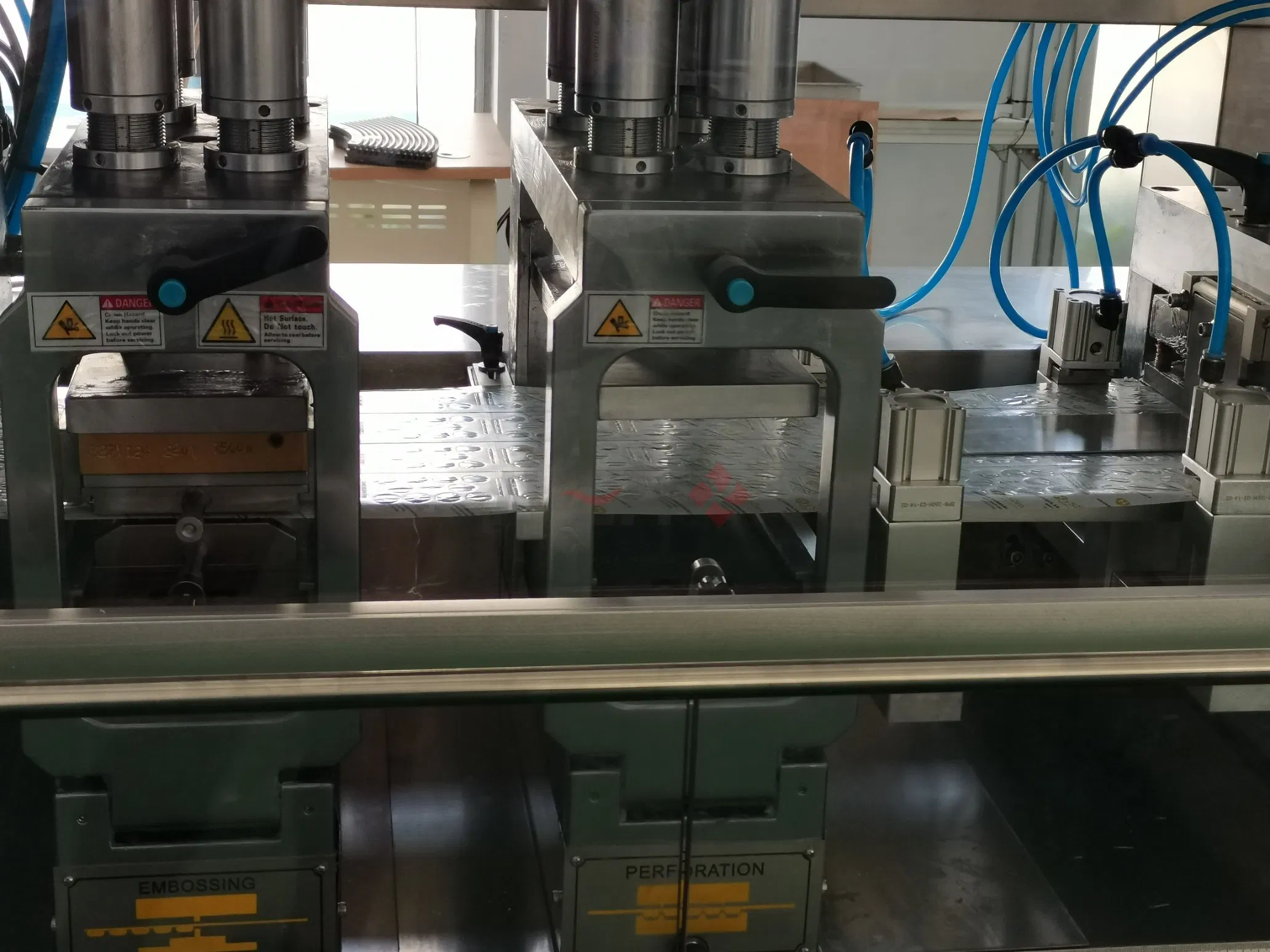

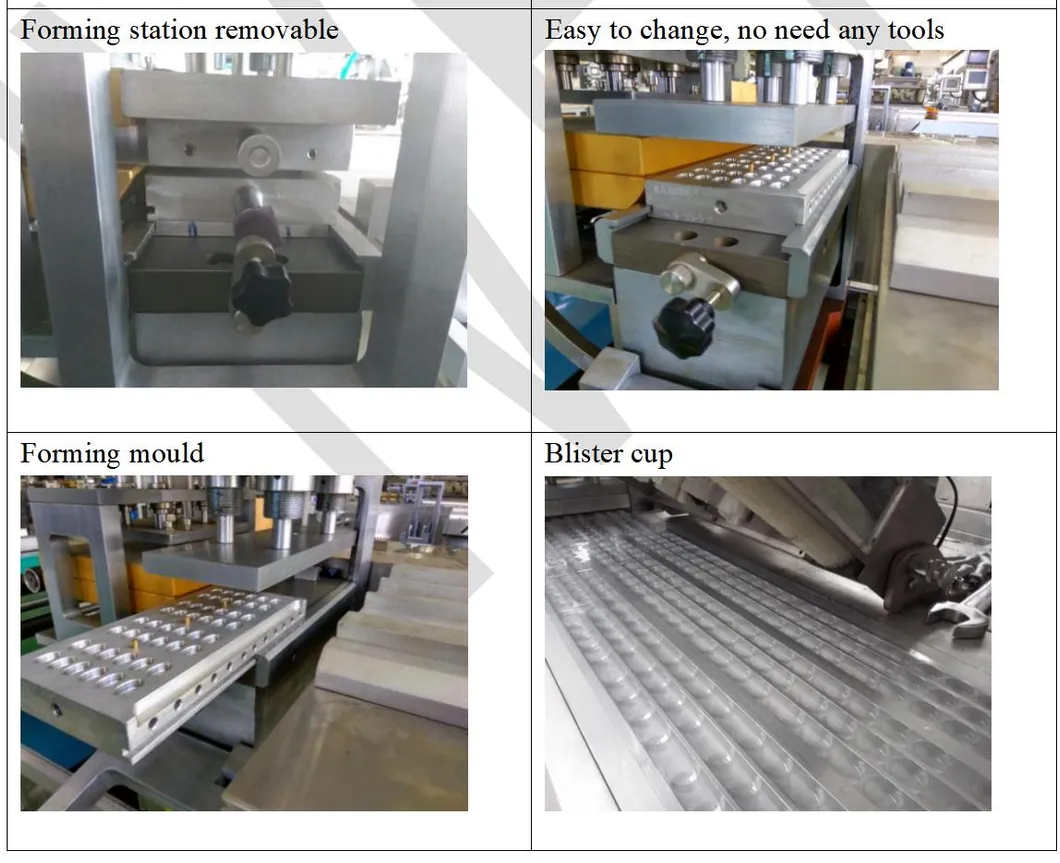

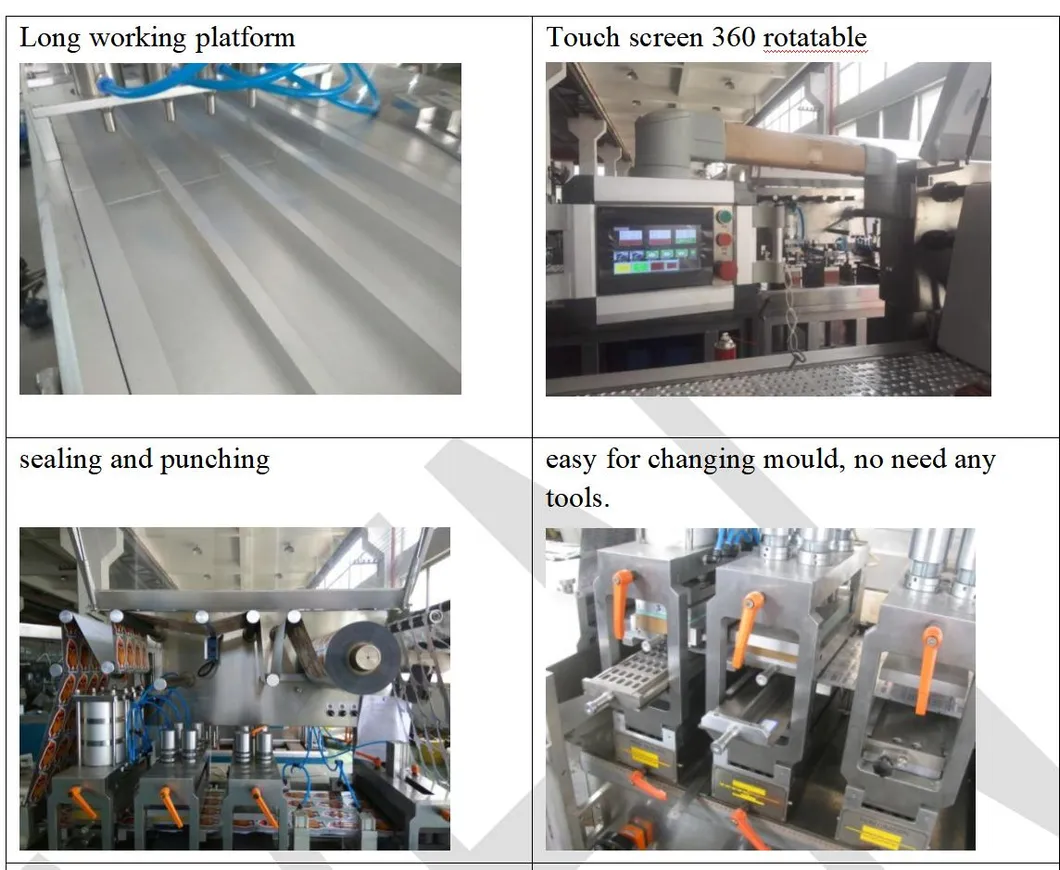

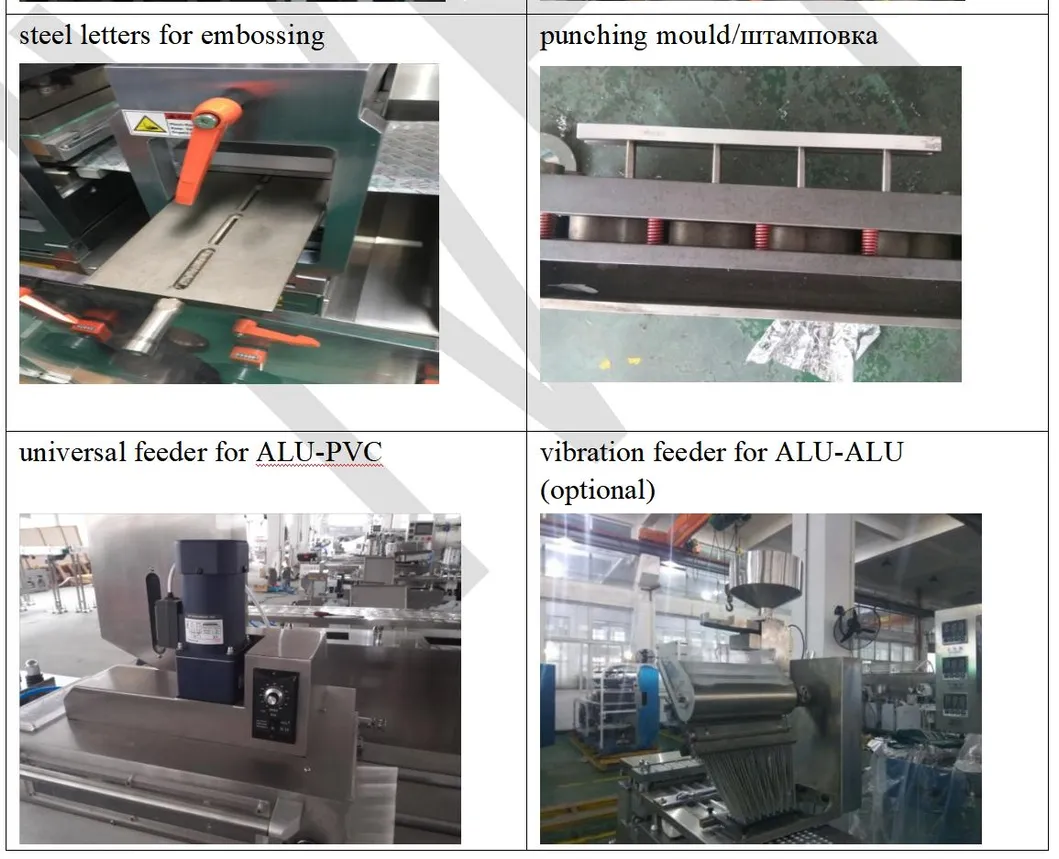

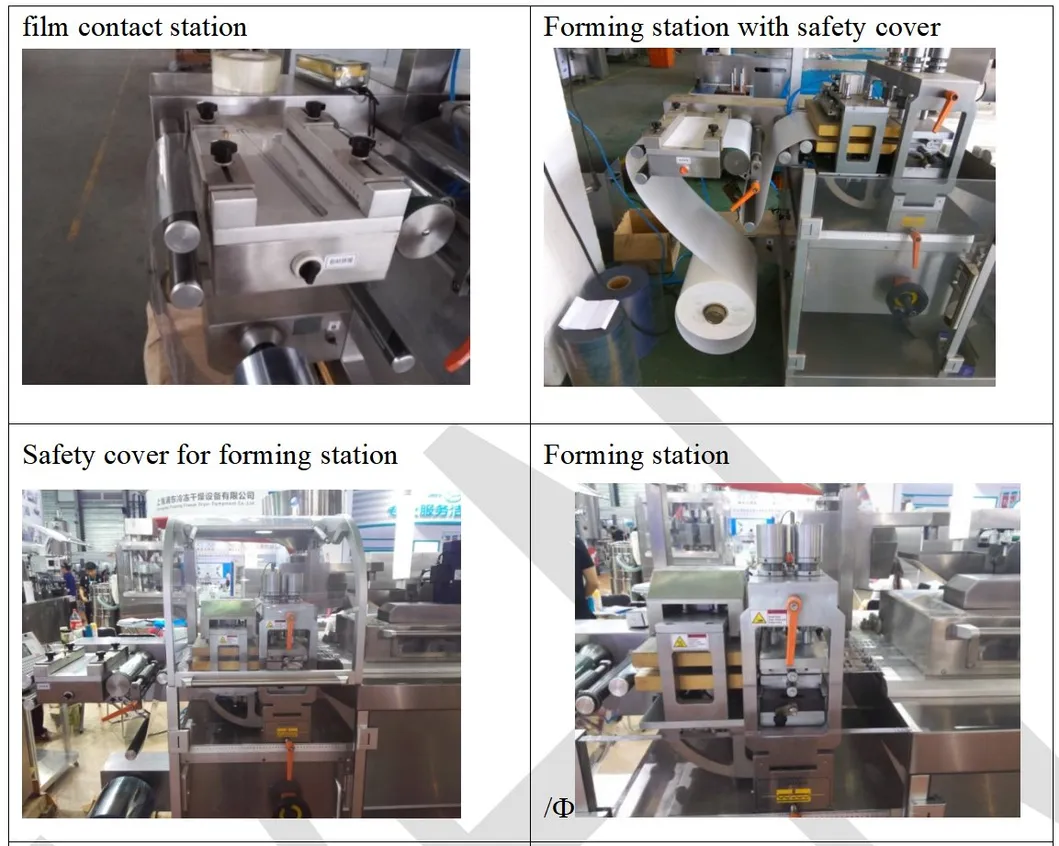

Station Detail 1 Station Detail 2 Station Detail 3 Station Detail 4
Turnkey Engineering Solutions
🏗️

Integrated engineering solutions for pharmaceutical factories including:

  • Project Design & HVAC
  • Water Treatment Systems
  • Solution Preparation
  • Filling & Packing Lines
  • Clean Room Qualification
  • Installation & Training
Project Display 1 Project Display 2
Frequently Asked Questions
What materials can this machine handle?
The machine is compatible with PVC, PET, PP, PS, Alu-Alu, and Alu-Pvc materials, specifically designed for pharmaceutical and food-grade packaging.
How difficult is it to change the moulds?
The machine features a tool-free mould change system. All moulds can be orientation-guided and pushed into position by hand using a simple locking handle.
What is the production capacity of this equipment?
Depending on the product specifications, the capacity ranges from 4,200 to 15,000 blisters per hour with a punch frequency of 40-50 times per minute.
Is the machine suitable for medical liquid packaging?
Yes, it is highly suitable for liquid materials and is widely used for syringes, ampoules, vials, and oral liquid blister packing.
Does the machine support batch number printing?
Yes, the system includes a batch number emboss printing station as part of the integrated forming and sealing process.
