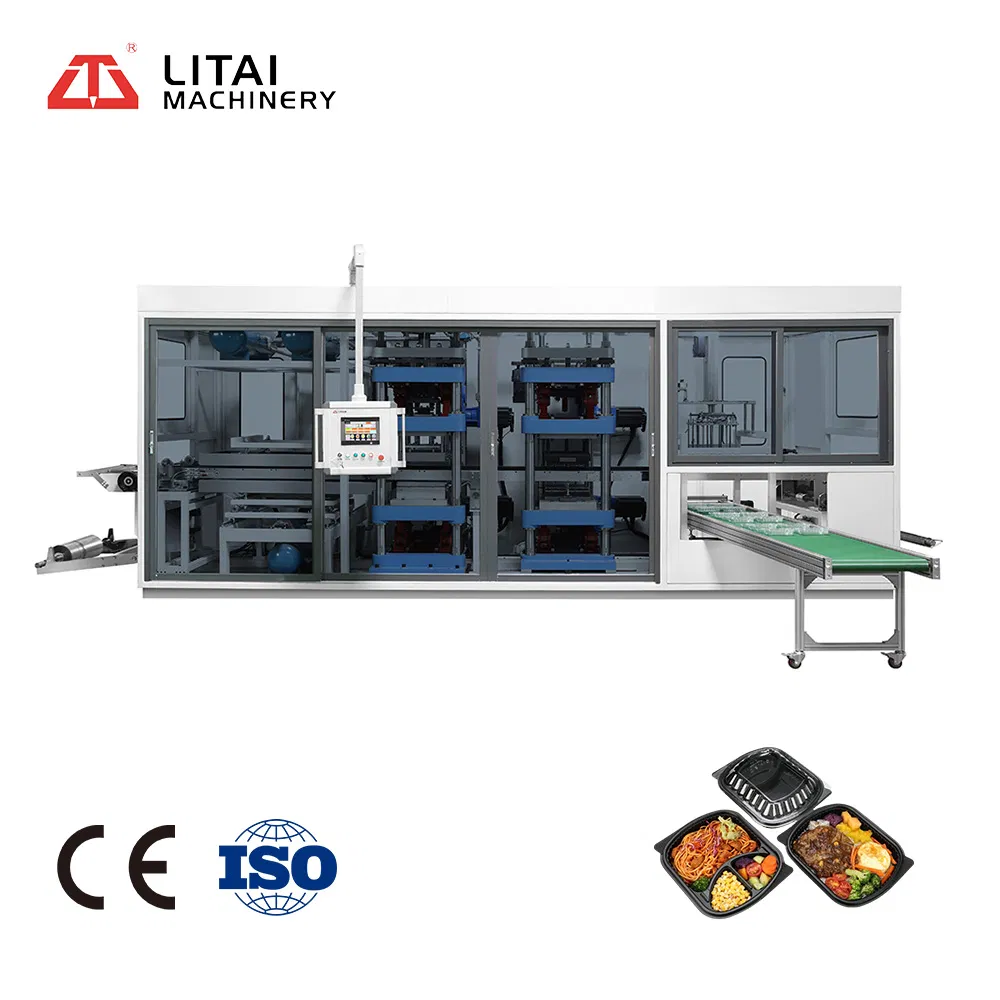

Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
1 / 5
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers
Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers

Second Hand Semi Automatic Thermoforming Machine for Making Takeaway Box Importers

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
TTF-700A
Certification
CE, ISO
Column number
Four Column
Molding Method
Pultrusion
Automatic Grade
Automatic
Maximum Forming Area
700mm*600mm
Usage
Production of Plastic Products
Machine Name
Plastic Thermoforming Machine
PLC
Touch Screen Control
Motor
Servo Motor
Applicable Sheet
PP, HIPS, PS, Pet, PVC, etc.
Process
Forming-Cutting-Stacking

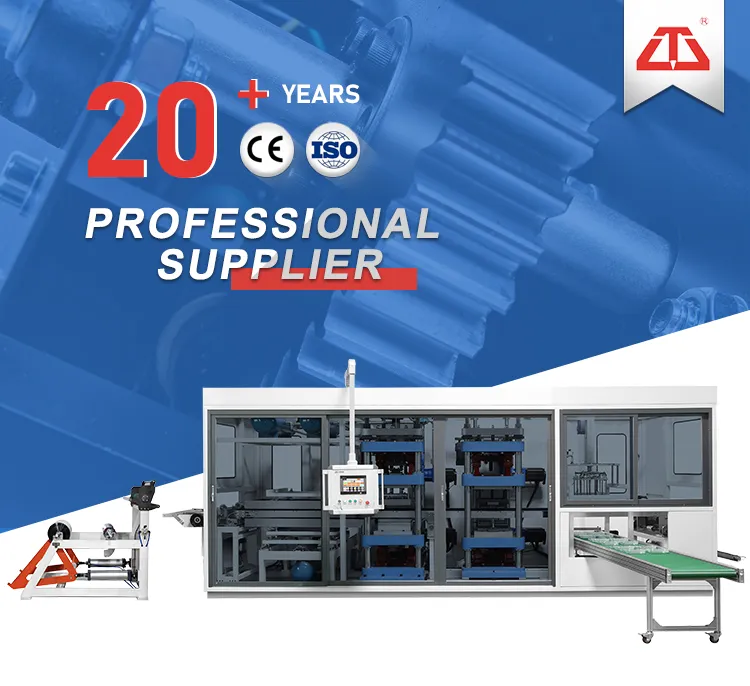

Plastic Thermoforming Machine
Product Parameters
Model TTF-700AF TTF-700A TTF-520AF TTF-520A
StationFour stationsThree stationFour stationsThree station
Forming Area700mm x 600 mm520mm x 400 mm
Forming Depth (Max.)135mm110mm
Sheet thickness0.2-2.0mm
Forming Speed (Max.)30times/min30times/min
Sheet width (Max.)730mm550mm
Used power105Kw95Kw55Kw50Kw
ProcedureForming-punching-cutting-stackingForming-cutting-stackingForming-punching-cutting-stackingForming-cutting-stacking
Application & Features

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. Widely used and suitable for most requested plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor for stable operation, low noise, and high efficiency.

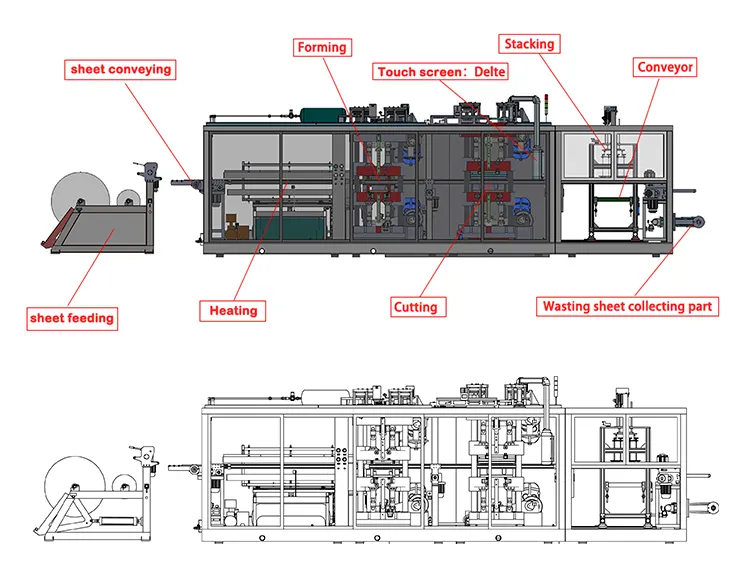

Application Sample

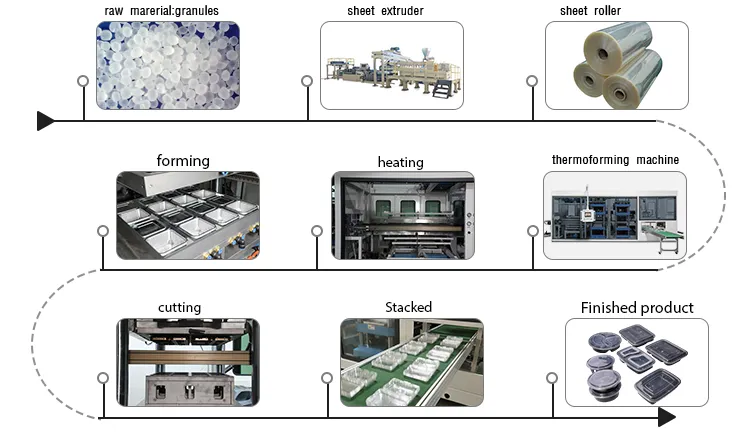

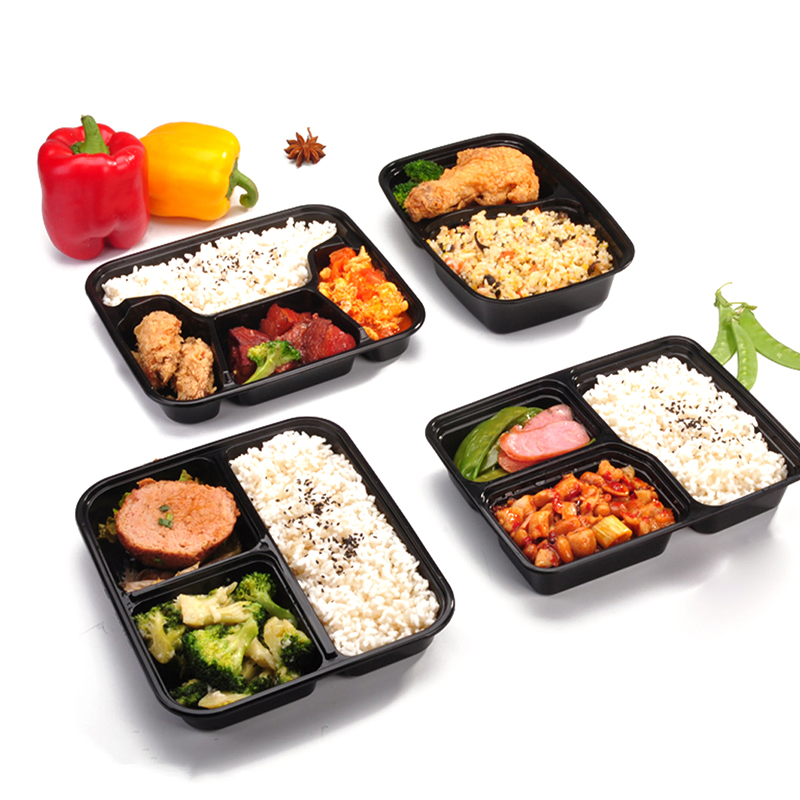

Product Sample
Main Functions
  • Positive and negative pressure forming device.
  • Vacuum forming device.

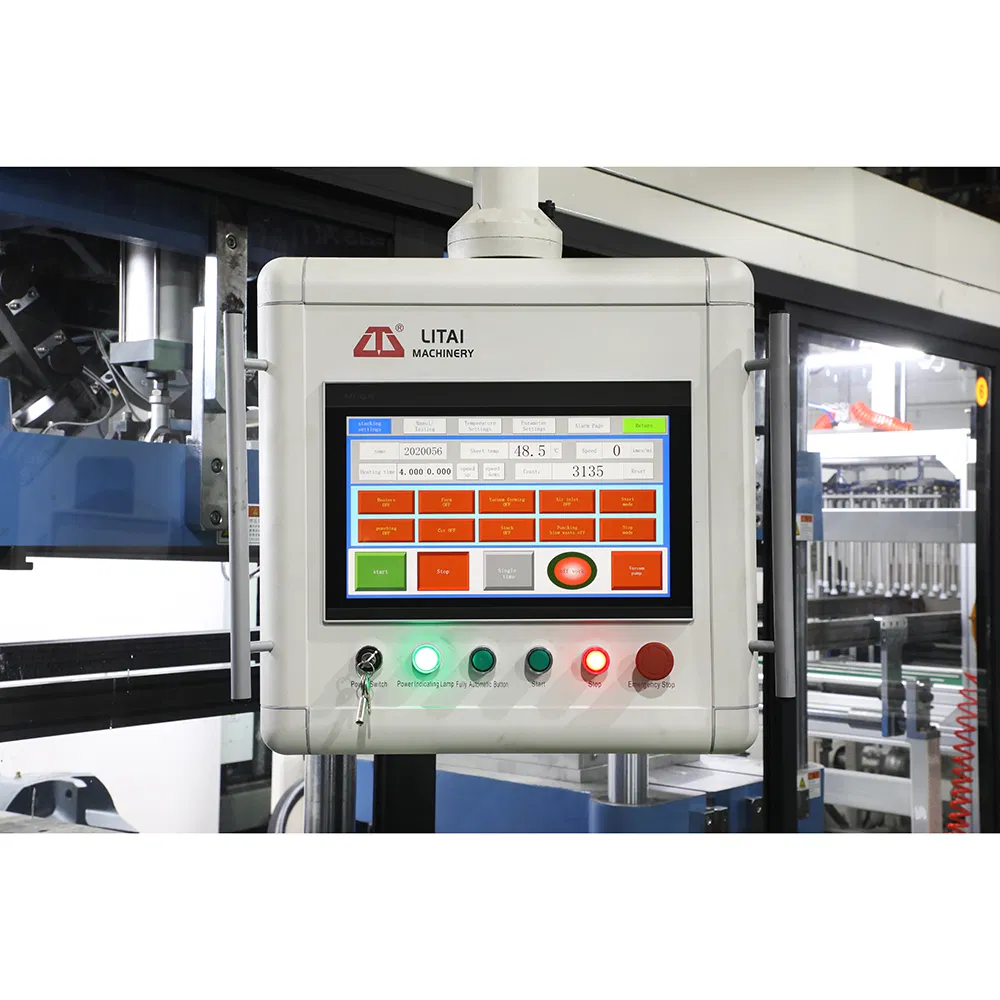

  • Touch screen computer temperature module point to point control function.
  • Air control and cooling device.
  • Die and mold temperature control function.
  • Automatic punching, cutting, and stack counting function.

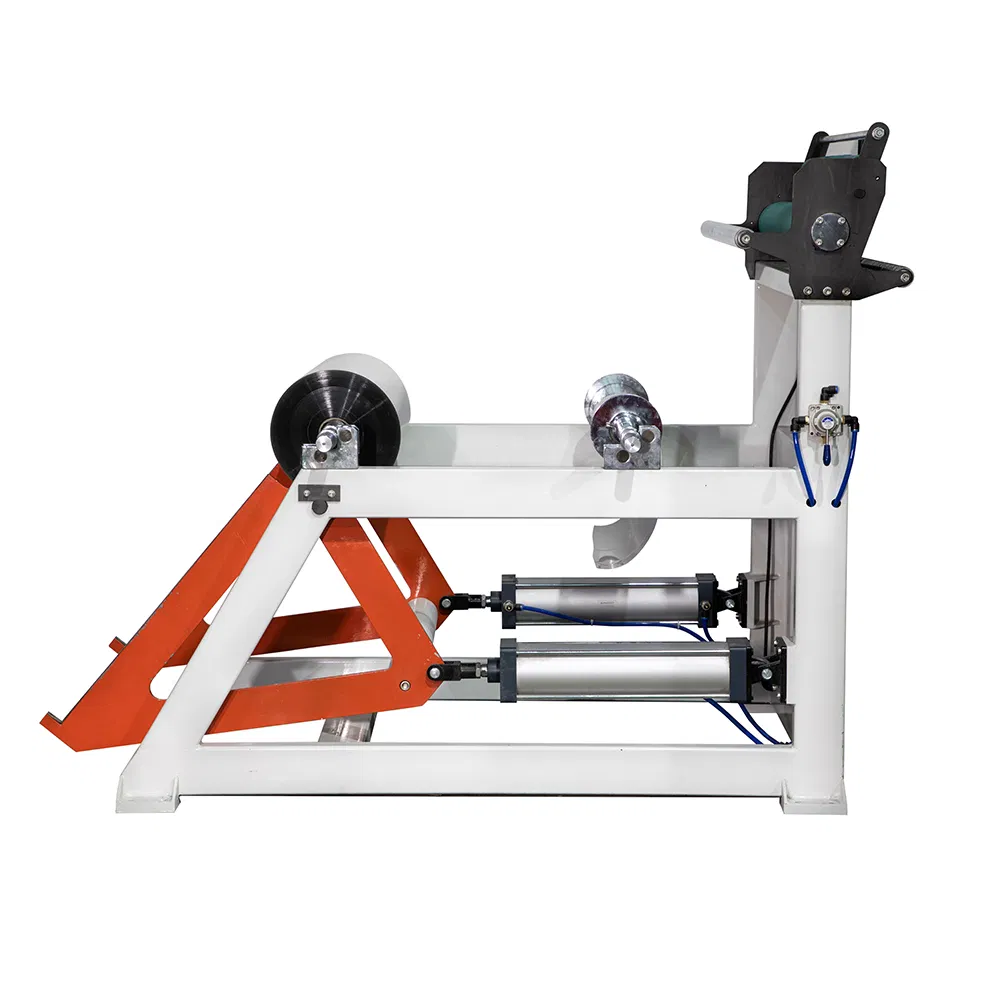

  • Edge automatic rewinding function and safety protection device.

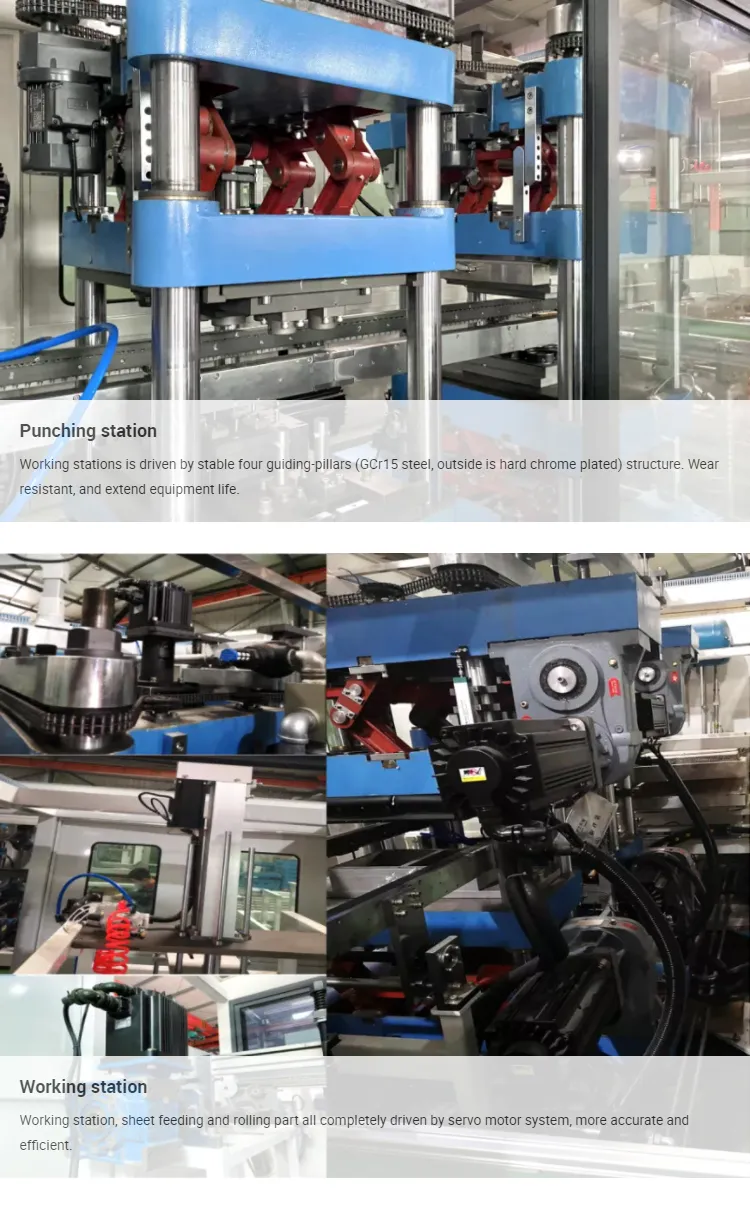

Machine Details

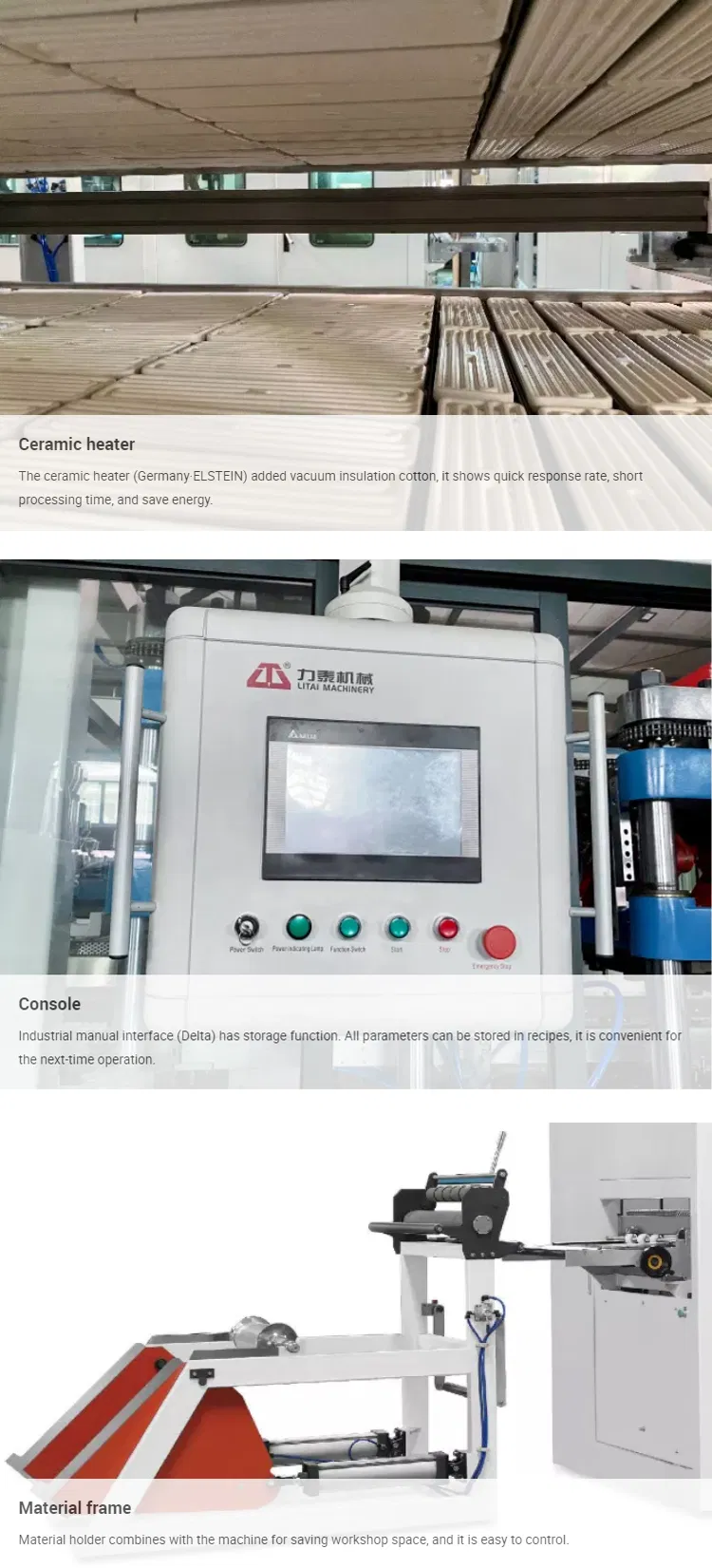

Technical Summary
Summary & Advantages
Core Features:
  • Every station is driven by eccentric crank linkage.
  • PID temperature system with tolerance <1ºC.

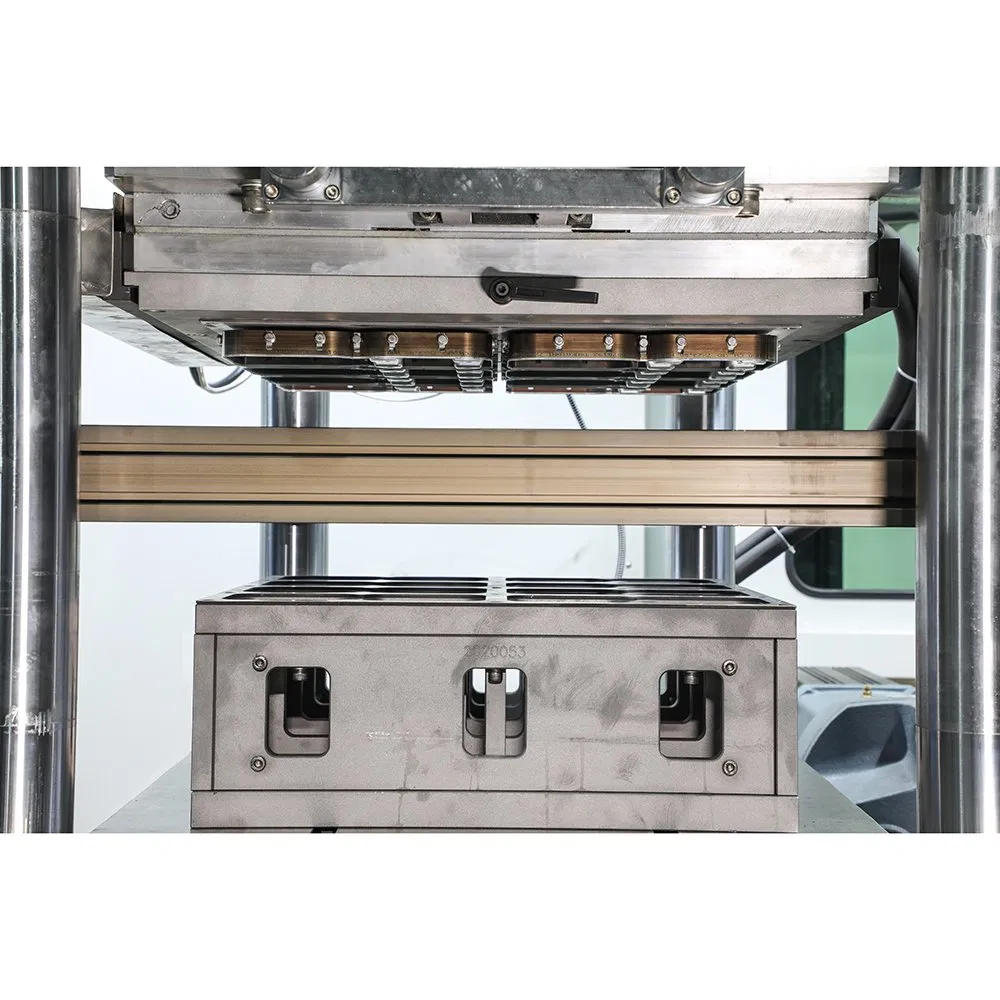

  • Rapid mould change device for high efficiency.
  • Fully servo driven, no noise, no vibration.
  • Furnaces automatic removal device to prevent waste.
Features
Company & Exhibition
Profile 1
Profile 2
Workshop
Exhibition
Certificates & Packaging
Certificates
Packaging
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a factory, and we have been exporting our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
The warranty period is 13 months calculated from the date of shipment from our factory. During this period, spares are free for maintenance (except artificial factors).
Q3: How do you handle machine installation?
We can send technicians to your factory to install the machine and train your workers. The buyer covers related costs such as visas, tickets, meals, and salary.
Q4: What materials can this machine process?
The machine is suitable for various plastic sheets including PP, PS, HIPS, PET, PVC, and PLA.
Q5: What is the maximum forming speed?
The TTF series can reach a maximum forming speed of up to 30 times per minute, depending on the material and product depth.
Q6: Is the machine fully automated?
Yes, it features a fully automatic process including forming, punching, cutting, and stacking, all controlled via PLC and servo motors.
