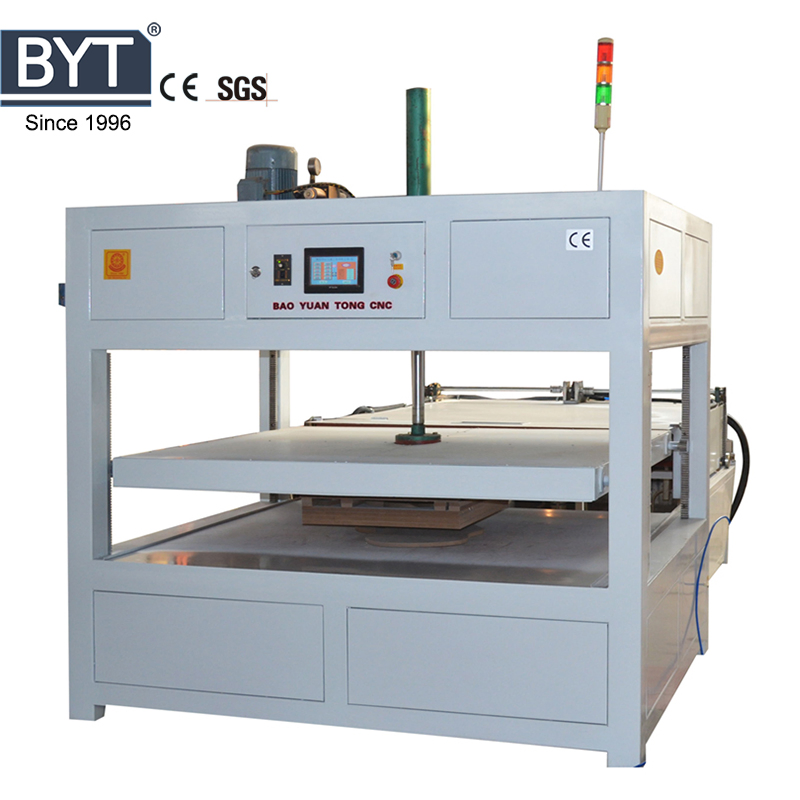

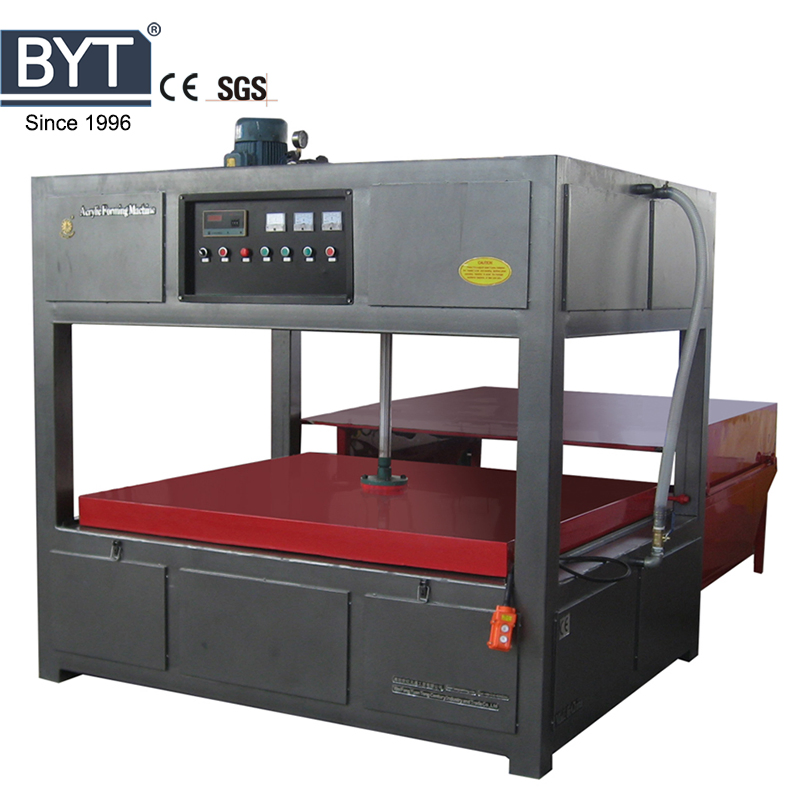

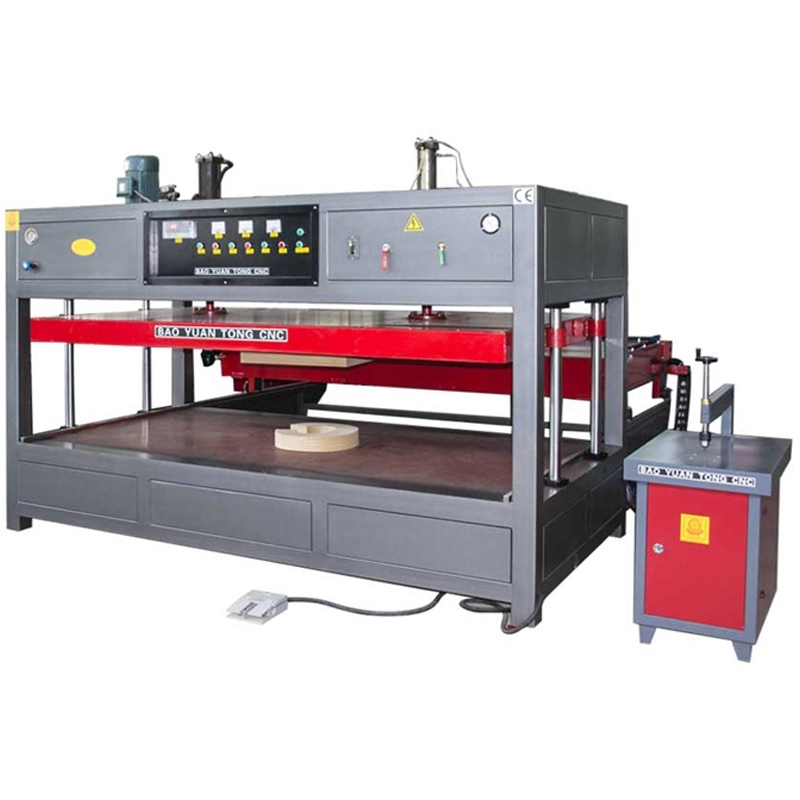

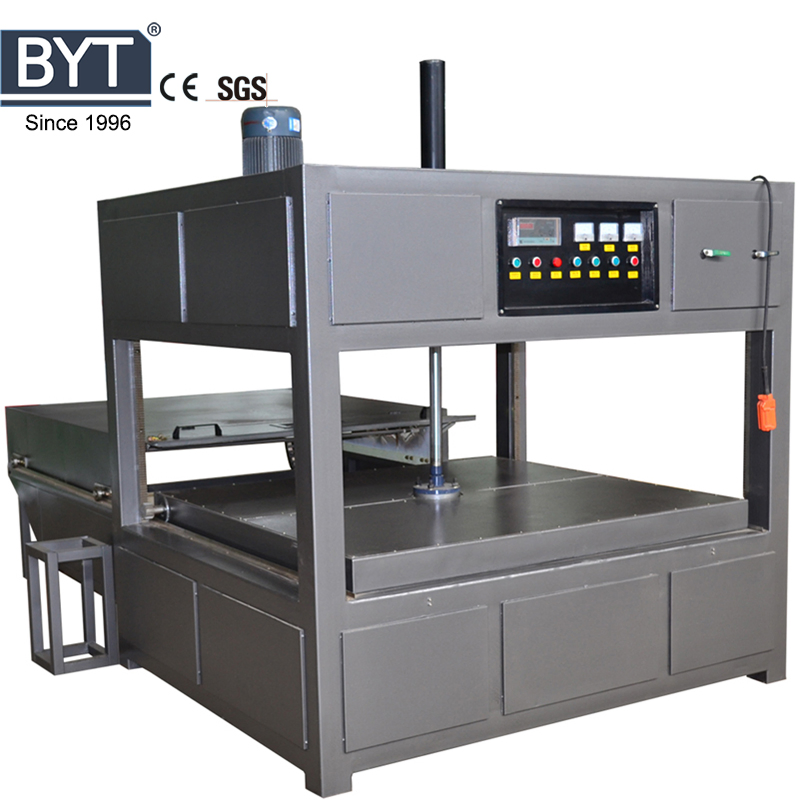

Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
1 / 5
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming
Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming

Semi Automatic Acrylic Bathtub Vacuum Forming Machine Thermoforming

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️
Model NO. BXY-1500
📦
HS Code 8477401000
⚡
Production Capacity 200 sets/Month

Multi-function Vacuum Forming Machine

The BXY-1500 is a specialized small-size multi-function machine compatible with ABS, PET, and PMMA materials. It features integrated suction, press, and blowing functions to meet diverse industrial forming requirements.

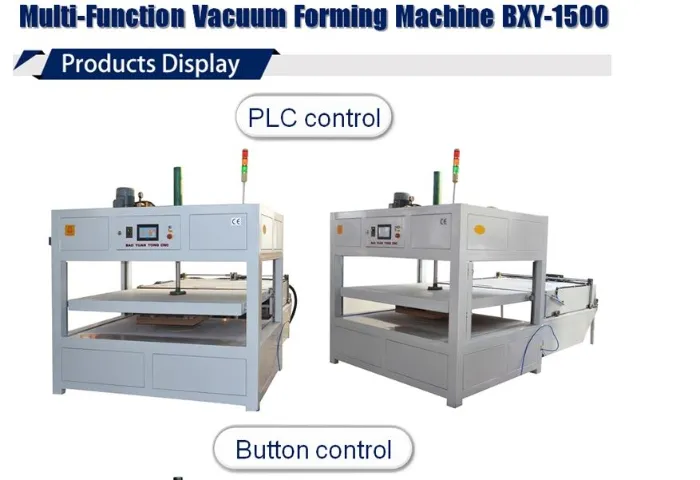

Vacuum Forming Machine Main

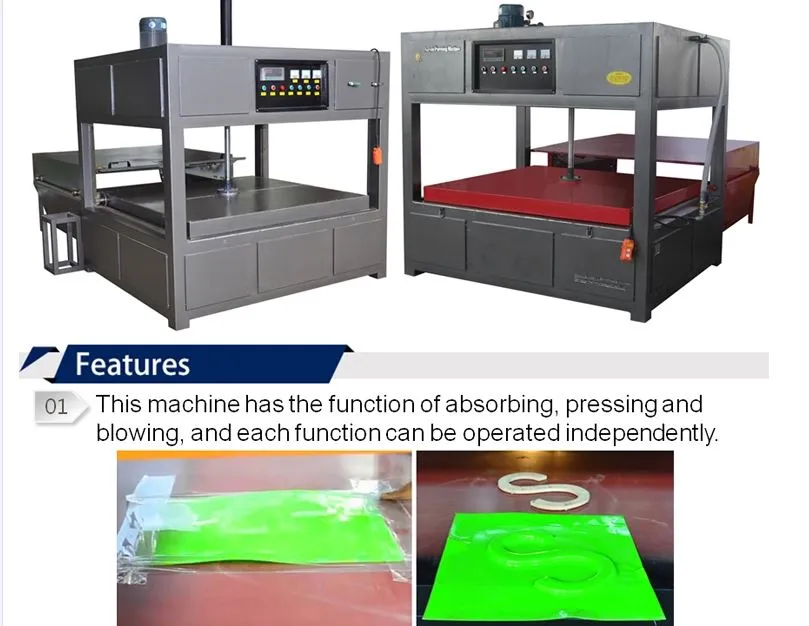

Machine Detail View

Application Industries & Materials

🚀 Plastic Moulding Mask making and industrial components.
📢 Advertising Signage and branding displays.
🎓 Education University research and teaching experiments.
🍰 Packaging Chocolate and cake package boxes.
🚗 Automotive Industrial and automobile decoration.

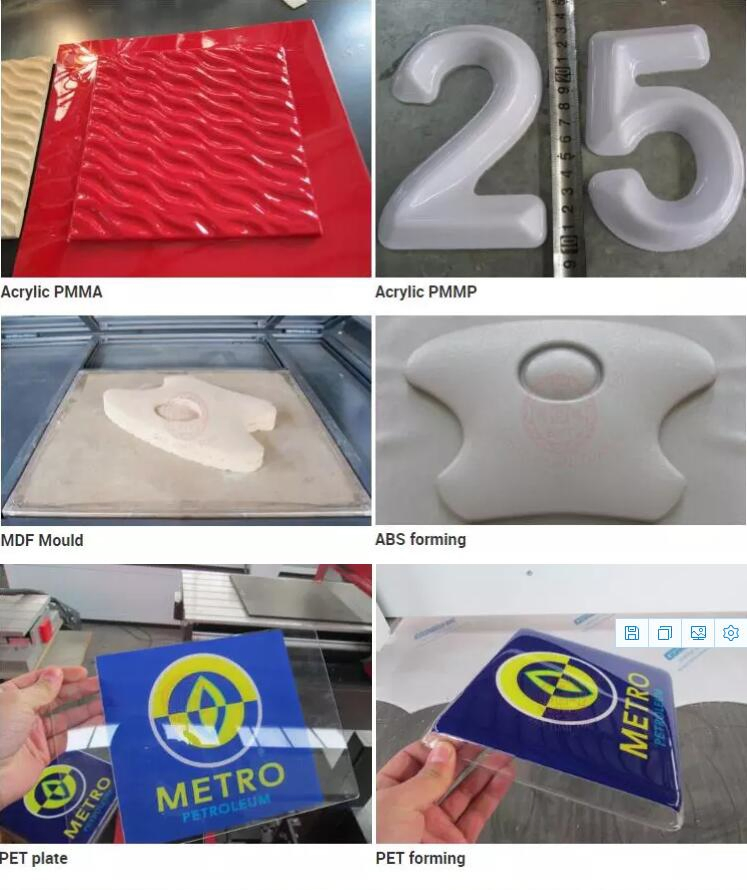

🛠️ Materials PMMA (Acrylic), PVC, ABS, PE, PET, Polystyrene, Polypropylene.

Key Features

Triple Functionality Independent suction, pressing, and blowing operations.

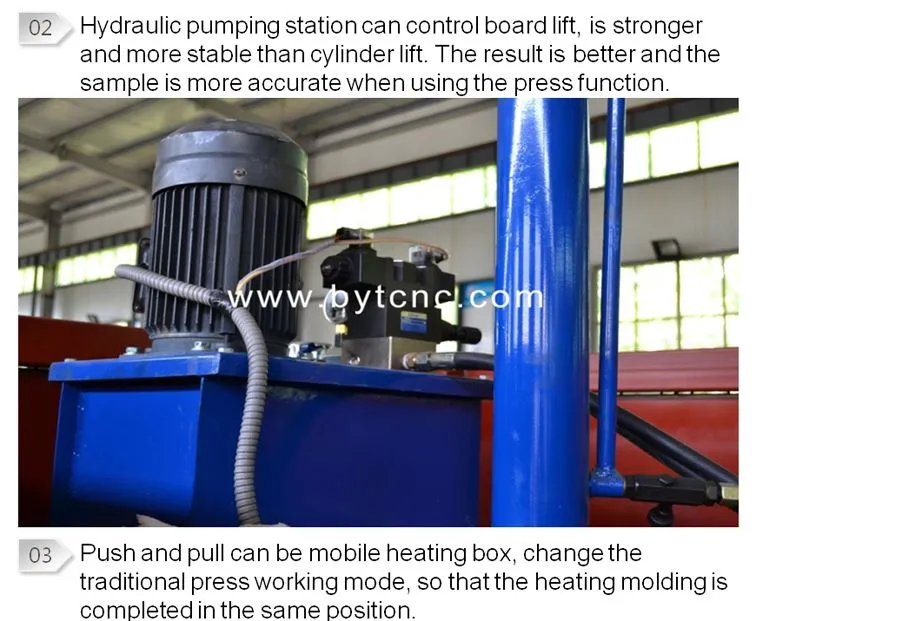

Hydraulic Pumping More stable than cylinders for stronger board lifting and accurate sampling.
Mobile Heating Box Push-pull design allows heating and molding in the same position.
Steel Structure All-steel heat-treated frame resistant to high temperature and deformation.
Rack and Pinion Ensures precise and stable movement of the moving plate.
Intelligent Control Shaped reflector and thickened insulation for fast, safe heating.
Durability Customized heaters capable of 24h continuous operation with 8000-10000h lifespan.

Technical Specifications

Model BXY-1500 BXY-2700 BXY-3000 BXY-3200
Working Area (mm) 1300*1400 1400*2500 1900*2800 2100*3100
Power (kw) 8 14 22 24
Max Forming Height 150mm 150mm 150mm 150mm
Hydraulic Pressure 1-20T 1-20T 1-20T 1-20T
Voltage (V) 380V/220V 380V 380V 380V
Machine Weight 1200KG 1900KG 2300KG 2500KG

Packaging & Performance

Standard export packaging includes plywood cases for maximum safety during international transit. Our equipment is designed for stable, high-quality performance with global user satisfaction.

Machine Display
Process View
Plywood Package
User Site
Feedback Chat

Global Standards

Products are exported to over 152 countries, meeting CE and SGS certifications. We ensure reliable equipment performance and high-quality service for over 2000 customers worldwide.

Machine Comparison
Working Process
Factory Certificate Overview

Frequently Asked Questions

Q1: What materials are compatible with this machine?
The vacuum forming machine is designed for thermoplastic materials including PMMA (Acrylic), PVC, ABS, PE, and PET with a thickness of less than 6mm.
Q2: How do I choose the right model?
Consider your material type, thickness (max 6mm), the final size of your formed products, and the complexity of the shapes required.
Q3: What are the voltage and power options?
The BXY-1500 supports 380V/220V. We also accept customized voltages such as 220V/60HZ/3P or 415V/60HZ/3P depending on your region.
Q4: What accessory equipment is required?
If the heating box is moved by an air cylinder, you will need an air compressor. For mold making, a CNC router is recommended, and a trimmer is needed for finishing edges.
Q5: Can the working area be customized?
Yes, we accept customized working areas and forming heights. We have previously produced units with a max forming height of up to 450mm.
Q6: What support is provided after purchase?
We provide operation manuals and videos on a U-disc. Our after-sales engineers provide 24/7 online support to assist with setup and operation.
