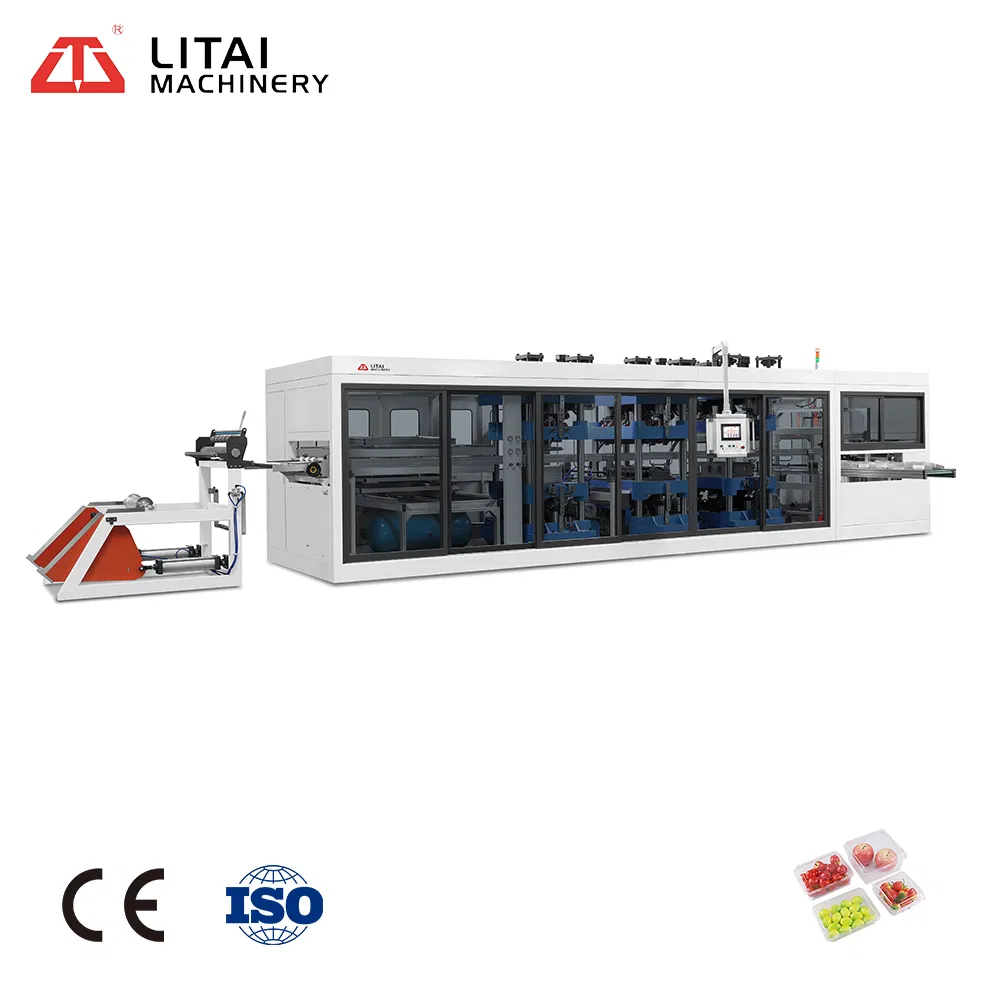

Semi Automatic Positive and Negative Hydraulic Pressure Vacuum Thermoforming Machines for HIPS Sheets

1 / 5

Semi Automatic Positive and Negative Hydraulic Pressure Vacuum Thermoforming Machines for HIPS Sheets

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TTF-700AF

Certification

CE, ISO

Column number

Four Column

Molding Method

Pressing

Automatic Grade

Automatic

Applicable Sheet

PP, HIPS, PS, Pet, PVC, etc.

Process

Forming-Punching-Cutting-Stacking

Drive System

Servo Drive

⚙️ Technical Parameters

Parameter	TTF-700AF	TTF-700A	TTF-520AF	TTF-520A
Station	Four stations	Three station	Four stations	Three station
Forming Area	700mm x 550 mm		520mm x 400 mm
Forming Depth (Max.)	120mm		110mm
Sheet thickness	0.2-2.0mm
Forming Speed (Max.)	35times/min		30times/min
Sheet width (Max.)	730mm		550mm
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA etc.
Procedure	Forming-punching-cutting-stacking	Forming-cutting-stacking	Forming-punching-cutting-stacking	Forming-cutting-stacking

⚡ Main Electrical Components

Parts	Brand / Origin
Filter	CKD (Japan)
Forming Valve	NORGER (UK)
Touch Screen	DELTA / KUNLUN TONGTAI
Proximity Switch	ROCKWELL (USA)
Temperature Control Module	WEST (UK)
AC Contactor/Circuit Breaker	SCHNEIDER (France)
PLC / Servo Motor	DELTA (Taiwan)
Sheet Sagging Detection	Sick (Germany)

🎯 Product Description & Application

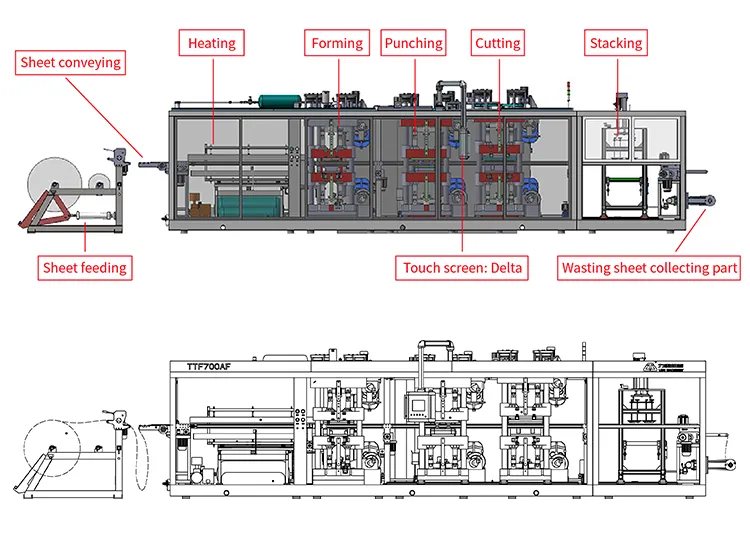

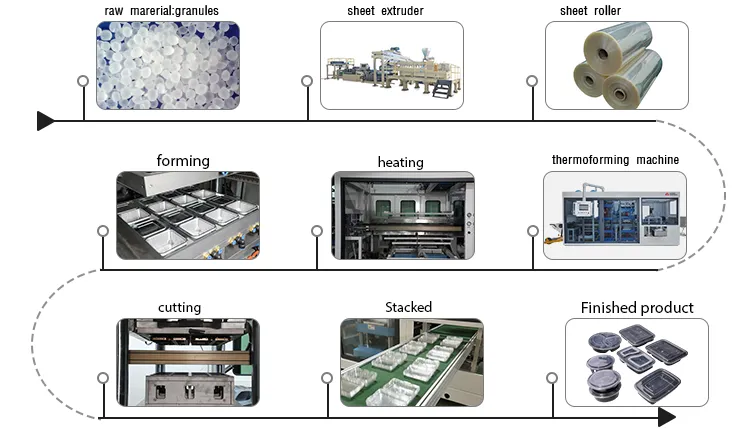

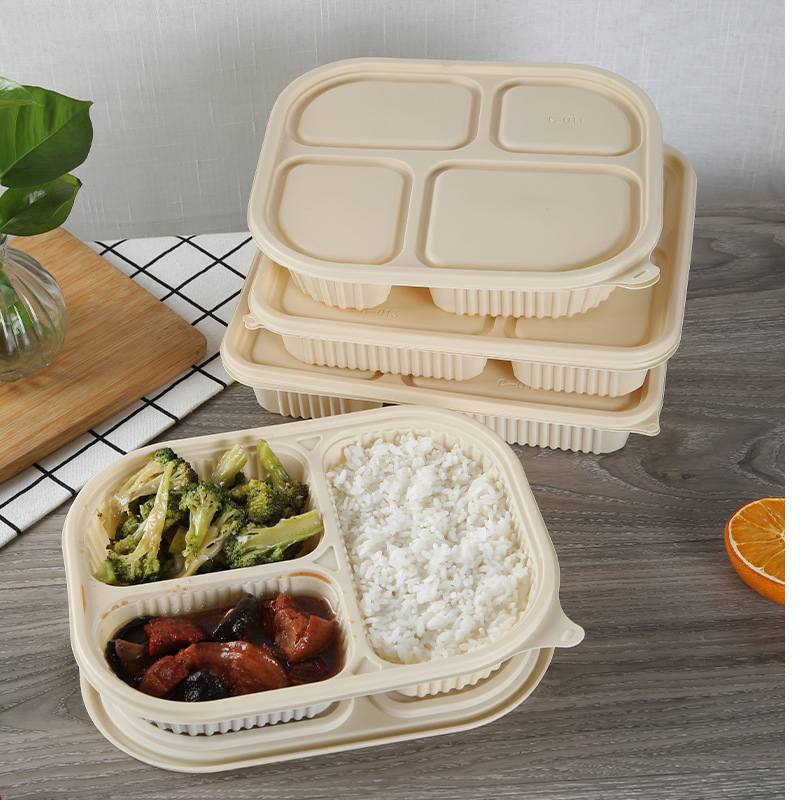

The series full-automatic thermoforming machine is a high-performance core product combining forming, punching, cutting, and stacking into one seamless process. It is widely used for producing plastic trays, containers, boxes, lids, and more.

🚀 Main Functions:

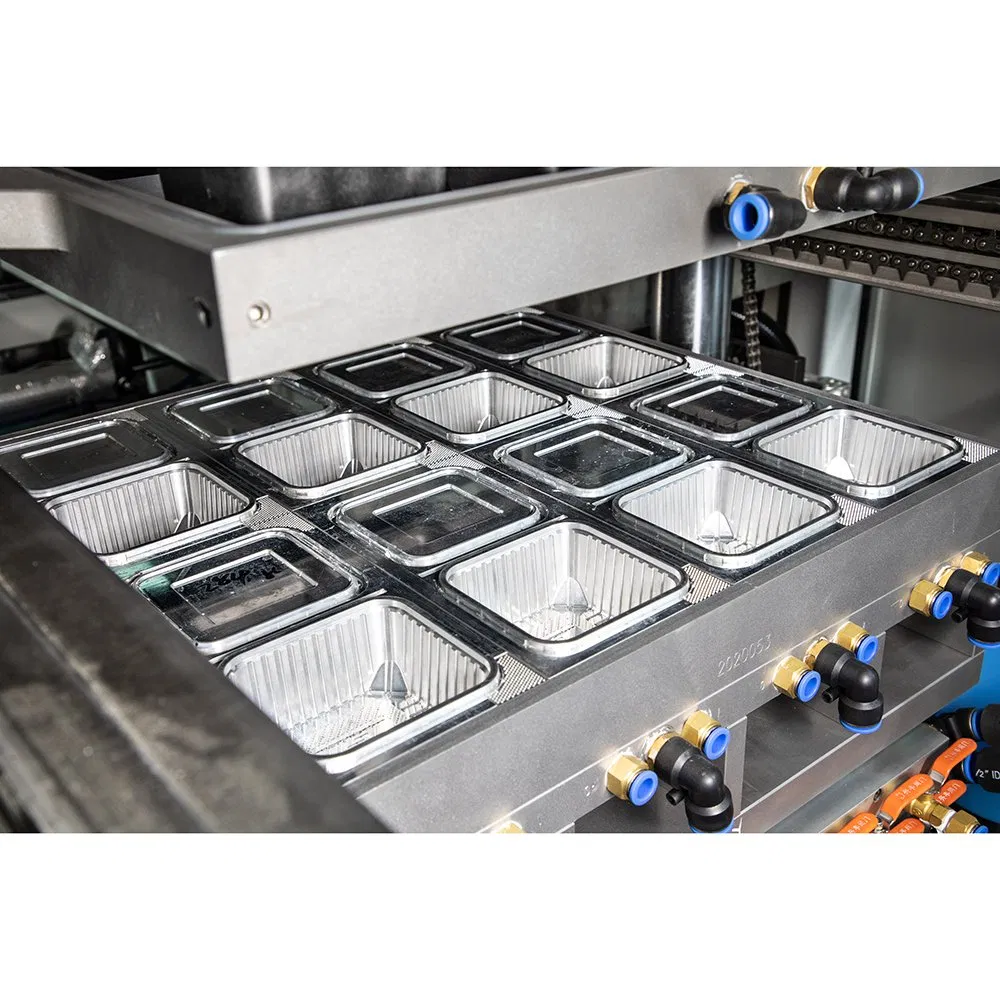

Positive and negative pressure forming device.
Point-to-point touch screen temperature control.

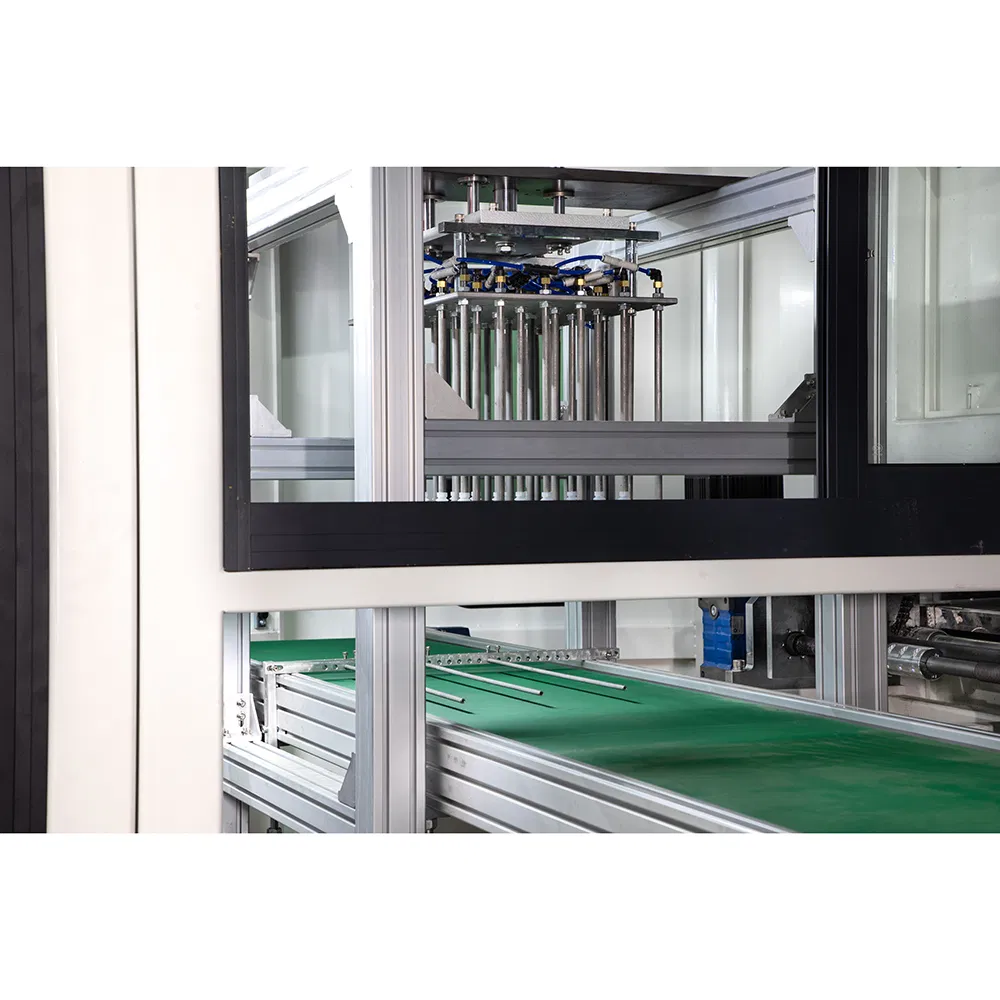

Automatic stacking and counting function.

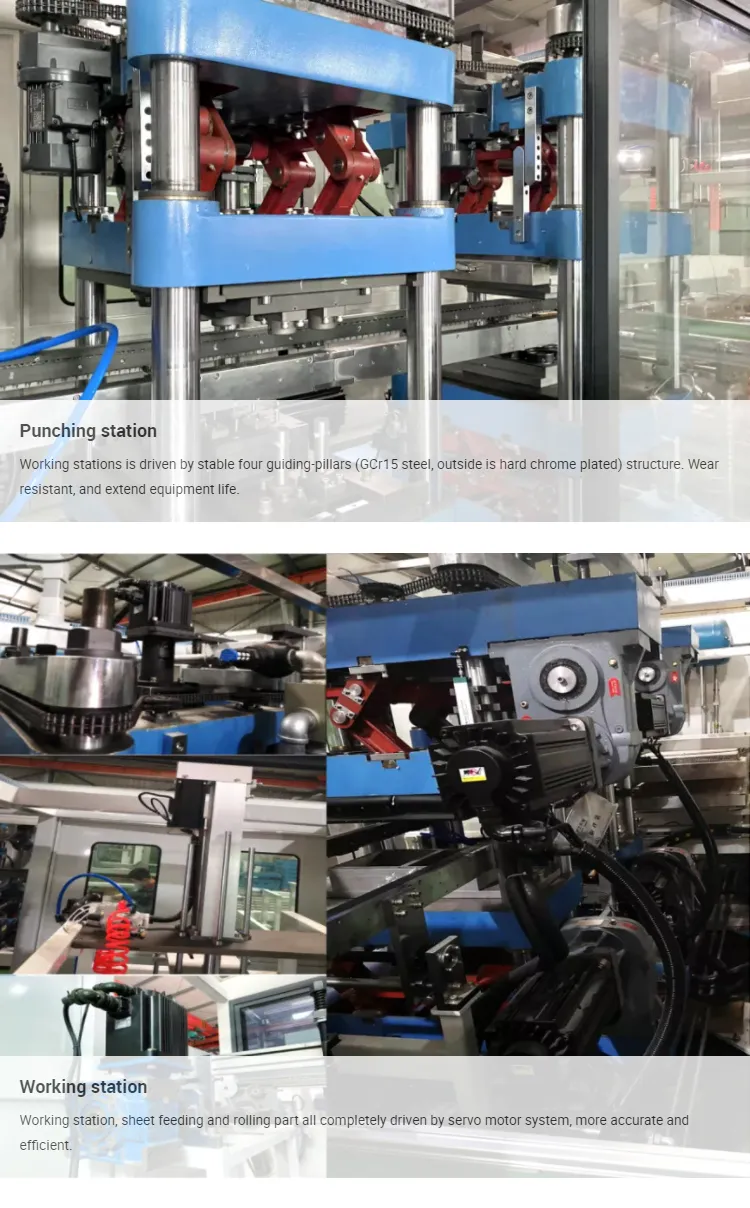

Servo-driven stability with low noise and high efficiency.
Safety protection and automatic edge rewinding.

💎 Features & Advantages

Full Servo Drive: Ensures no noise, no vibration, and fast thermoforming.
Compact Structure: Optimized design taking up minimal floor space.
Material Efficiency: Products are 8% thicker than average machine outputs using the same material.

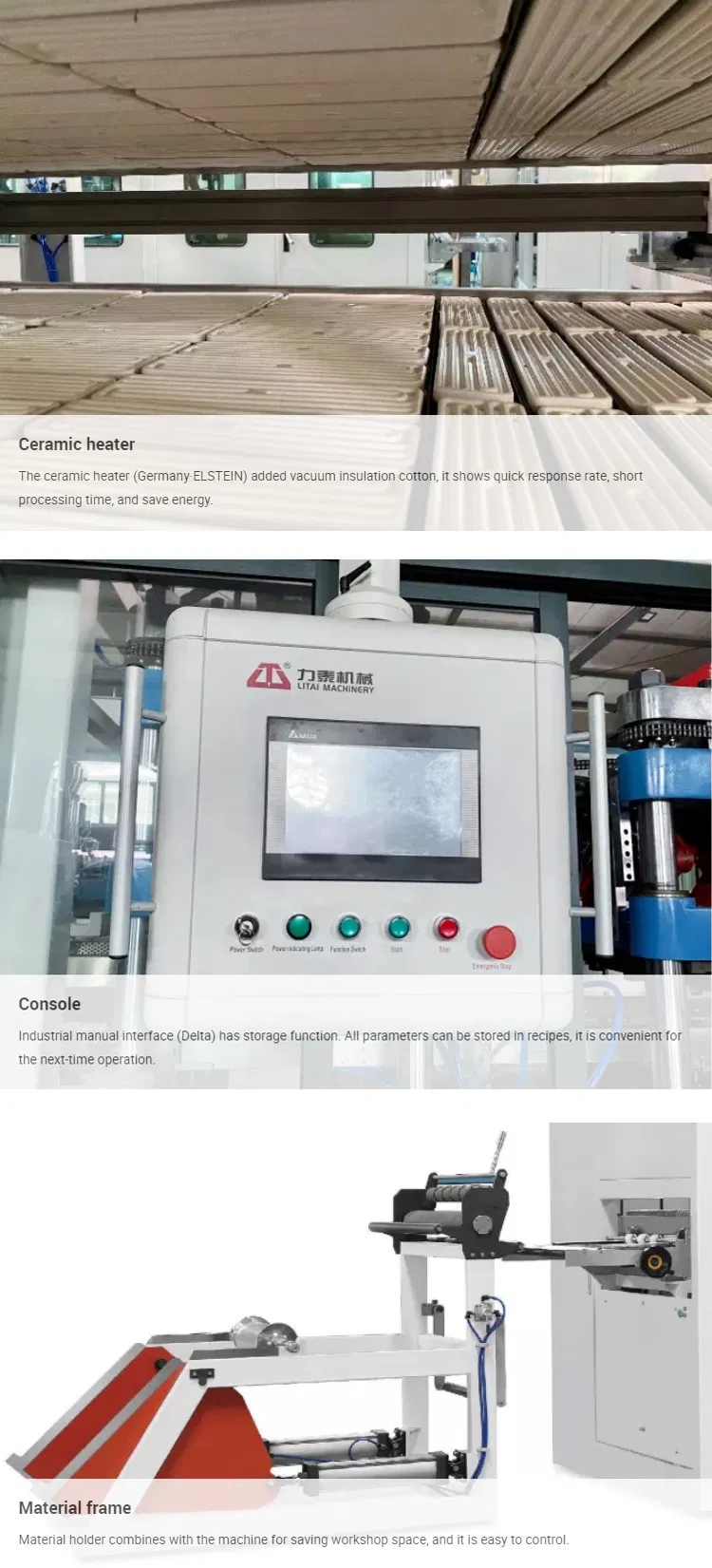

Intelligent Heating: Automatic compensation control for temperature uniformity and fast heating.
Labor Saving: Fully automated process requiring only 1-2 workers for packing.

🏭 Factory & Exhibition

📦 Transport Packaging

❓ Frequently Asked Questions (FAQ)

Q1: Are you a factory or trading company?

A1: We are a professional factory specializing in thermoforming machinery, exporting to more than 80 countries since 2001.

Q2: How long is the warranty period for the machine?

A2: The warranty period is 13 months from the date of shipment. During this time, maintenance and non-artificial spare parts are provided free of charge.

Q3: What materials can this thermoforming machine process?

A3: Our machines are highly versatile and can process a variety of sheets including PP, PS, HIPS, PET, PVC, and biodegradable PLA.

Q4: Do you provide installation and training services?

A4: Yes, we send experienced technicians to your facility to handle machine installation and provide comprehensive training for your operators.

Q5: What are the main advantages of a fully servo-driven system?

A5: A servo-driven system provides superior precision, significantly lower noise levels, reduced vibration, and faster production speeds compared to hydraulic systems.

Q6: How many workers are needed to operate the machine?

A6: Due to the high degree of automation (PLC control), only 1-2 workers are typically needed for final product packing.
