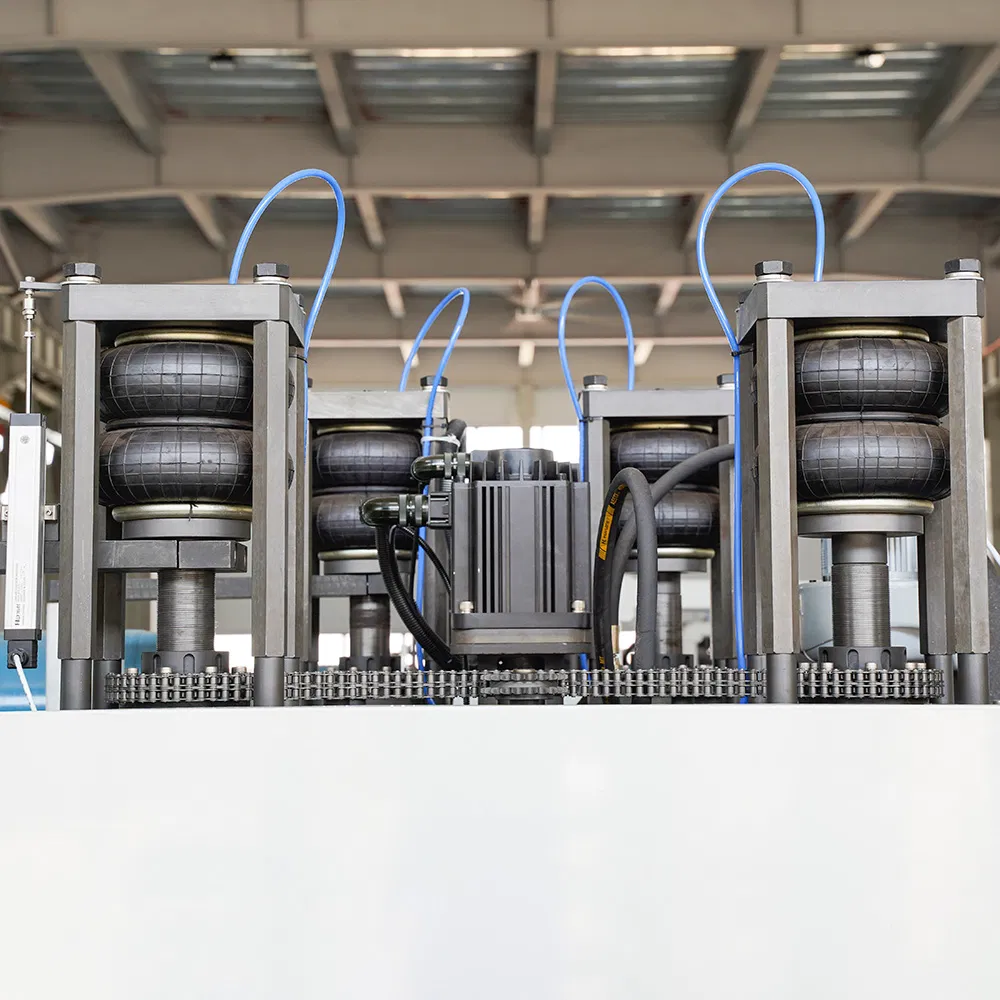

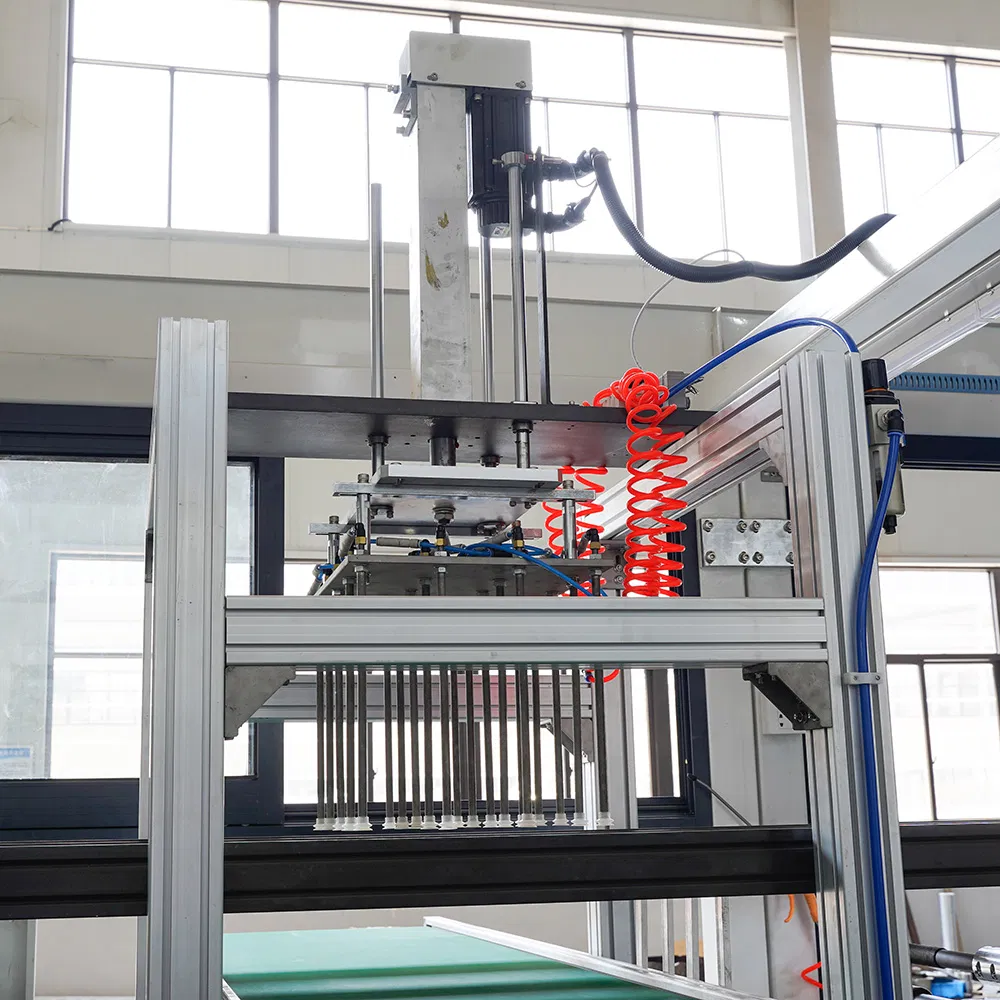

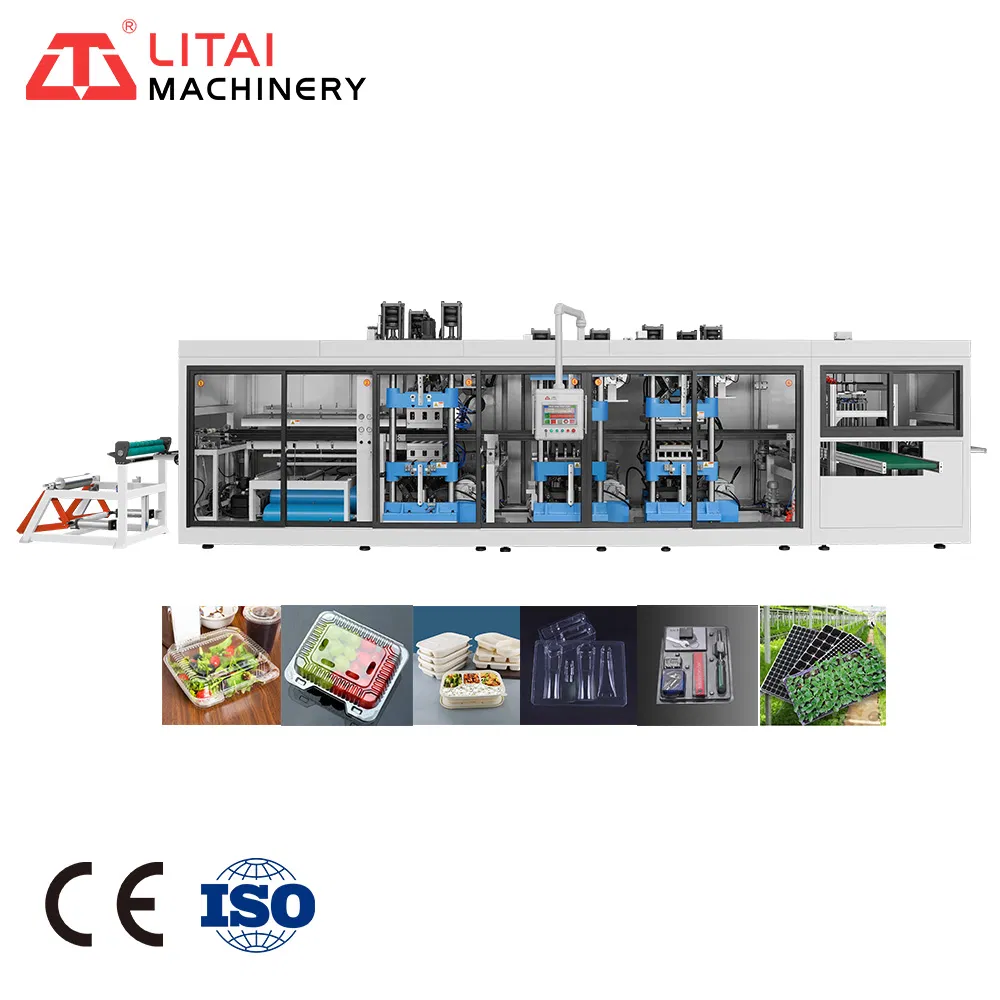

Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
1 / 5
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box
Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box

Semi Automatic Sweet Corn Thermoforming Vacuum Machine for Making Snack Packaging Box

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
TTF-700AF
Certification
CE, ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Applicable Sheet
PP, HIPS, PS, Pet, PVC, etc.
Forming Area
700mm X 600 mm
Process
Forming-Punching-Cutting-Stacking
HS Code
8477409000
Production Capacity
5 Set/Month

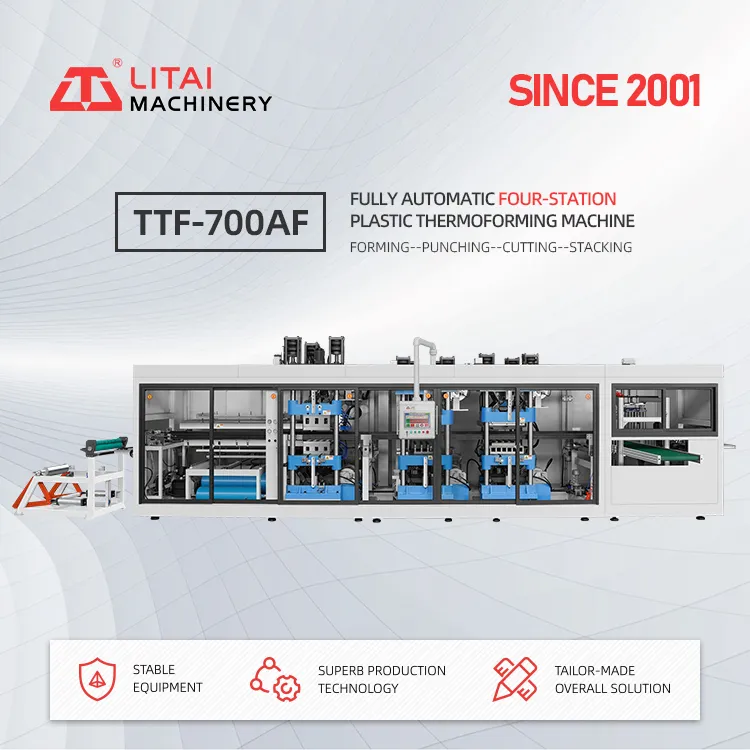

Thermoforming Machine Overview
Product Parameters
Technical Parameters
Station Four stations Three station Four stations Three station
Model TTF-700AF TTF-700A TTF-520AF TTF-520A
Forming Area 700mm x 600 mm 520mm x 400 mm
Forming Depth (Max.) 135mm 110mm
Sheet thickness 0.2-2.0mm
Forming Speed 30times/min 30times/min
Suitable Sheet PP, PS, HIPS, PET, PVC, PLA etc.
Weight About 25.0T About 19.0T About 11.0T About 9.0T
Main Electrical Components
MODEL/PARTS TTF520A/AF TTF700A/AF
Filter CKD(Japan)
Touch Screen DELTA KUNLUN TONGTAI
PLC/Servo Motor DELTA(Taiwan)
AC Contactor SCHNEIDER(France)
Product Display

Application: Our four-station plastic thermoforming machine is a fully automatic system integrating sheet loading, heating, forming, cutting, stacking, and rewinding. Compared to traditional vacuum machines, it offers high speed (up to 30 cycles/min), higher efficiency, and lower labor costs.

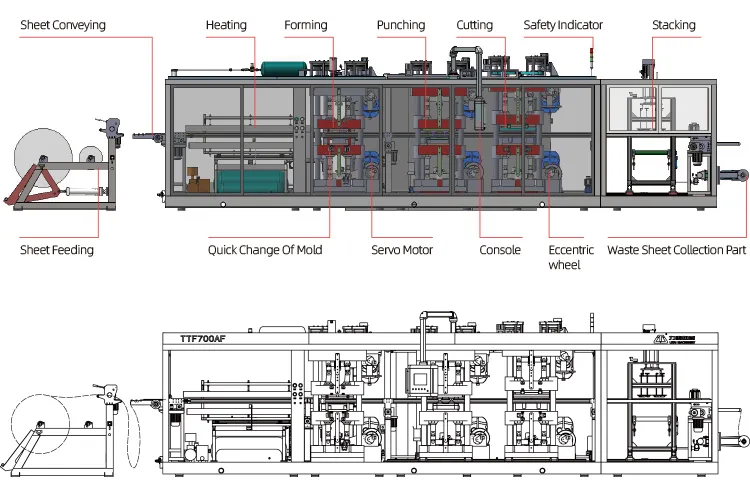

Display 1

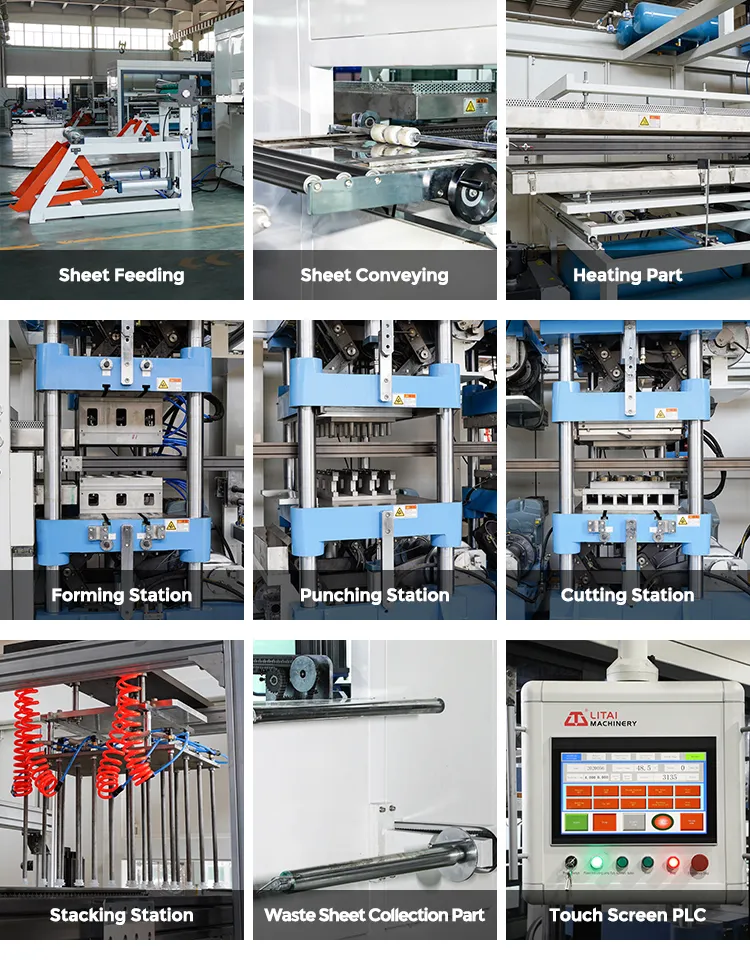

Display 2
Main Functions
  • Positive and negative pressure forming device.
  • Vacuum forming device.
  • Touch screen computer temperature module point-to-point control.
  • Automatic punching, cutting, and stack counting function.
  • Edge automatic rewinding and safety protection devices.

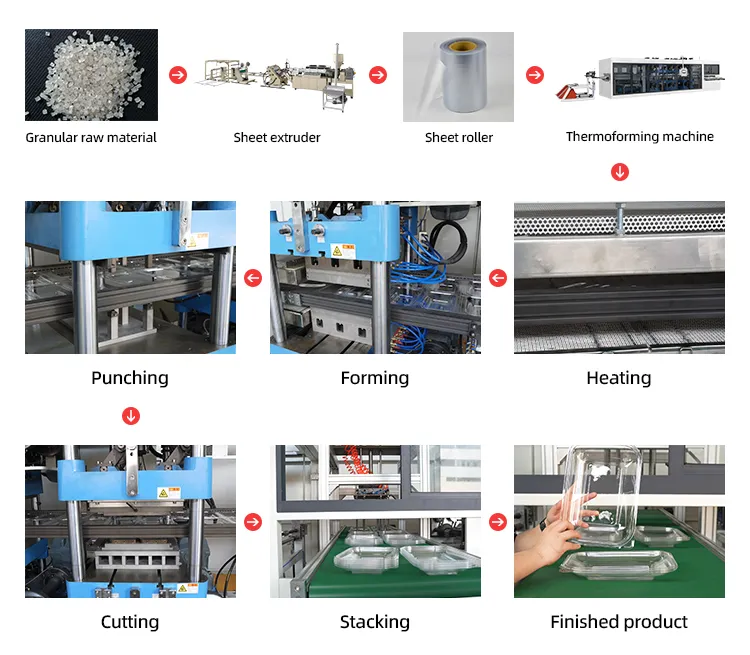

Display 3

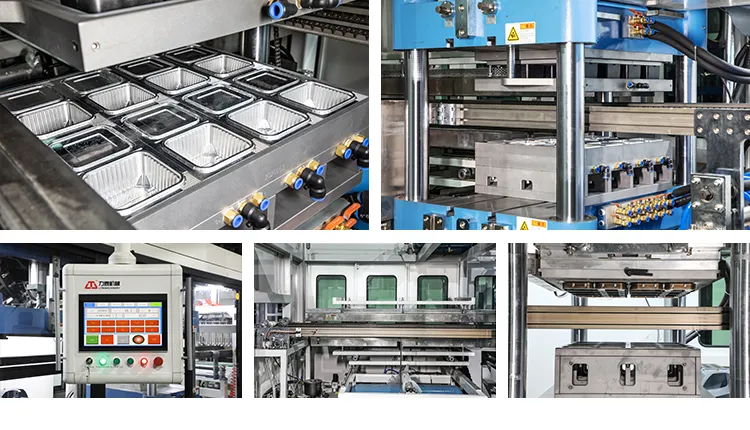

Display 4
Machine Details & Systems
Feeding & Conveyor System

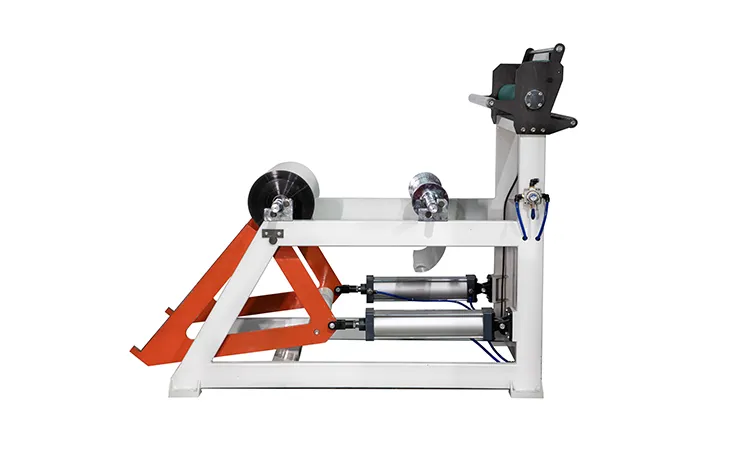

Feeding Part

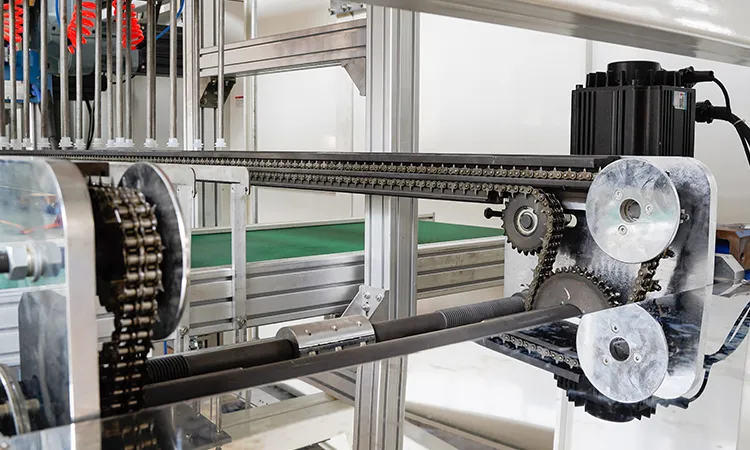

Conveyor System

1. Automatic loading reduces labor costs. 2. Aluminum guide rails with water cooling for stable sheet conveying. 3. Servo motor driven toothed chain for precise movement.

Heating & Forming Station

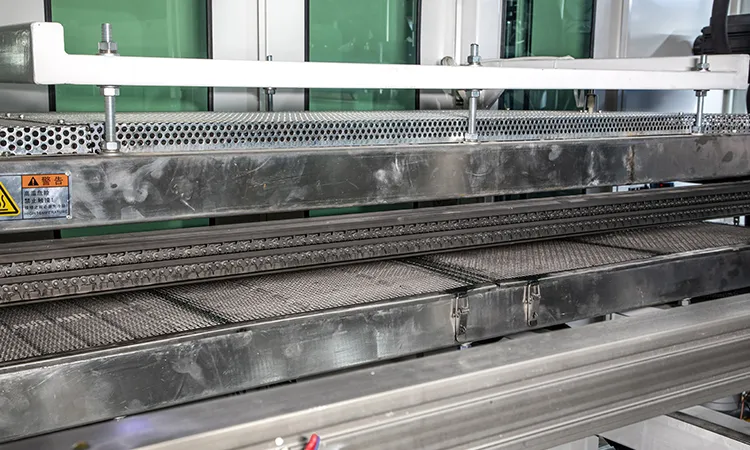

Heating Part

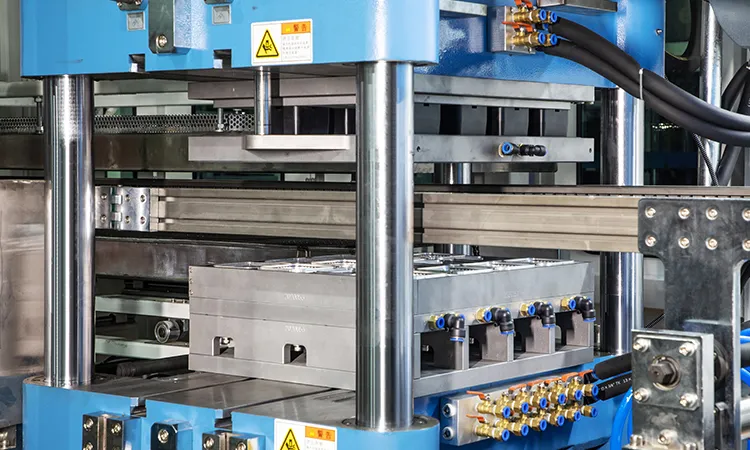

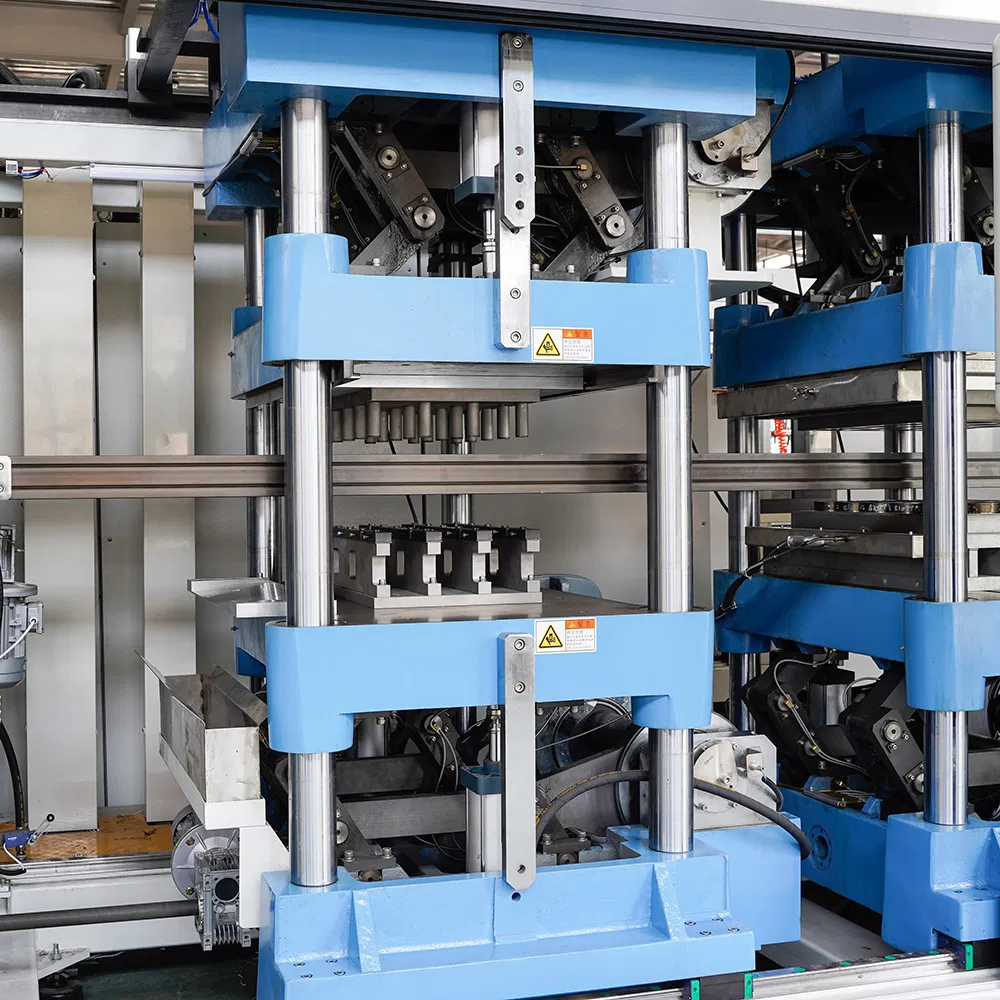

Forming Station

Adopt German Elstein heating tiles for 30% energy savings. Forming station uses a four-pillar structure for maximum stability and shock absorption.

Punching, Cutting & Stacking

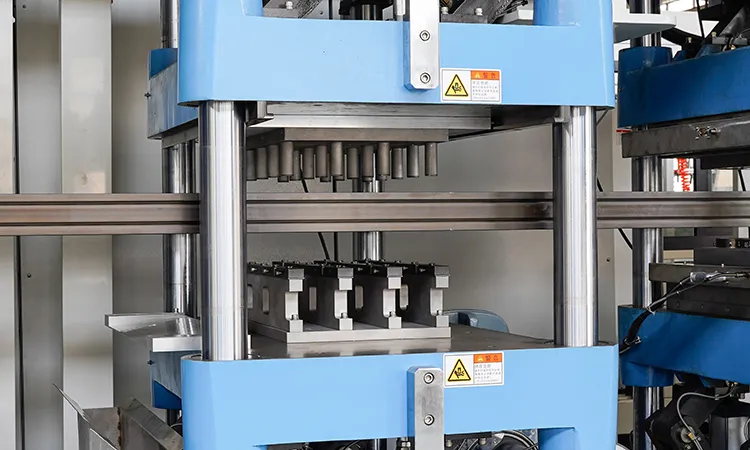

Punching Station

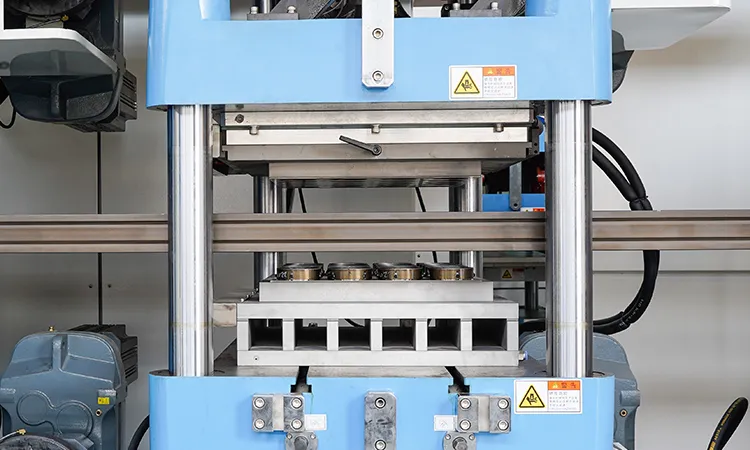

Cutting Station

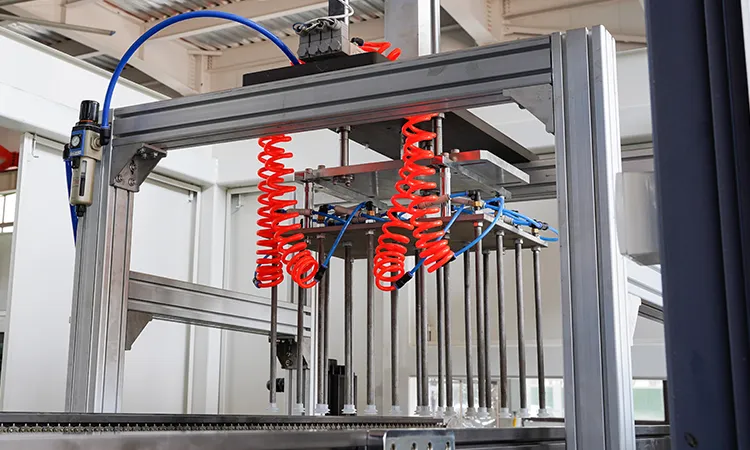

Stacking Station
Company Profile & Cooperation
Profile 1 Profile 2
Long-term Cooperation Brands
Brands
Transport Packaging
Packaging
FAQ
Q1: Are you a factory or trading company? A1: We are a professional factory, exporting machinery to more than 80 countries worldwide.
Q2: What is the warranty period for the machine? A2: The warranty period is 13 months from the date of shipment. During this time, spare parts are provided free of charge for non-artificial damage.
Q3: How is the installation and training handled? A3: We can dispatch technicians to your facility to install the equipment and provide comprehensive operator training.
Q4: What materials can this thermoforming machine process? A4: The machine is compatible with a wide range of materials including PP, PS, HIPS, PET, PVC, and PLA.
Q5: What is the maximum production speed? A5: The machine can reach a maximum forming speed of up to 30 cycles per minute, depending on the product design and material.
Q6: How many workers are required to operate the line? A6: Due to the high degree of automation, only 1-2 workers are typically required for the final packaging stage.
