Basic Specifications
Raw Material
PVC, PP, PET, PS, PLA
Shaping Mode
Die Molding / Thermoforming
Application
Food, Beverage, Machinery & Hardware
Driven Type
Pneumatic & Servo Motor
Control System
Computerized PLC Control
Certification
CE, ISO9001:2008, SGS, QS
Material Built
Stainless Steel SS304
Electric Parts
Siemens, Mitsubishi, etc.
Production Capacity
Up to 10 cycles/minute

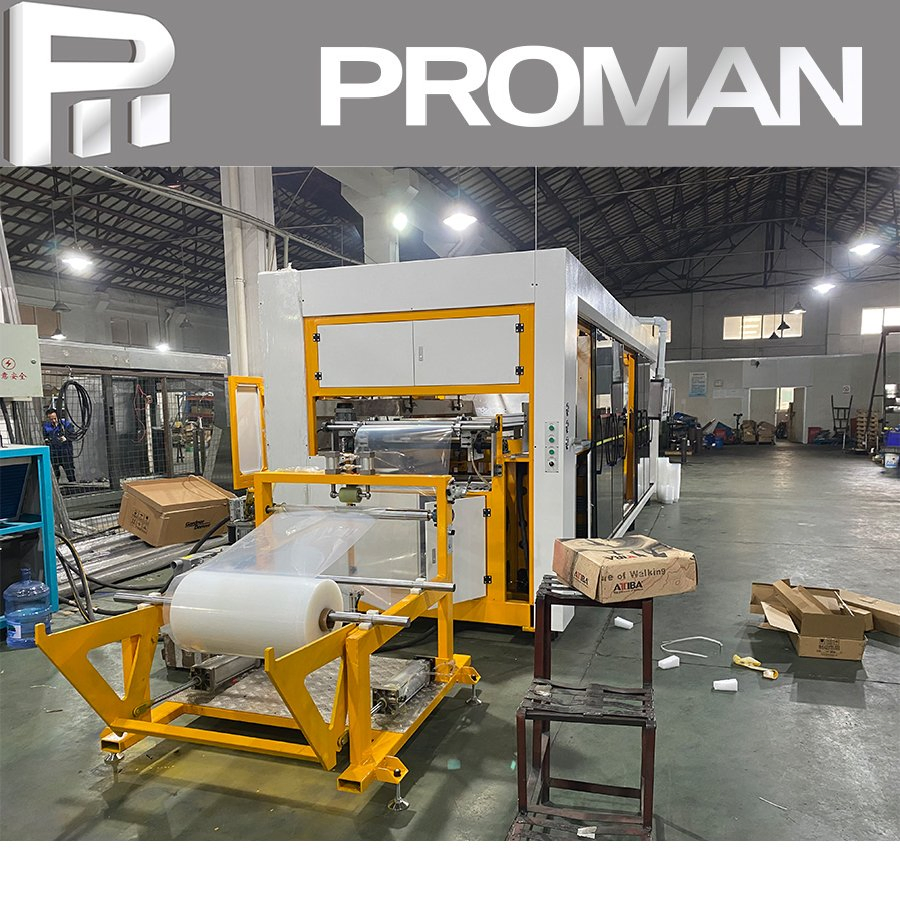

Semi-Automatic Thermoforming & Cutting Machine

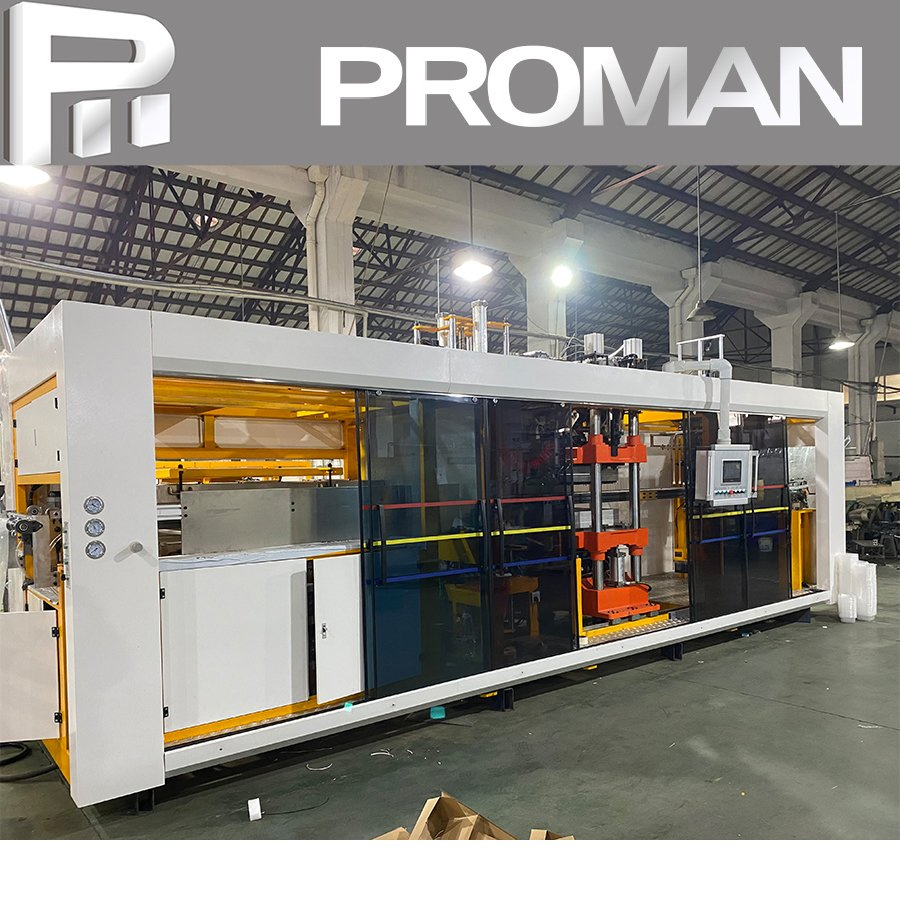

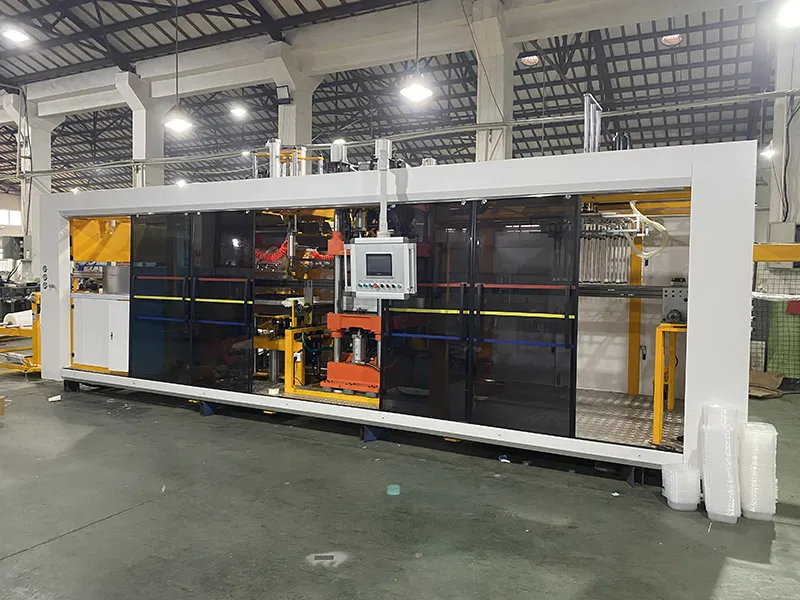

The PM-7185 thermoforming machine is a multi-station automatic solution designed to meet market demands for disposable plastic containers. It features synchronous forming, punching, and cutting, allowing for streamlined production of cups, bowls, boxes, and lids. By integrating these processes, it significantly reduces labor costs and enhances overall efficiency.
Technical Parameters
| No. |
Parameter Item |
Specification (PM-7185) |
| 1 | Suitable Material | PP, PS, PET, PVC, PLA, etc. |
| 2 | Material Width | 450-750mm |
| 3 | Thickness of Material | 0.15-2.2mm |
| 4 | Max. Forming Area | 710×520mm |
| 5 | Forming Depth | 150mm |
| 6 | Max. Cutting Force | 60T (Used with heatable die system) |
| 7 | Max. Production Speed | ≤10 cycles/minute |
| 8 | Installed Power | 100KW |
| 9 | Actual Energy Consumption | About 20KW/H |
| 10 | Compressed Air Pressure | 0.6~0.8bar |
Core Components

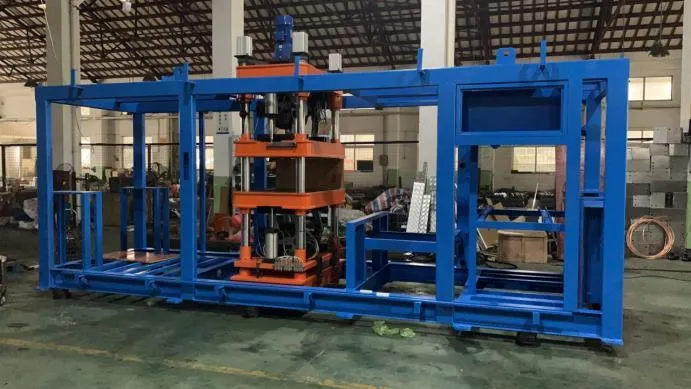

Robust Machine Framework: Adopting national standard square steel pipe, the surface is painted with three layers. The frame is strong, durable, and highly resistant to rust.

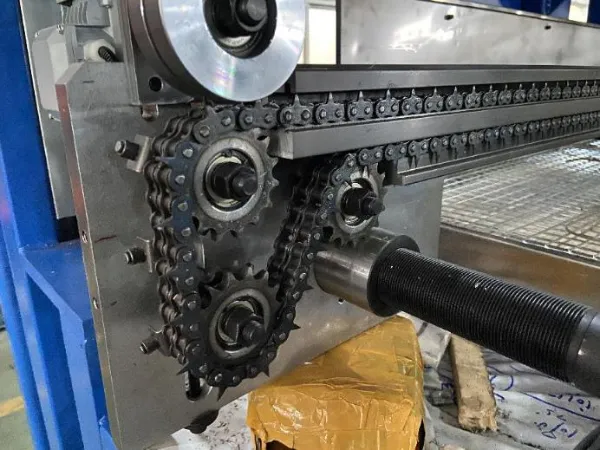

Sheet Delivering Chain Track: Advanced delivery system ensuring precise movement and stable material handling during the forming process.

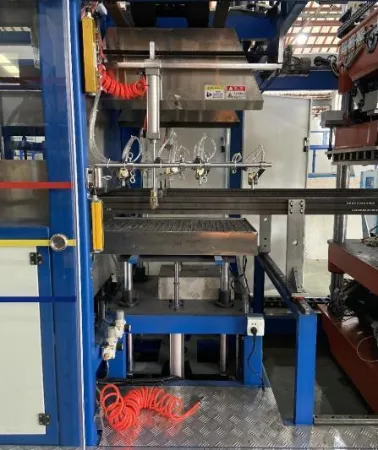

Adjustable Forming Table: Maximum forming area of 710*850mm. Features internal cooling water circulation to maintain low mold temperatures, ensuring high production speeds.

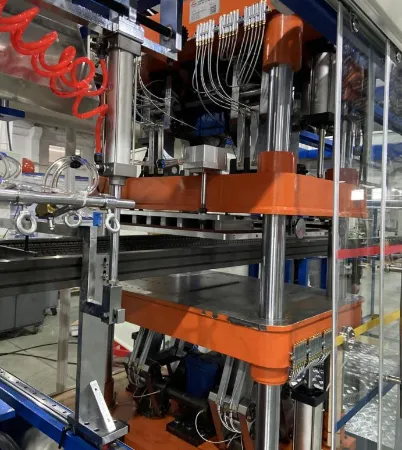

Stable Cutting Station: Full servo motor drive which makes machine production speed faster and cutting force more powerful.
Key Features
💡
Fully Automatic PLC Control: Parametric digital display for easy operation and full system automation.
⚡
Servo Integration: Combines servo motor sheet feeding, vacuum forming, and gas-liquid pressure cylinders (60T cutting pressure).
🏗️

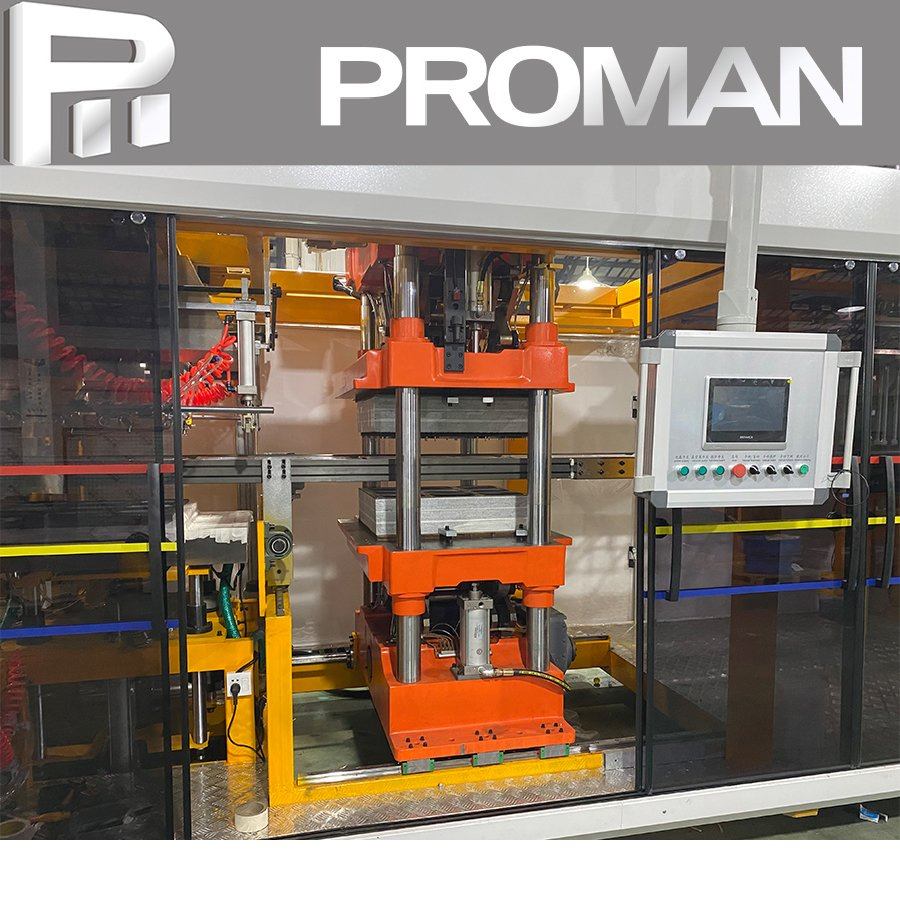

4-Pillar Hydraulic Structure: Provides stable quality and low noise during high-speed operation.
🔥
Ceramic Heating System: Imported ceramic heaters with double heating ovens for accurate temperature control and long life.
🛠️
Customization: Forming areas can be designed and manufactured to meet specific customer requirements.
Product & Factory Display
Quality Assurance
- ✅ 12-month quality guarantee after checking.
- ✅ Free wearing parts and technical support during guarantee period.
- ✅ On-site technician installation and operator training provided.
Frequently Asked Questions
What types of products can this machine produce?
It is designed for producing disposable plastic cups, bowls, boxes, food containers, and lids using materials like PP, PET, PS, and PVC.
What materials are compatible with the PM-7185?
The machine is compatible with a wide range of plastic sheets including PP, PS, PET, PVC, and eco-friendly PLA.
Does the machine support multi-station operation?
Yes, it features synchronized forming, punching, and cutting stations in one integrated system for high-speed production.
How is the temperature controlled in the heating furnace?
The machine uses imported ceramic heaters with double furnace control, ensuring accurate and stable temperature management.
What is included in the after-sales service?
We provide a 12-month quality guarantee, installation and debugging by experienced technicians, and technical training for your operators.
Is the forming area customizable?
Yes, we offer customized services where the forming area and other specifications can be designed to meet your specific production needs.
