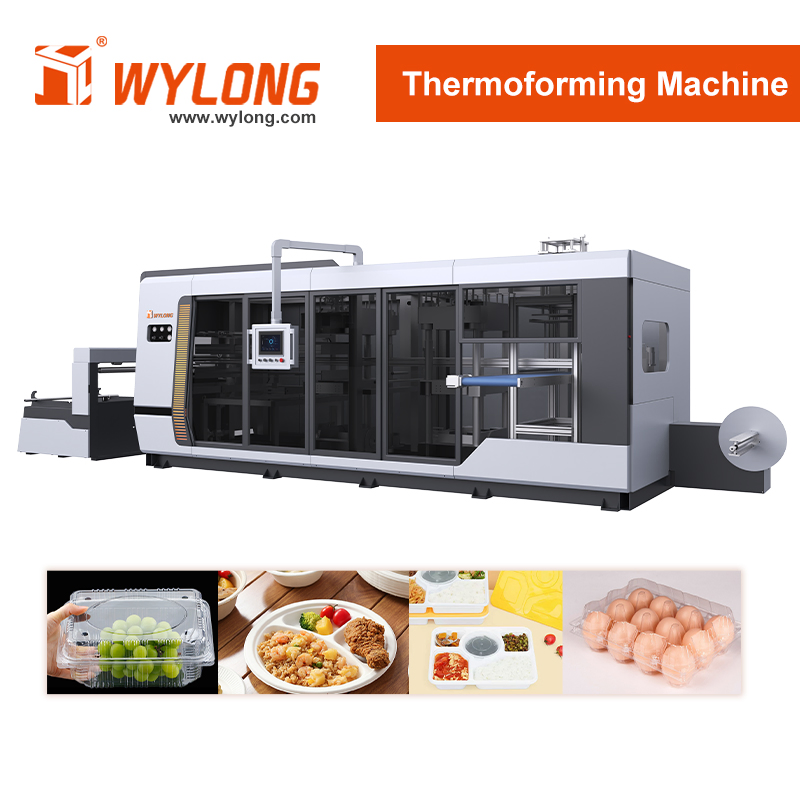

Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
1 / 5
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing
Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing

Servo-Driven Multi-Station Plastic Thermoforming Machine/Clear RPET Clamshell Packaging for Raspberries or Blackberries Packing

Customization: Available
After-sales Service: During This One Year, in Case of Any Trouble
Warranty: During This One Year, in Case of Any Trouble
Send Inquiry

Product Description

📋

Basic Information

Model NO.
ZHD-750/650
Certification
CE
Molding Method
Pressing
Automatic Grade
Automatic
Processing Type
Plastic Thermoforming
Plastic Type
PP, PET, PVC, PS, PLA
Forming Area
750/650mm
Production Speed
10-35 Mould/Min
Sheet Thickness
0.2-2 mm
Heating Power
165kw

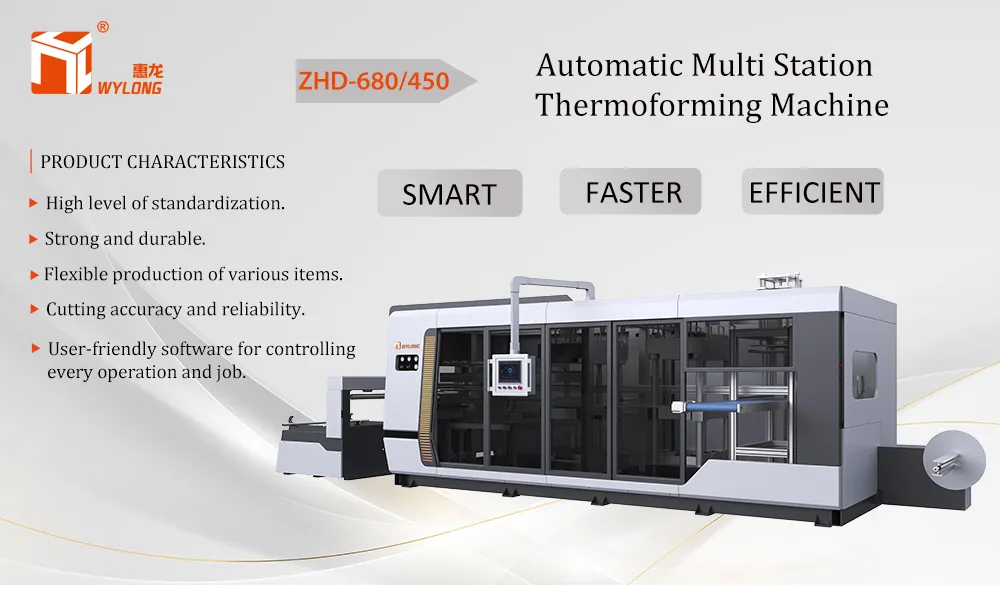

Servo-Driven Multi-Station Plastic Thermoforming Machine
⚙️

Essential Technical Details

Model ZHD-680/450 ZHD-750/650 ZHD-750/850
Sheet Thickness0.2-2mm0.2-2mm0.2-2mm
Forming Area680x450mm750x650mm750x850mm
Sheet Width400-620mm450-800mm500-900mm
Max Speed15-30/min15-40/min15-40/min
Total Power100kw200kw240kw
Machine Weight9ton15ton20ton
🔧

Configuration List

PARTS NAMEORIGIN
Forming Servo MotorInovance
Cutting Servo MotorInovance
Magnetic ValveJapan (SMC)
CylinderAirtac
PLCTRIO
Touch ScreenInovance
Machine Configuration
🔍

Machine Station Details

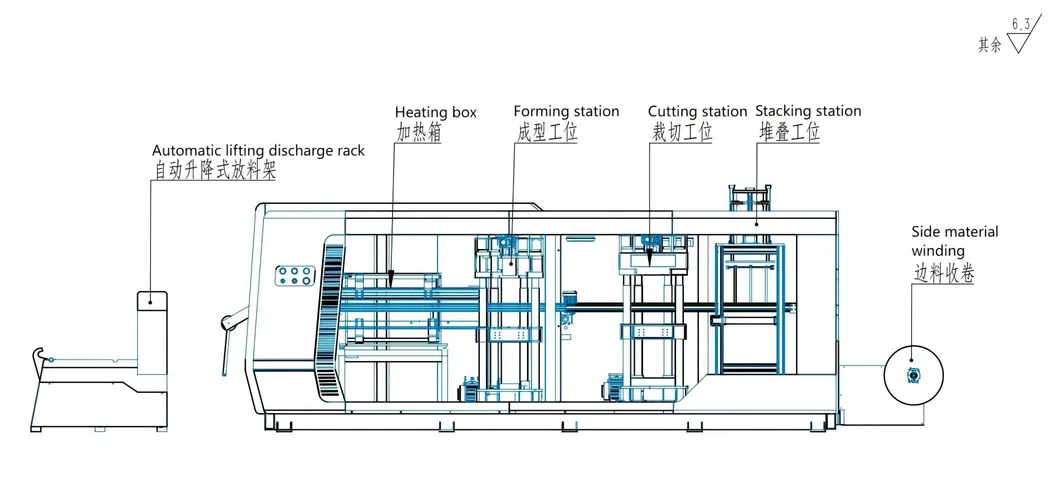

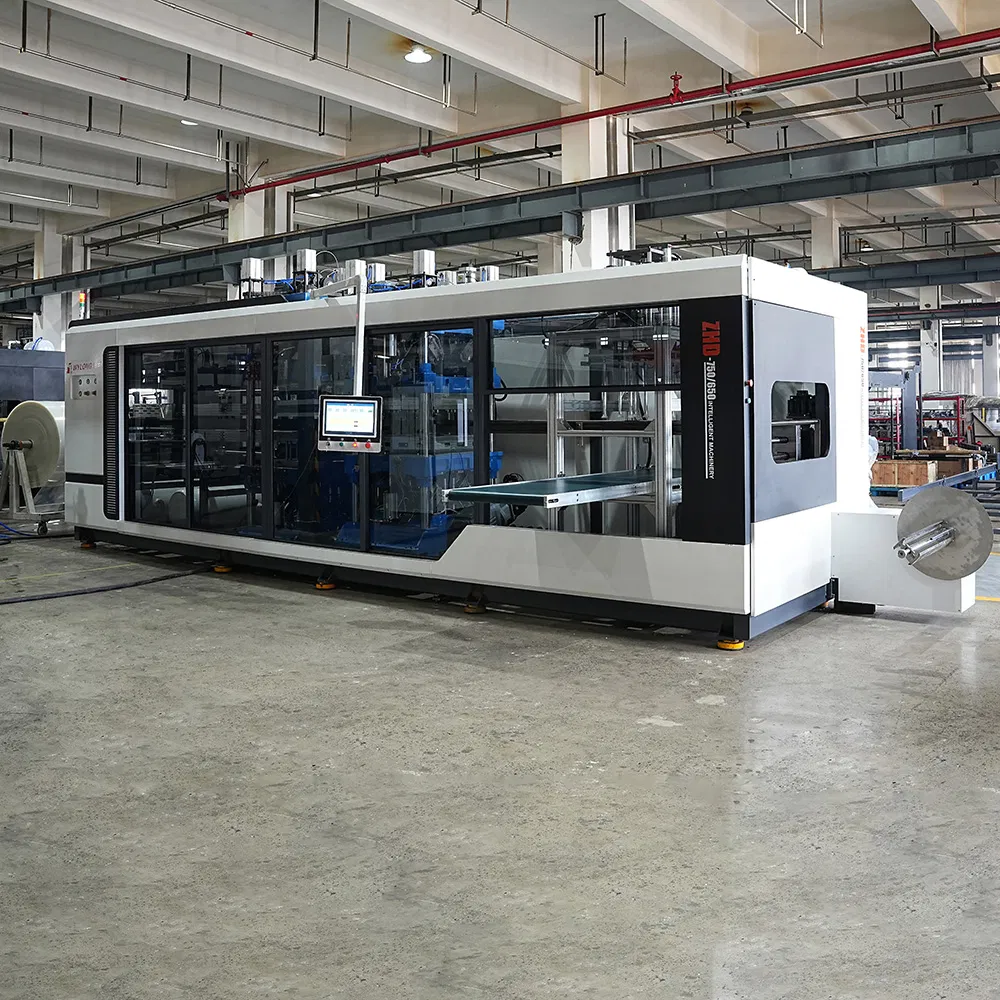

Machine Overview

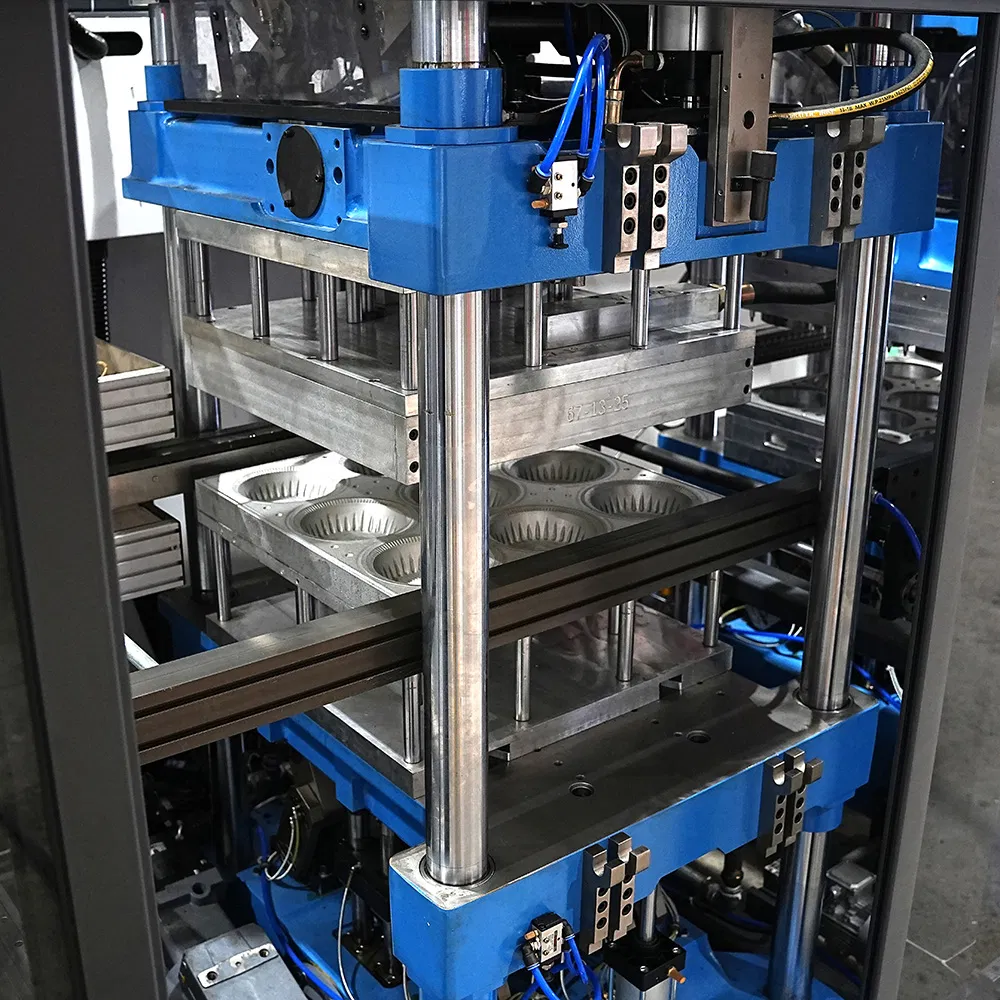

Forming Station

Forming Station: Precisely forms the heated sheet into mold impressions via stretch and air compression.

Cutting Station

Cutting Station: Ensures high accuracy and speed in cutting the molded sheet for optimal performance.

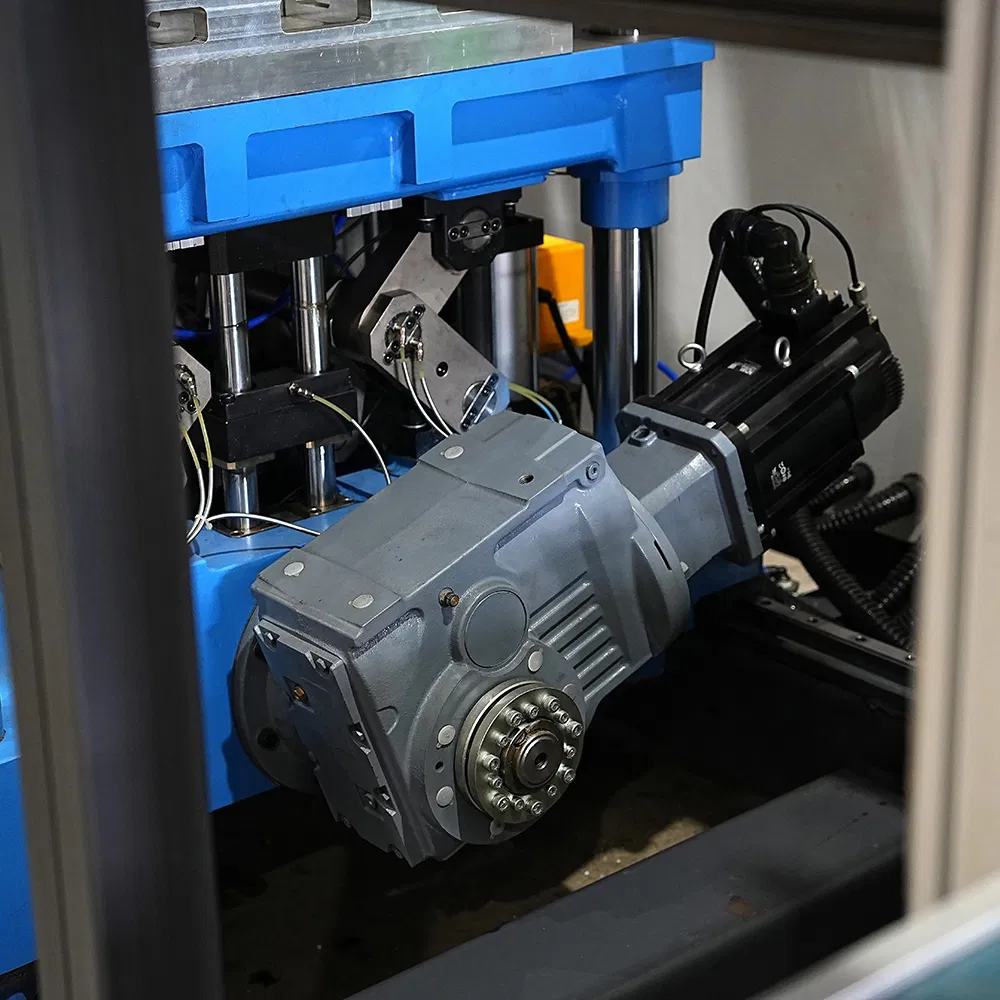

Servo Motor

Servo Drive: Equipped with Inovance drives for reliable, consistent high-quality production results.

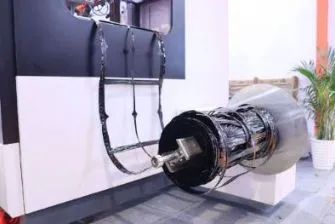

Winding Motor

Winding Motor: Features a torque motor to efficiently collect and wind waste sheets for easy removal.

📦

Products Range & Applications

The multi-stations thermoforming machine is suitable to handle different materials, such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC. It produces a wide variety of items including:
  • Trays, lids, and plates
  • Fruit and vegetable boxes
  • Flower pots and nursery trays
  • Clamshell packaging for food
  • Hole-punched containers and egg trays
Product Samples

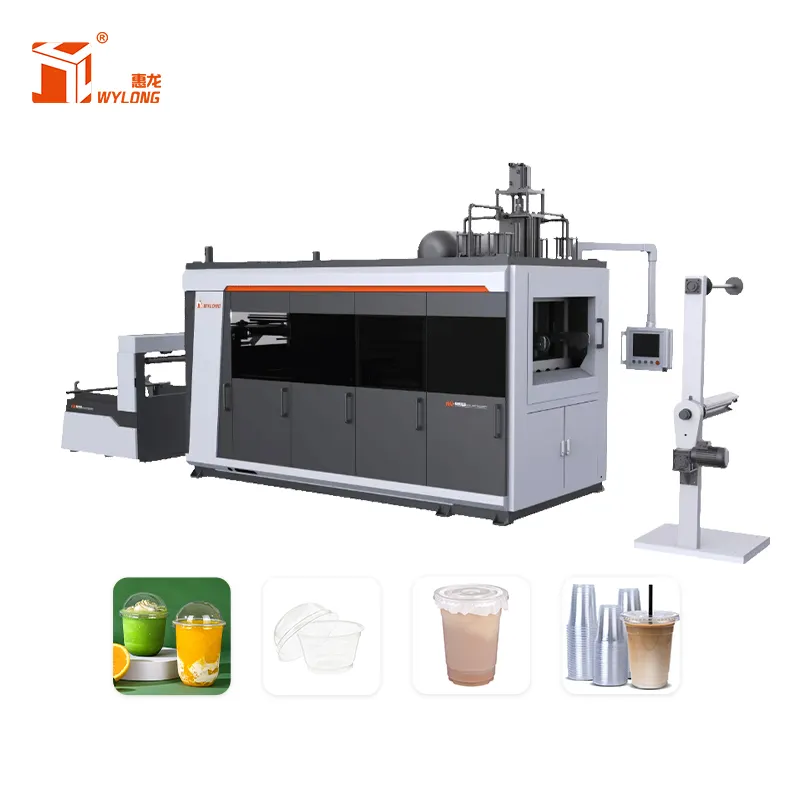

PLA Cup Samples

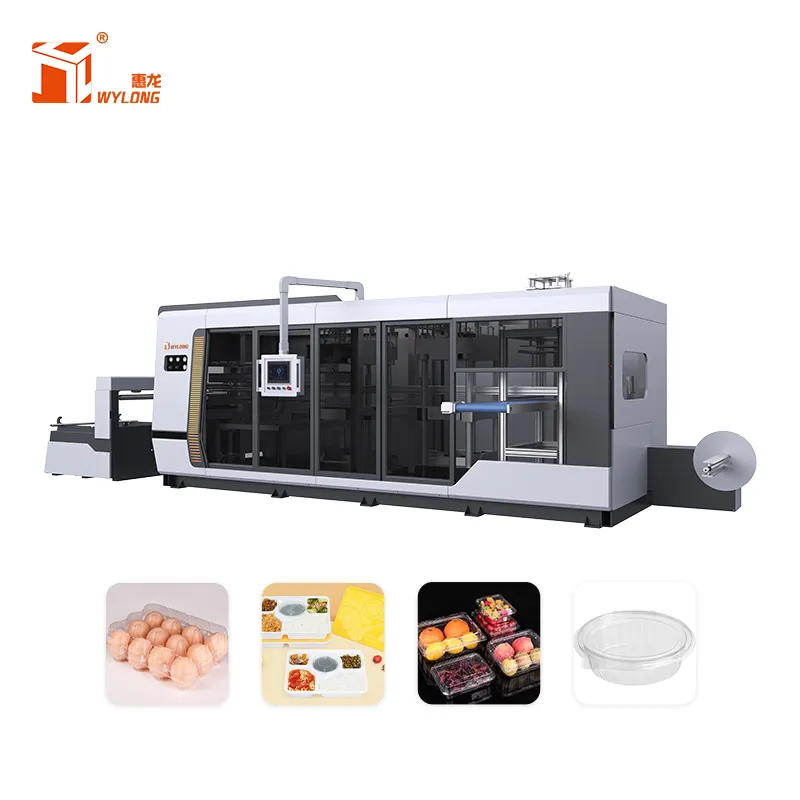

Food Container Samples

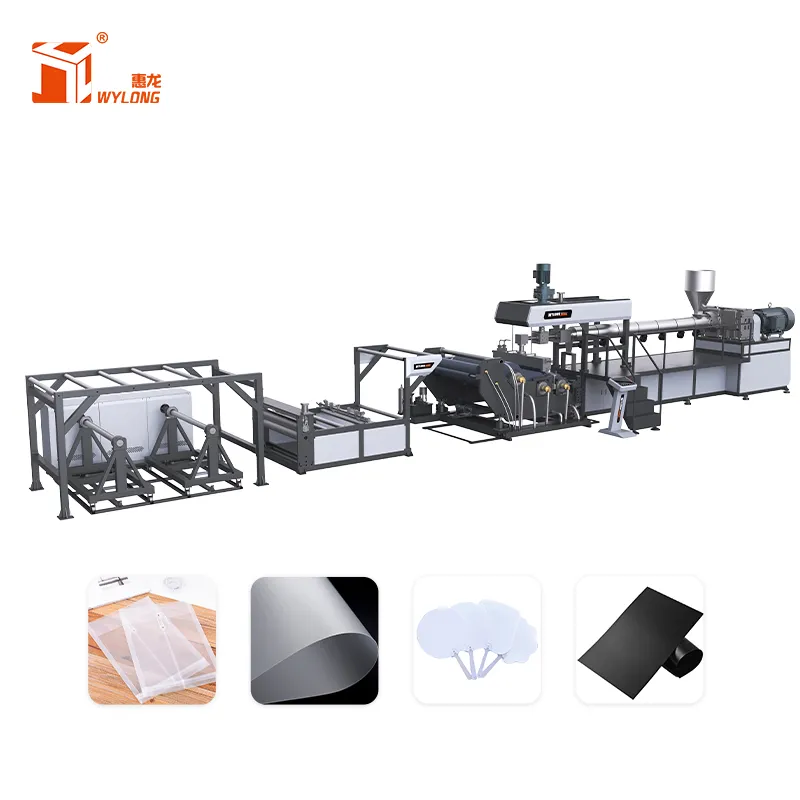

Sheet Extruder Samples
🤝

Exhibitions and Fairs

Global Exhibitions
❓

Questions You May Ask (FAQ)

Q1: Do you have different models for each machine?
Reply: Yes, we have various models and can customize the machine according to your specific requirements.
Q2: What is the typical production time?
Reply: Normally, the manufacturing process takes around 45 days.
Q3: What material can be used in the thermoforming machine?
Reply: The machine supports PP, PS, PVC, and PET materials with thicknesses ranging from 0.3mm to 2mm.
Q4: What is the daily capacity of the machine?
Reply: Based on 20 working hours per day, the capacity is approximately 300,000 to 500,000 pcs, depending on the product size and material.
Q5: What are the electrical and air requirements?
Reply: It requires a three-phase four-wire system. The compressed air output should be higher than 2.4 mm³/min with pressure above 6 kgs.
Q6: What about the payment terms?
Reply: We accept T/T (30% deposit, 70% before delivery) or 100% confirmed irrevocable L/C at sight.
