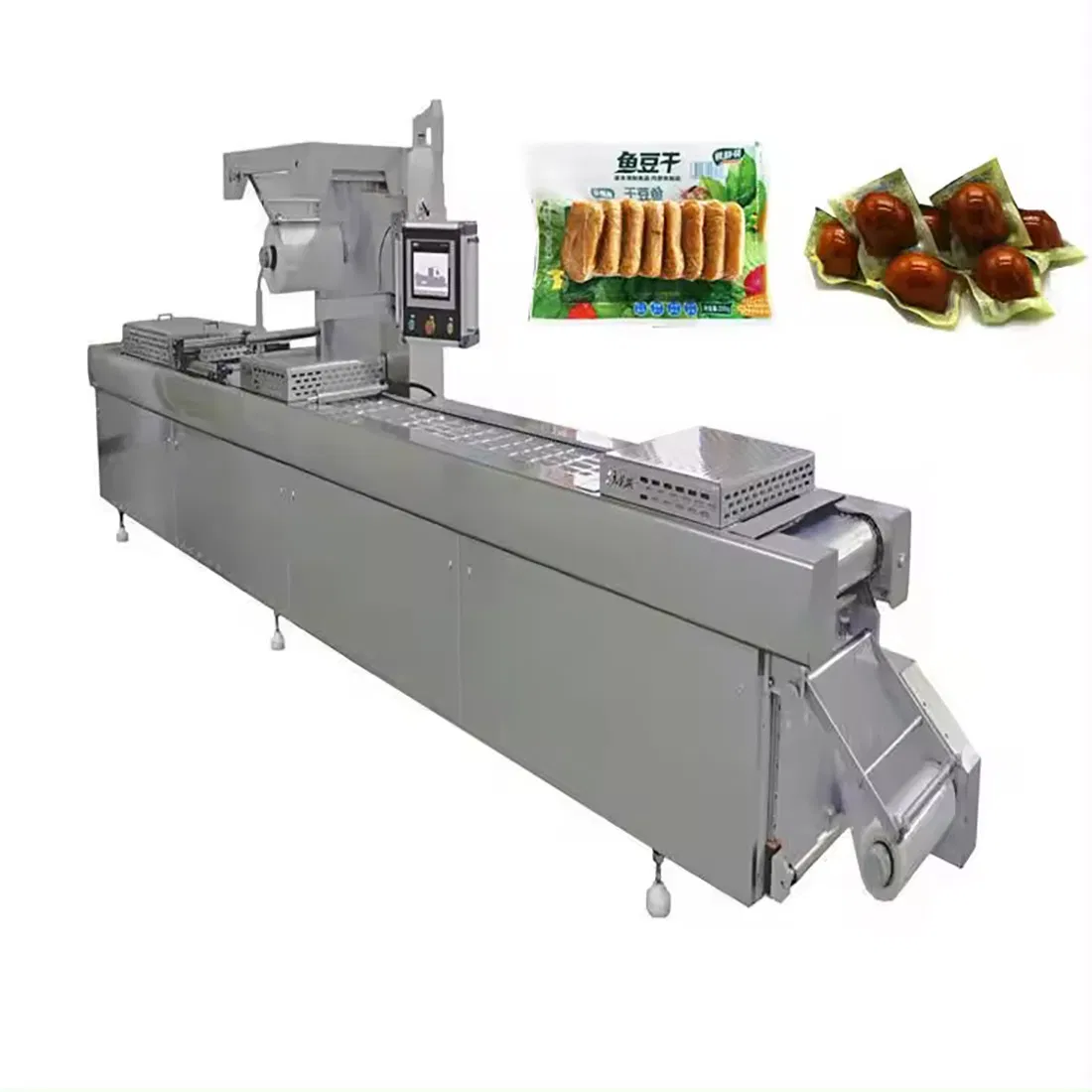

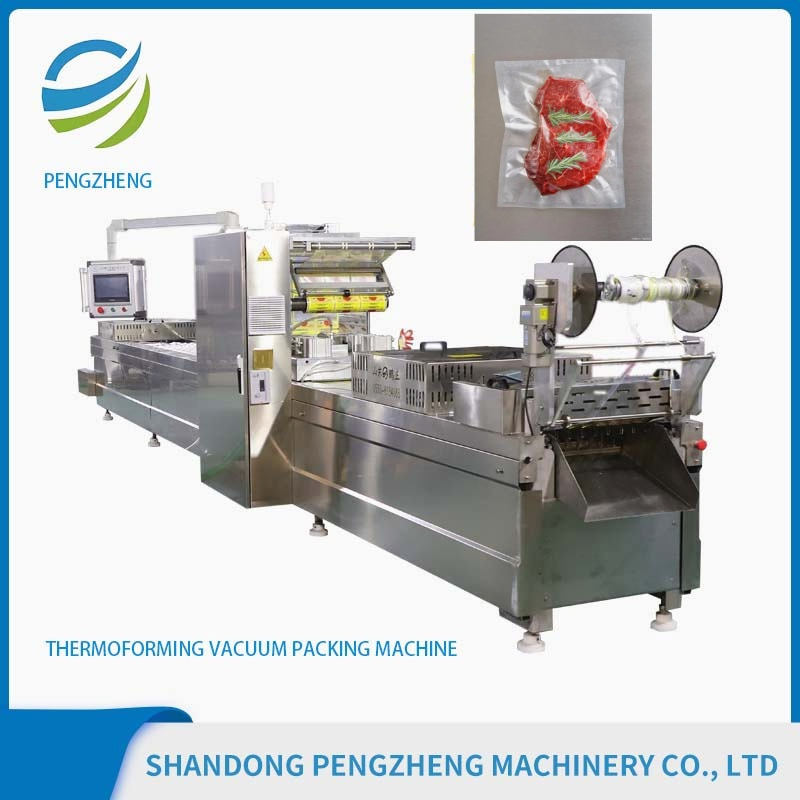

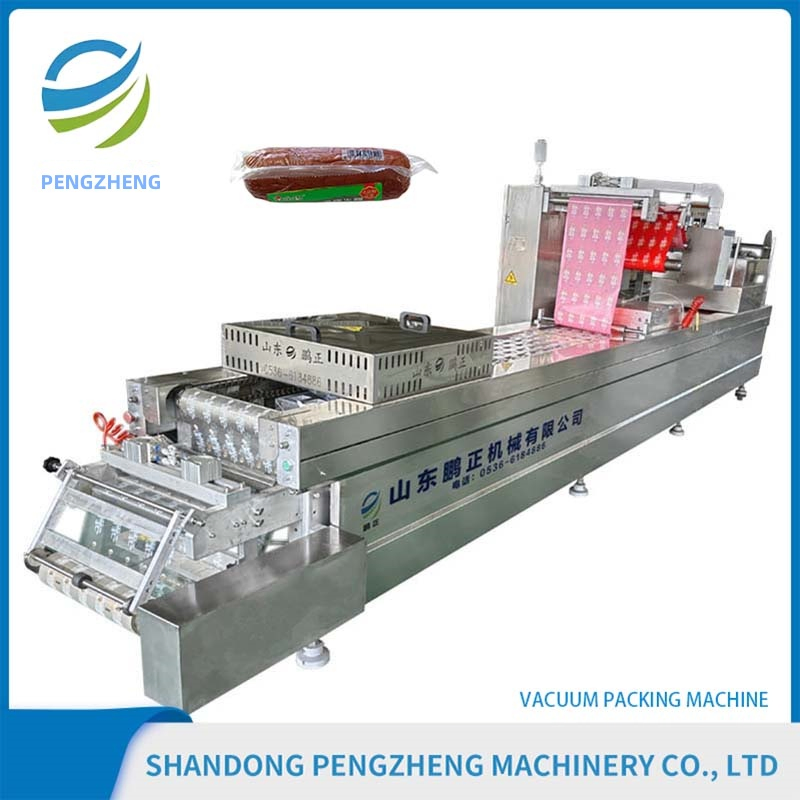

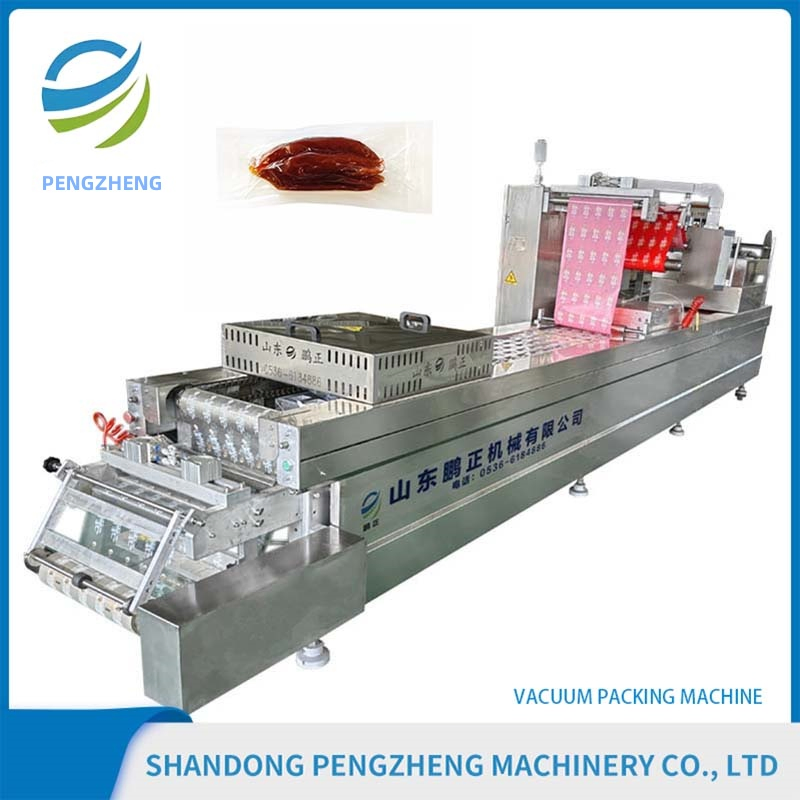

320 Single-Side Stretch Film Thermoforming Packaging Equipment

Customization:	Available
Application:	Electronic Component, Drug, Food
Power:	Electric

Overview

Model NO.	PZ-320	Automation	Automatic
Type	Stretch Film Vacuum Packing Machine	Object State	Paste, Powdery, Liquid, Solid
Film Width	284mm	Voltage	Customization
Weight	About 1500 Kgs	Packing Speed	6-8 Cycles / Min
Packing Capacity	3600-4000 Pieces / Hour	HS Code	8422400000

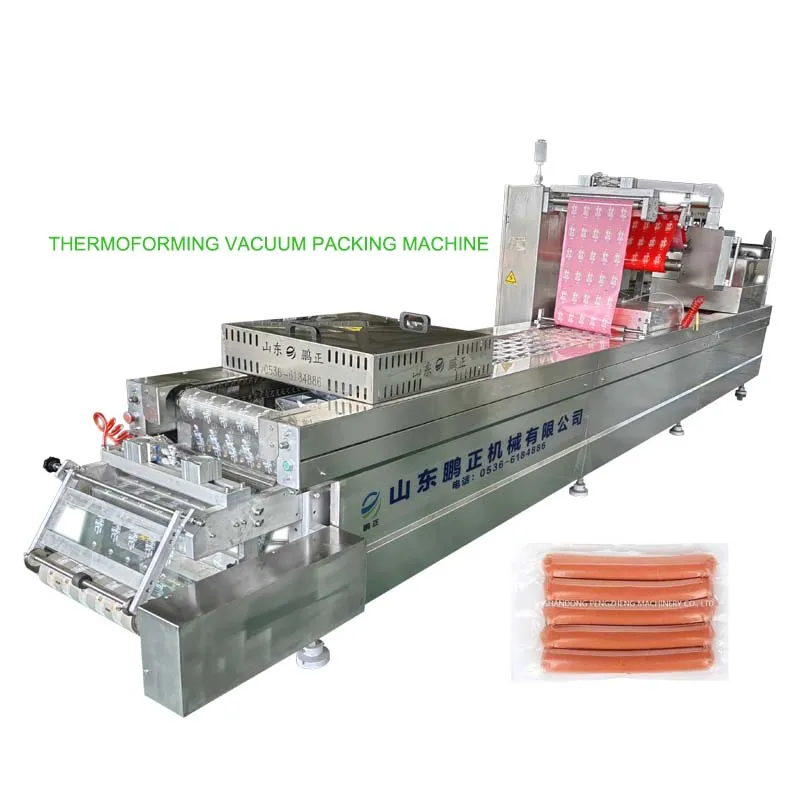

Introducing the Innovative Automatic Thermoforming Vacuum Packaging Machine. This cutting-edge machine is designed for packaging a variety of food items such as sausages, fish, shrimp, steak, beef jerky, dried bean curd, goat, mutton, and chicken. Additionally, it can also be used for packaging toys, making it a versatile solution for various industries.

Product Description

Customization

Professional customization services tailored to specific production needs.

Efficiency

Producing at a high rate of 6-8 cycles per minute for maximum output.

Safety

Prioritizing operational safety with integrated sensors and emergency controls.

Key Features:

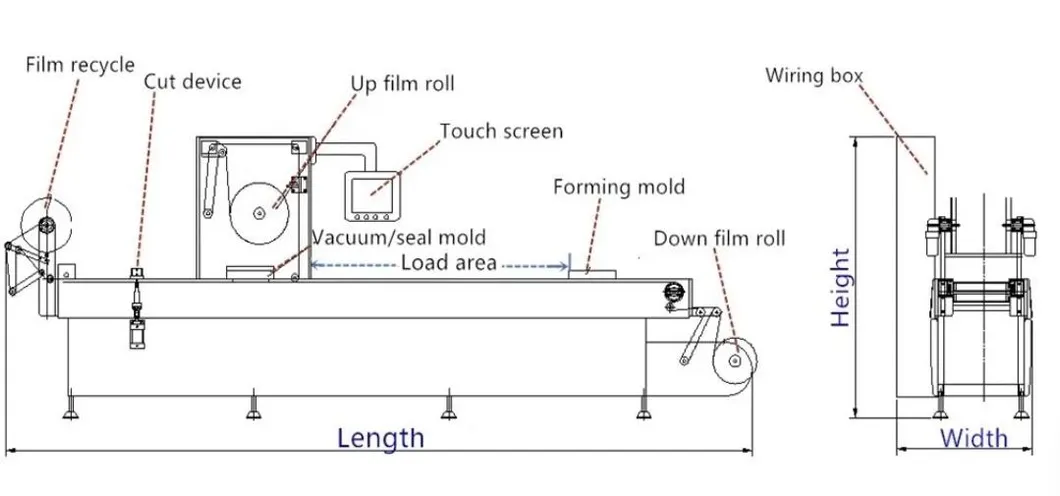

1Bottom film heating and stretching based on mold shape.

2Seamless integration of materials into the formed bottom film.

3Vacuum sealing with top film in a dedicated chamber.

4Automated transportation and cutting into individual bags.

Detailed Comparison

Details	Traditional Bag	Single Side Stretch	Double Side Stretch
Stretch Film	None	Single Side	Double Side
Forming Depth	N/A	Max. 120mm	Max. 120mm*2
Efficiency	Low	High	Middle
Cost	High	Low	Middle

Advanced Components

Vacuum Pump: RIETSCHLE (Germany)

Electricals: Schneider (French)

Servo Motor: Schneider (French)

Chain System: TYC (Taiwan)

Structure: Stainless Steel 304

Safety & Automation

Top Safety Design

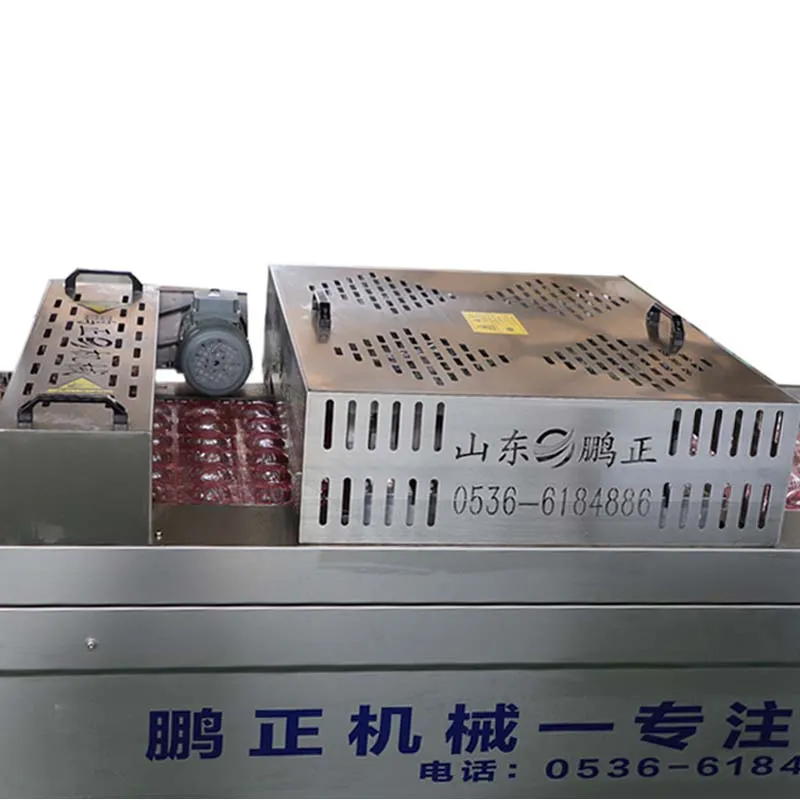

Our machines are designed with safety as priority, incorporating sensors under covers and removable parts to automatically stop operation when covers are open. Integrated emergency stop buttons are placed at the front, middle, and back sections.

Automatic Correction Device

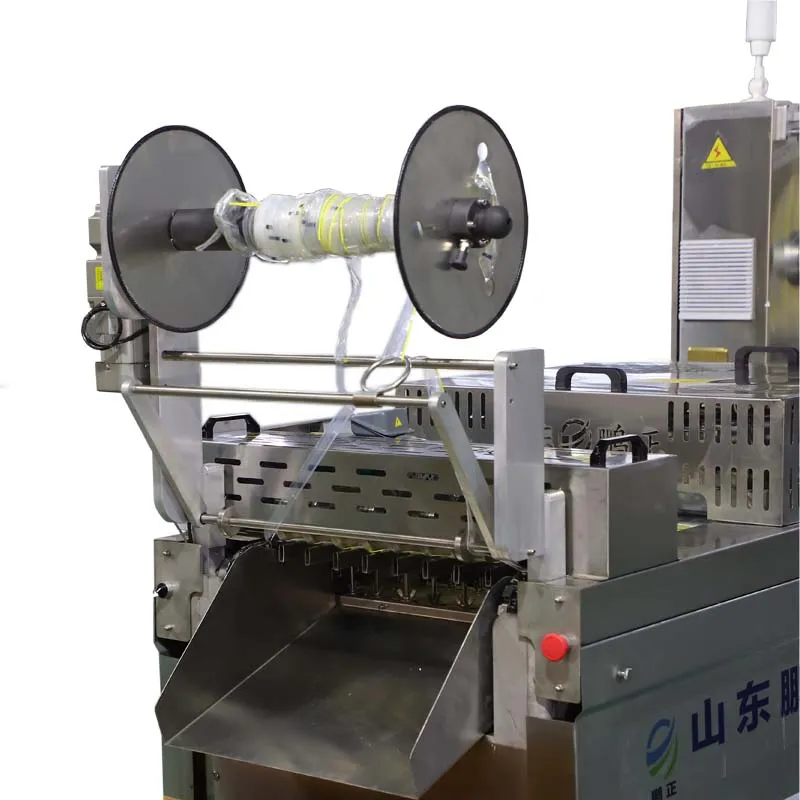

Fully automatic intelligent calibration features including automatic left-right correction and cursor conditioning for both top and bottom films ensure consistent alignment.

Technical Parameters

Top Film Width	325mm	Bottom Film Width	298mm
Forming Temp	70-120 °C	Sealing Temp	125-150 °C
Sealing Time	1.5s - 2.5s	Vacuum Degree	≤200 Pa
Dimensions	4500 x 1000 x 1800mm	Structure Material	Stainless Steel 304

Service & Warranty

Warranty Service

12 months warranty on the whole machine with multiple after-sale support options.

Technical Support

24-hour technical support hotline and online training courses provided.

Maintenance

Lifelong maintenance support including remote assistance and troubleshooting.

Frequently Asked Questions

Q1: What kind of products can this machine package?

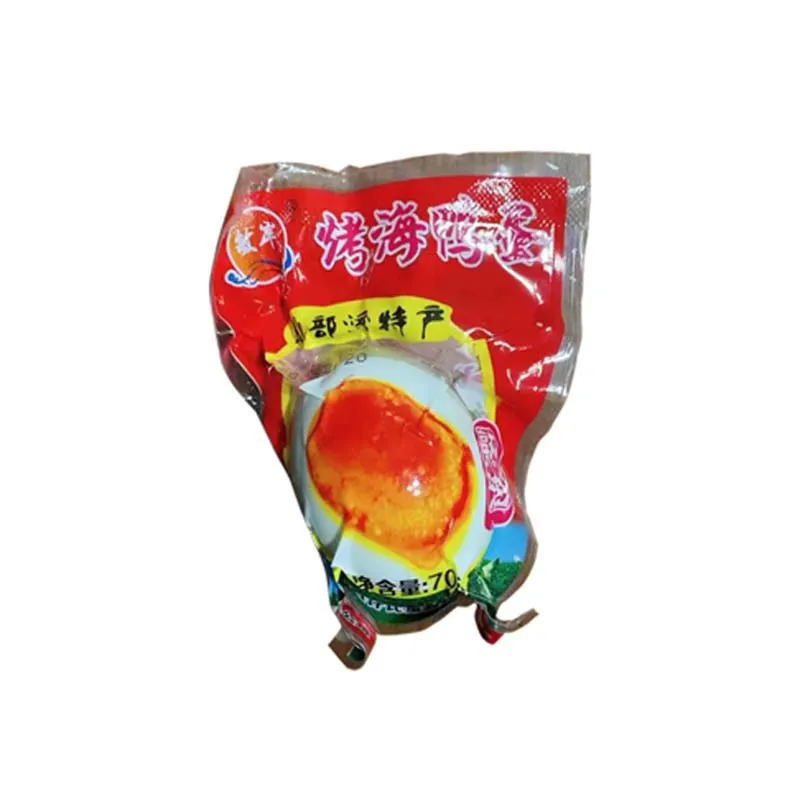

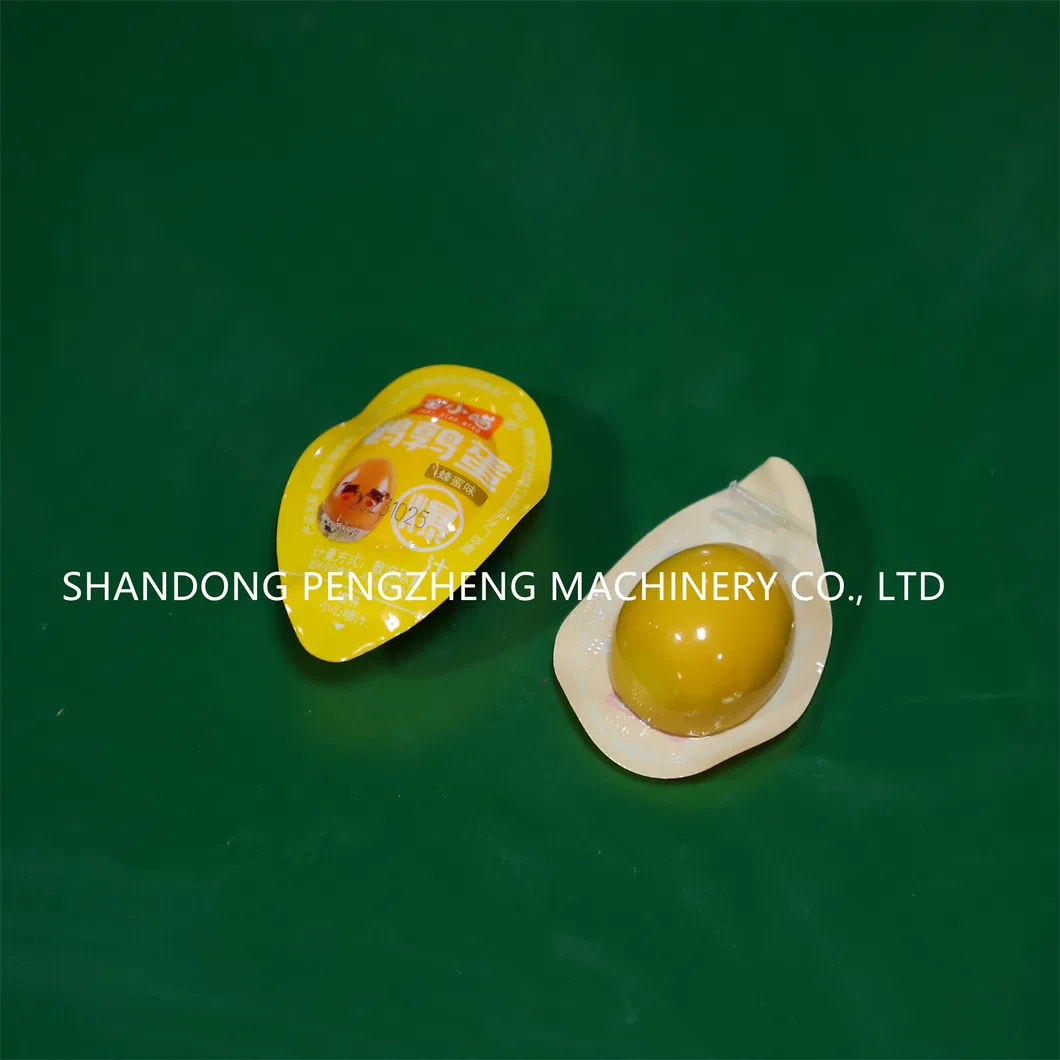

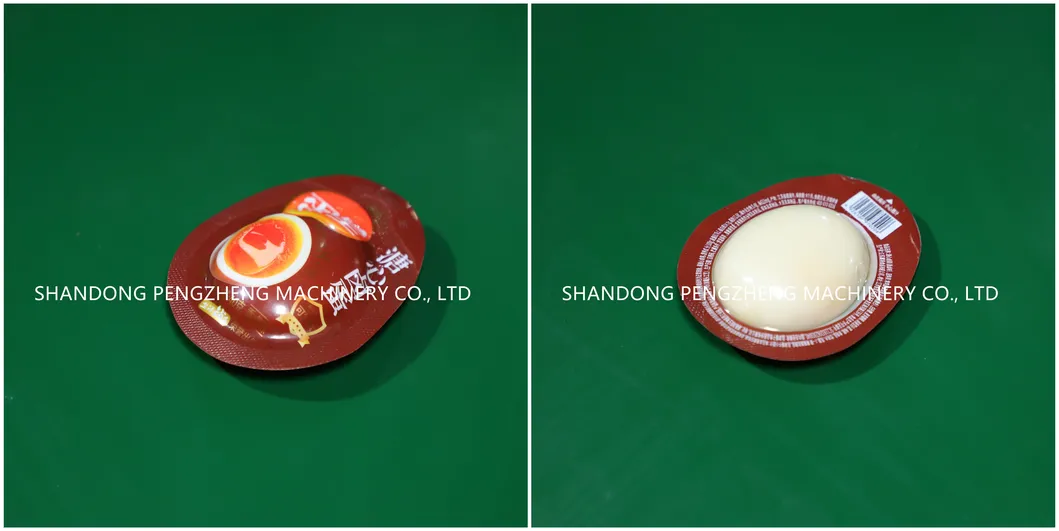

It is suitable for a wide range of products including sausages, fish, shrimp, steaks, eggs, dried bean curd, and even non-food items like toys or hardware.

Q2: Can the machine mold be customized for different sizes?

Yes, the equipment can be equipped with multiple sets of molds, making it simple to pack products ranging from 40g to 100g or different shapes.

Q3: What happens if the film runs out during operation?

The machine features a "No film no working" function, which ensures it automatically shuts down when films run out to reduce loss and improve efficiency.

Q4: Is the operation easy for new users?

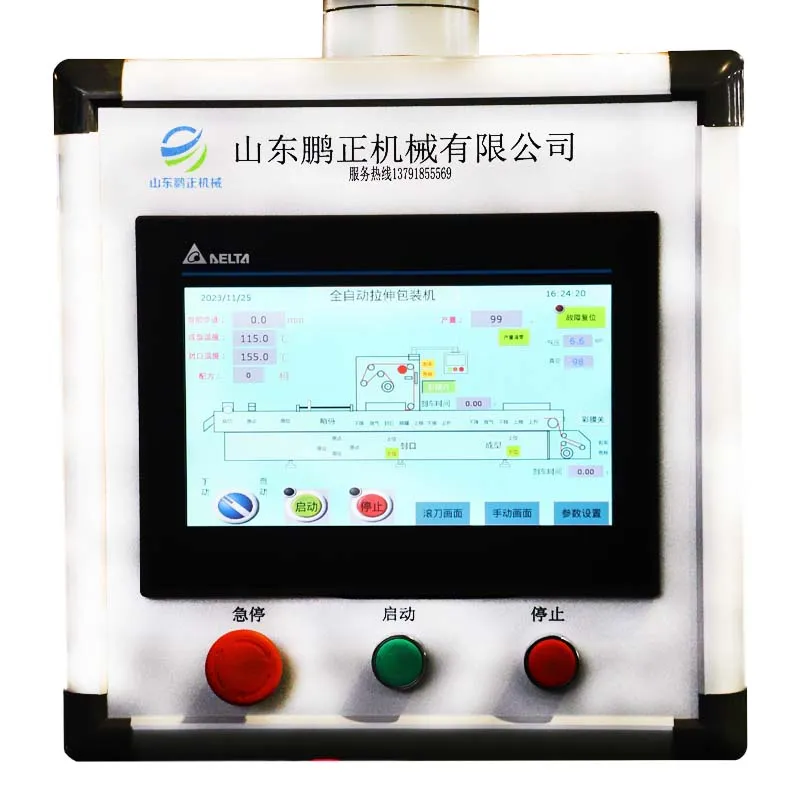

Absolutely. The machine is fully controlled by a PLC touch screen and includes a humanized design with control stations at accessible points.

Q5: What is the benefit of stretch film vacuum packaging?

It can extend the shelf life of food by 2-3 times compared to traditional methods and uses up to 40% less material than traditional wrapping.

Q6: How do you ensure the quality of the machine before delivery?

We provide comprehensive testing, along with pre-delivery pictures and videos for customer inspection to ensure quality assurance.
