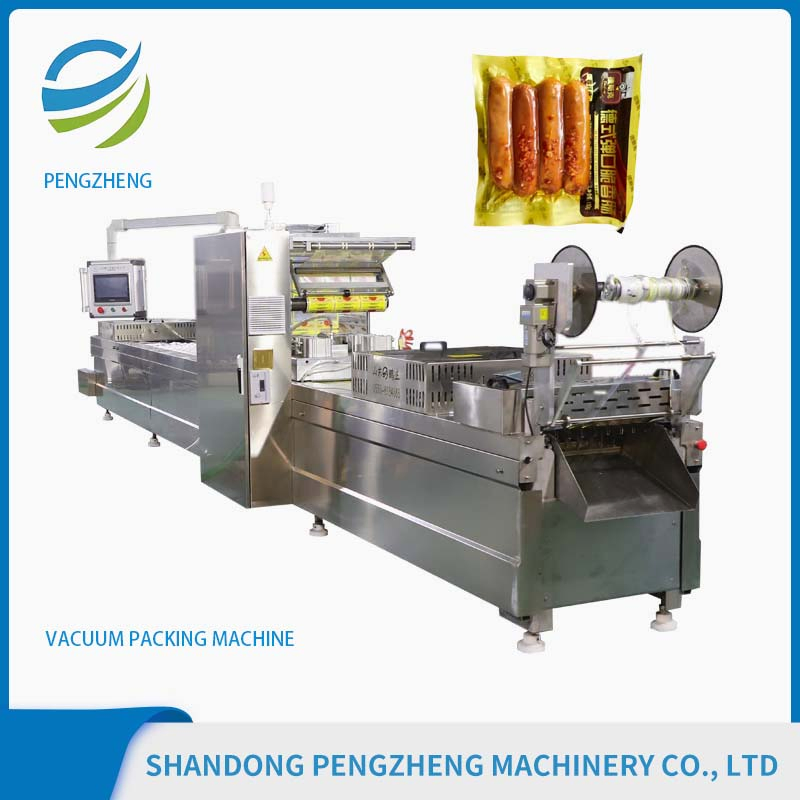

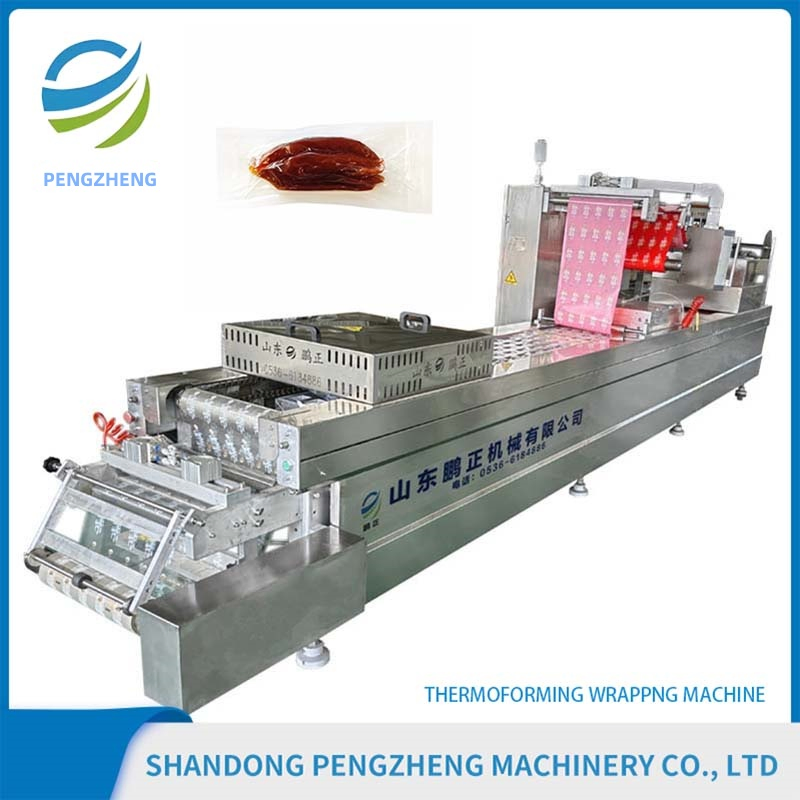

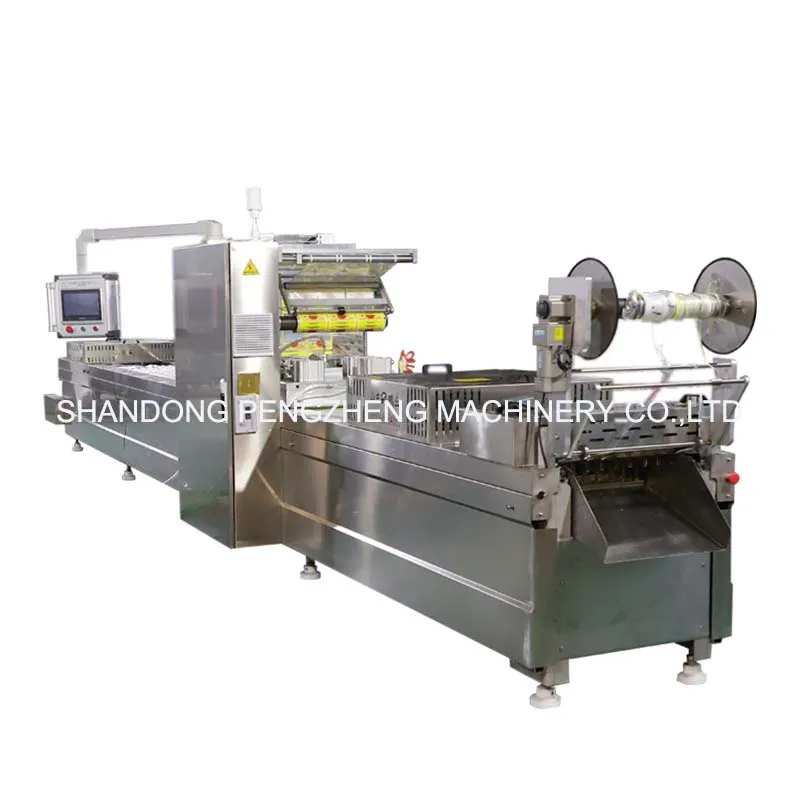

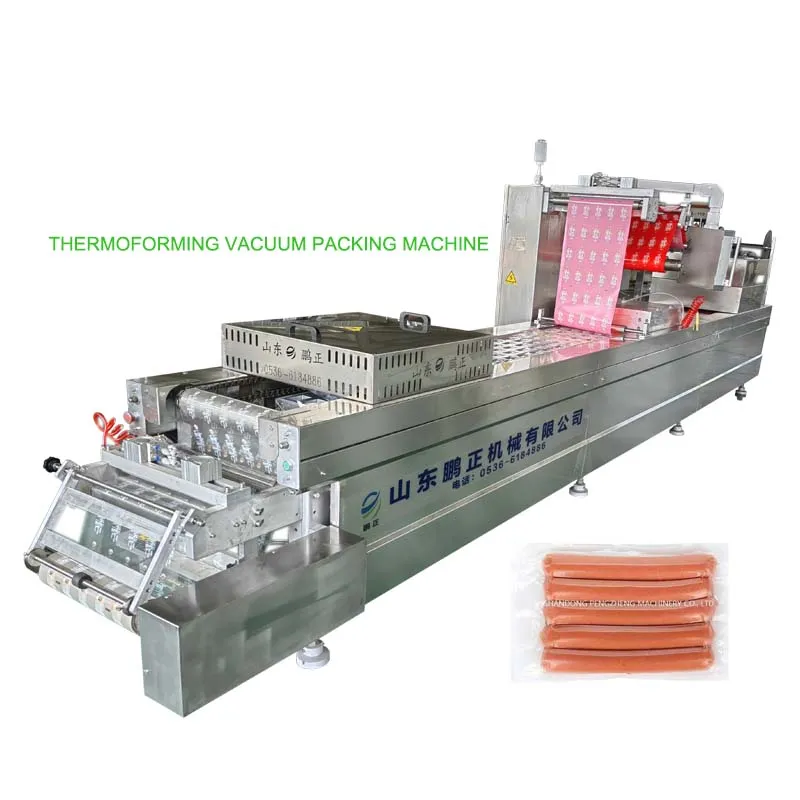

Introducing the innovative Automatic Thermoforming Vacuum Packaging Machine. This cutting-edge equipment is designed for high-efficiency packaging of various items including sausages, fish, shrimp, steak, beef, dried bean curd, and even toys. It ensures a professional, hygienic finish while significantly extending the shelf life of your products.

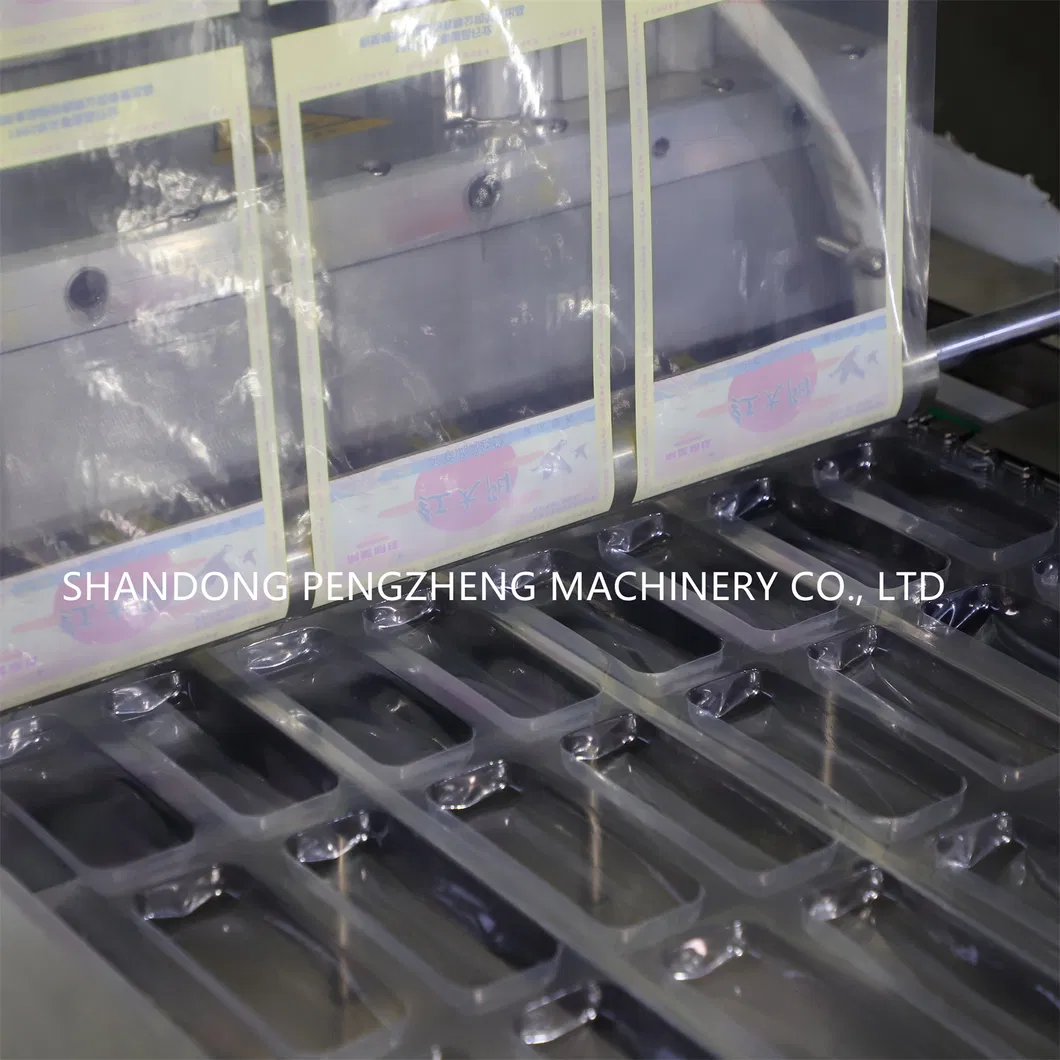

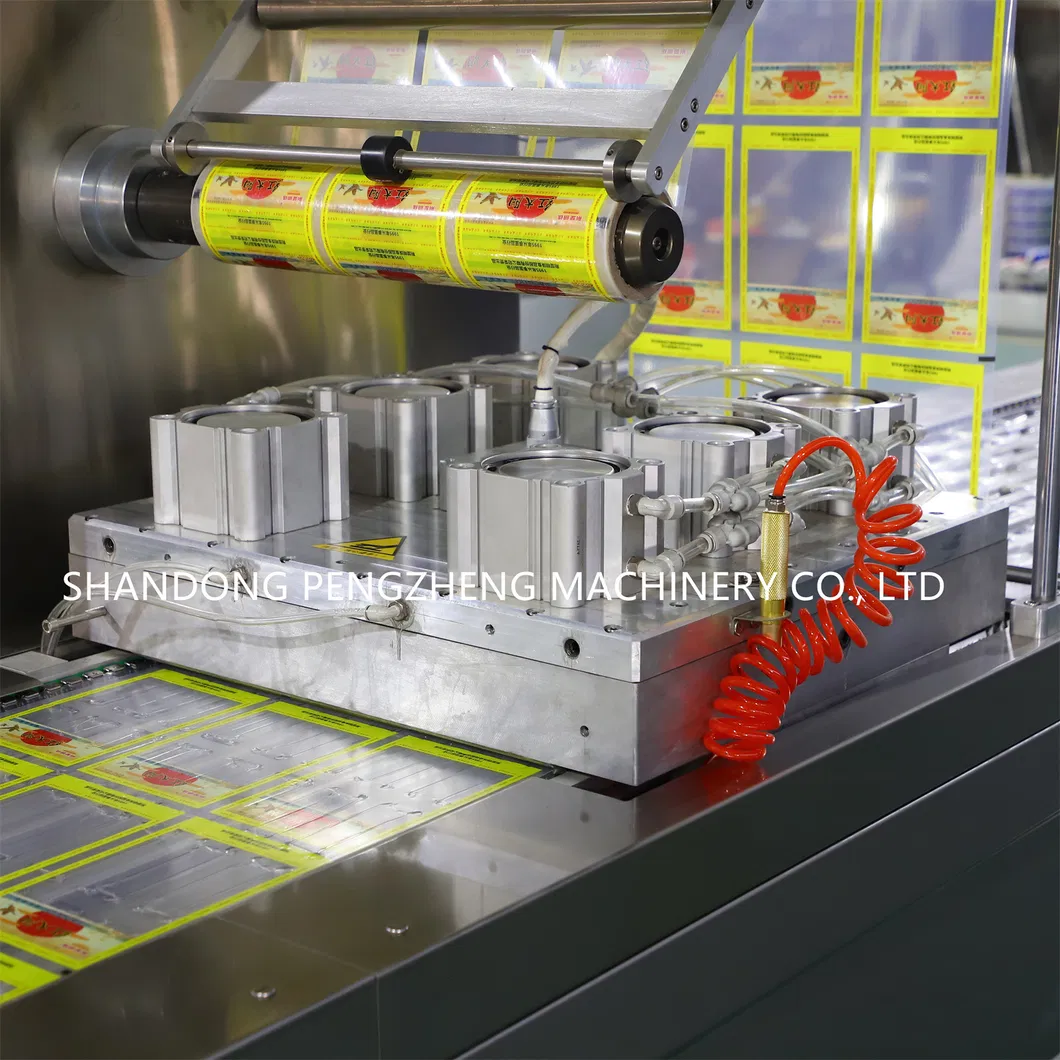

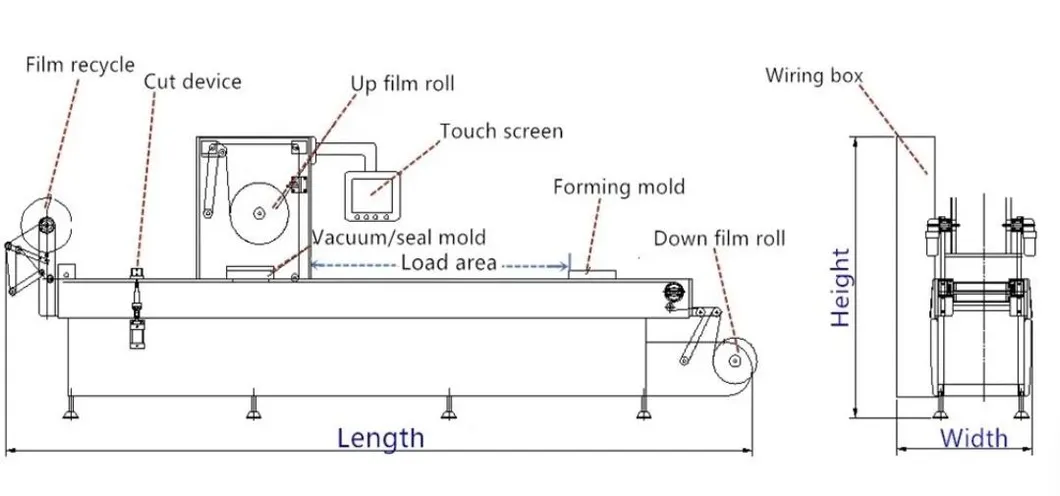

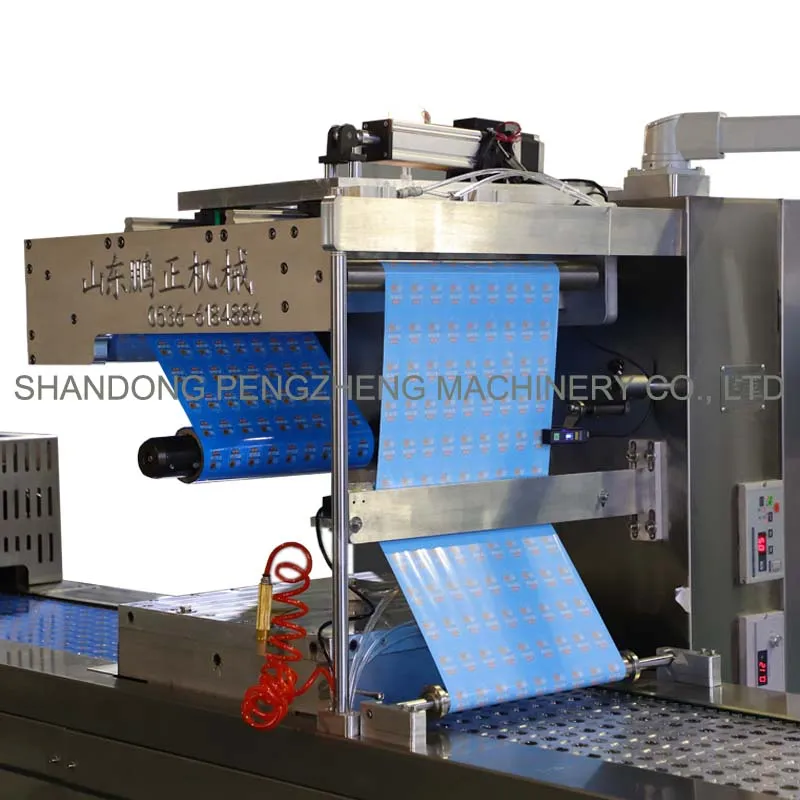

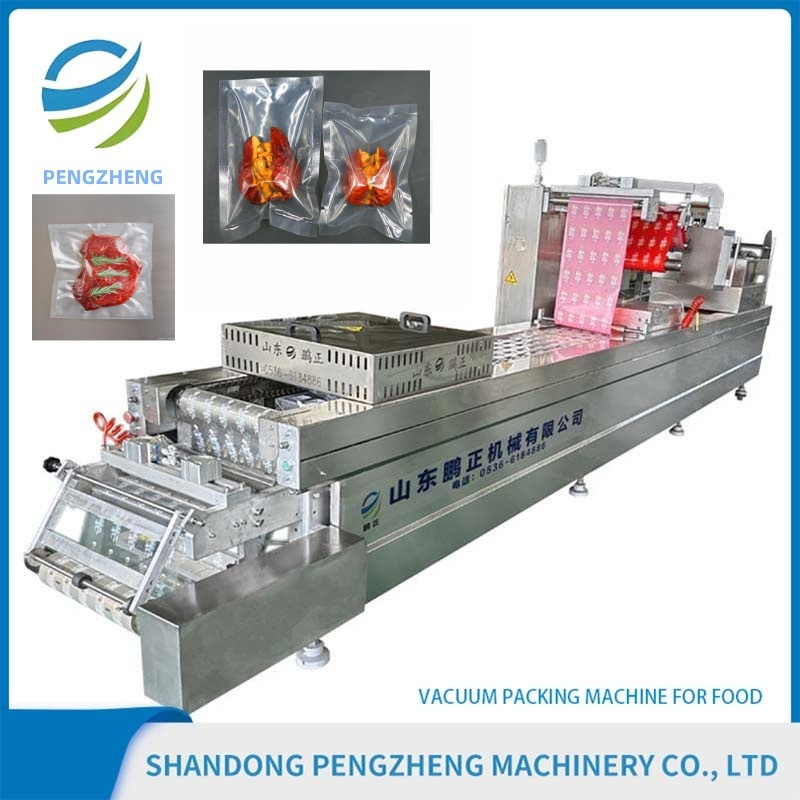

Our machine excels in single-side stretching and forming, ensuring precise positioning of films. The process involves heating the bottom film to match a mold shape, loading materials, applying a top film, and vacuum-sealing in a specialized chamber before individual cutting.
| Feature | Traditional Packing | Single Side Stretch | Double Side Stretch |
|---|---|---|---|
| Efficiency | Low | High | Middle |
| Cost | High | Low | Middle |
| Forming Depth | N/A | Max. 120mm | Max. 120mm * 2 |
| Appearance | Beautiful | More Beautiful | Most Beautiful |

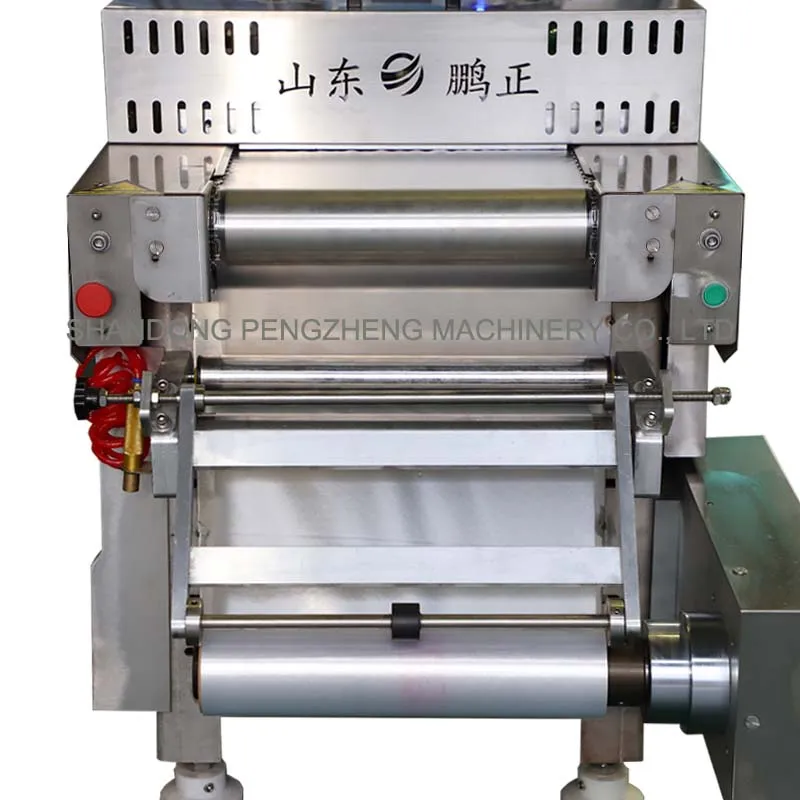

Automatic Correction Device: Includes intelligent calibration for top and bottom films to prevent deviation and falling off, especially in large-scale customizations.
No Film, No Work: An automated safety function that shuts down the machine when film runs out, reducing waste.
Mould Diversification: Simple and convenient mould replacement, suitable for materials from 40g to 100g.
| Main Components | |
|---|---|
| Vacuum Pump | RIETSCHLE (Germany) |
| Electrical Components | Schneider (France) |
| Servo Motor | Schneider (France) |
| Chain | TYC (Taiwan) |
| Working Parameters | |
| Thermoforming Temperature | 70-120 °C (158-248 °F) |
| Sealing Time | 1.5 s - 2.5 s |
| Vacuum Degree | ≤200 Pa |
| Packing Capacity | 4600-5000 pieces / hour |
Professional Guidance: Expert support for unloading and workshop placement upon arrival.
Setup: Detailed instructional videos from senior engineers or on-site customization and debugging services.
Warranty: 12-month full machine warranty with lifelong maintenance support and global spare parts supply.
