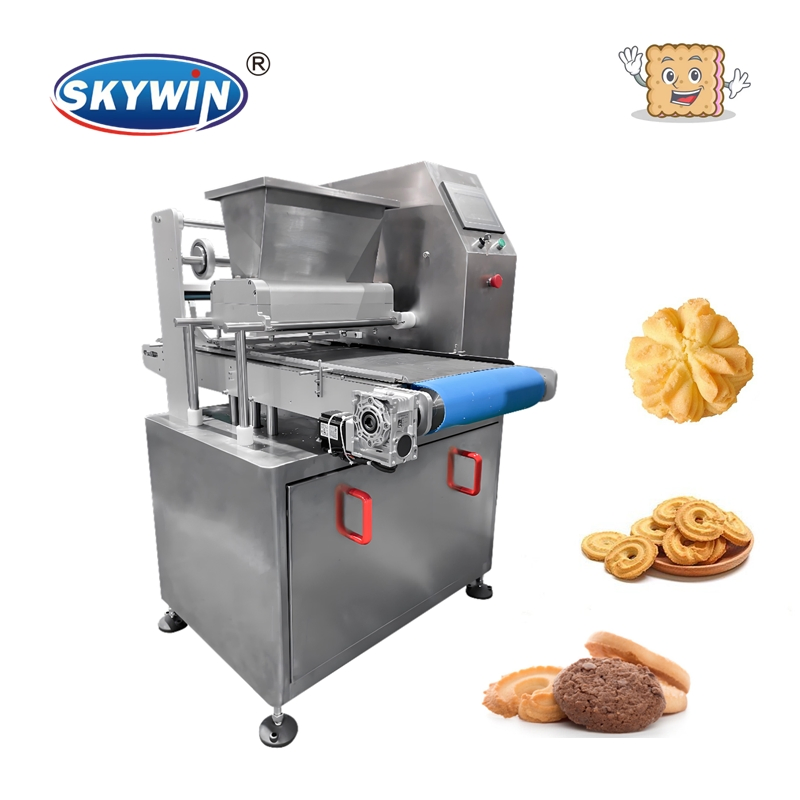

Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
1 / 5
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine
Skywin Industrial Tray Type Cookie Forming and Cutting Machine

Skywin Industrial Tray Type Cookie Forming and Cutting Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model
Model 400/620/800
Certification
CE, ISO9001
Power Source
Electric
Process
Thermal Processing
Automatic Grade
Semi-Automatic
Application
Biscuit, Cookie
Material
1.5-2mm Stainless Steel
Capacity
80-120kg/H
Tray Type Cookie Machine
Cookie Forming Machine

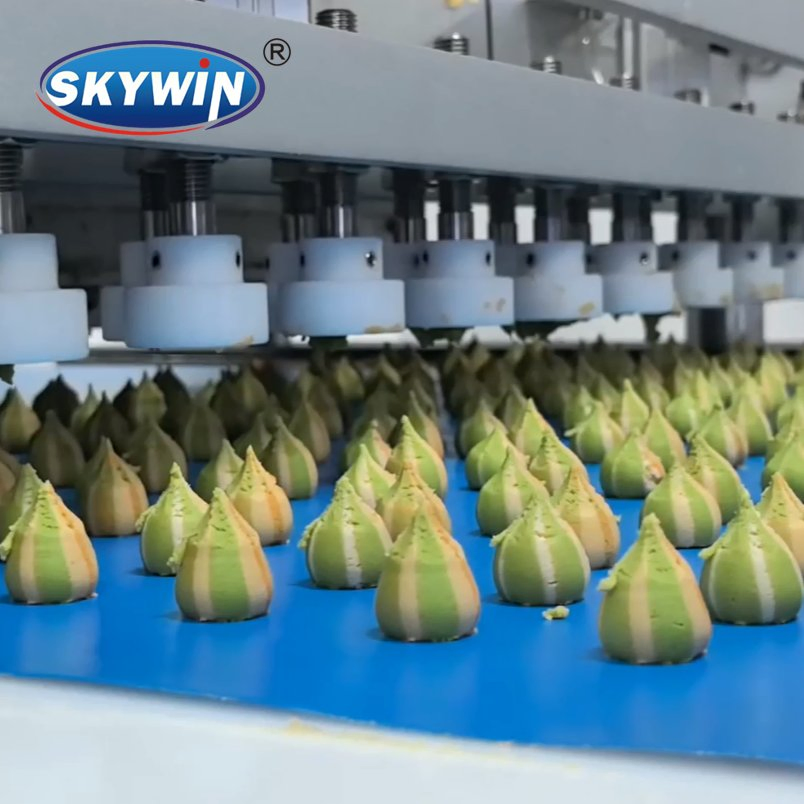

This compact cookie machine is designed to produce wire-cut cookies, deposit cookies, and double-color cookies. Different shapes can be achieved simply by changing the molds. We offer design customization based on specific requirements.

Key Features: Made with high-quality stainless steel, space-saving design, labor-efficient, and easy to operate. Suitable for tray sizes 400*600mm, with options for rotary or tunnel oven baking.

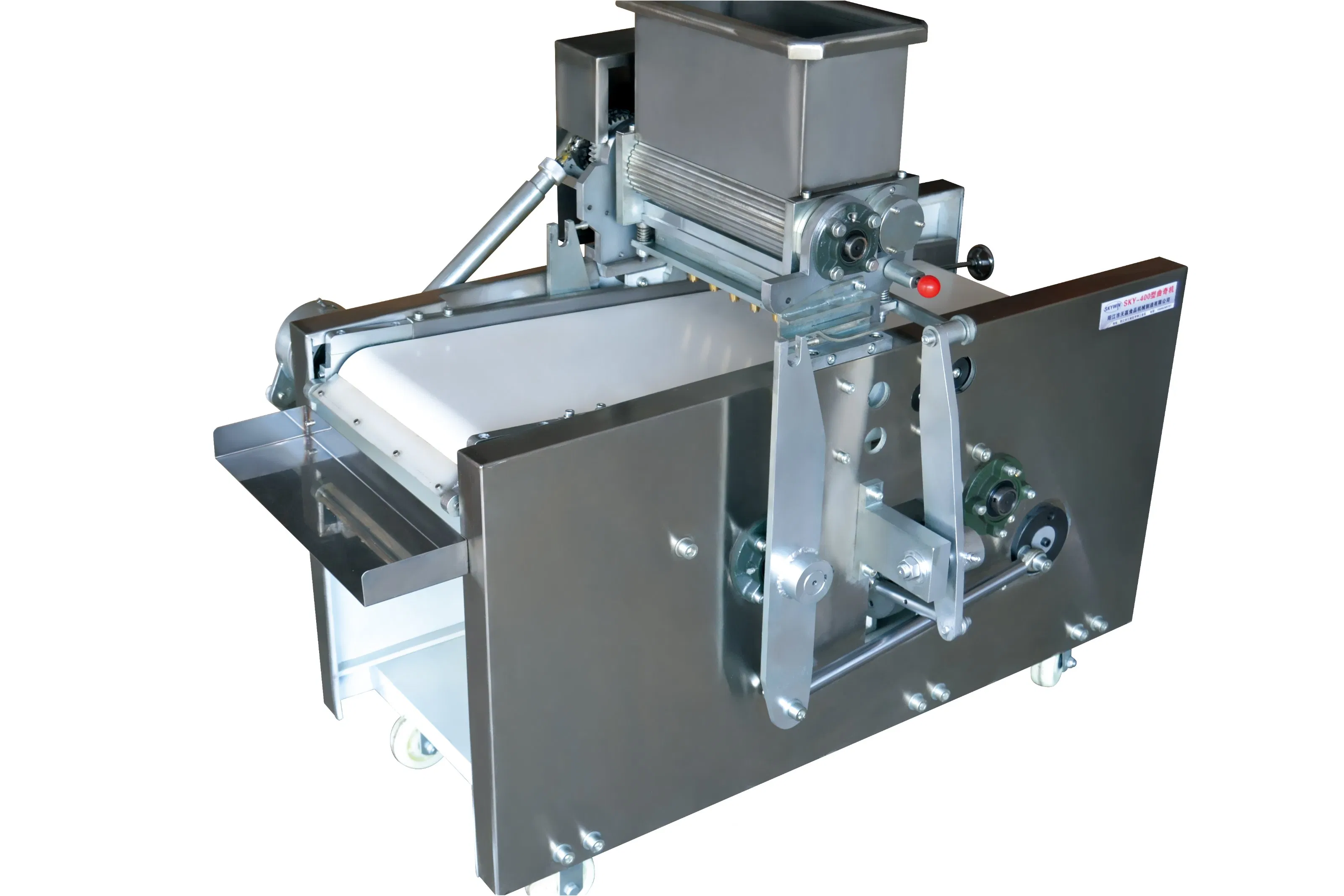

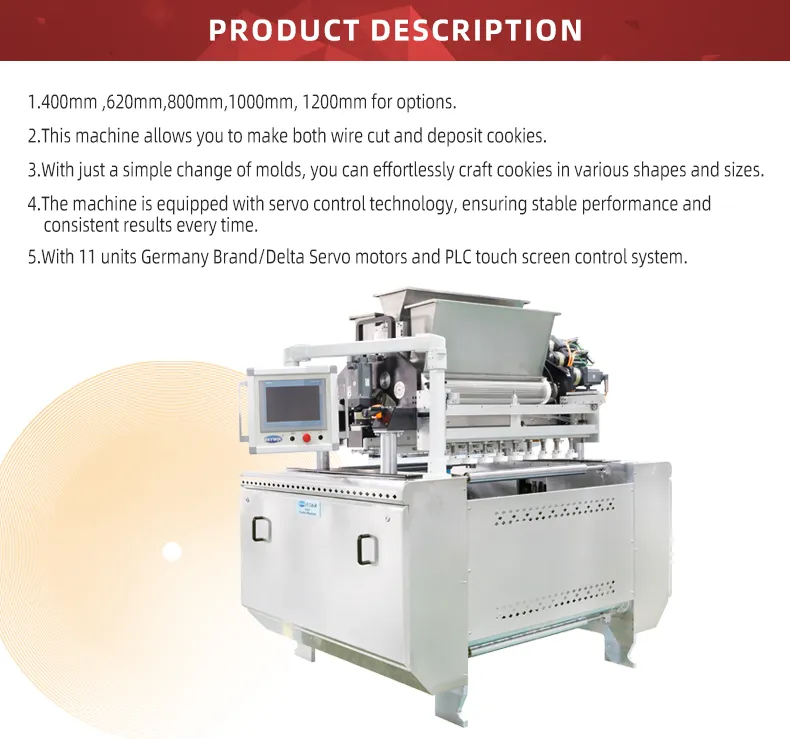

Machine Detail

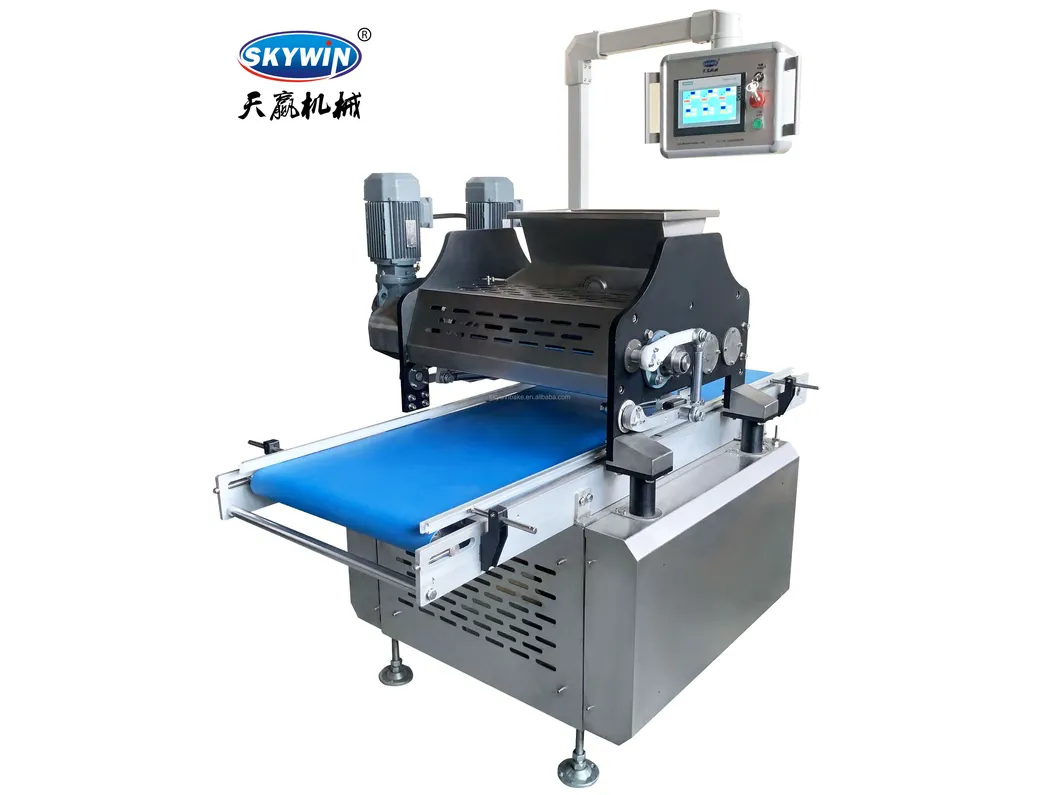

Machine Operation
Technical Advantages
  • Fixed tray size: 400mm wide x 600mm long (customizable)
  • Stainless steel cover, thickness 1.5mm
  • Rubber roll diameter 122mm (endless cotton belt driver)
  • PVC conveyor belt, thickness 2mm
  • Feeding roll diameter 106mm with groove, Aluminum casting roller
  • Frequency conversion controlled speed (approx. 60 times/min)
  • Equipped for both wire-cut and deposit functions

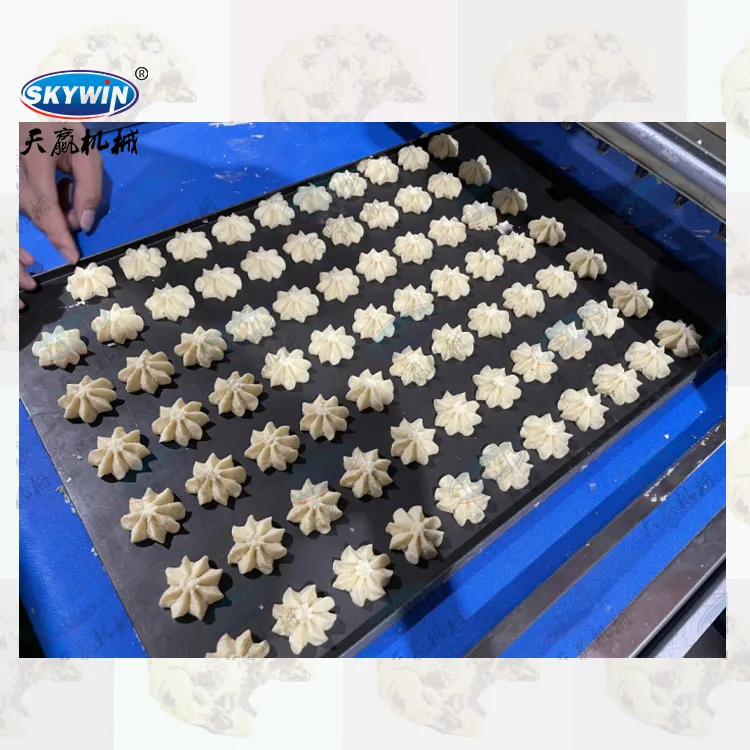

Cookie Mold Samples

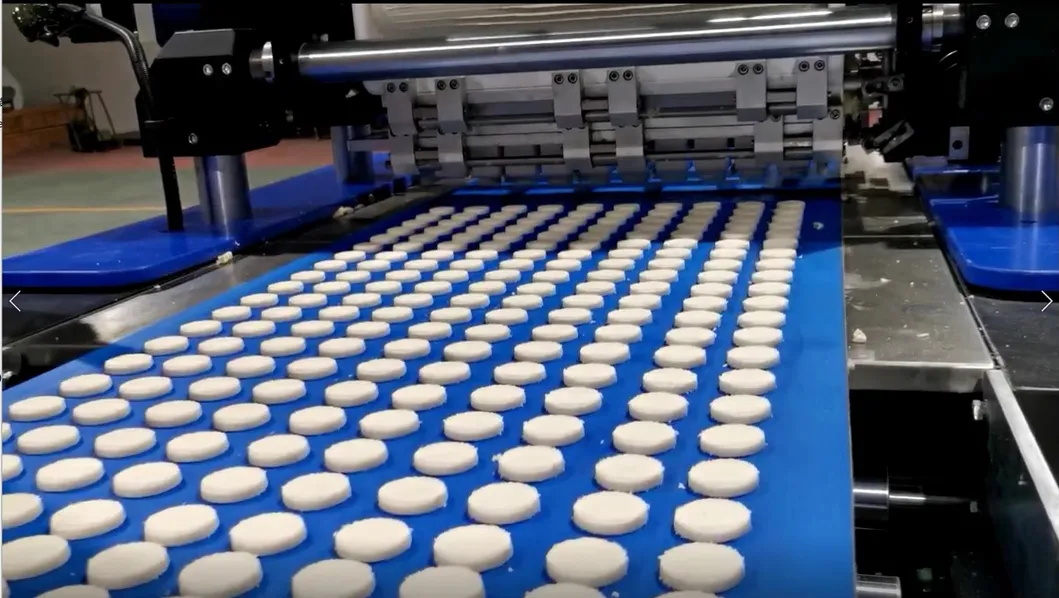

Wire Cut Setup

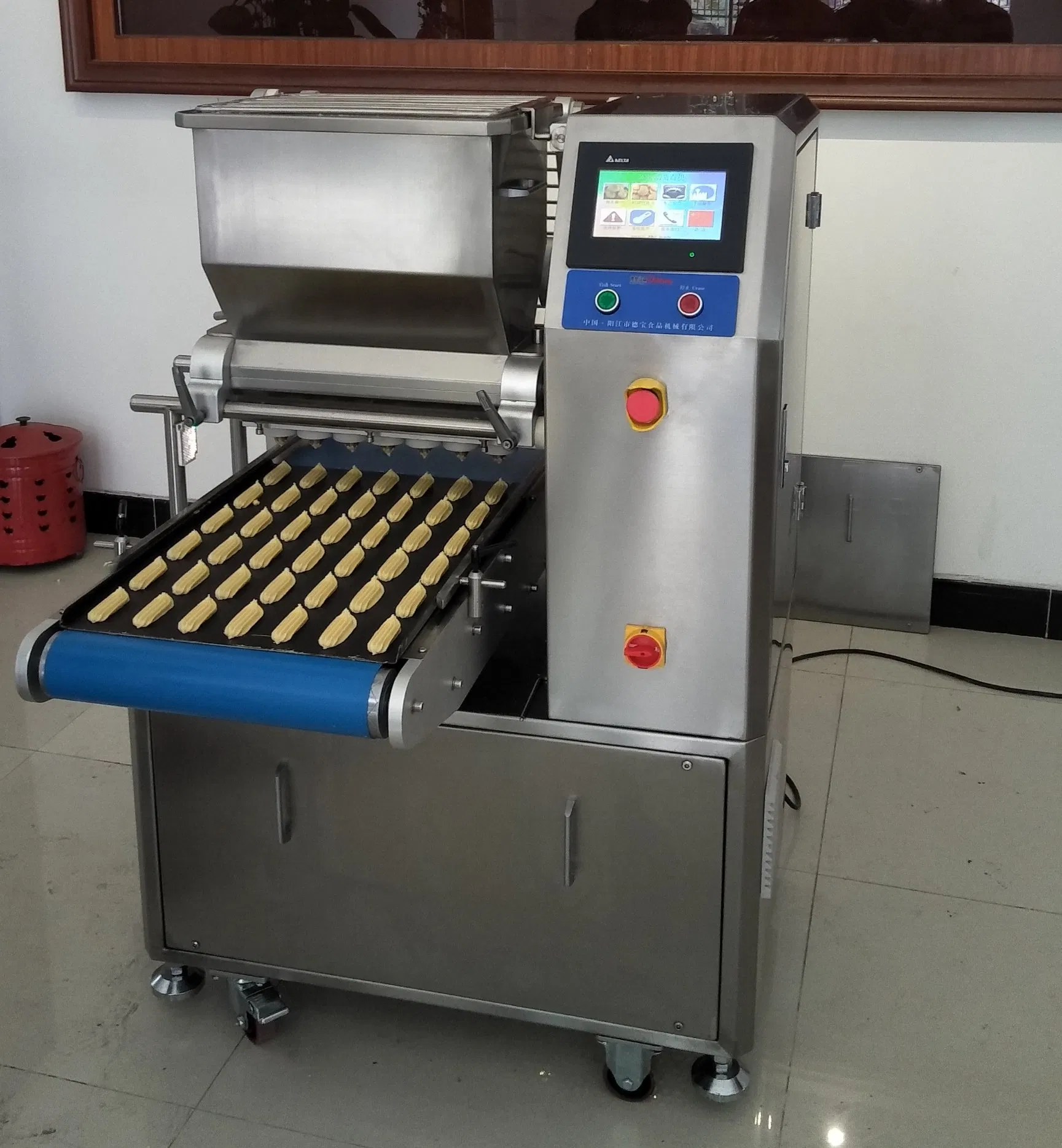

Deposit Setup
Machine Parameters
Voltage380V/220V/50Hz
Power1.5kw
Dimensions1330*900*1340mm
Weight450kgs
Molds Included1 set wire-cut, 1 set deposit
Semi-Automatic Production Line

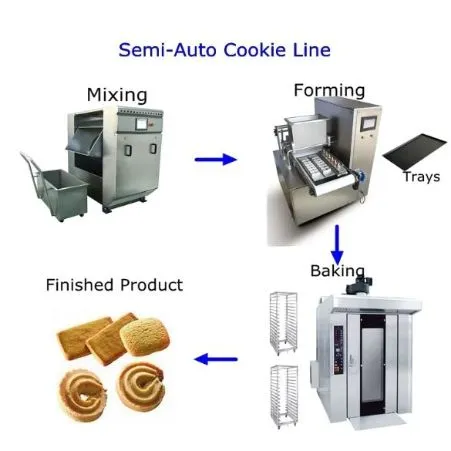

Production Line View
  1. Dough mixer
  2. Tray type cookie making machine
  3. Rotary baking oven
  4. Packing machine
Professional Expertise

With a team of professional engineers bringing 16 years of industry experience, the manufacturer specializes in biscuit production lines, packaging systems, and industrial ovens. Products are exported globally to markets including the United States, India, Jordan, Ethiopia, and the UAE.

Factory Overview
Certifications & Customers
Certificates
Customer Photos
Frequently Asked Questions
1. What types of cookies can this machine make?
The machine is versatile and can produce wire-cut cookies, deposit cookies, and double-color cookies by simply changing the molds.
2. What is the standard tray size for this equipment?
The standard tray size is 400*600mm or 600*800mm, but we can also provide customized sizes based on your specific needs.
3. What material is used in the machine's construction?
The machine features a 1.5mm to 2mm thick stainless steel cover for durability, hygiene, and a long service life.
4. Does the machine support automatic production?
It is a semi-automatic machine controlled via PLC, offering high efficiency and easy operation for small to medium production needs.
5. What kind of after-sales service is provided?
We provide professional after-sales support, including engineers available for oversea installation and a 1-year warranty on core components.
6. What is the production capacity?
The machine has a production capacity of approximately 80-120kg per hour, depending on the cookie type and size.
