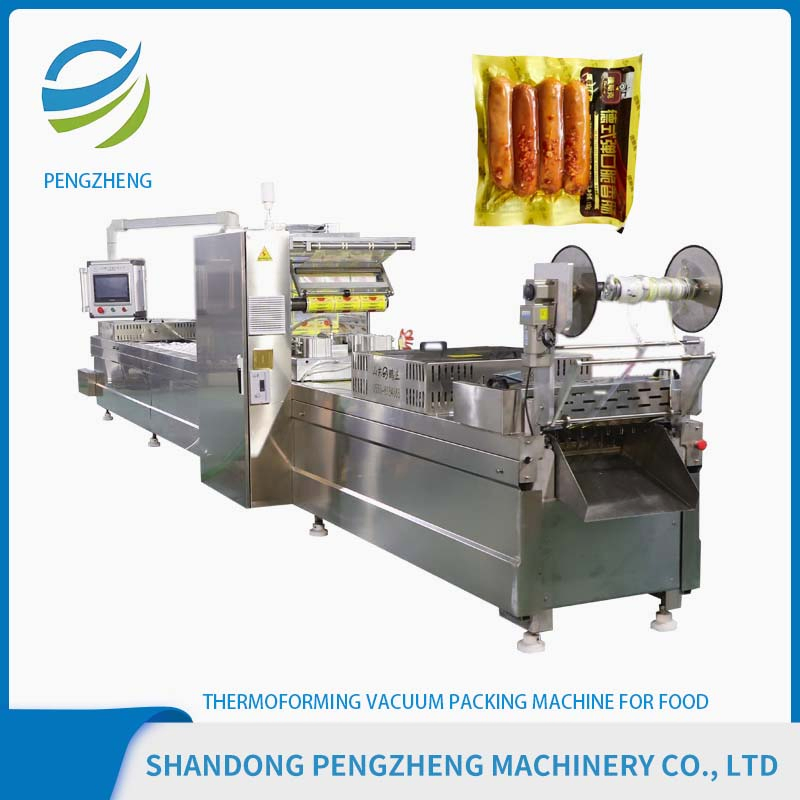

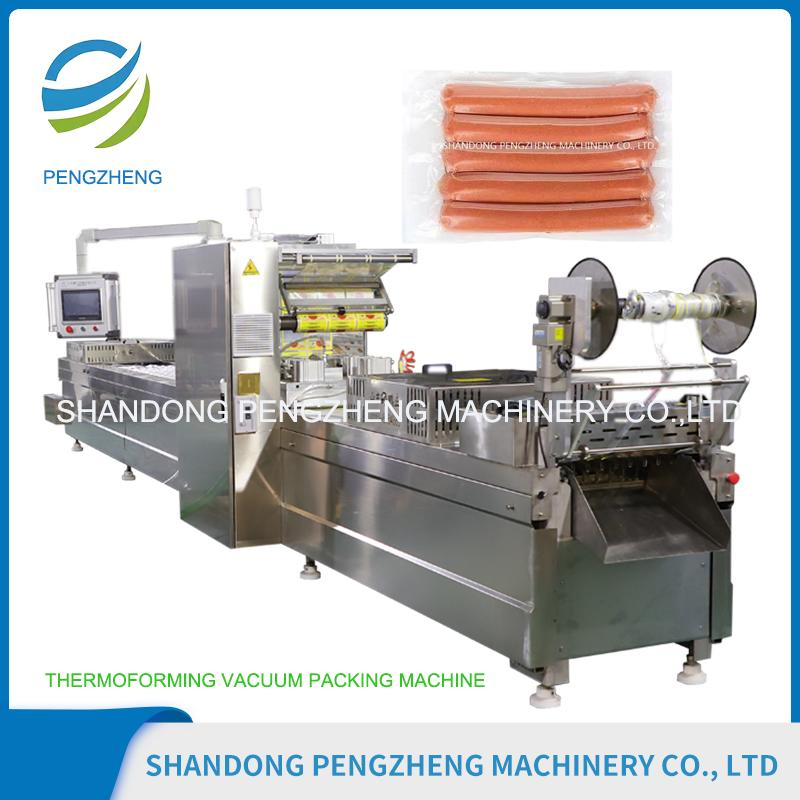

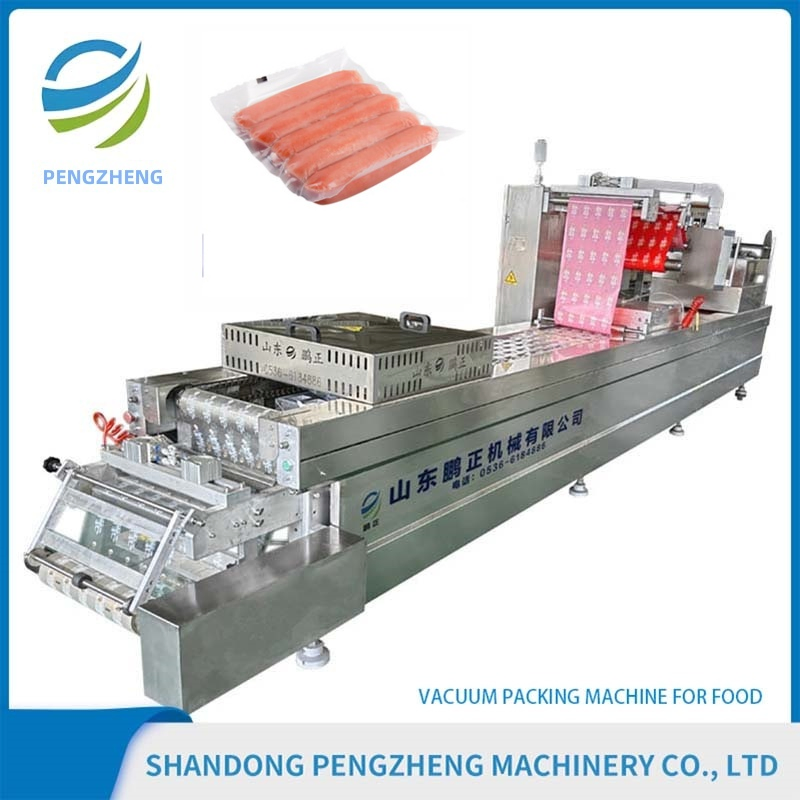

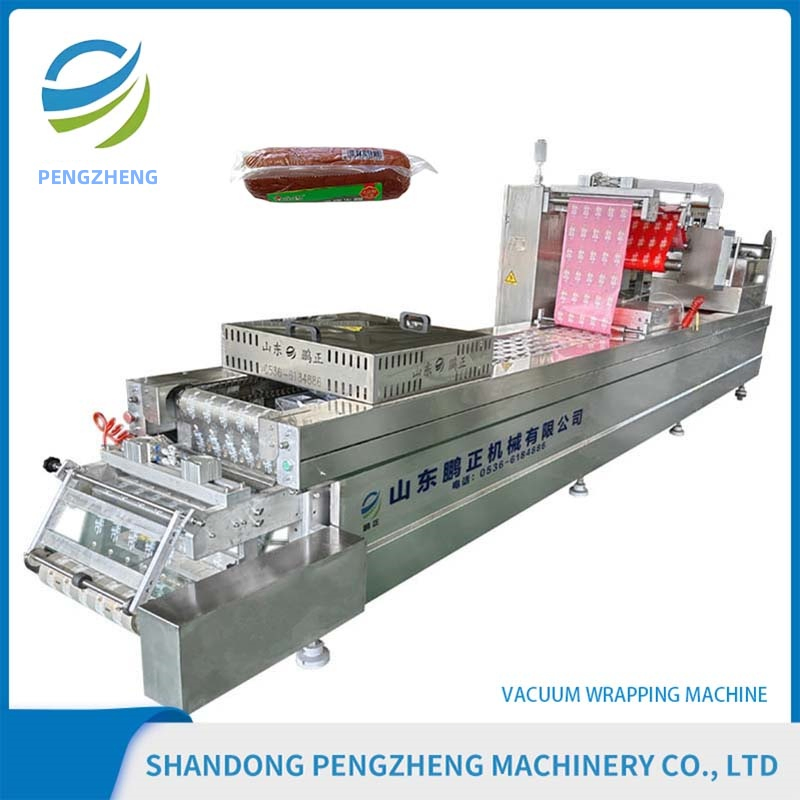

Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
1 / 5
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System
Stainless Steel Automatic Versatile Food Vacuum Packing System

Stainless Steel Automatic Versatile Food Vacuum Packing System

Customization: Available
After-sales Service: Free(on Line) and Other Service
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.PZ-420
ApplicationElectronic Component, Drug, Food, Medicine, Hardware etc.
PowerElectric
AutomationAutomatic
TypeStretch Film Vacuum Packing Machine
Packing Speed6-8 Cycles / Min
Packing Capacity4600-5000 Pieces / Hour
WeightAbout 1800 Kgs
Product Description

The Innovative Automatic Thermoforming Vacuum Packaging Machine is designed for packaging a variety of food items such as sausages, fish, shrimp, steak, beef jerky, dried bean curd, goat, mutton, chicken, and even toys. With automatic thermoforming technology, it ensures efficient and precise packaging, extending shelf life significantly.

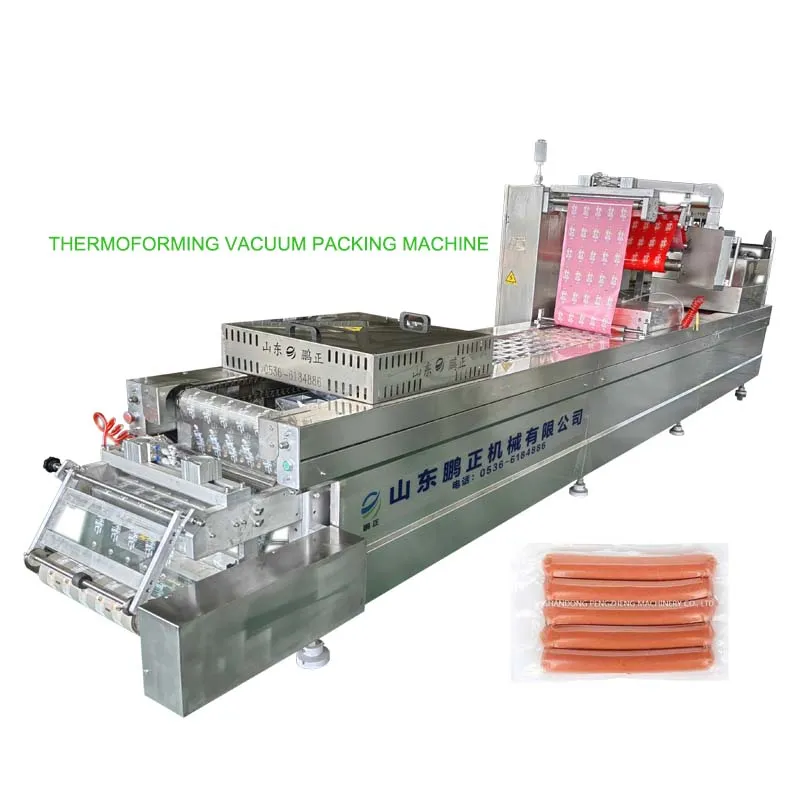

Automatic Food Vacuum Packing System

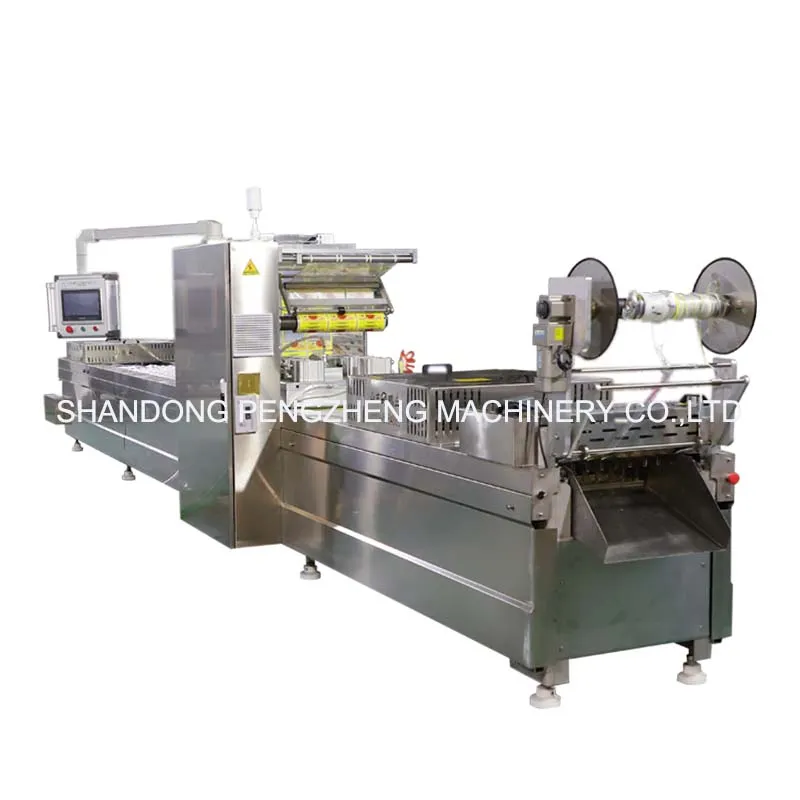

Vacuum Packing Component
Main Components
  • ⚙️
    Main Structure: Stainless steel 304, thickness 6mm.
  • ⚙️
    Forming Device: Film is heated and formed to mold specifications.
  • ⚙️
    Vacuum & Sealing: Double-side film vacuum forming for maximum protection.
  • ⚙️

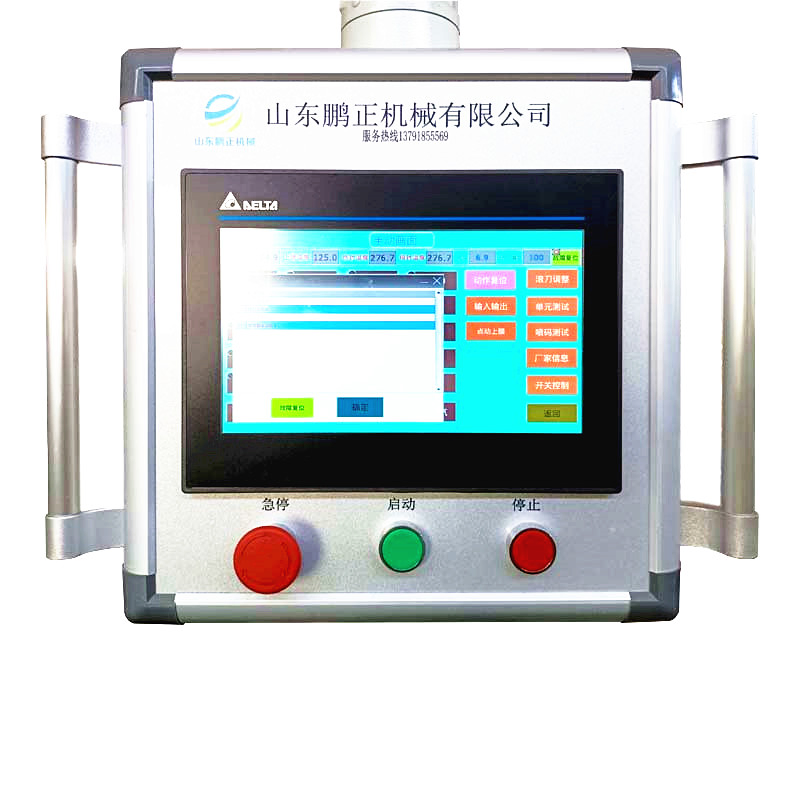

    Intelligent Control: PLC touch screen for fully automated operation.

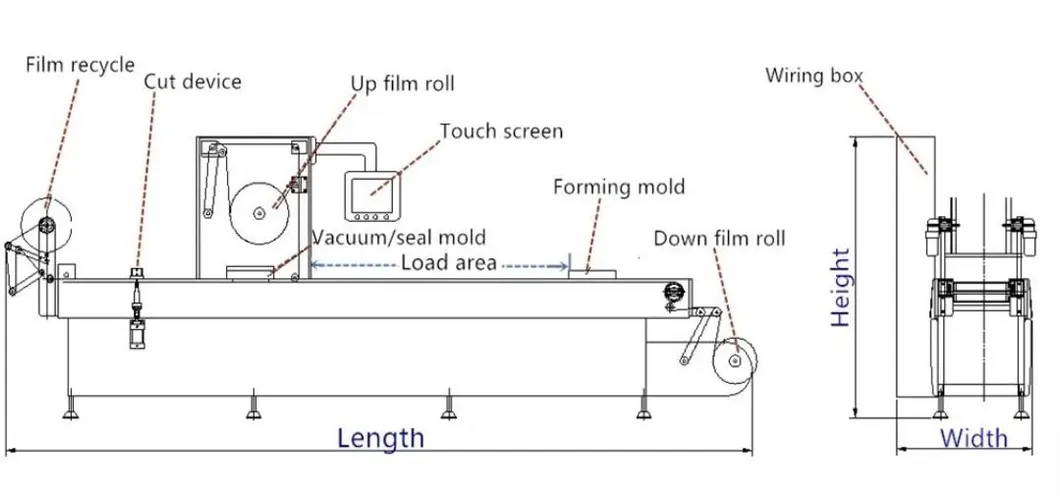

Machine Workflow Diagram
Packaging Comparison Analysis
Details Traditional Packing Bag Single Side Stretch Film Double-Side Stretch Film
Forming Depth None Max. 120mm Max. 120mm*2 (More uniform)
Efficiency Low High Middle
Cost High Low Middle
Appearance Standard Printing Stretched to Shape Imitation of Traditional Bags

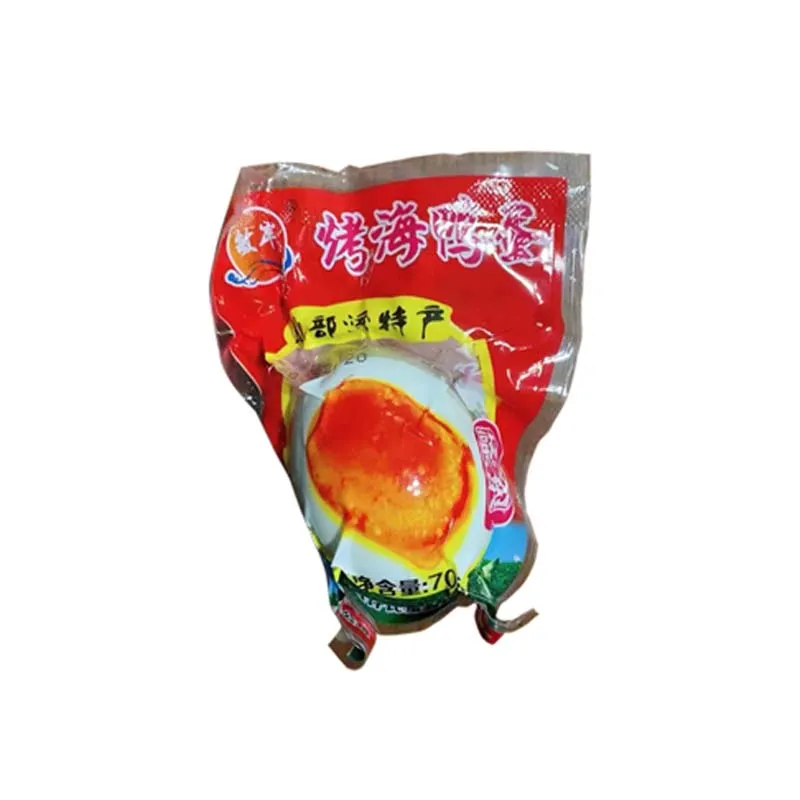

Traditional Bag Sample

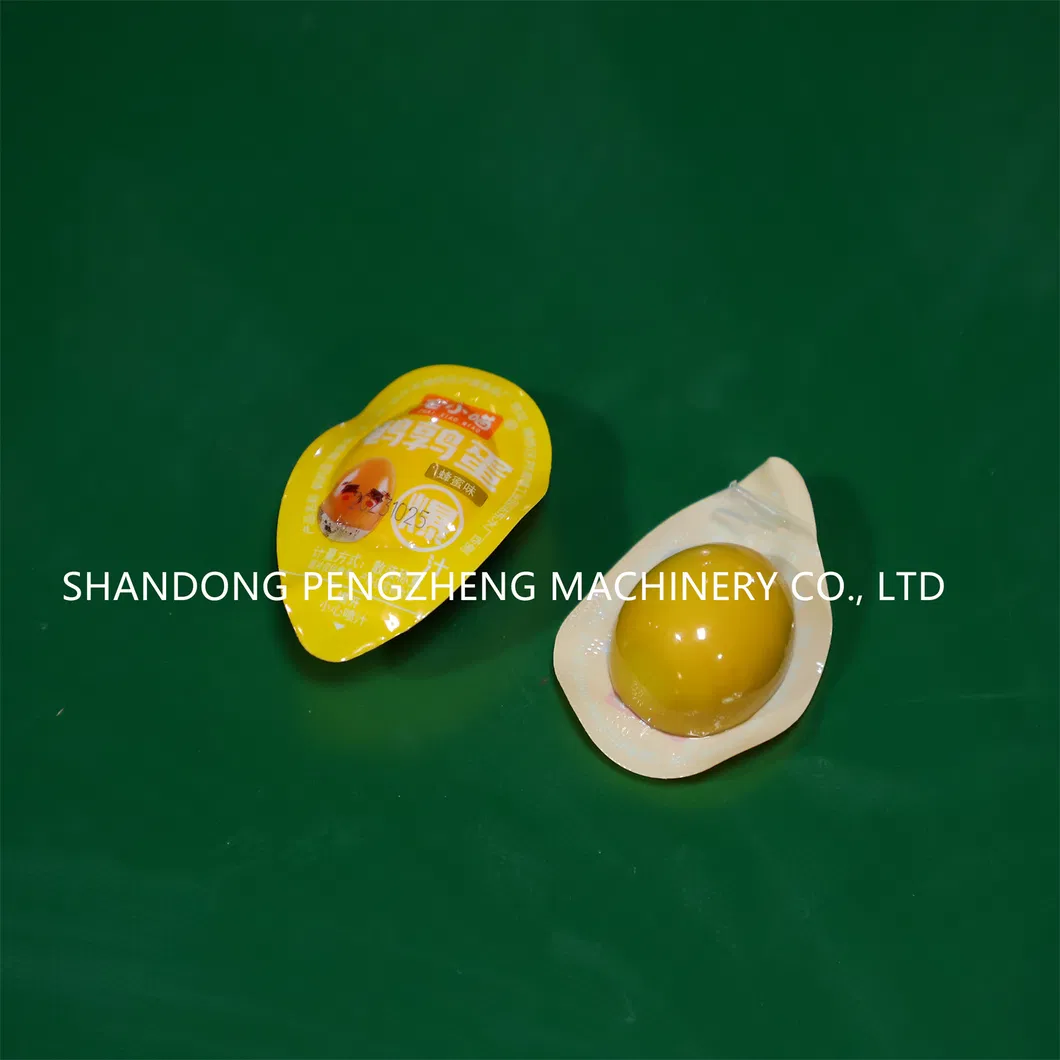

Single Side Stretch Sample

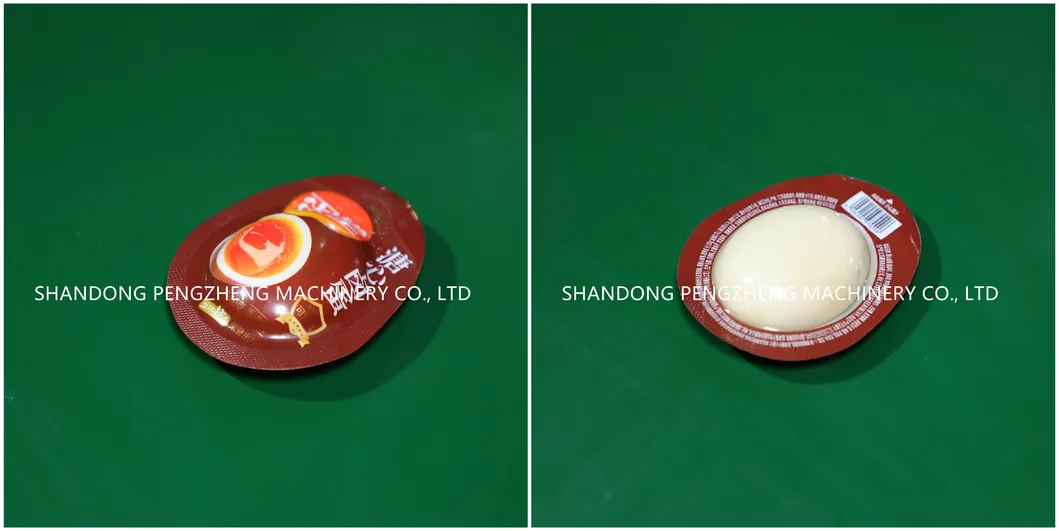

Double Side Stretch Sample
Technical Parameters
Machine Configuration
Vacuum PumpRIETSCHLE (Germany)
Electrical ComponentsSchneider (France)
Servo MotorSchneider (France)
ChainTYC (Taiwan)
Thermoforming Temperature70-120 °C (158-248 °F)
Vacuum Degree≤200 Pa
Machine Dimensions6600mm × 1000mm × 1800mm
Advanced Features

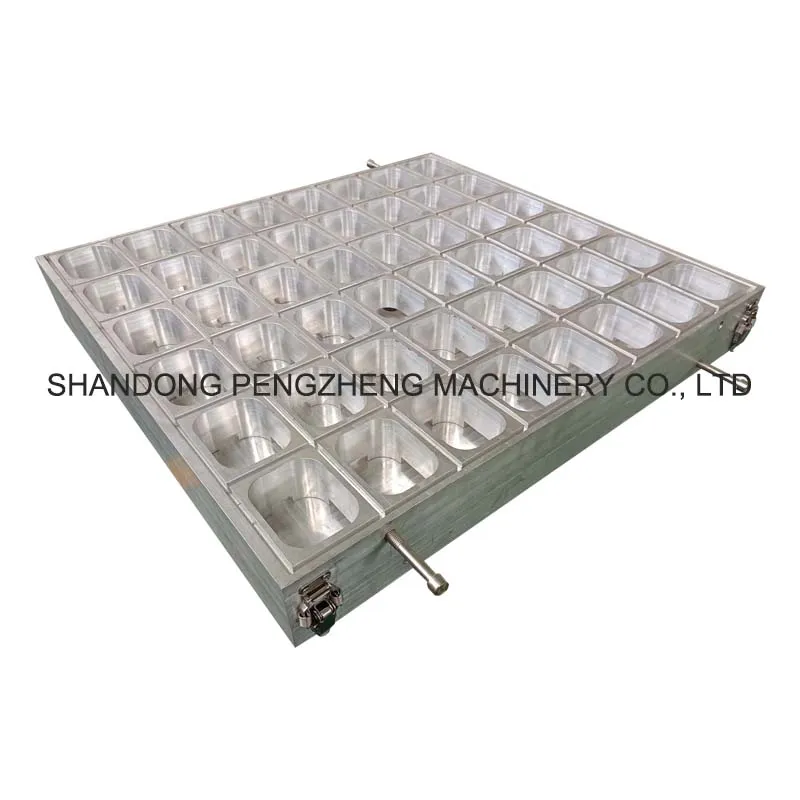

Mould Diversification

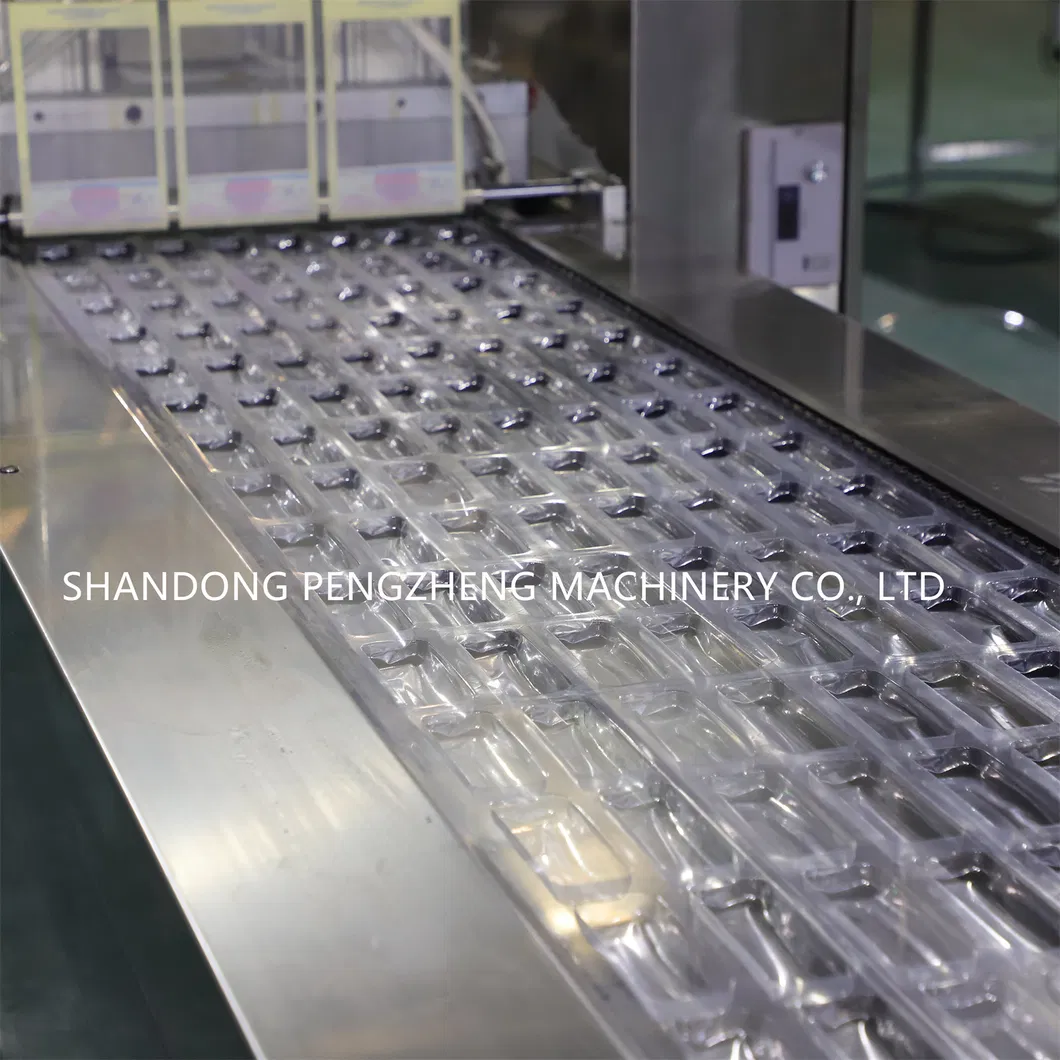

Automatic Correction
  • 🛡️
    Top Safety: Sensors installed on all removable covers for automatic shutdown if opened.
  • 🎯
    Automatic Correction: Intelligent calibration for top and bottom film to prevent deviation.
  • 🔄
    Mould Diversification: Easy-to-replace moulds suitable for products from 40g to 100g.
  • ⚡
    No Film Stop: Machine automatically shuts down when film runs out to reduce loss.
Frequently Asked Questions
What is the manufacturing and delivery time?
It takes approximately 45 working days to manufacture and deliver a machine. This includes technical drawing, parts manufacturing, and assembly.
Can the machine be customized for specific products?
Yes, we provide customized offers based on your package dimensions, production volume, and specific material requirements.
What industries can benefit from this vacuum packaging machine?
This system is ideal for food (meat, eggs, seafood), medicine, electronics, and hardware components.
Do you offer overseas maintenance and installation?
We provide comprehensive online guidance, instructional videos, and on-site engineer support for installation and debugging if required.
How long is the warranty period?
The entire machine comes with a 12-month warranty, supplemented by lifelong maintenance and spare parts supply services.
How does the vacuum seal improve shelf life?
The tight vacuum seal prevents oxygen and moisture ingress, extending the shelf life of products by 2-3 times compared to standard packaging.
