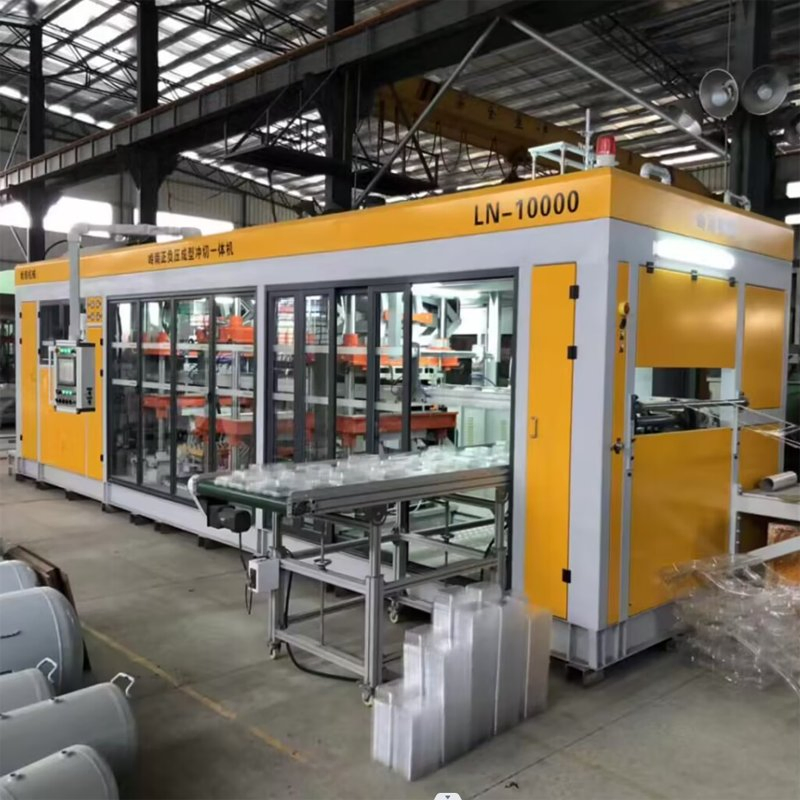

Tanzmax PRO Thermoforming Packaging System

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

TANZ-B

Certification

CE, ISO

Molding Method

Pultrusion

Automatic Grade

Automatic

Model

Tzx-10000

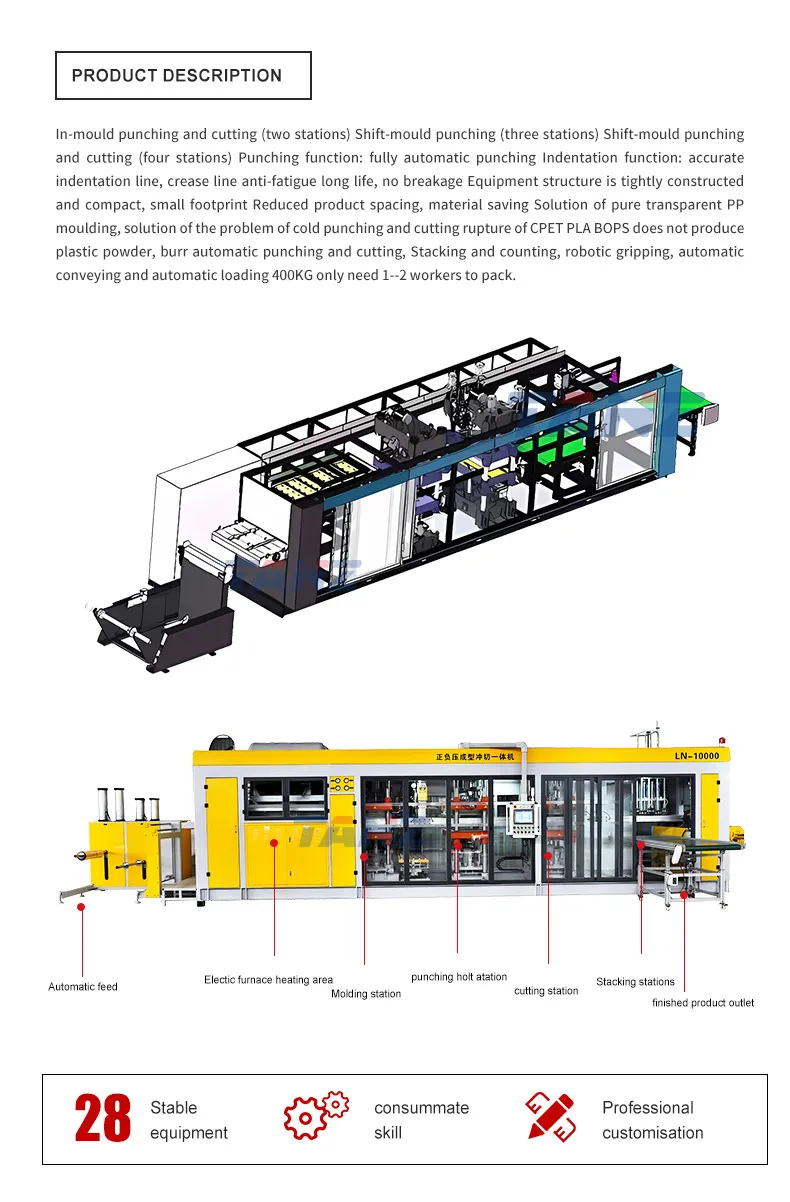

Three Workstations

Forming, Punching and Stacking

Molding Length

450-850mm

Molding Width

420-720mm

Molding Height

0-140mm

Cooling System

3HP Chiller

Control System

Touch Screen (Aoyi)

Production Capacity

400 Sets / Year

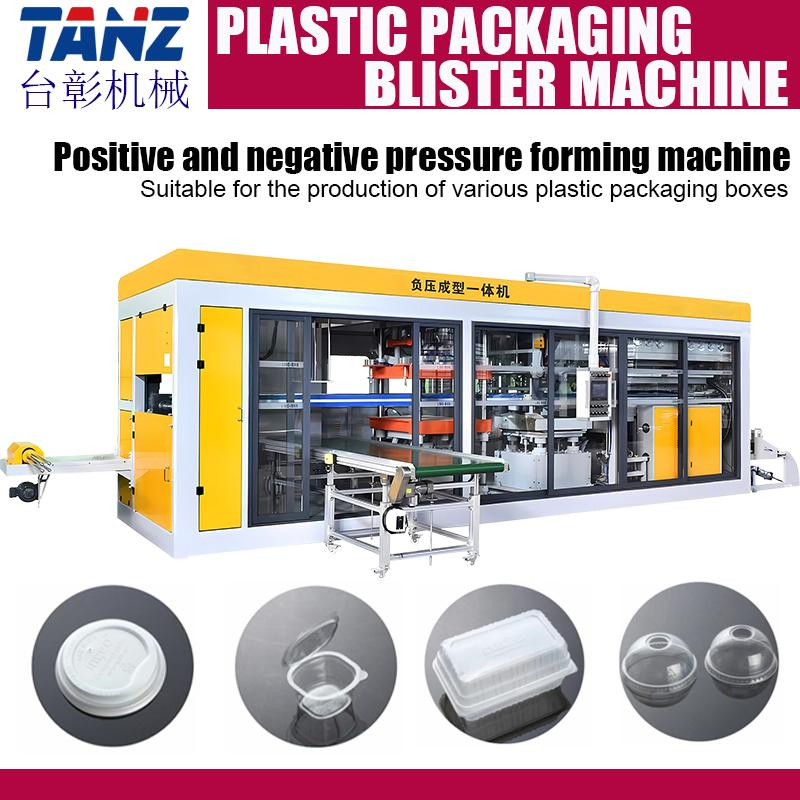

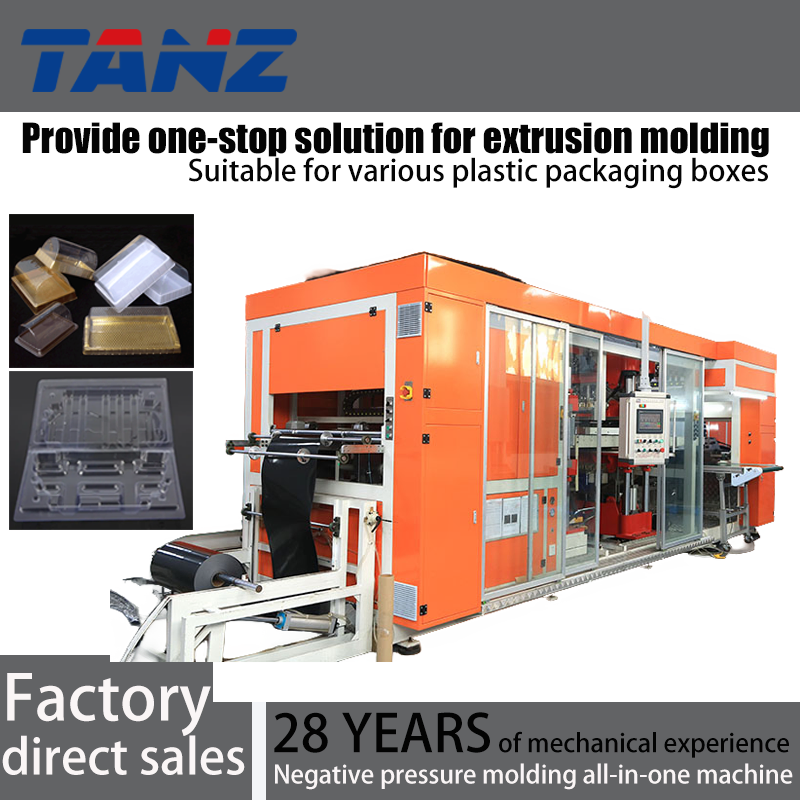

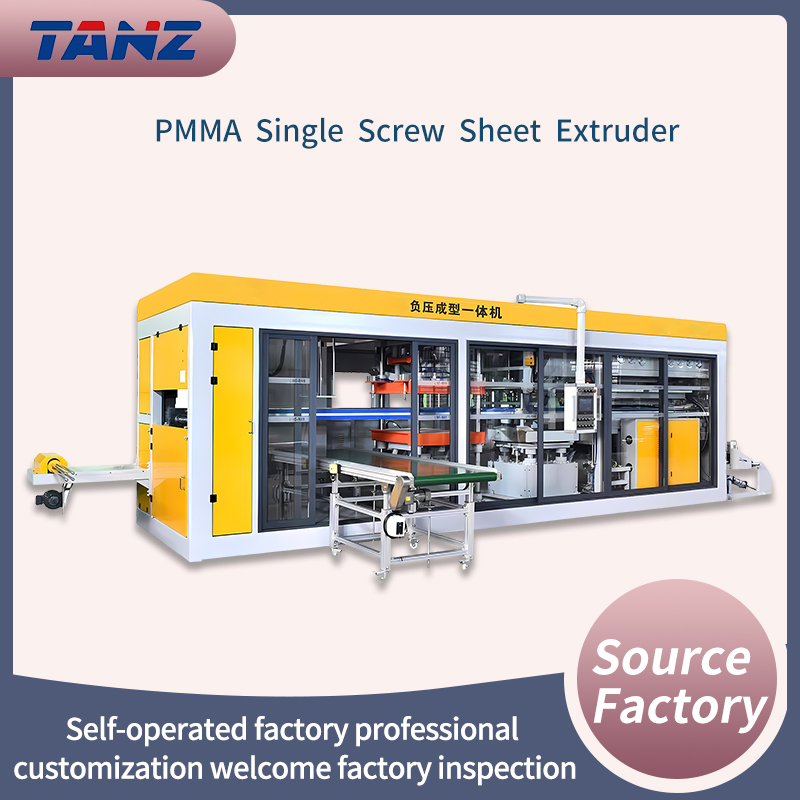

⚙️ Positive and Negative Pressure Integrated Molding Machine

Description: The Positive and Negative Pressure Integrated Molding Machine is expertly designed for producing various plastic packaging products. This advanced system features significant energy-saving capabilities, high output capacity, and labor-saving advantages, making it an ideal solution for modern manufacturing needs.

Reasons for Choosing:

High Production Efficiency: Operates at high processing speeds, allowing for rapid production of premium plastic products with short response times and robust capacity.
Wide Range of Application: Offers unique characteristics for producing diverse items such as specialized cups, containers, and various packaging boxes.
Low Production Cost: Provides a cost-effective alternative with simplified processing and reduced labor requirements, enhancing overall profitability.

📊 Technical Specifications

Finished product width	400-850mm
Forming width	420-720mm
Molding height	0-110mm
Operating voltage	380V 3N 50HZ
Electric furnace rated power	30KW (Max 40-50kw)
Production speed	5-20 seconds/mold
Maximum punch pressure	50 tons
Maximum pressure to cut	50 tons
Maximum total pressure	55 tons
Heating area	870*750mm (84 heating bricks)
Total machine length	8800mm
Total machine weight	9 tons

🖼️ Product Showcase

❓ Frequently Asked Questions

What materials are compatible with this molding machine?

This machine is designed for a wide range of thermoplastic sheets including PET, PS, PVC, and other materials commonly used in high-quality plastic packaging.

How does the integrated pressure system improve production?

By combining positive and negative pressure, the machine ensures better detail definition in the molded products and faster cycle times compared to vacuum-only systems.

Is the production process fully automated?

Yes, the machine features an automatic grade operation with three workstations for forming, punching, and stacking, significantly reducing labor requirements.

What is the typical production speed of the TANZ-B model?

Depending on the material and mold complexity, the production speed ranges between 5 to 20 seconds per mold.

What cooling system is utilized in the machine?

The system is equipped with a 3HP Chiller and 8 customized cold water spray guns to ensure rapid and consistent cooling during the molding process.
