Weight 1800 Kgs Thermoforming Food Packing Equipment

Customization:	Available
Application:	Electronic Component, Drug, Food
Power:	Electric

Send Inquiry

Product Description

Product Overview

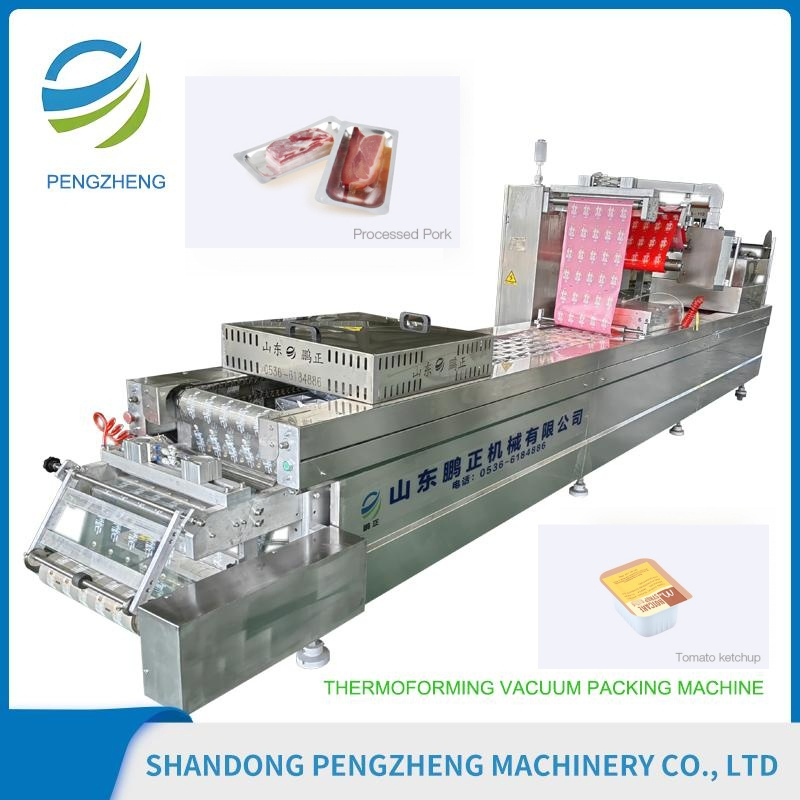

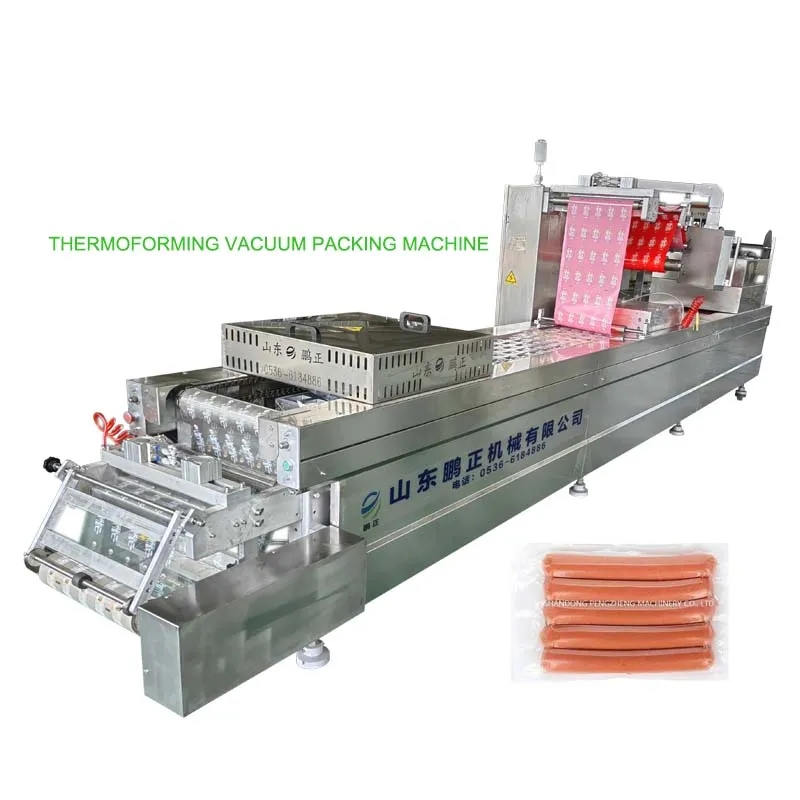

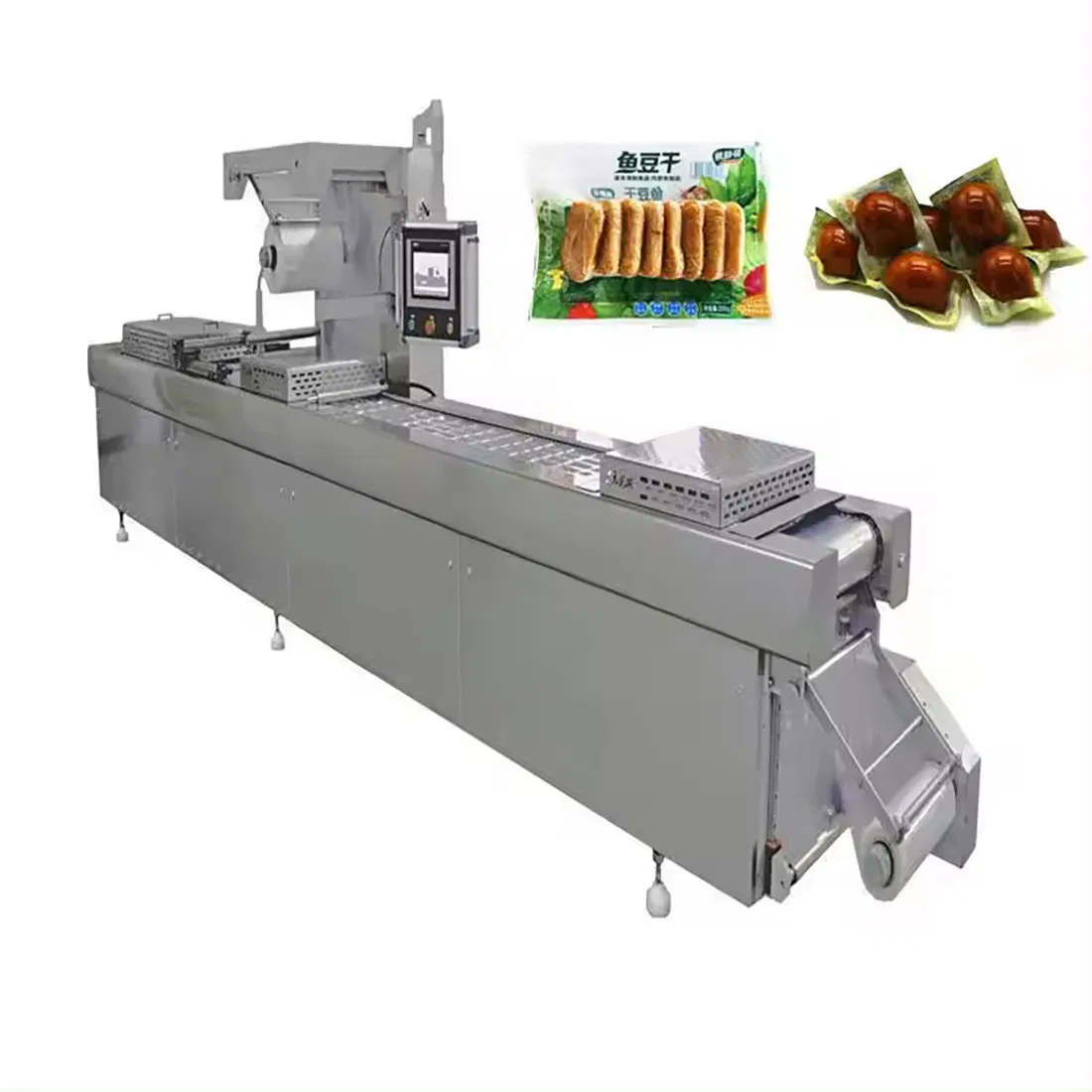

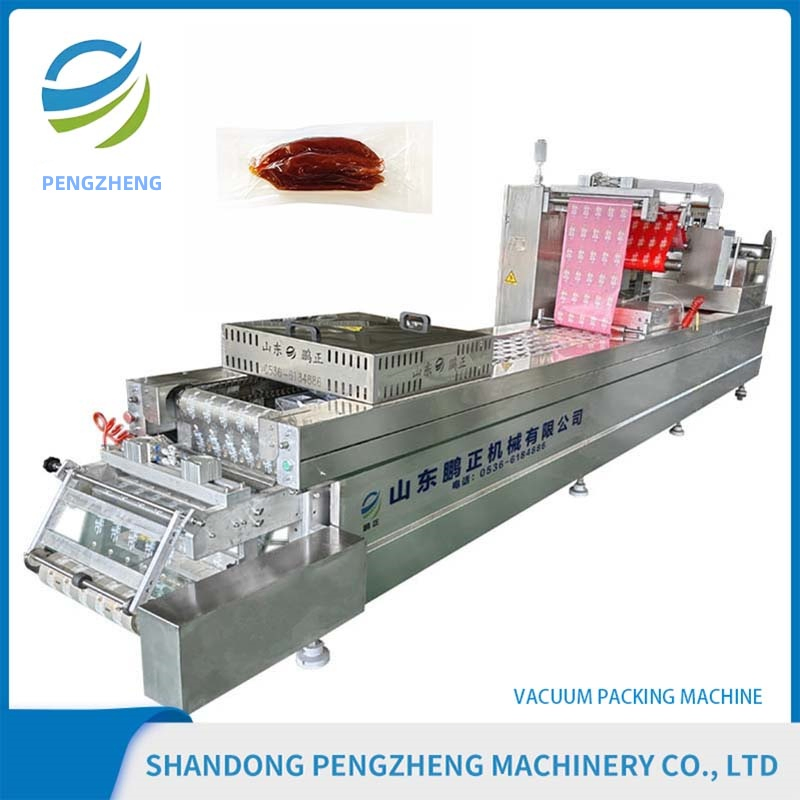

Introducing the Innovative Automatic Thermoforming Vacuum Packaging Machine. This cutting-edge equipment is designed for packaging a variety of food items such as sausages, fish, shrimp, steak, beef jerky, dried bean curd, goat, mutton, and chicken. Additionally, it can be utilized for packaging non-food items like toys, making it a versatile solution for multiple industries.

Basic Specifications
Model NO.PZ-320	AutomationAutomatic
TypeStretch Film Vacuum Packing	Object StatePaste, Powdery, Liquid, Solid
Packing Speed6-8 Cycles / Min	Packing Capacity4600-5000 Pieces / Hour
Film Width384mm	WeightAbout 1800 Kgs
Main MaterialStainless Steel 304	Dimensions660010001800mm

Why Choose This Equipment

✔ CUSTOMIZATION: Professional customization services tailored to specific production needs.
✔ EFFICIENCY: High-speed operation at 6-8 cycles per minute.
✔ TECHNIQUE: Advanced techniques ensuring optimal performance and stability.
✔ SECURITY: Integrated safety sensors for secure operation.
✔ QUALITY: Durable stainless steel structure for 24/7 reliability.

Product Features & Details

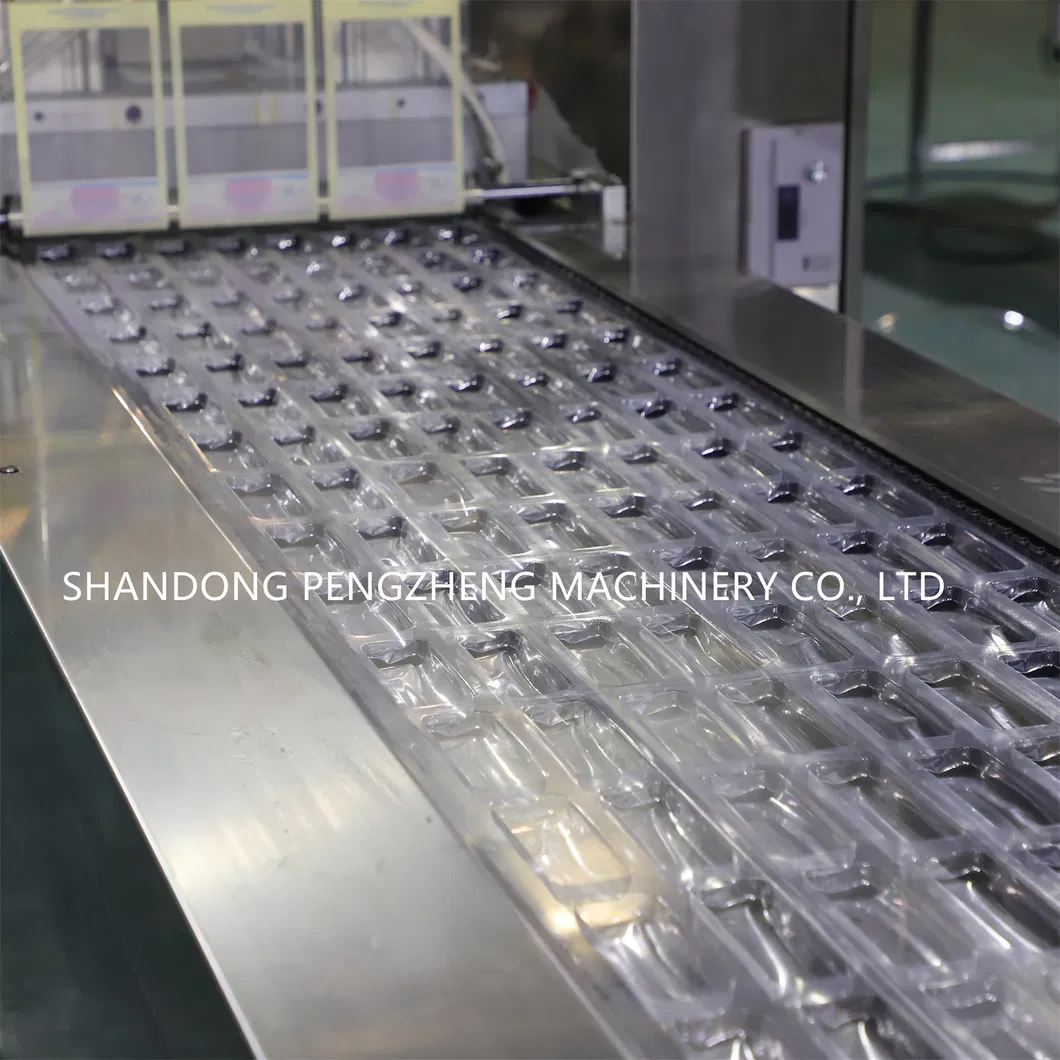

This automatic single-side stretch film vacuum packaging machine excels at forming precise shapes, ensuring efficient and hygienic results. It is ideal for large-volume operations requiring both preservation and presentation.

Innovative "No Film, No Working" System: The machine automatically shuts down when films run out, effectively reducing material loss and improving operational efficiency.

Technical Parameters

Parameter Item	Specification
Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Chain System	TYC (Taiwan)
Thermoforming Temp	70-120°C (158-248°F)
Sealing Temp	125-150°C (257-302°F)
Vacuum Degree	≤ 200 Pa

Core Advantages

★ Enhanced Shelf Life: Extends product freshness by 2-3 times.
★ Material Efficiency: Uses 40% less material than traditional wrapping.

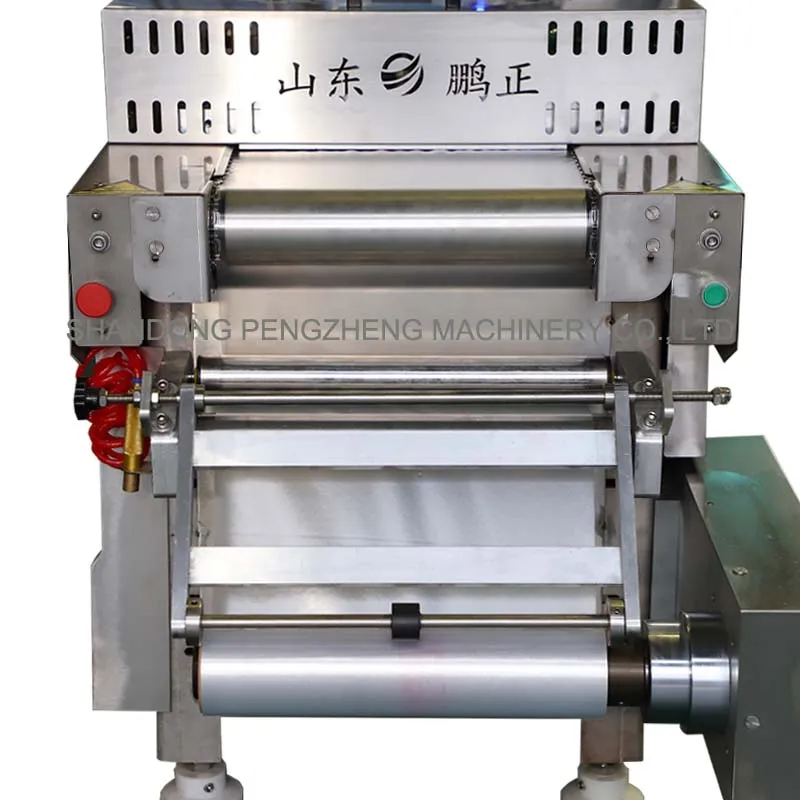

★ Smart Calibration: Automatic top and bottom film correction system.
★ Humanized Design: User-friendly PLC touch screen control.

Packaging & Logistics

Package Dimensions: 660cm * 100cm * 180cm
Gross Weight: Approximately 1800 Kgs

Frequently Asked Questions

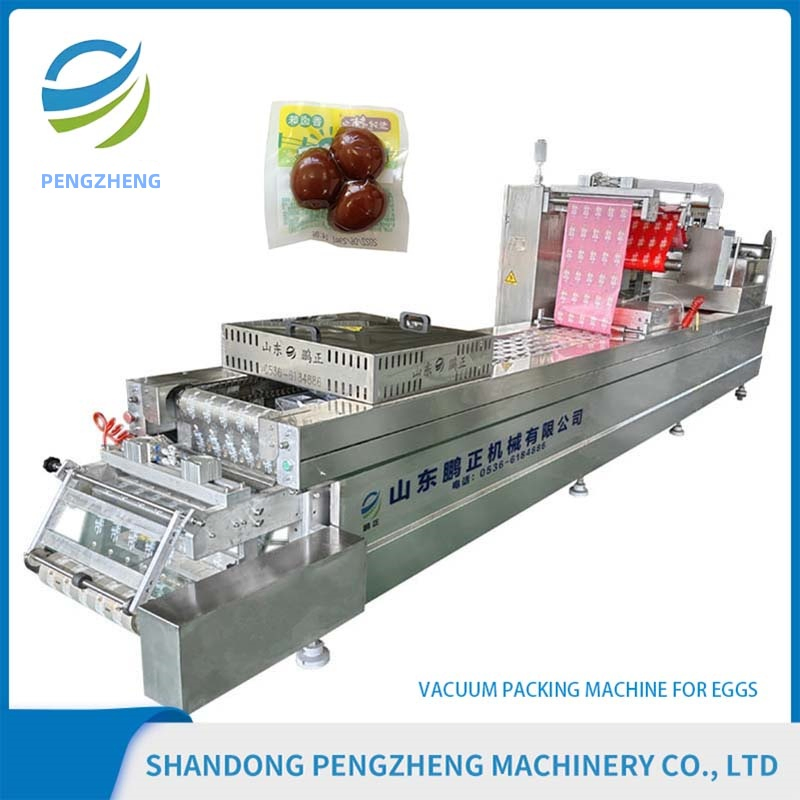

Q1: What types of products can this machine package? A: The machine is versatile and can handle paste, powdery, liquid, and solid states. It is commonly used for meat (beef, sausage), seafood, eggs, and even non-food items like toys.

Q2: How does the machine improve production efficiency? A: It operates at a speed of 6-8 cycles per minute and can package between 4600-5000 pieces per hour, significantly outperforming manual or semi-automatic processes.

Q3: Is the machine easy to operate for new users? A: Yes, it features a highly automated PLC touch screen system and humanized design, including an equipment control station at the rear for easy access.

Q4: What safety features are included in the design? A: Safety is prioritized with multiple emergency stop buttons at the front, middle, and back, along with sensors that halt operation if protective covers are opened.

Q5: Can the machine be customized for different packaging sizes? A: Absolutely. We offer professional customization services to adapt the molds and settings to your specific product dimensions and material requirements.

Q6: What kind of after-sales support is available? A: We provide a 12-month warranty, lifelong maintenance support, a 24-hour technical hotline, and online training courses to ensure smooth operation.
