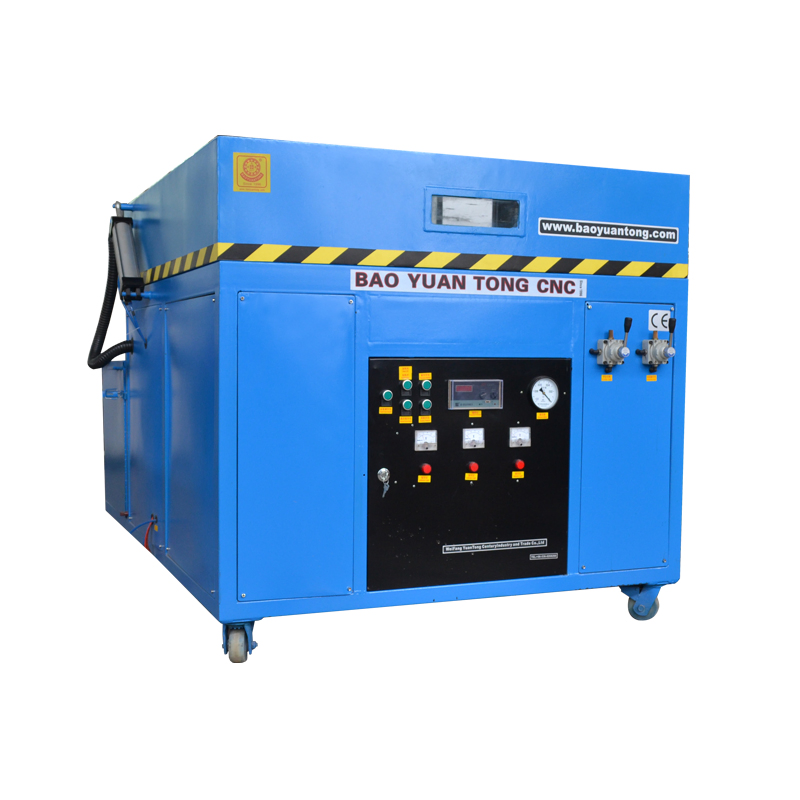

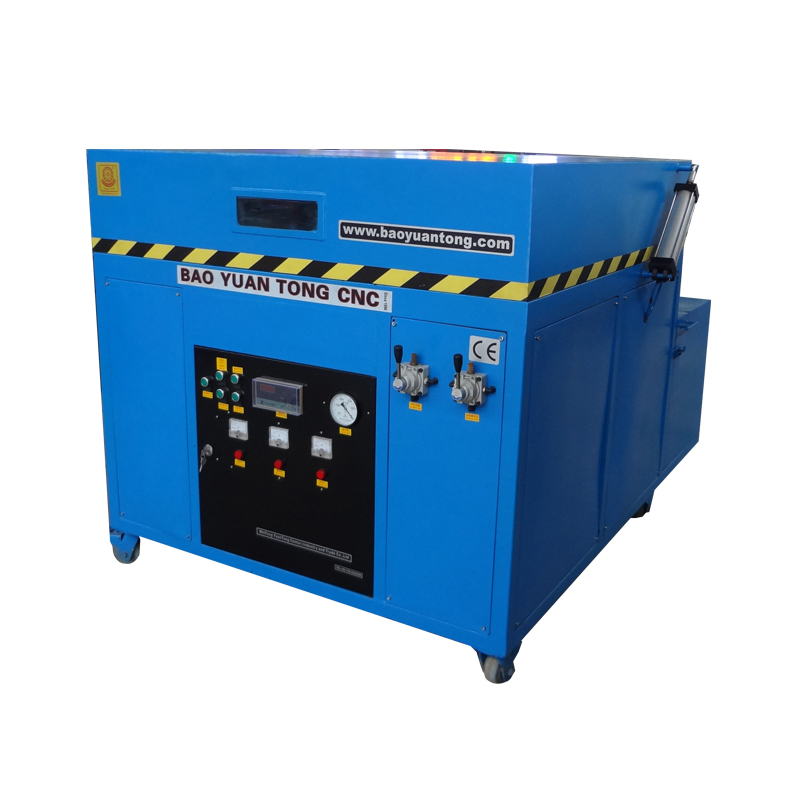

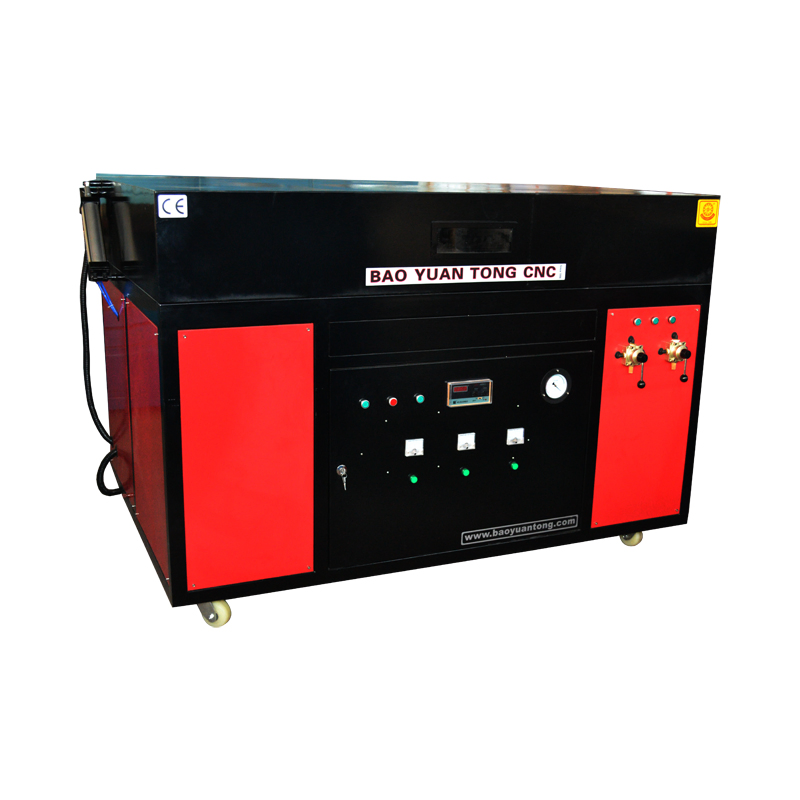

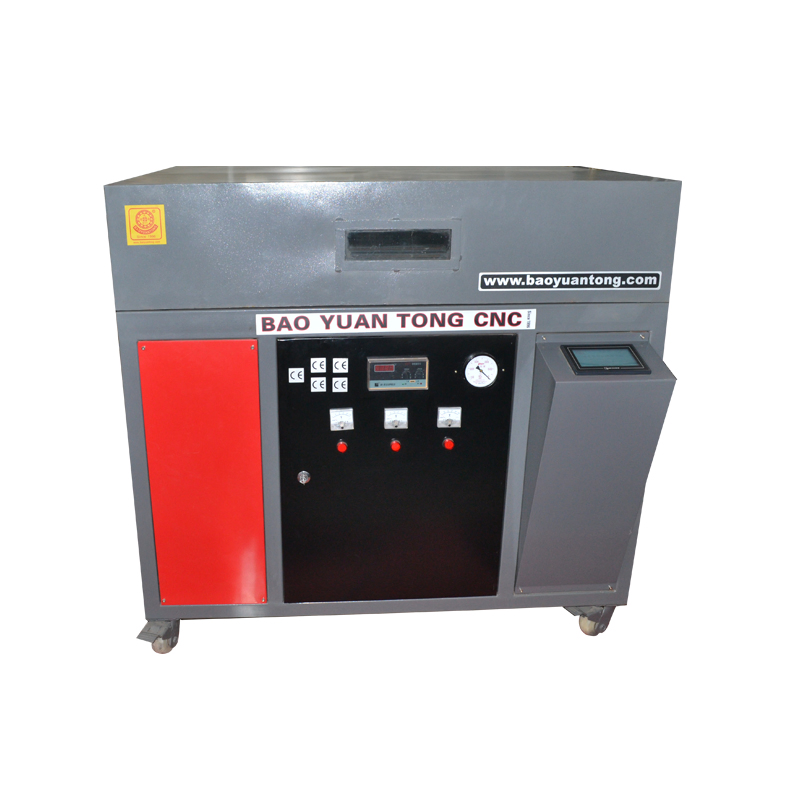

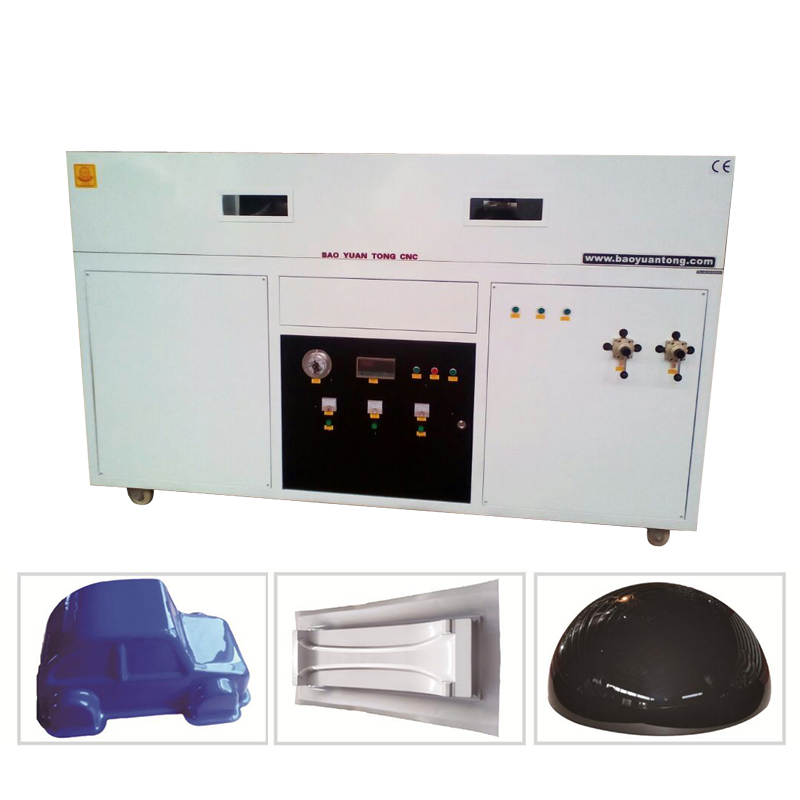

Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
1 / 5
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line
Thermoforming Mold Making LED Frontlit Signage Production Line

Thermoforming Mold Making LED Frontlit Signage Production Line

Customization: Available
Certification: CE, SGS
Column number: Vacuum Forming Machine
Send Inquiry

Product Description

i

Basic Information

Molding Method
Suction
Automatic Grade
Automatic
Max. Forming Height
300mm
Working Size
2000X3000mm
Forming Size
1840X2840mm
Power
26kw
Voltage
380V
After-Sale Service
English Speaking Engineers Available
Transport Package
Plywood Case with Steel Tube
Specification
CE, SGS, TUV
HS Code
84774010
Production Capacity
80 Sets Per Month
✓

Product Overview

We have more than 20 kinds of CNC machines to help you select the right system to meet your needs and fit your budget!

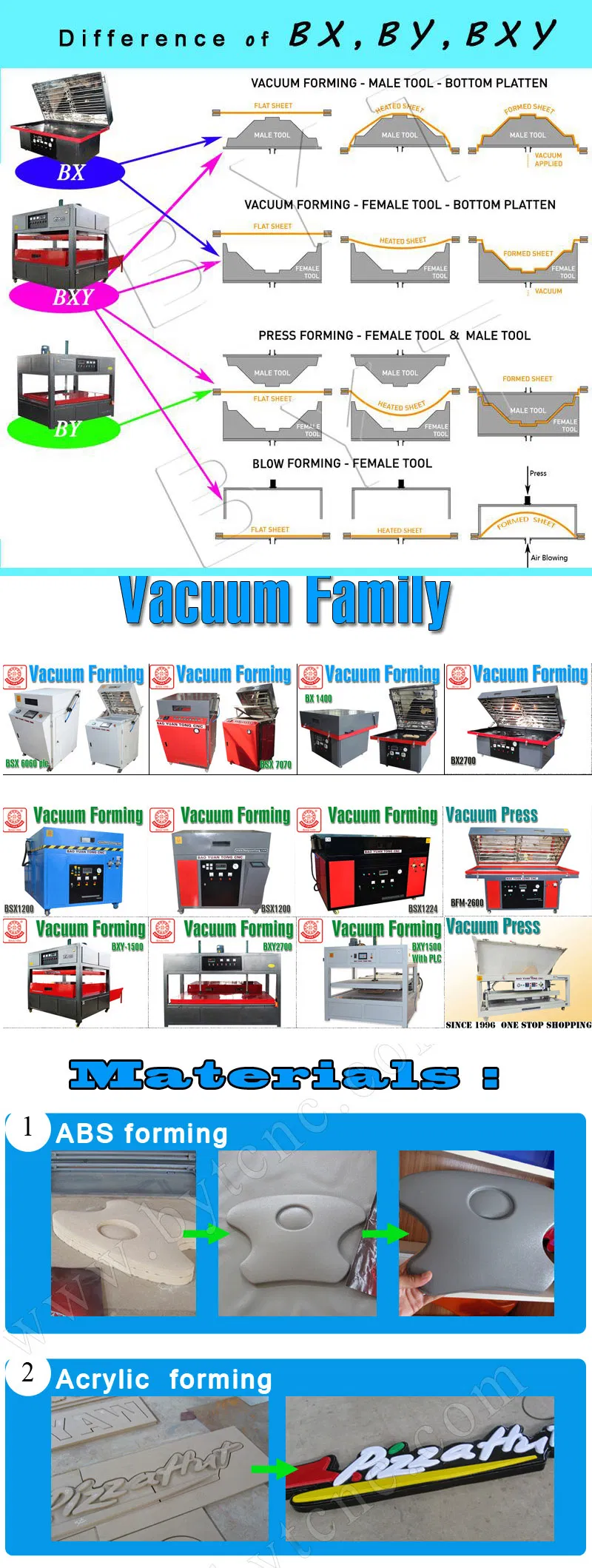

Thermoforming Production Line 1

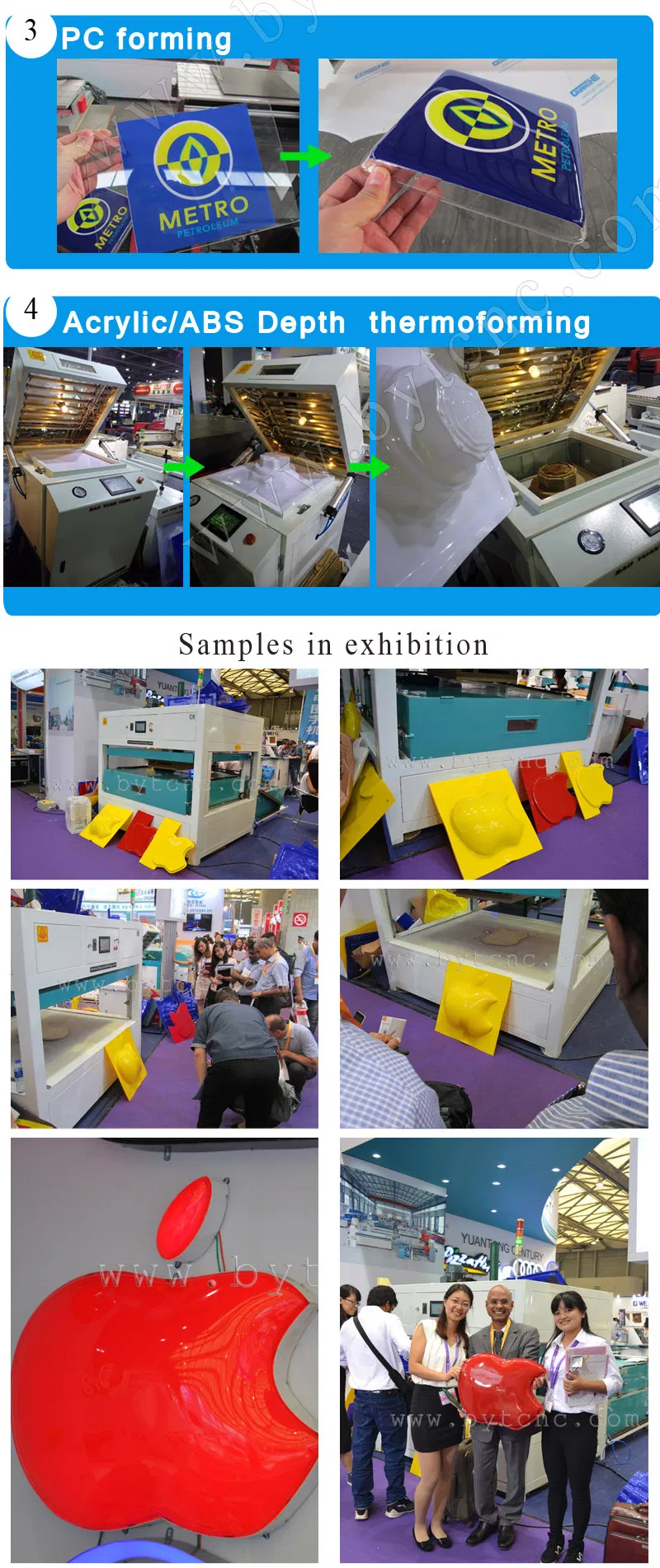

Thermoforming Production Line 2
Application: Specially for indoor and outdoor sign making industry, including light boxes, 3D acrylic LED light letters, acrylic channel letters, and sign boards.
★

Key Features

◈
Intelligent temperature controller with energy-gathered reflecting cover to save electricity.
◈
Customized heaters capable of 24-hour continuous operation with 8,000-10,000 hours service life.
◈
High precision linear guide rail for the lifting work table, ensuring stable movement.
◈
Cylinder controlled heating box for easy opening and closing operations.
◈
Oil-free vacuum pump with a maximum capacity of 80m³/h.
◈
Compatible with various thermoplastic materials: ABS, PVC, PS, HIPS, PE, PC, PMMA, etc.
⚙

Technical Data

Model BSX-600 BSX-1200 BSX-1218 BSX-1224 BSX2030
Working area 600*600mm 1200*1200mm 1200*1800mm 1200*2400mm 2000*3000mm
Forming area 540*540mm 1040*1040mm 1040*1640mm 1040*2240mm 1840*2840mm
Power 4 KW 8 KW 18KW 22KW 26KW
Max. forming height 200mm 300mm 300mm 300mm 300mm
Voltage 380V or 220V 380V 380V 380V 380V
Vacuum pump output 20m³/h 60m³/h 60m³/h 80m³/h 80m³/h
Frequency 50-60Hz
▶

Work Process & Production

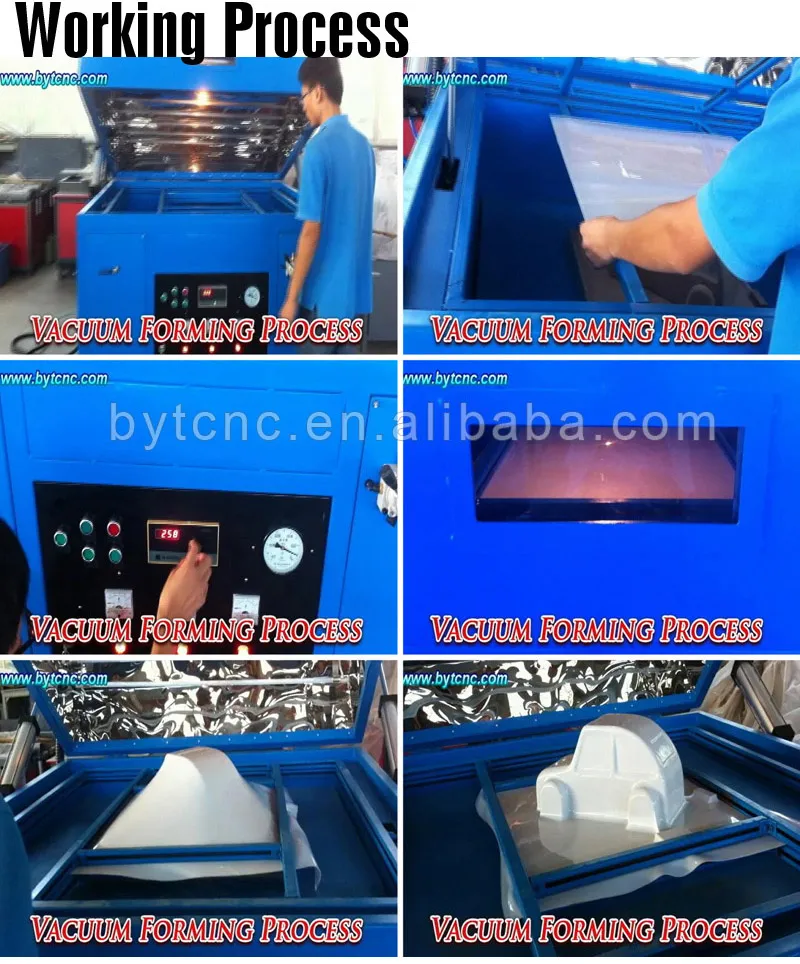

Work Process 1

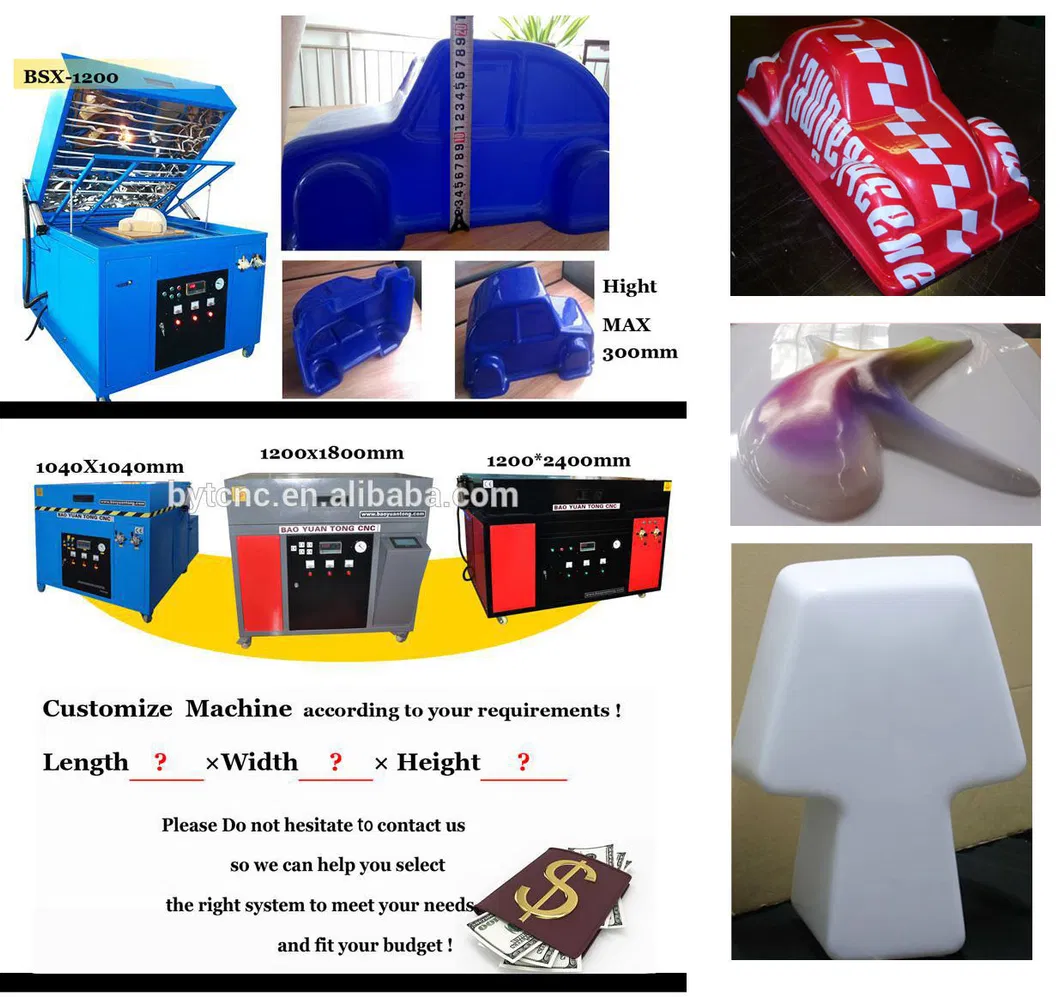

Work Process 2
Work Process 3
Work Process 4
🛠

After-Sales Service

Quality Guaranty: One year warranty for the machine and main parts (excluding consumables).
Maintenance: Lifetime maintenance provided free of charge.
Technical Support: 12-hour online service daily with English-speaking engineers.
Training: Free training courses available at our plant and English operation manuals provided.
?

Frequently Asked Questions

Is this machine easy to operate for a first-time user?
Yes, we provide an English manual and guide videos showing how to use the machine. We also offer support via phone or video call if you have any questions.
What happens if the machine has a problem during the warranty period?
We provide free replacement parts during the warranty period. Our technical support is available 24 hours to help troubleshoot any issues.
What is the Minimum Order Quantity (MOQ)?
Our MOQ is 1 set. We can arrange shipping directly to your nearest port or factory address.
What materials are compatible with this thermoforming machine?
The machine works with various thermoplastic materials such as ABS, PVC, PS, HIPS, PE, PC, and PMMA (Acrylic).
What is the maximum height the machine can form?
The maximum forming height for our standard large models is 300mm, while smaller models start at 200mm.
Is technical support available in English?
Yes, we have English-speaking engineers available 12 hours a day online to provide free technical support.
