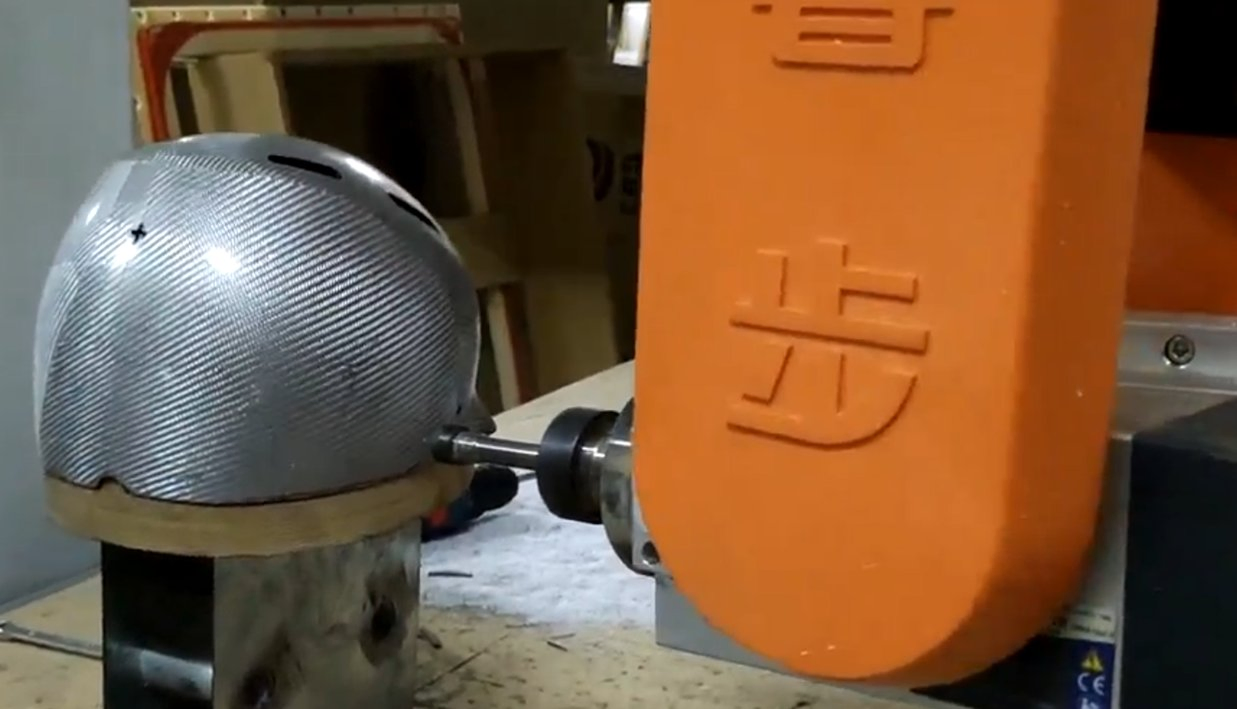

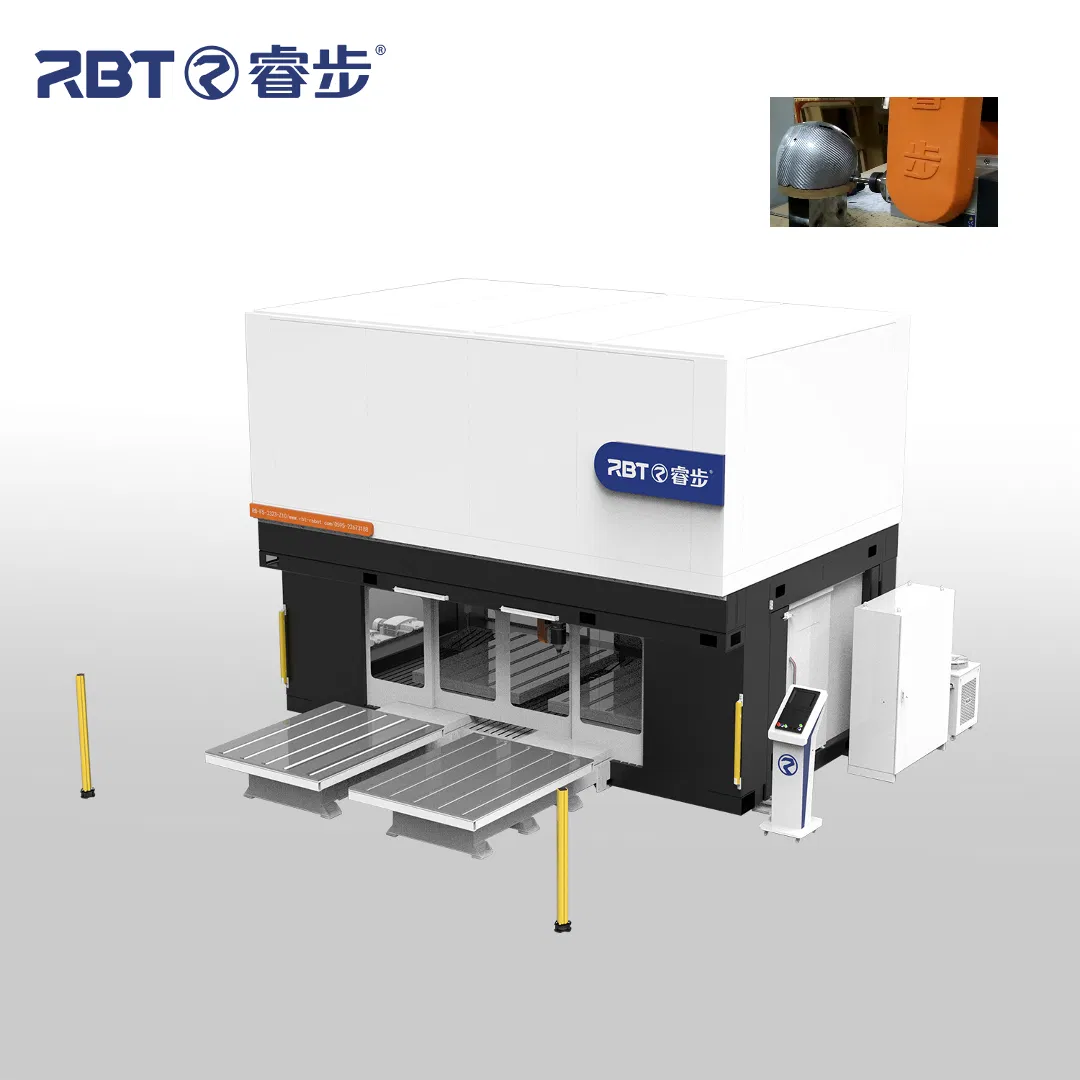

Thermoforming Plastic Parts Cutting and Engraving Machine with 5 Axis

1 / 5

Thermoforming Plastic Parts Cutting and Engraving Machine with 5 Axis

Customization:	Available
After-sales Service:	Technical Support, Online Support, Spare Parts
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

RB-H6-3626-Z12

X Axis Effective Stroke

2500mm

Y Axis Effective Stroke

2000mm

Z Axis Effective Stroke

820mm

B-Axis Rotation Angle

+/- 130 Degree

C-Axis Rotation Angle

+/- 540 Degree

X/Y Axis Maximum Speed

50m/Min

Z Axis Maximum Speed

20m/Min

Repeat Accuracy

+/-0.05mm

Voltage

380V

Total Power

13.95kw

Spindle Power

3kw (Customizable)

Frequency

50Hz

Weight

3.9t

Application & Function

Thick Plastic & Composite Materials Processing

OEM

Machine Can Be Customized as Required

Specification

L3482*W3200*H3768mm

Production Capacity

200set/Month

📦

Packaging & Delivery

Package Size

7300.00cm * 6400.00cm * 4600.00cm

Package Gross Weight

13000.000kg

★

Product Description

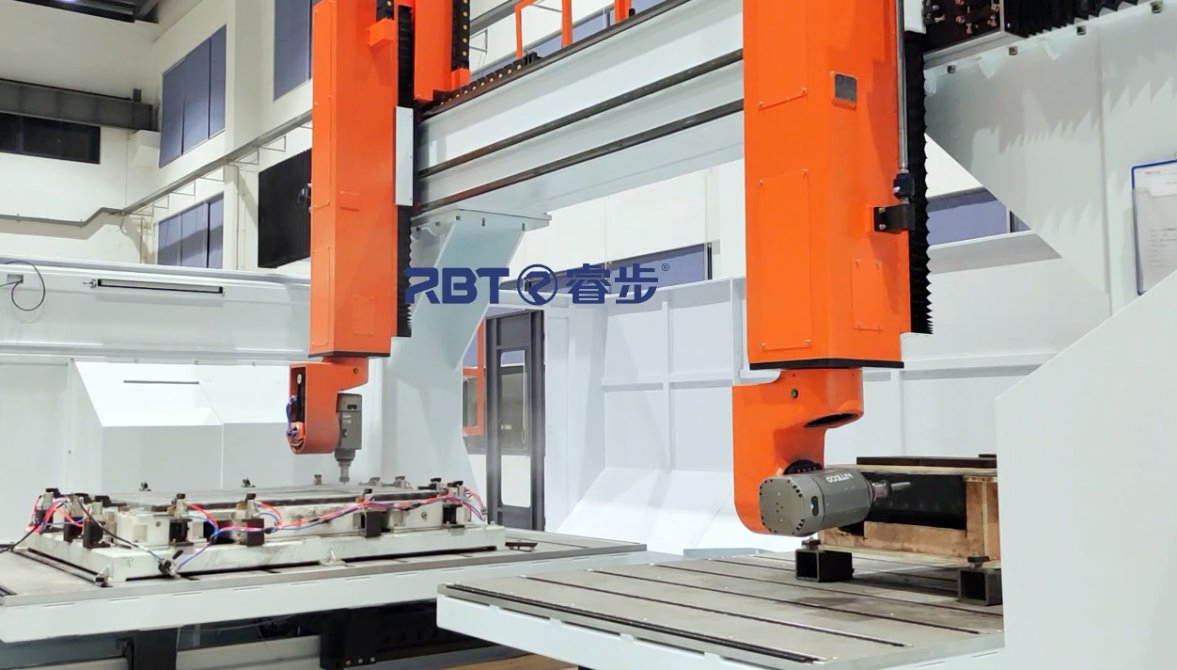

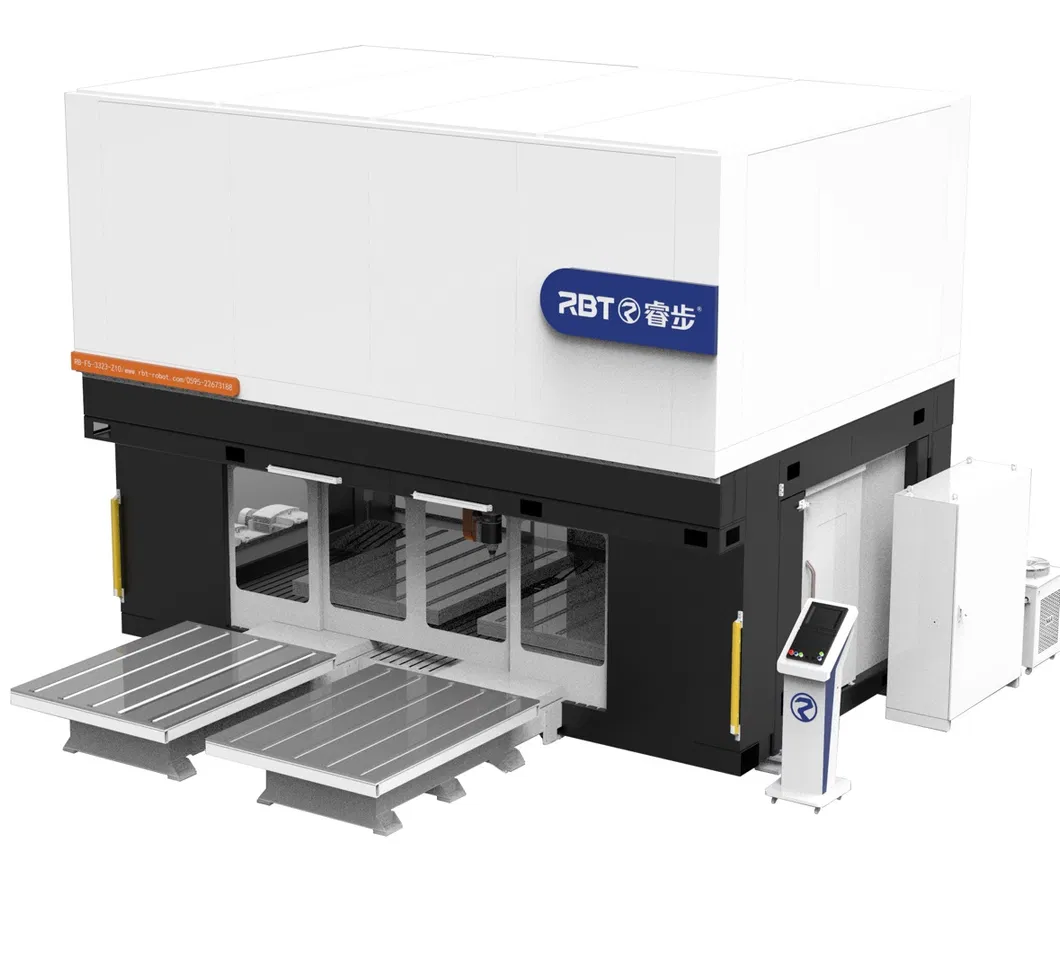

The truss-type rotary worktable and the protective room structure meet the safety protection and debris prevention during production.

Equipped with floor drain dust collection device and high-performance dust collector to collect external processing debris.

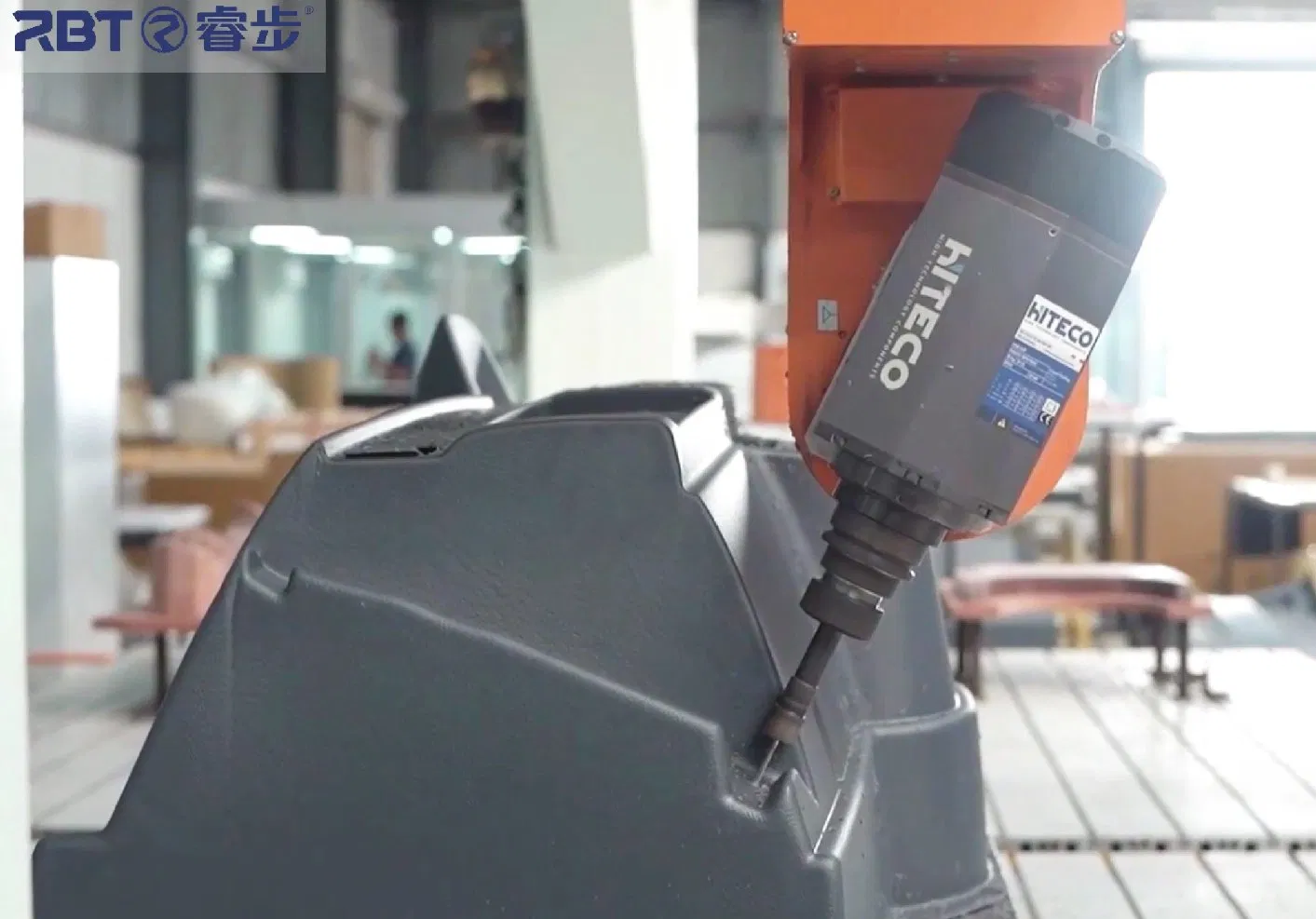

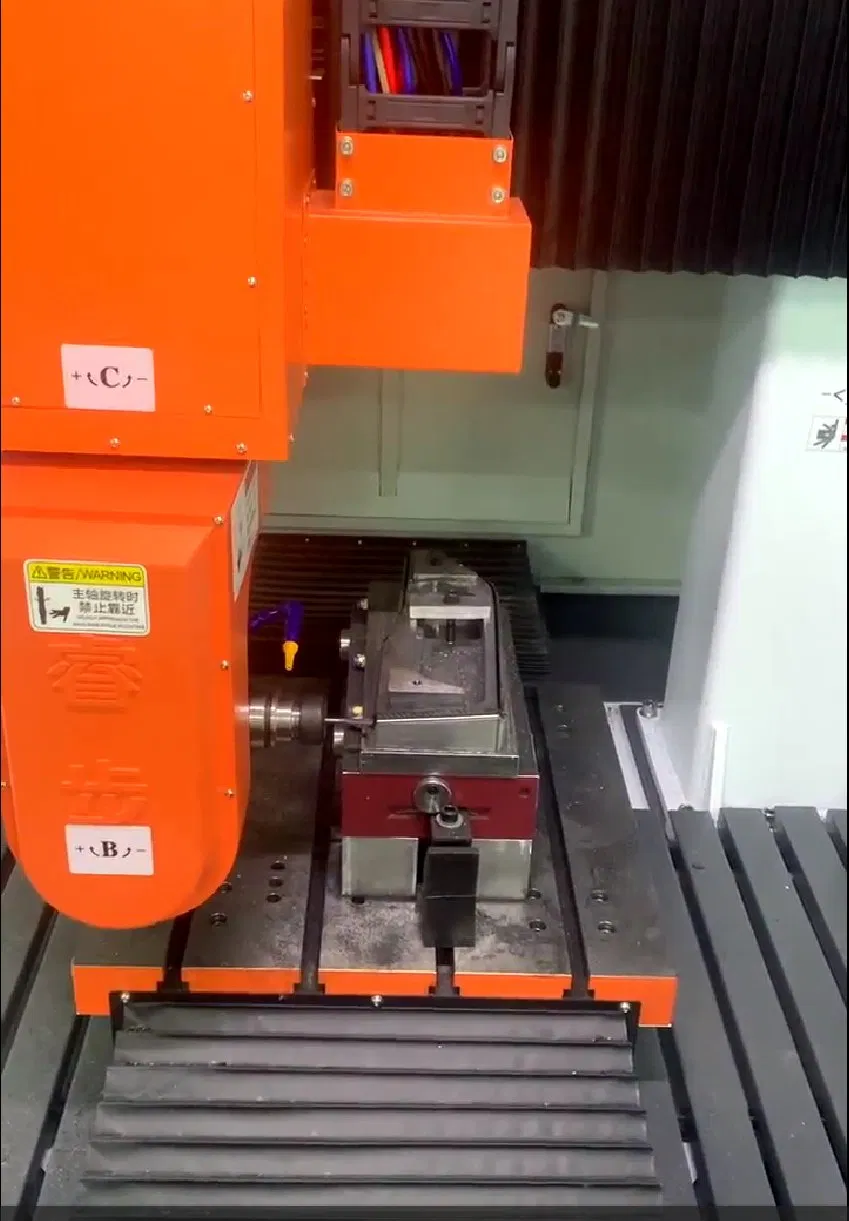

Five-axis linkage three-dimensional movement allows for the processing of pentahedron and arbitrary curved surfaces.

Rotary worktable realizes automatic interaction between the processing area and the loading area, making operations safer.

Combines power, speed and precision, with optional automatic tool change and RTCP functions.

Customizable machine travel based on specific customer needs.

📷

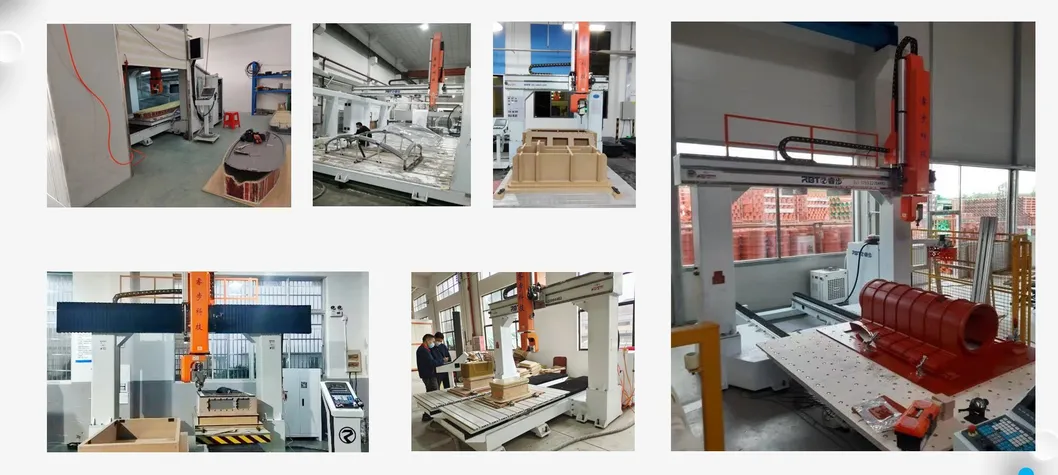

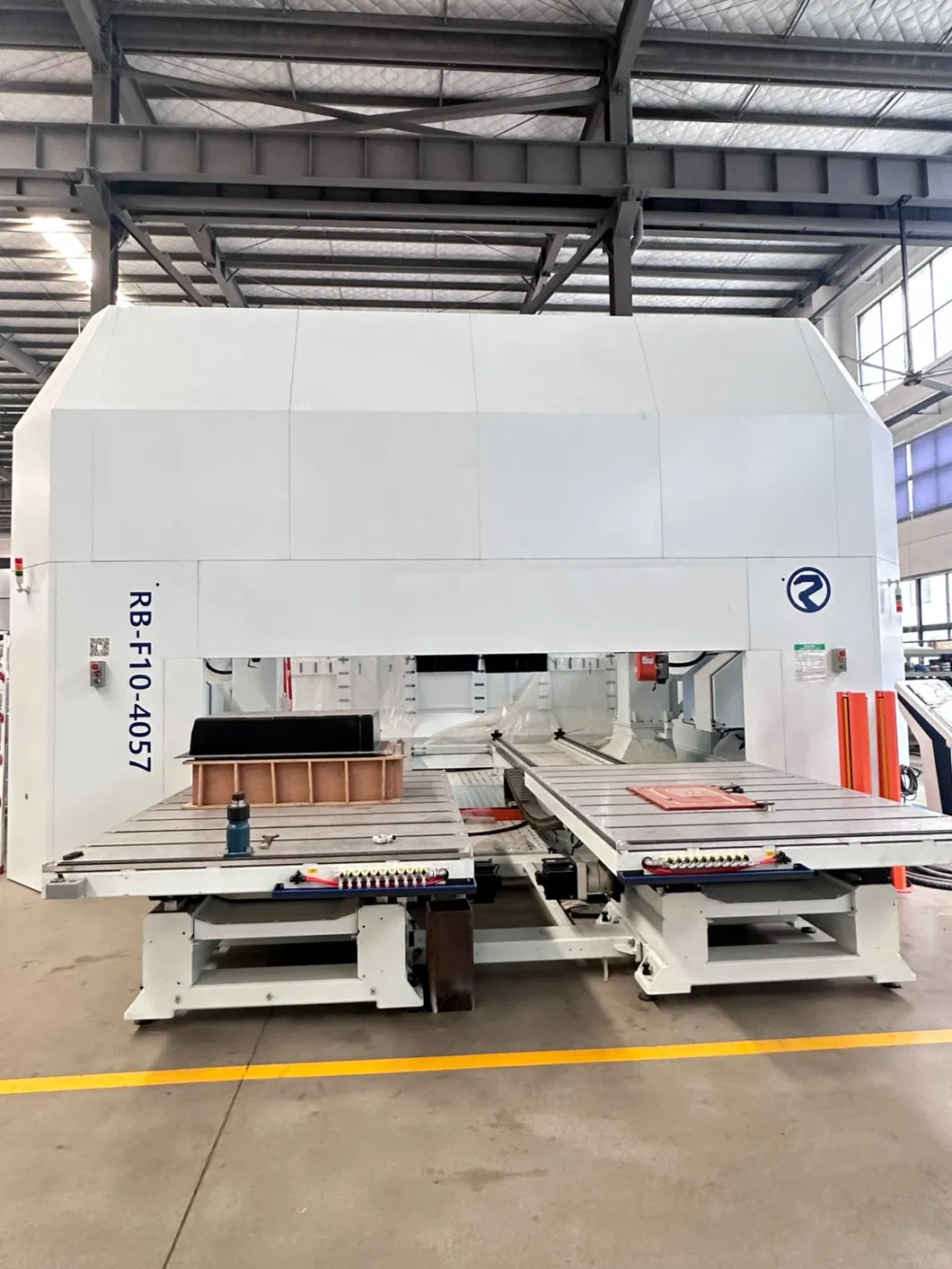

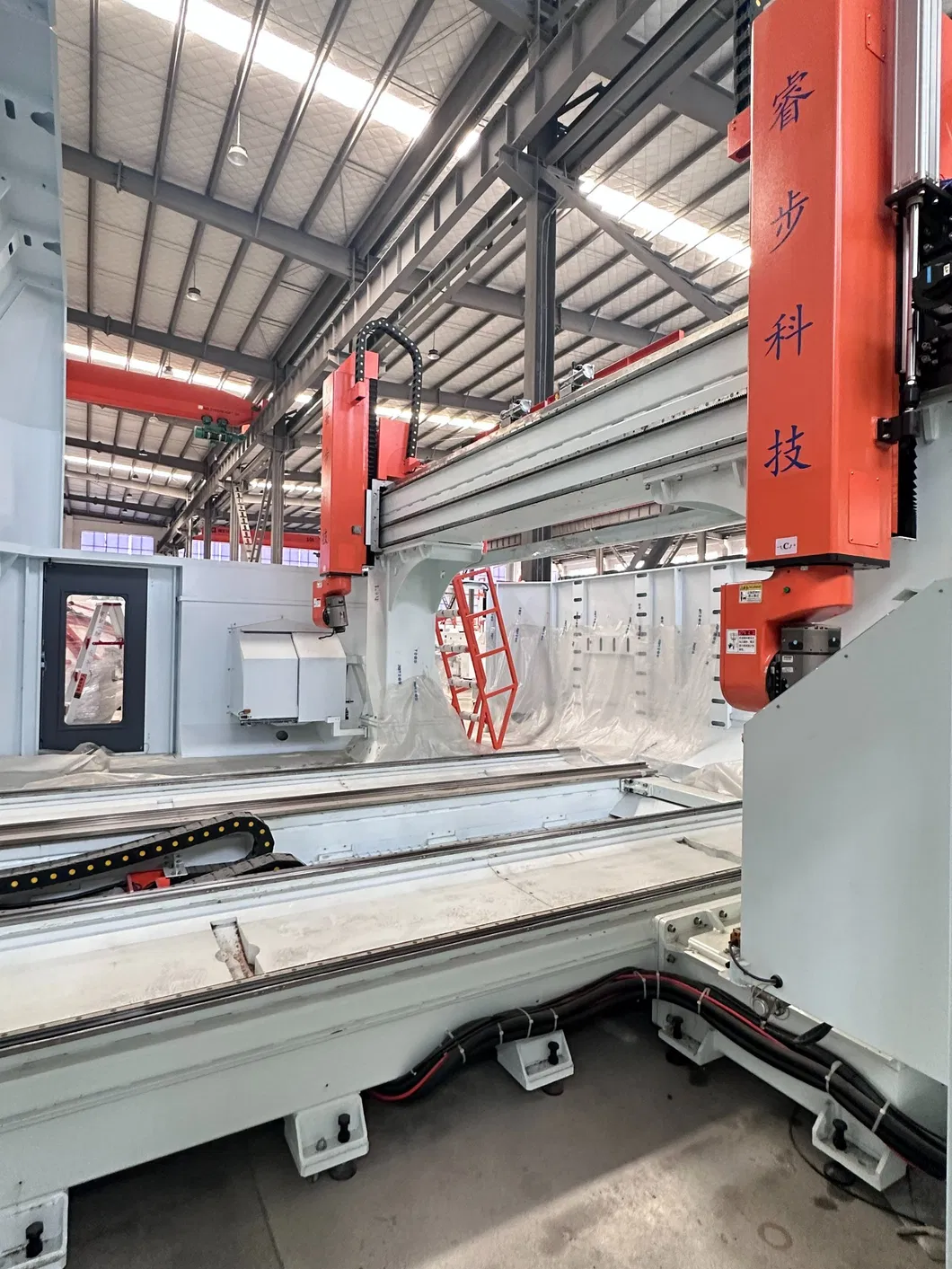

Product Show

⚙

Technical Parameters

Product Name	Non-metal truss type 6 axis machining center
Screw	Taiwan TBI
Linear Guide	Taiwan CSK
Rack	Liangchi
Servo	Inovance

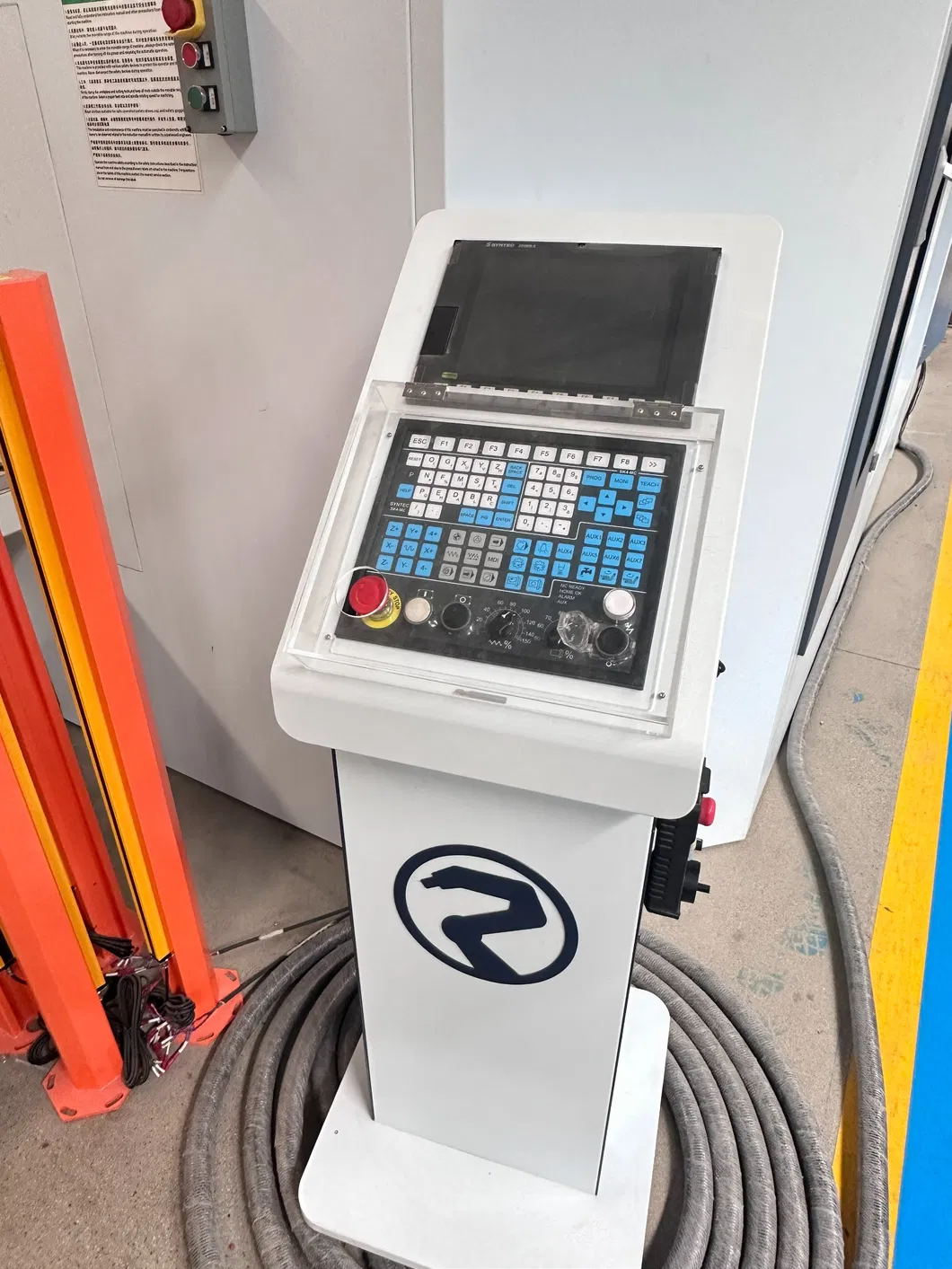

Control System	Taiwan SYNTEC
Electrical components	France Schneider
Spindle power	5.5KW / 24000rpm / Water cooling
Pneumatic Components	Taiwan AirTAC
X Axis Reducer	Japan SHIMPO
B-axis Rotation	±130°
C-axis Rotation	±540°
Repeatability	±0.05mm (within 300mm)
Total Power	14.5KW (Actual configuration subject)
Dimensions	L7300 * W6400 * H4600 mm
Weight	13000KG

✔

Quality & Cooperation

Frequently Asked Questions

Why choose our machinery?

We are committed to offering high-quality, high-performance products at competitive prices, backed by in-time delivery and comprehensive 24/7 after-sale support.

Can you produce machines based on specific samples?

Yes, we can customize parameters and configurations based on your samples or technical drawings, ensuring the machine meets your specific production needs.

What payment terms are accepted?

Typically, a 50% deposit is required in advance, with the remaining 50% balance settled before shipment. Irrevocable L/C at sight is also acceptable under agreed terms.

What quality certifications do the products have?

All products are manufactured under the ISO9001 Quality System and have acquired CE and ISO certifications.

What is the estimated delivery time?

Standard products take 15 to 30 days after the deposit is received. Customized equipment may require additional time depending on the order requirements.

Do you provide after-sales service and installation?

We arrange technical staff for on-site installation and training. We also offer 24h online video support and provide full English manuals and operation videos with every shipment.
