| Model | ZHD-750/850 | Certification | CE |
|---|---|---|---|
| Molding Method | Pressing | Automatic Grade | Automatic |
| Processing Type | Plastic Thermoforming | Plastic Type | PP, PET, PVC, PS, PLA |
| Forming Area | 750/850mm | Sheet Width | 450-800mm |
| Forming Depth | 120mm | Production Speed | 10-35 Cycles/Min |
| Sheet Thickness | 0.2-2 mm | Heating Power | 200kw |

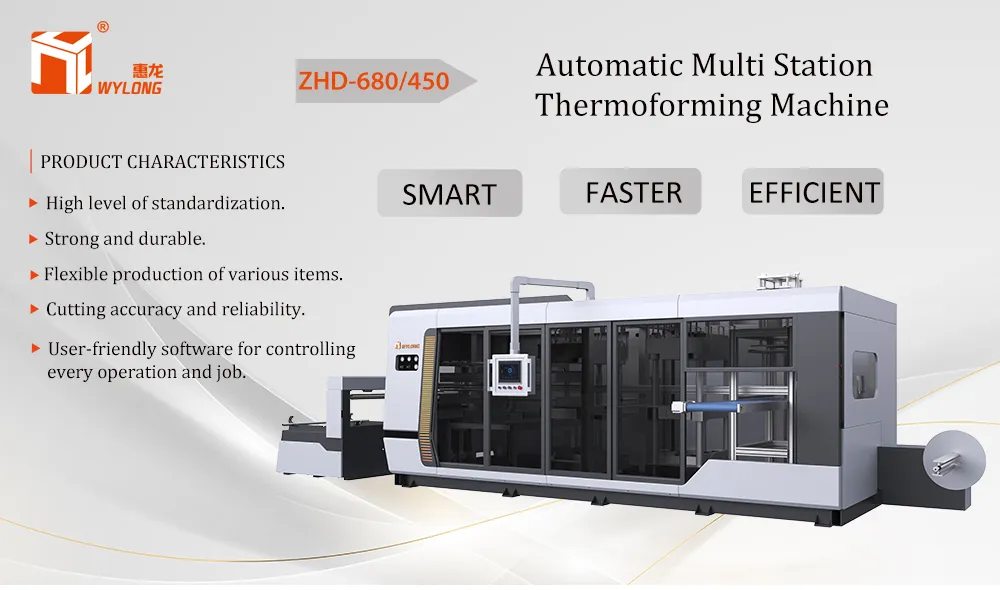

| Model Comparison | ZHD-680/450 | ZHD-750/650 | ZHD-750/850 |
| Forming Area | 680x450mm | 750x650mm | 750x850mm |
| Speed | 15-30/min | 15-40/min | 15-40/min |
| Heating Power | 80kw | 165kw | 200kw |
| Overall Dimensions | 8x2.4x2.2m | 10x2.4x2.5m | 12x2.4x3.2m |
| Part Name | Brand/Origin |
|---|---|
| Forming Servo Motor | ESTUN & TRIO |
| Magnetic Valve | Japan (SMC) |
| Cylinder | Airtac |
| PLC | TRIO |

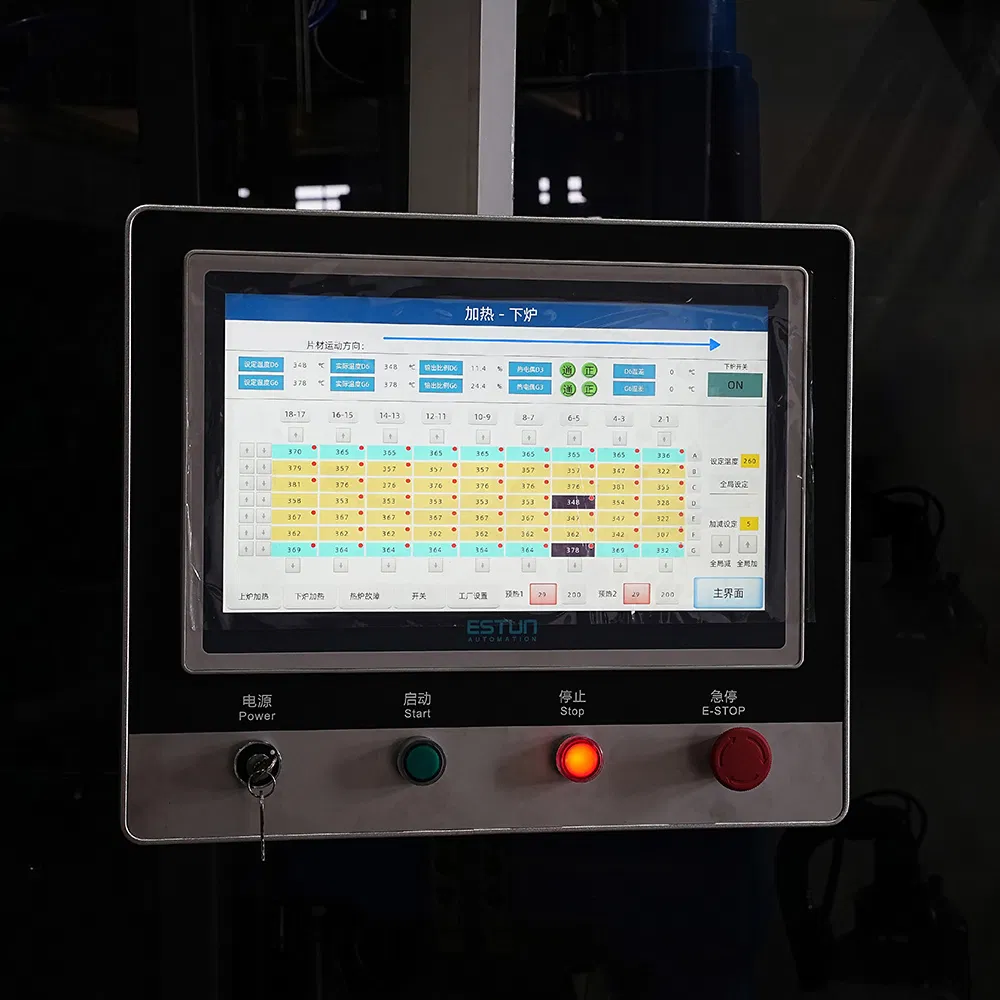

| Touch Screen | ESTUN & TRIO |
| Encoder | Japan (Omron) |
| Contactor | France Brand |

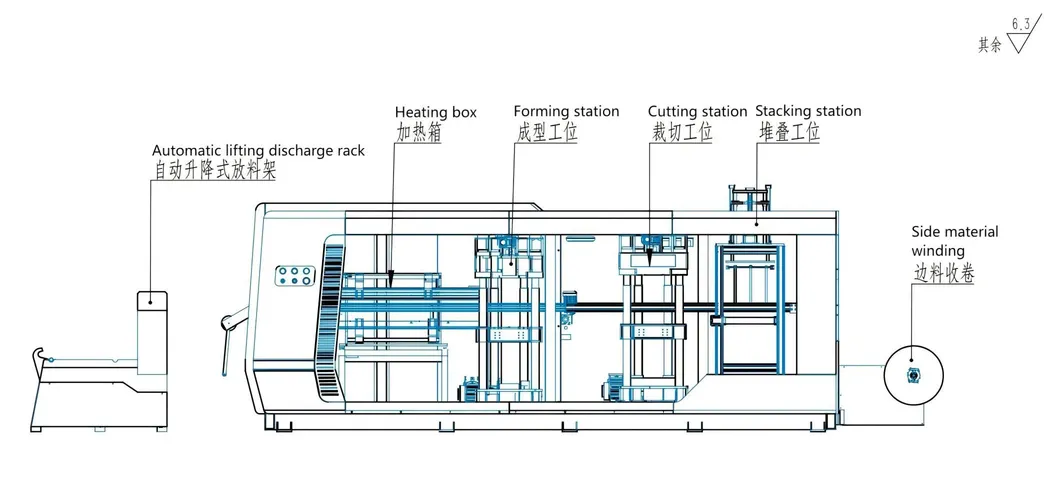

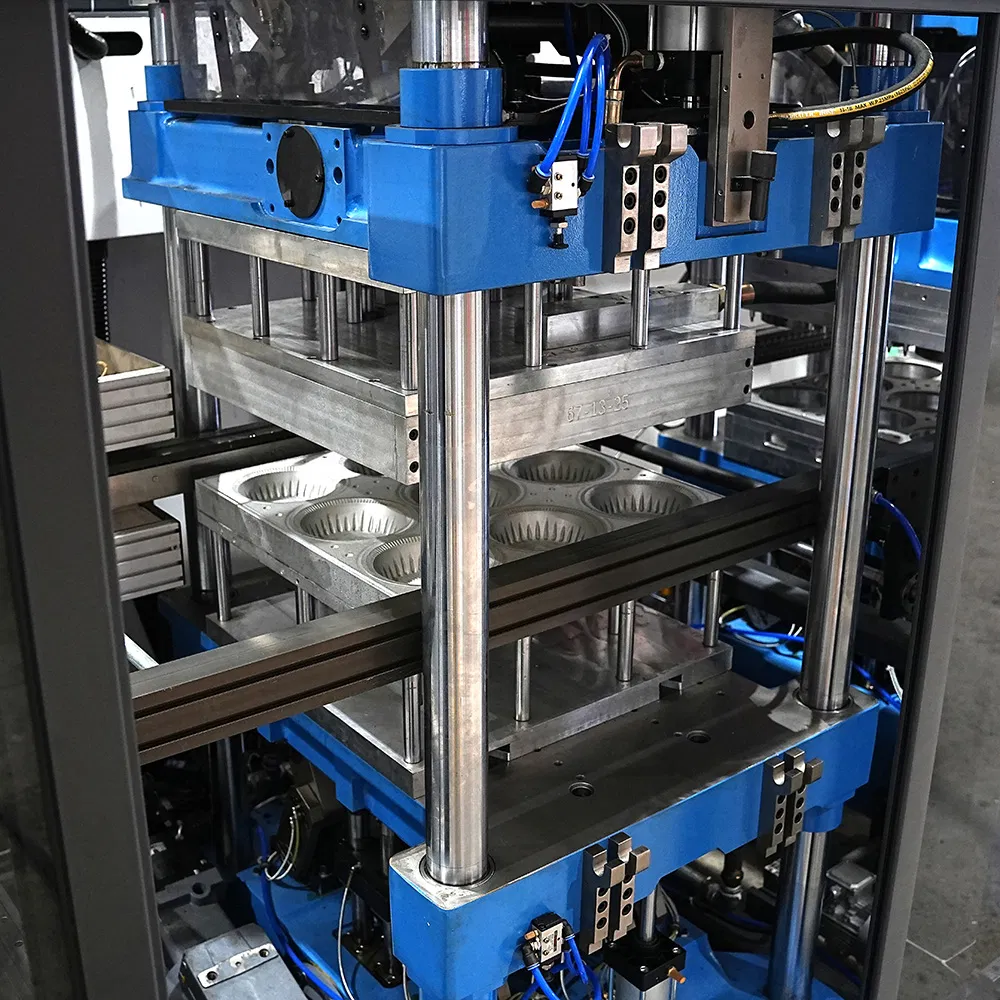

Located immediately after the oven.Expertly formed into the mold shape through precise stretch and air compression for high-quality definition.
Ensures high accuracy and speed in cutting the molded sheets, enhancing efficiency for optimal industrial production performance.
Equipped with Delta and Estun Servo Motors, renowned for high accuracy and long-term reliability in demanding industrial applications.

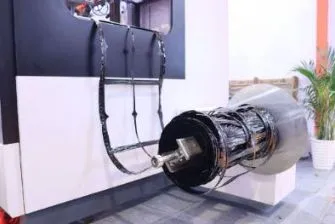

Features a torque motor winding unit to efficiently collect and roll waste sheets, maintaining a clean and sustainable workspace.

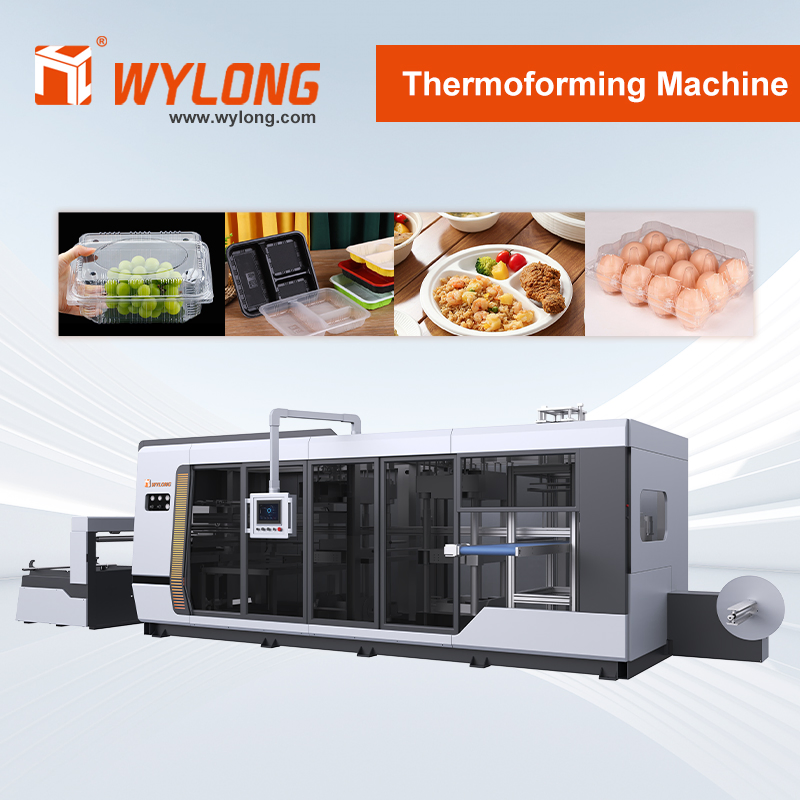

Our multi-station thermoforming machine handles various materials: A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, and PVC. It is ideal for producing trays, lids, fruit boxes, flower pots, clamshells, and nursery trays.
It specializes in complex designs like PLA products, plastic lids with holes, and integrated egg trays/fruit boxes with connected covers.
With 20 years of machinery manufacturing experience, we specialize in plastic sheet extruders and multi-station thermoforming machines. Holding ISO 9001 Certification and utilizing advanced R&D, our equipment is recognized worldwide for high quality and efficiency. We adhere to scientific management principles to provide superior products and services to global industries.
