Thermoforming Vacuum Packaging Equipment Packing Solution for Food Industry

Customization:	Available
After-sales Service:	Free(on Line) and Other Service
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information & Overview

Model NO.	PZ-420	Application	Electronic Component, Drug, Food, Medicine, Hardware etc.
Power	Electric	Automation	Automatic
Type	Stretch Film Vacuum Packing Machine	Object State	Paste, Powdery, Liquid, Solid, Particle
Film Width	384mm	Voltage	Customization
Weight	About 1800 Kgs	Packing Speed	6-8 Cycles / Min
Production Capacity	200 Sets Per Year	HS Code	8422400000

Product Description

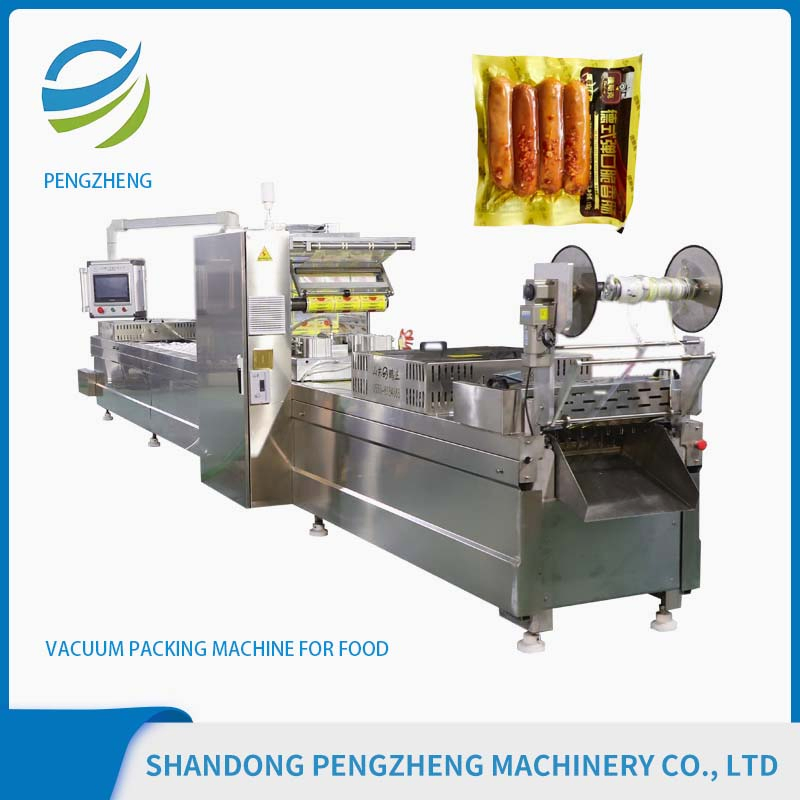

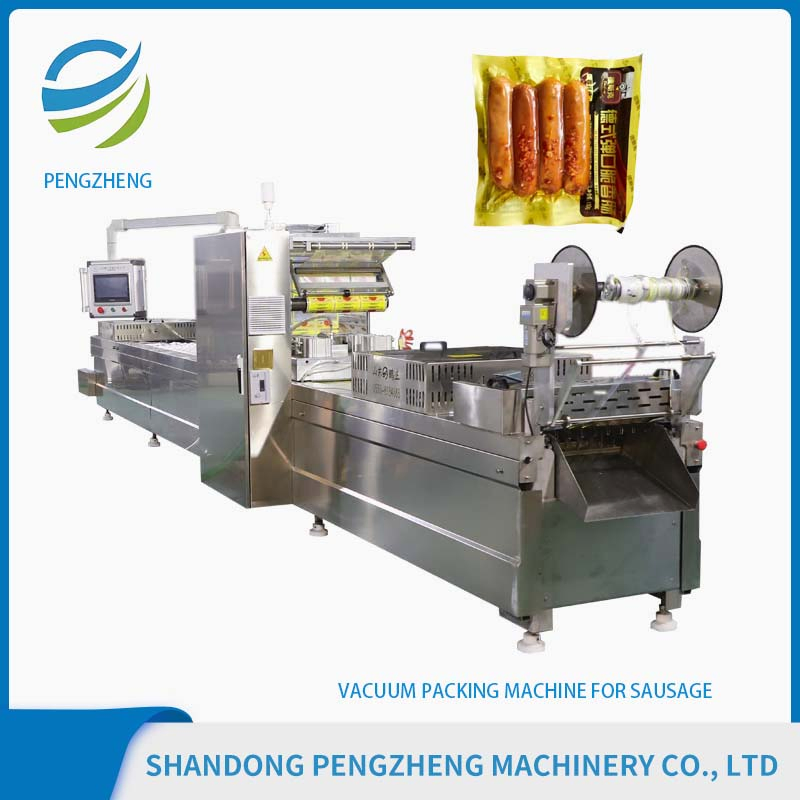

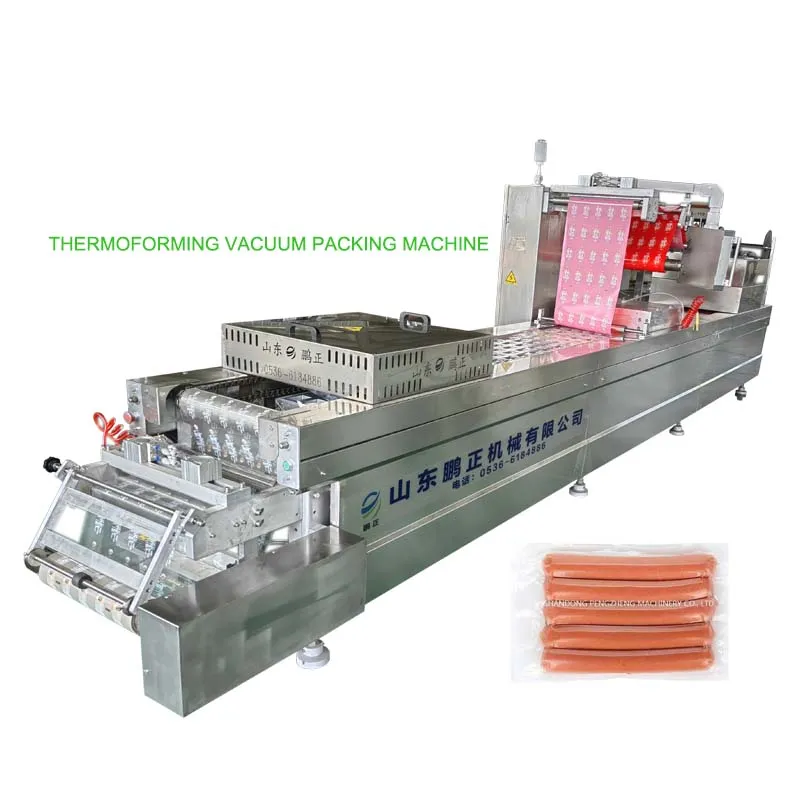

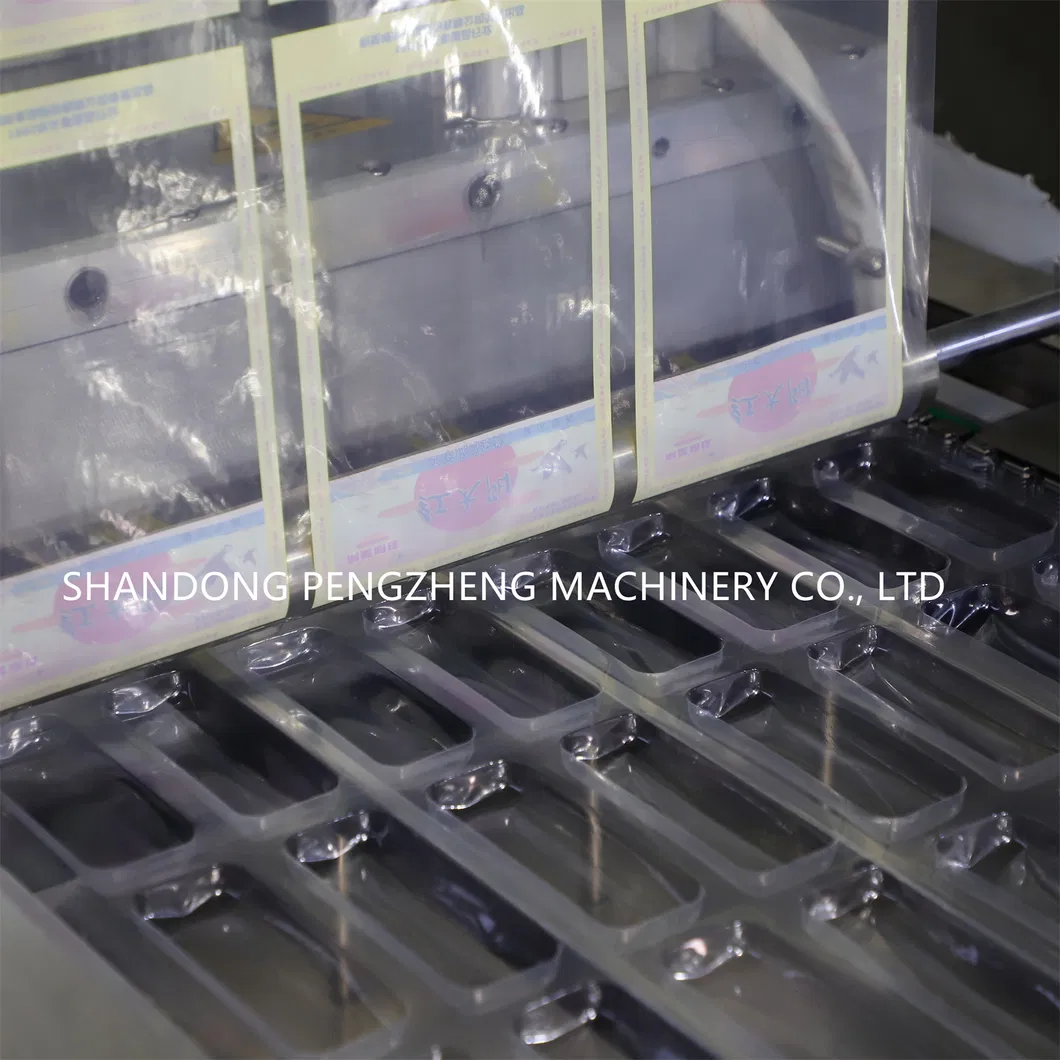

Our Automatic Thermoforming Vacuum Packaging Machine is an innovative solution designed for high-efficiency packaging of food items such as sausages, fish, shrimp, steak, beef jerky, dried bean curd, and poultry. It is also highly effective for industrial components and toys.

Why Choose This Equipment?

Professional Customization Tailored to specific product needs.

High Efficiency Operates at 6-8 cycles per minute.

Advanced Technique Incorporates over 10 design patents.

Operating Safety Multiple sensors and emergency stops.

Detailed Technical Comparison

Details	Traditional Bag	Single Side Stretch	Double Side Stretch
Stretch Film	None	Single Side	Double Side
Forming Depth	None	Max. 120mm	Max. 120mm * 2
Cost Efficiency	High Cost	Low Cost	Middle Cost
Appearance	Standard	Beautiful & Uniform	Premium Presentation

Product Parameters

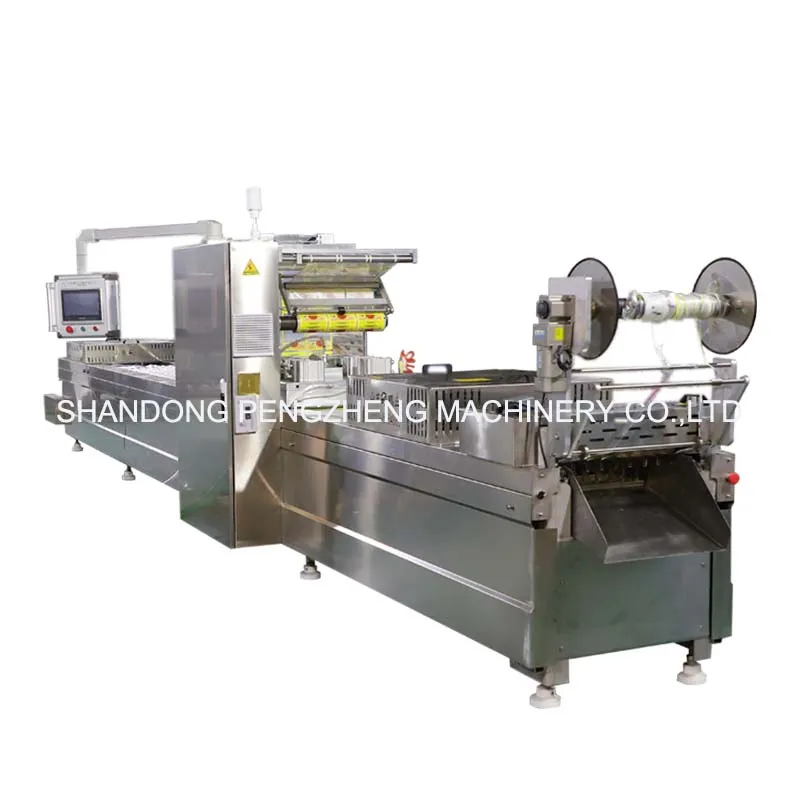

Main Components

Vacuum Pump	RIETSCHLE (Germany)
Electrical Components	Schneider (France)
Servo Motor	Schneider (France)
Main Structure	Stainless Steel 304 (6mm thickness)

Working Parameters

Width of Top Film	425mm	Width of Bottom Film	398mm
Thermoforming Temperature	70-120 °C	Sealing Temperature	125-150 °C
Vacuum Degree	≤200 Pa	Packing Capacity	4600-5000 pieces / h

Key Advantages

Extended Shelf Life: Vacuum sealing extends product life by 2-3 times compared to traditional methods.
Material Saving: Precise film usage results in 40% less material consumption.
Intelligent Control: Fully automated process controlled via PLC touch screen.
Safety First: Features sensors for automatic shutdown when covers are open and "No film no working" protection.
Correction Device: Automatic calibration for both top and bottom film to prevent deviation.

Service & Support

Warranty 12-month full machine warranty and multiple after-sale channels.

Maintenance Lifelong technical maintenance via phone, mail, or online support.

Technical Support 24-hour hotline and online training courses available.

Installation Step-by-step guidance via instructional videos or senior engineer site visits.

Frequently Asked Questions

How long is the delivery time for the machine?

It typically takes 45 working days, including 10 days for technical drawings, 15 days for parts manufacturing, and 20 days for assembly and precision tuning.

What information is needed for a specific offer?

We require the dimensions of your package and your estimated daily production volume. Any special customization requests should be provided upfront.

Is overseas service available for installation?

Yes, we provide overseas service. We usually start with online troubleshooting, but an engineer can visit your facility if required.

What are the main safety features?

The machine includes multiple sensors for auto-stop when covers are open, emergency stop buttons at the front, middle, and back, and a "No film no working" automatic shutdown.

Can the machine handle different package sizes?

Yes, the equipment features a flexible design with replaceable moulds, making it suitable for various product sizes (e.g., eggs from 40g to 100g).

What is the maintenance policy?

We offer lifelong maintenance support and have established spare parts supply centers to ensure long-term reliable operation.
