| Model NO. | HY-54/76 |
| Column number | Four Column |
| Molding Method | Pressing |
| Automatic Grade | Automatic |
| Raw Material | BOPS, PVC, Pet, HIPS, PS |
| Processing Type | Plastic Thermoforming Machine |
| Plastic Type | Plastic Packing |
| Application | Container/Box/Lid/Tray |
| Max. Forming Area | 540*760 mm |
| Max. Forming Depth | 120mm |
| Thickness of Sheet | 0.15-1.0mm |
| Power | AC380V, 50/60Hz |
| Machine Dimension | 5000*1750*2500 mm |
| Weight | 4800kg |

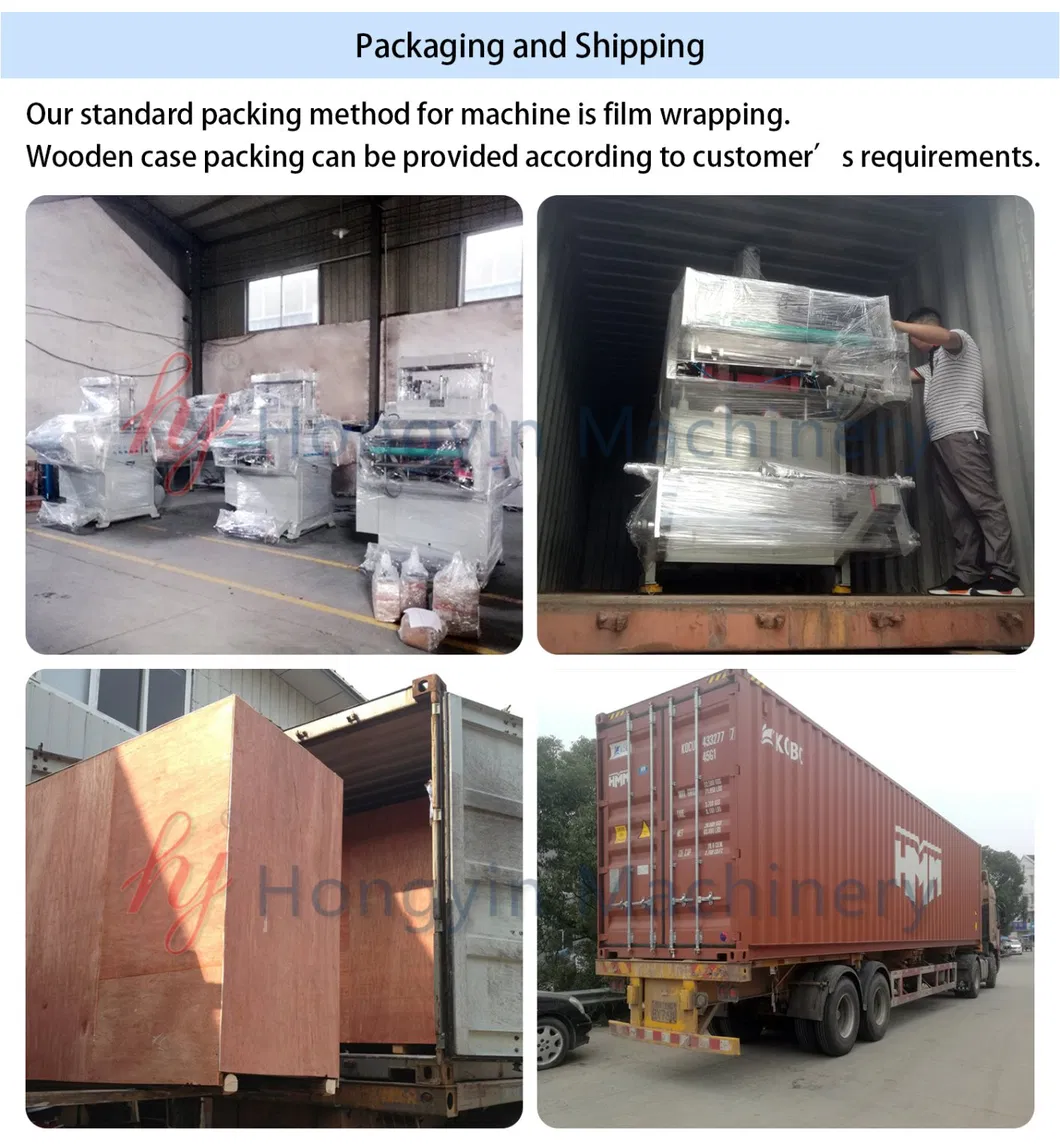

| Transport Package | Wooden Case |
| Origin | China |
| HS Code | 847780000 |
| Production Capacity | 20sets/Year |

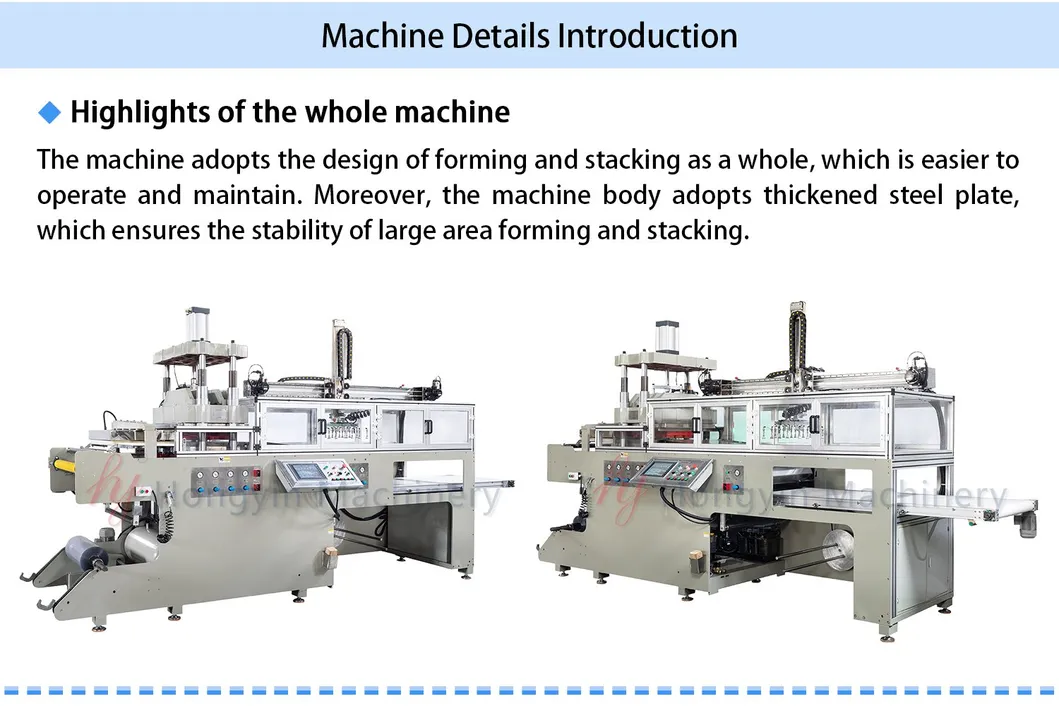

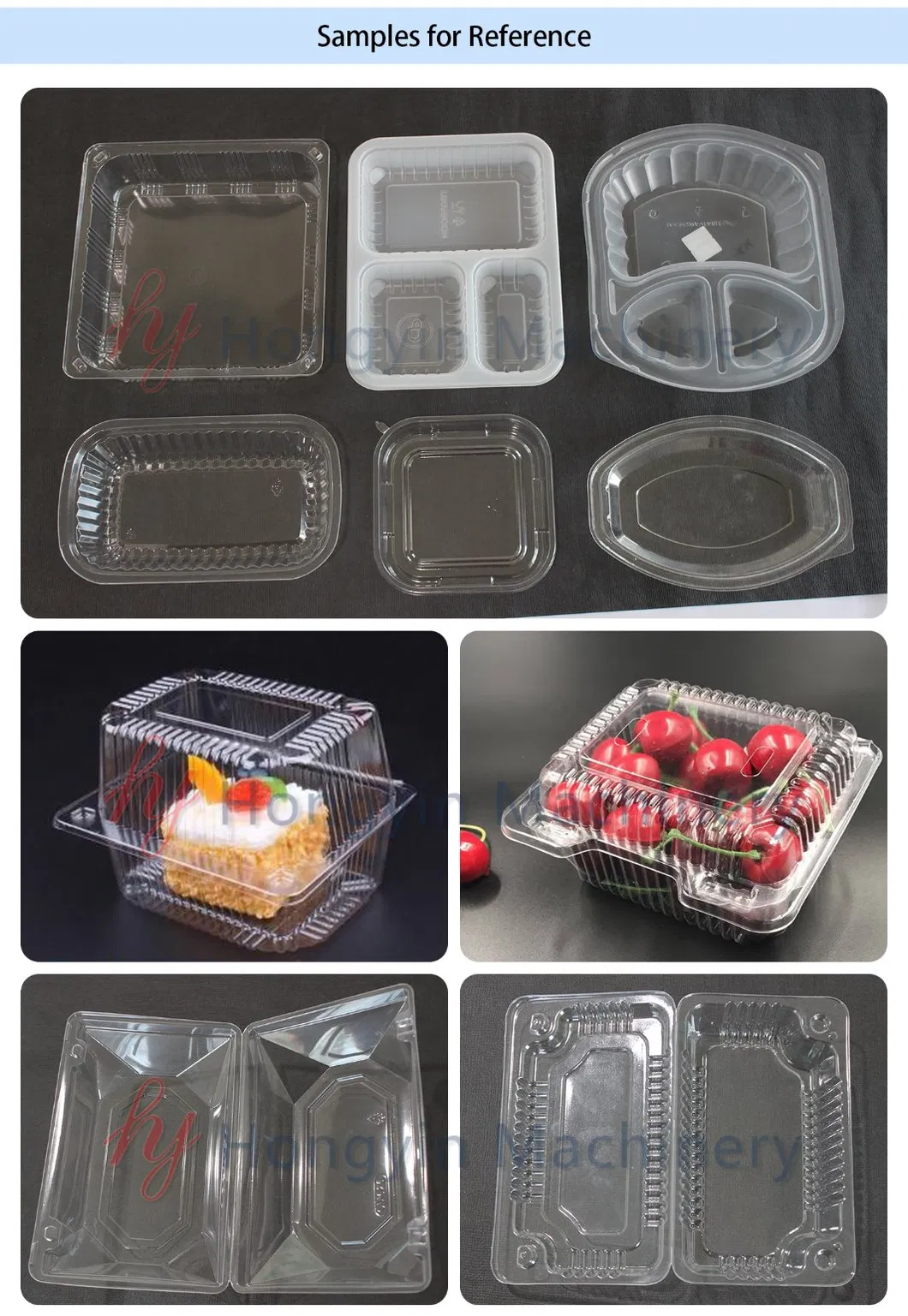

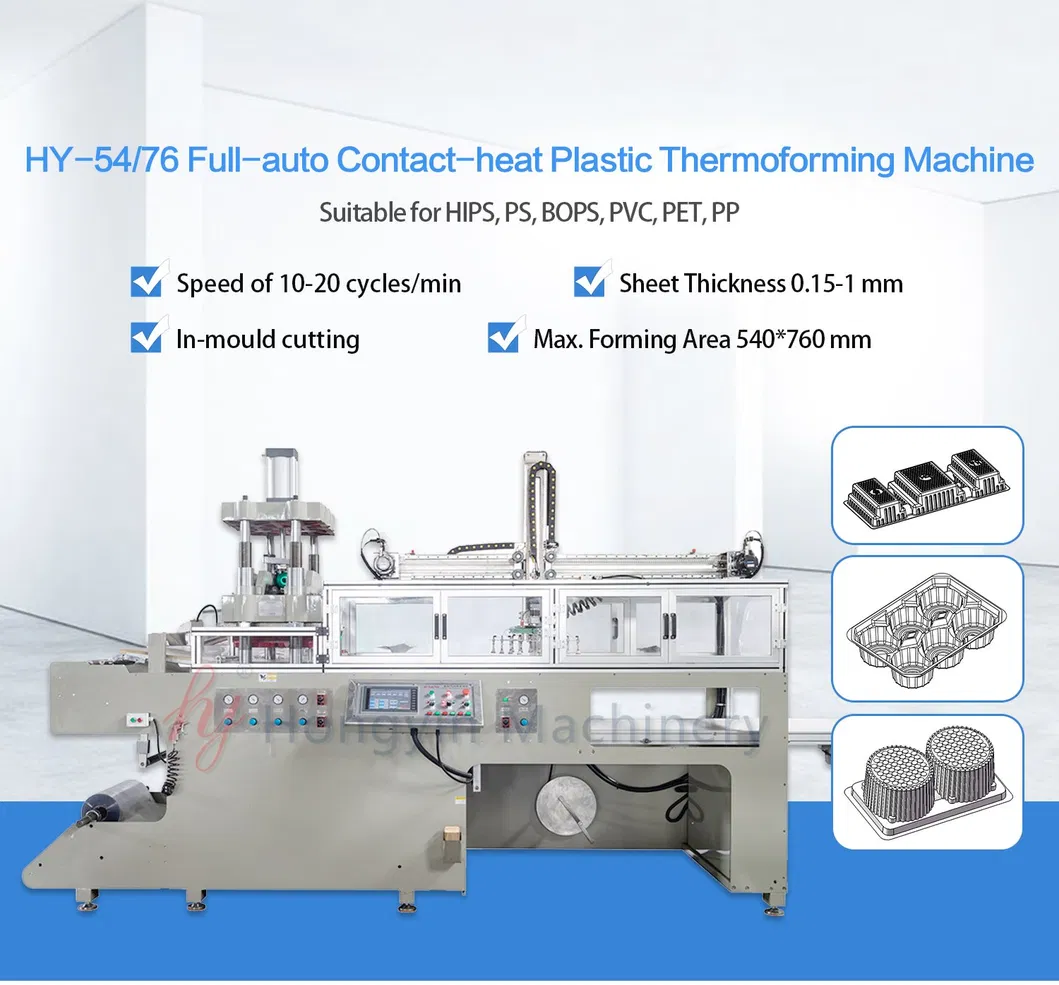

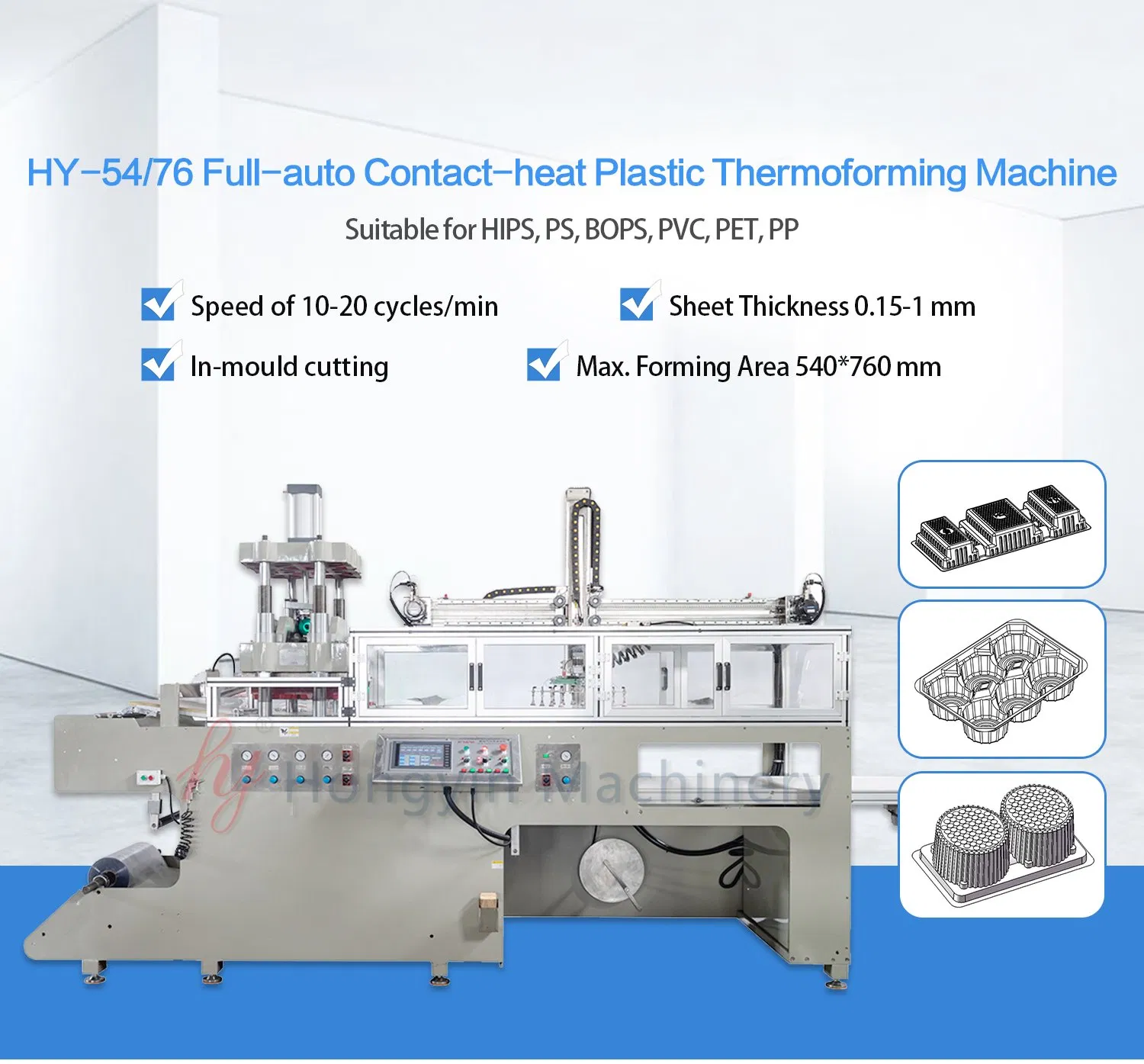

The HY-54/76 automatic forming machine is engineered to process PP, BOPS, HIPS, PS, PVC, and PET plastic sheets. It is ideal for high-volume production of various boxes, dishes, trays, bowls, and lids, including food containers, cake boxes, fast-food packaging, supermarket trays, and medical oral liquid trays.
This plastic thermoforming machine integrates mechanical, electrical, and pneumatic components into a unified system controlled by a micro PLC with a user-friendly man-machine interface.

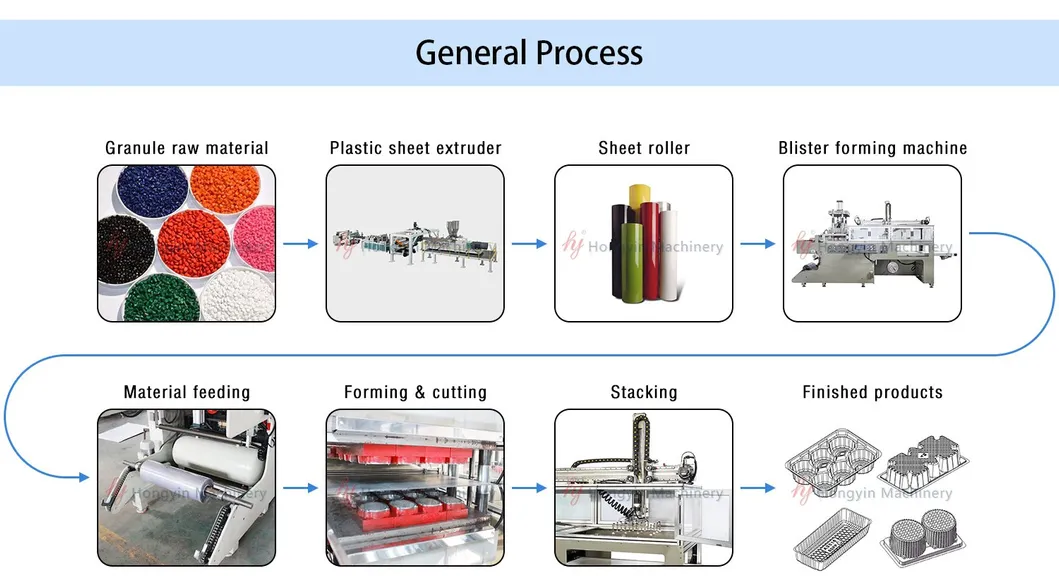

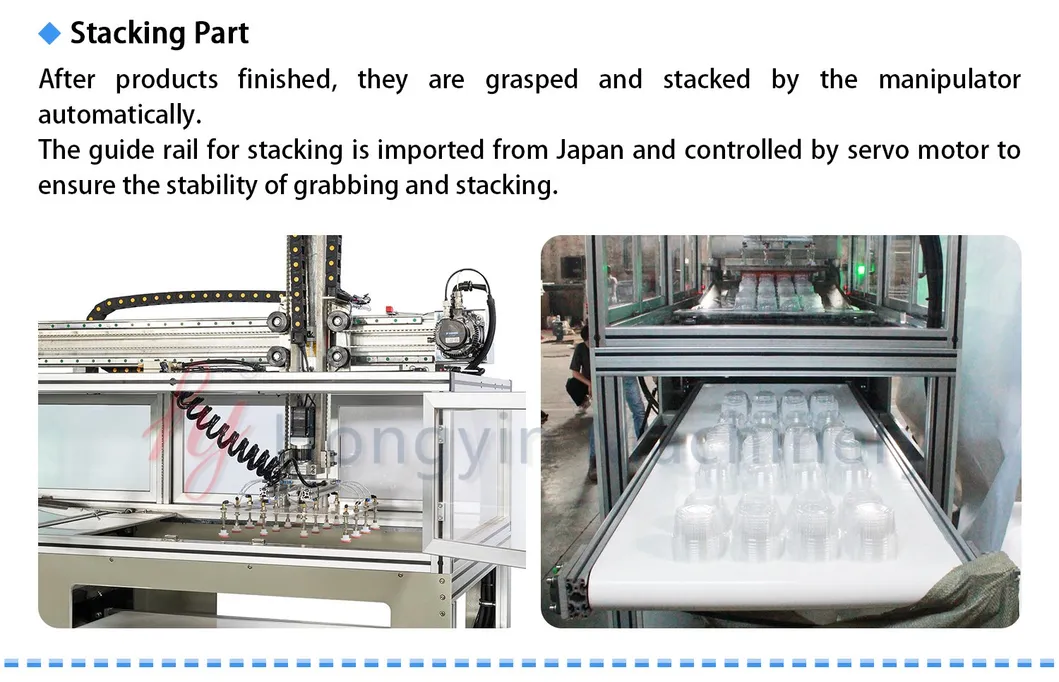

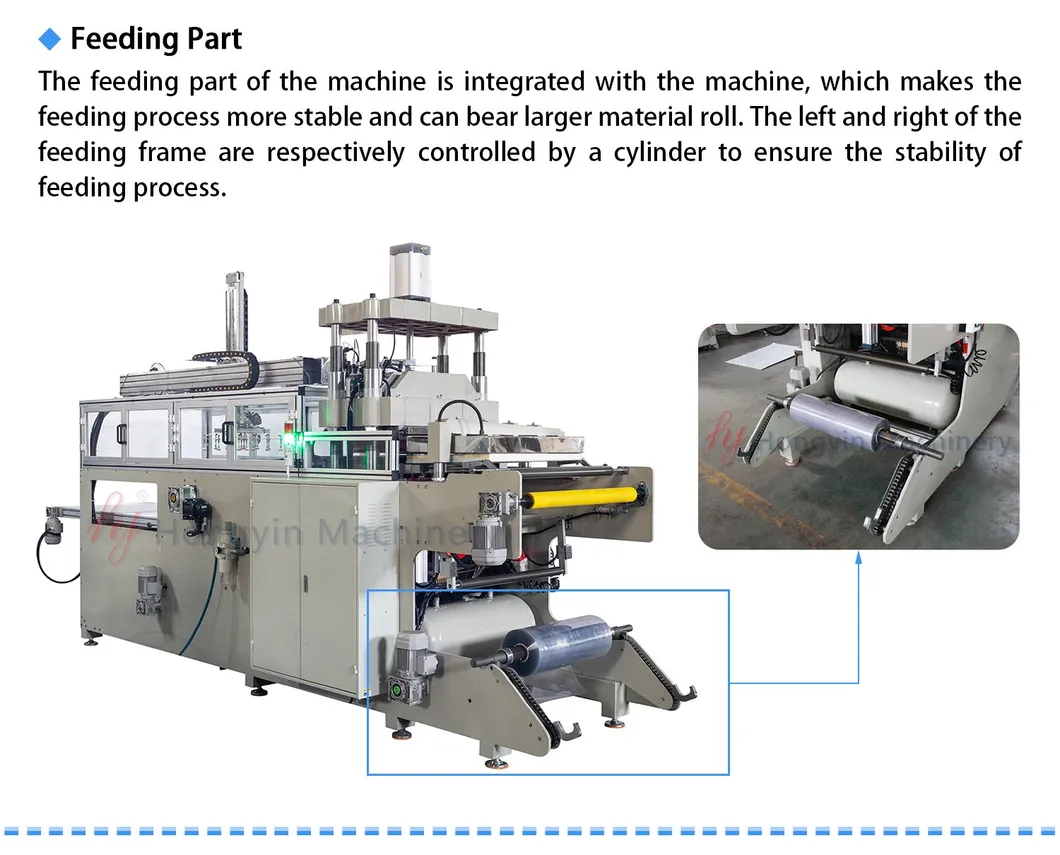

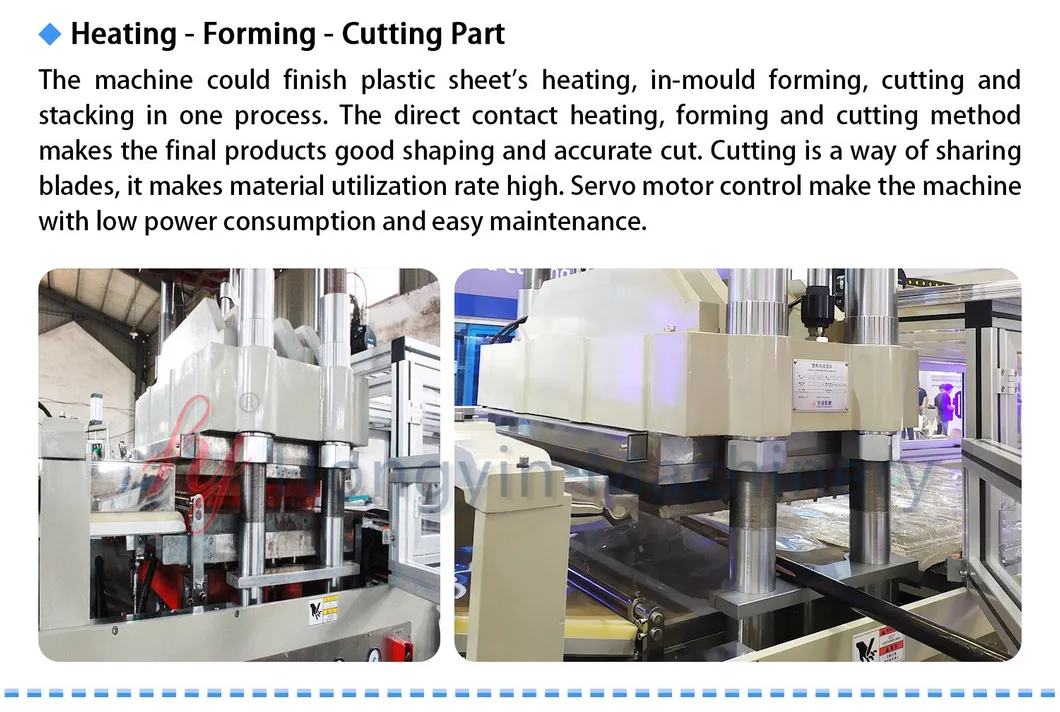

The fully integrated process includes: Material Sending → Heating → Forming → Cutting → Stacking → Counting.
Features three operation models: Manual, Semi-automatic, and Automatic, representing a new generation of package equipment with memory reserve functions.
| Forming Area | 540*760 mm |
| Forming Depth | 120 mm |
| Sheet Thickness Range | 0.15-1.0 mm |

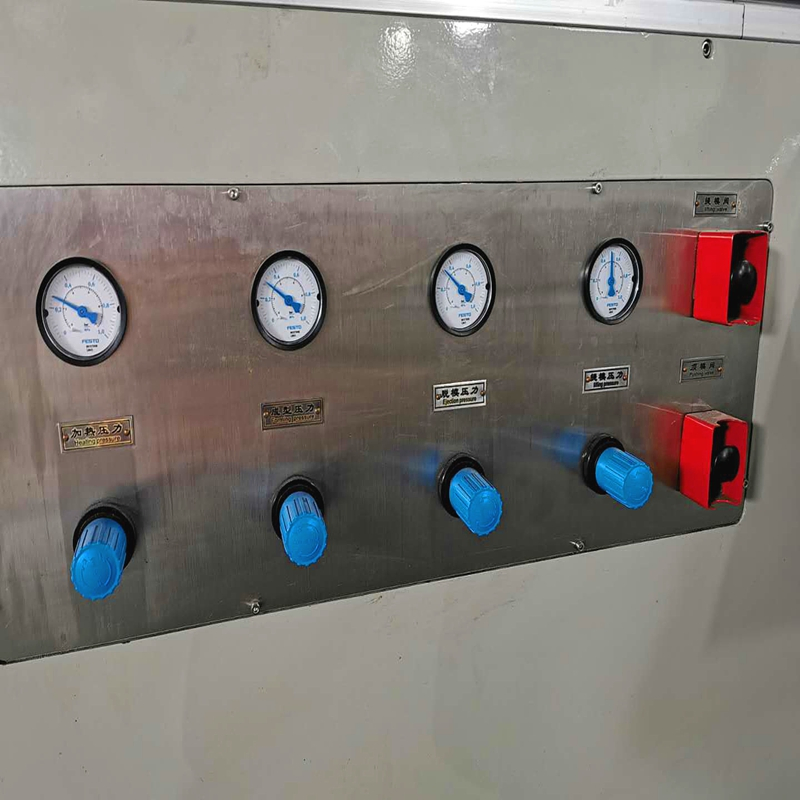

| Air Pressure | 0.7 Mpa |
| Water Consumption | 15 Liters/min (15-20ºC) |
| Air Consumption | 2400 Liters/min |
| Production Speed | 600-1200 recycles/hr |
| Voltage | Three-phase, AC380V±15V, 50HZ |

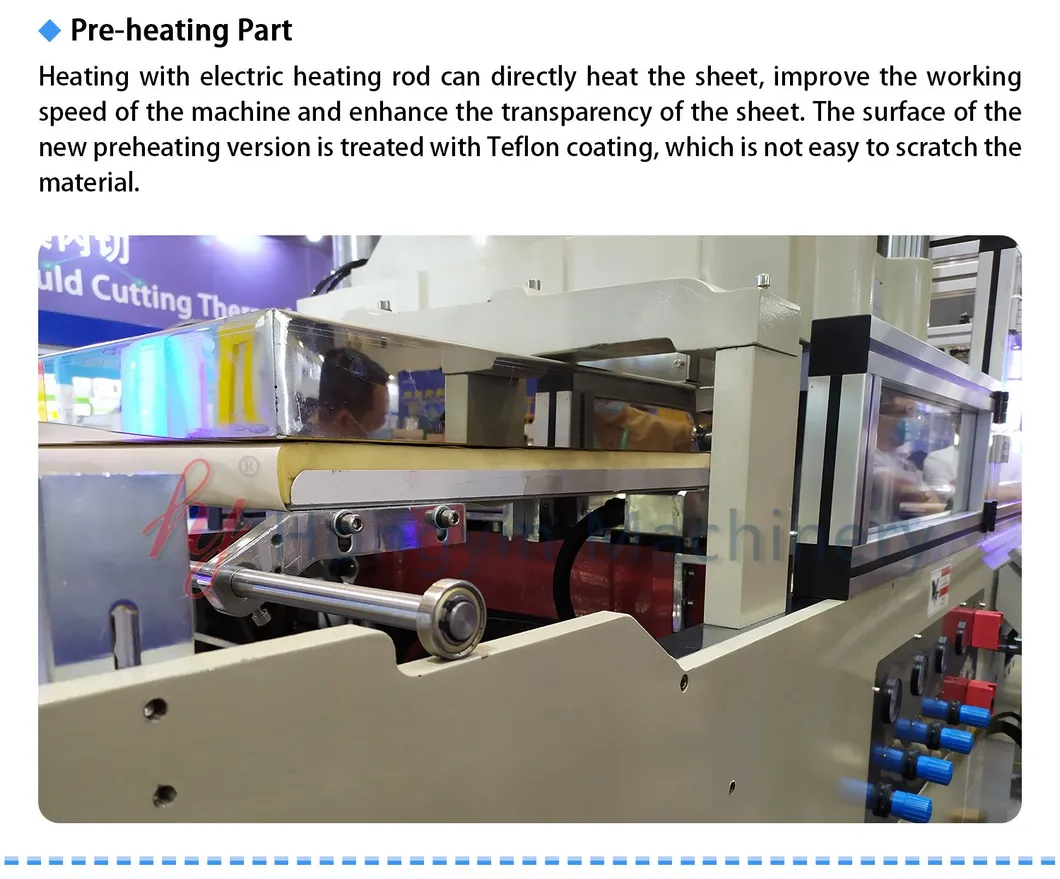

| Preheating Power | 4 kw |
| Heating Plate Power | 18 kw |
Our specialized team provides expert suggestions for your entire workflow, especially for clients new to the plastic forming industry.
An independent department manages all shipments, preparing necessary documentation and coordinating with major shipping lines for the most efficient routes.
Technicians can be dispatched to the buyer's factory for professional machine setup and preparation.
We provide hands-on training for operators at our facility to ensure they can operate the machine independently and efficiently.
All machines come with a one-year guarantee. A toolbox containing essential, easy-to-replace spare parts is included with every delivery.
