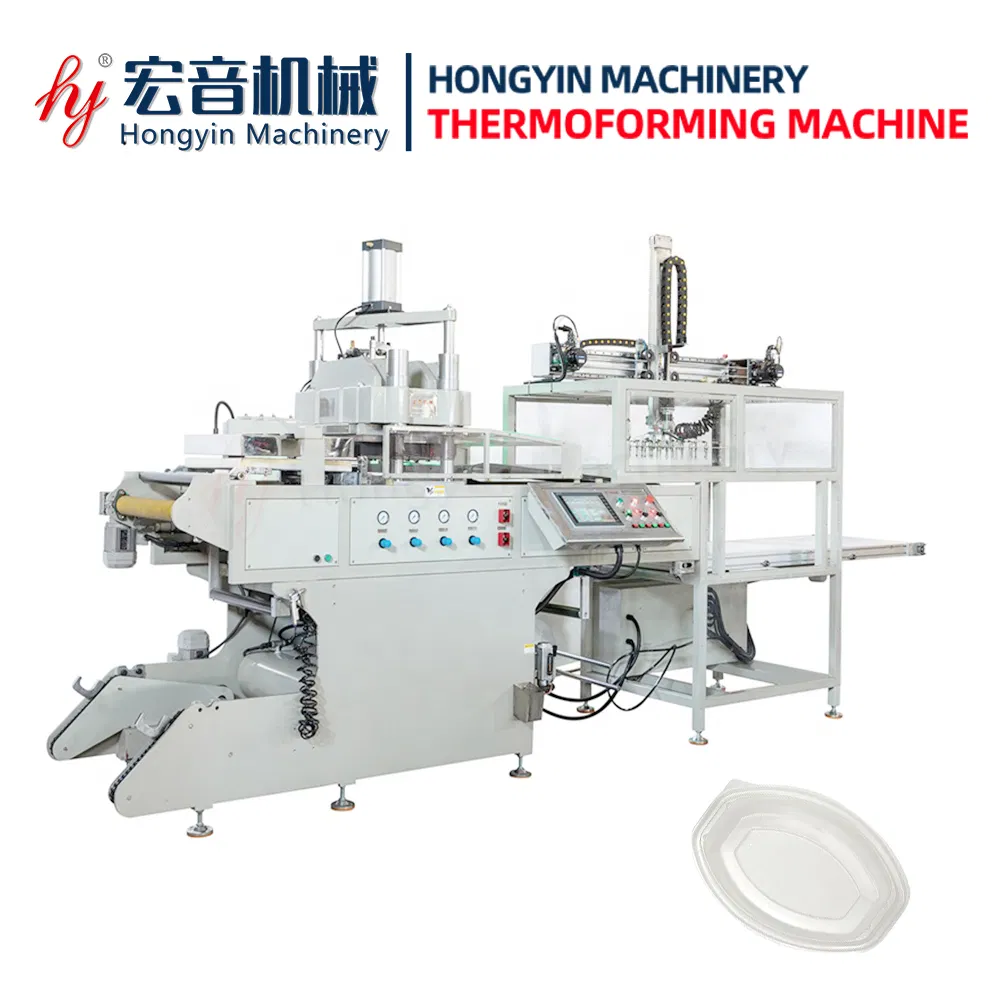

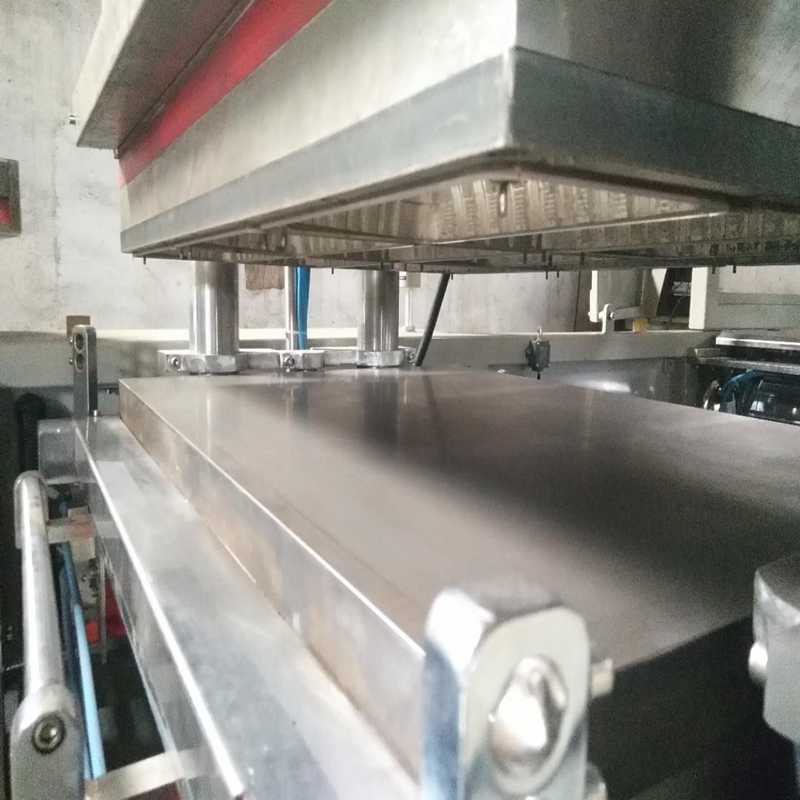

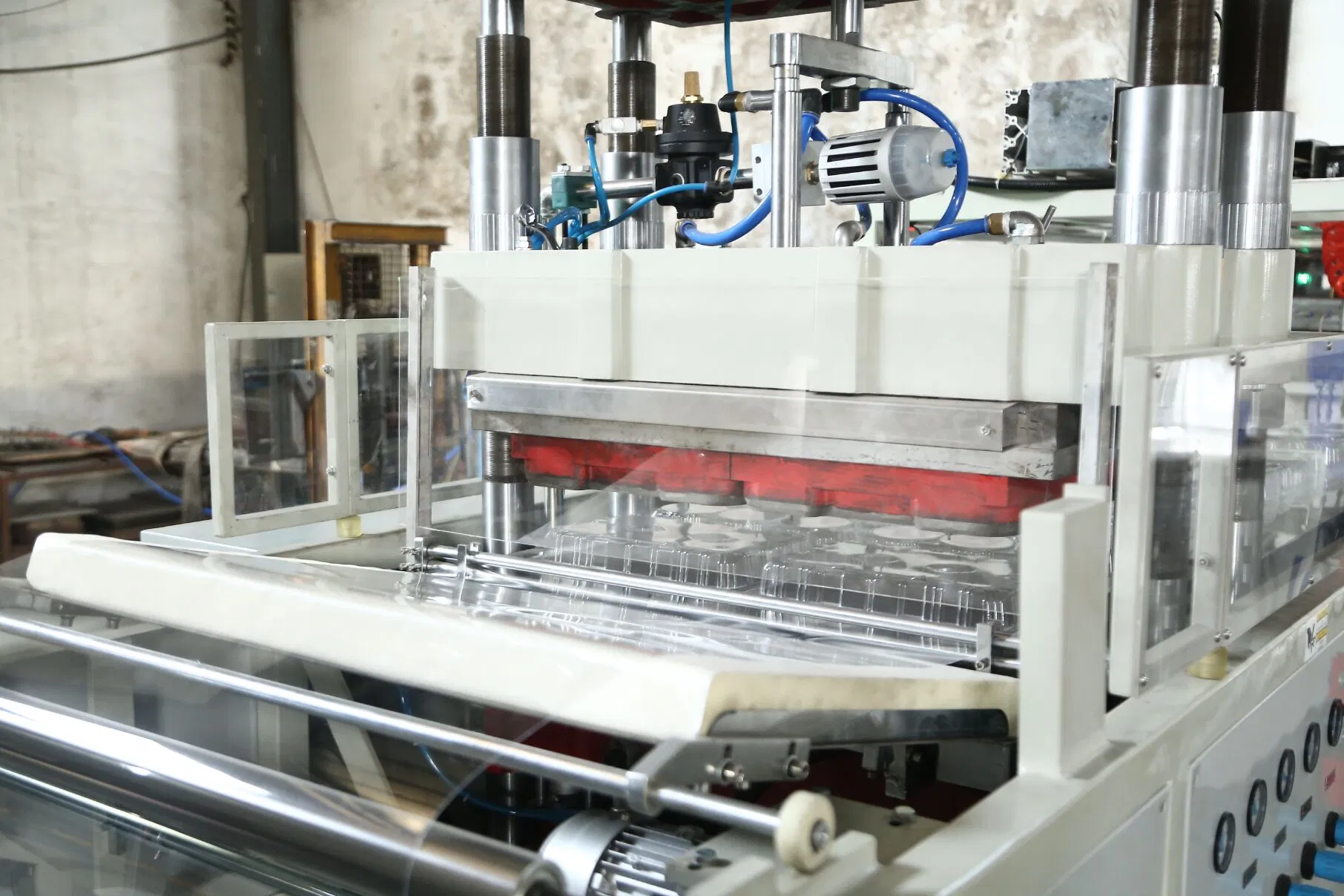

The HY-51/62 plastic thermoforming machine is a sophisticated combination of mechanical, electrical, and pneumatic components. The entire system is controlled by a micro PLC and features a user-friendly man-machine interface.

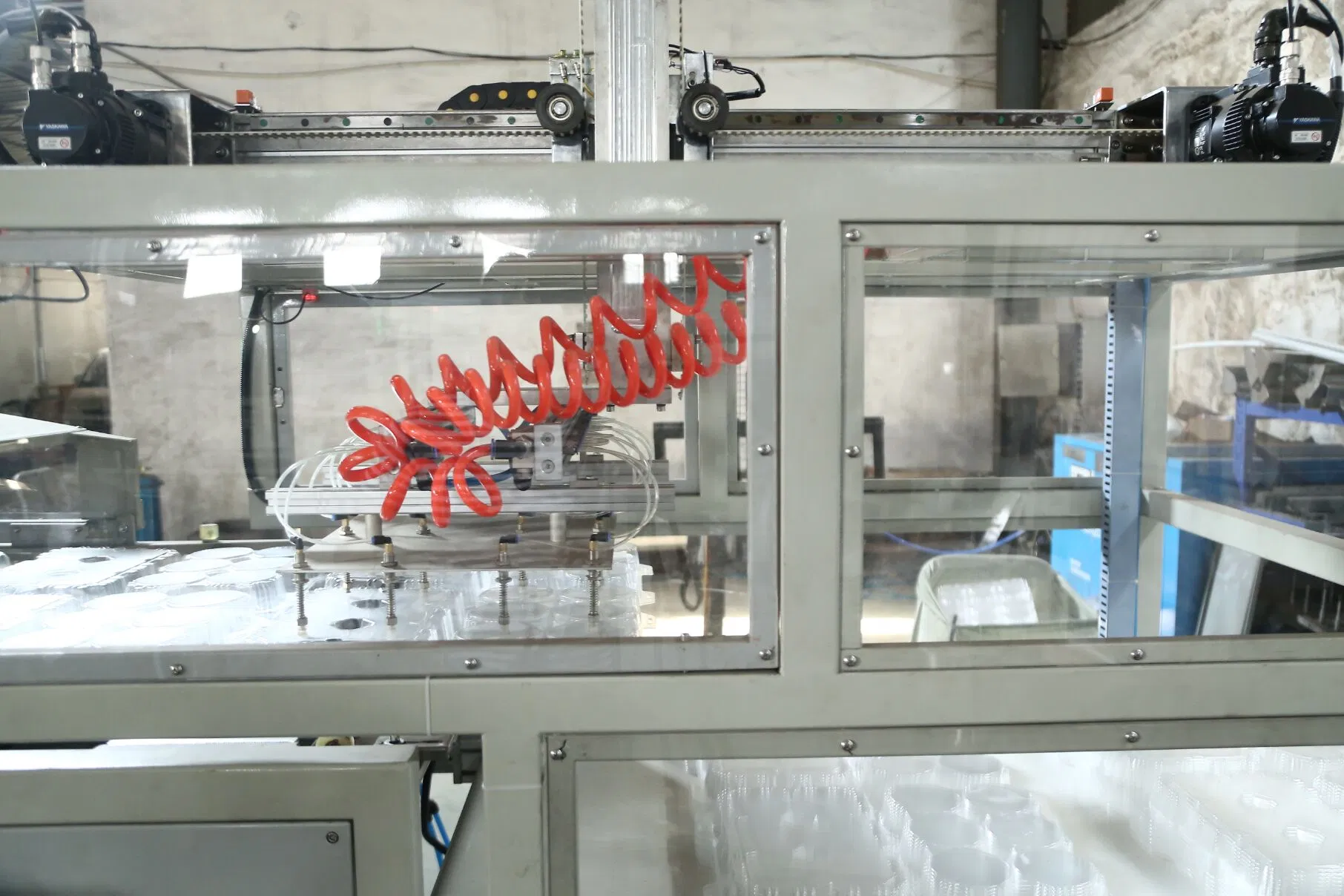

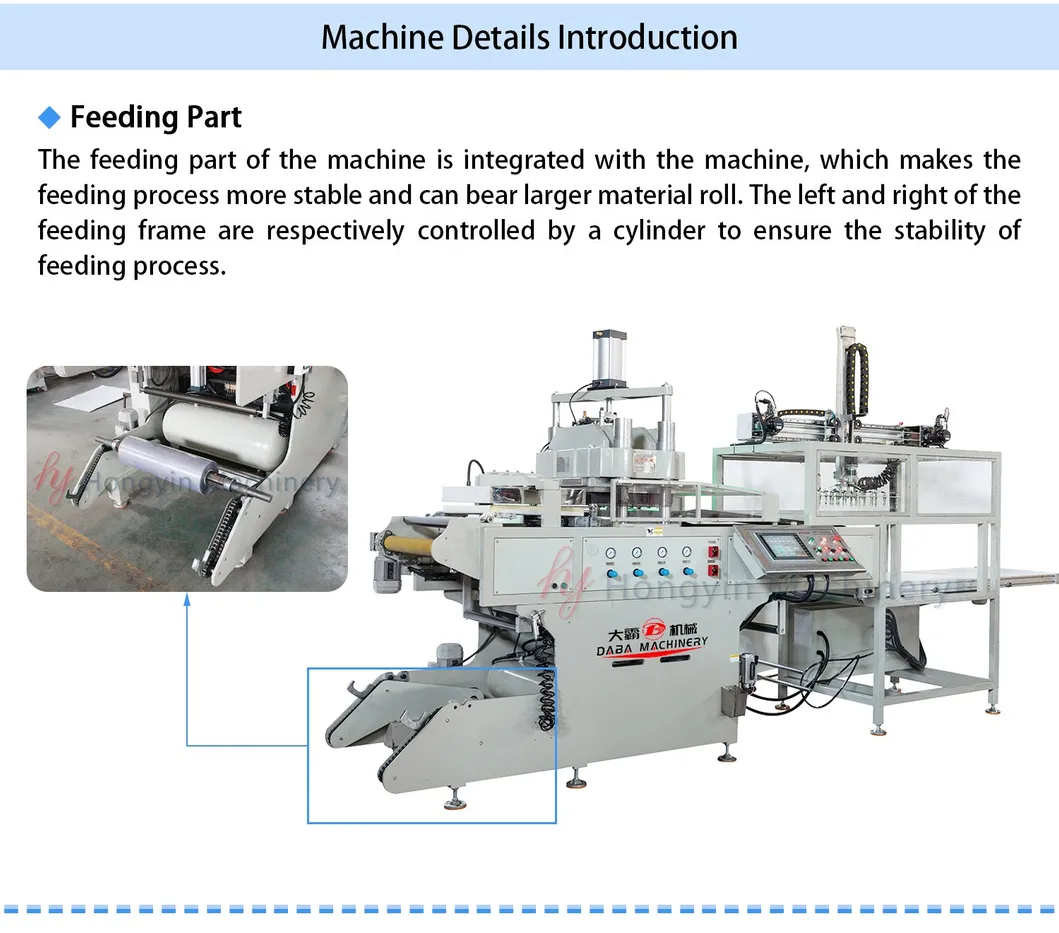

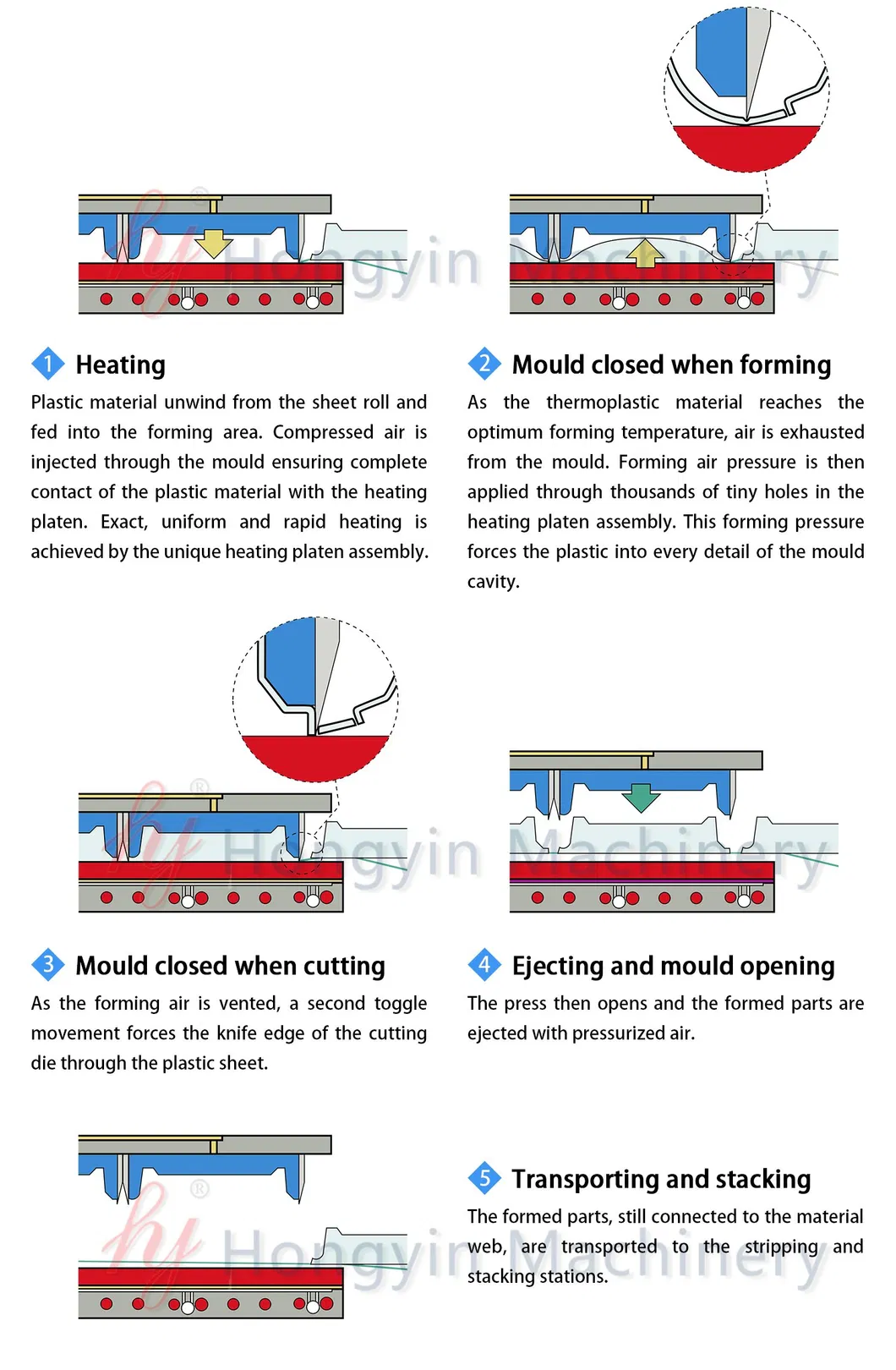

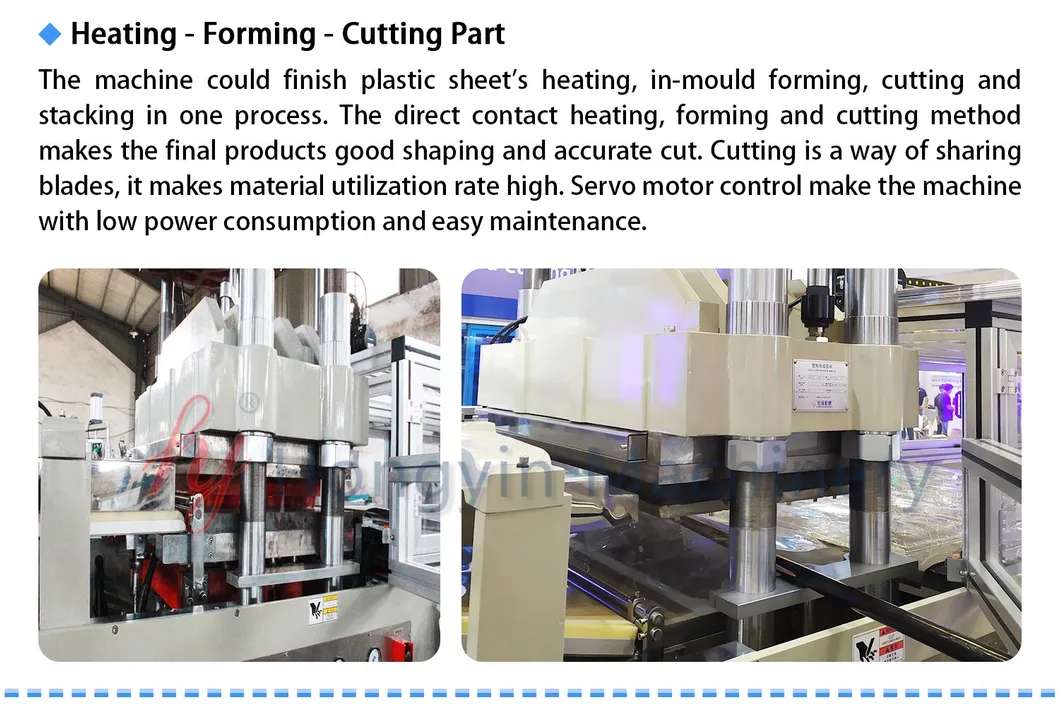

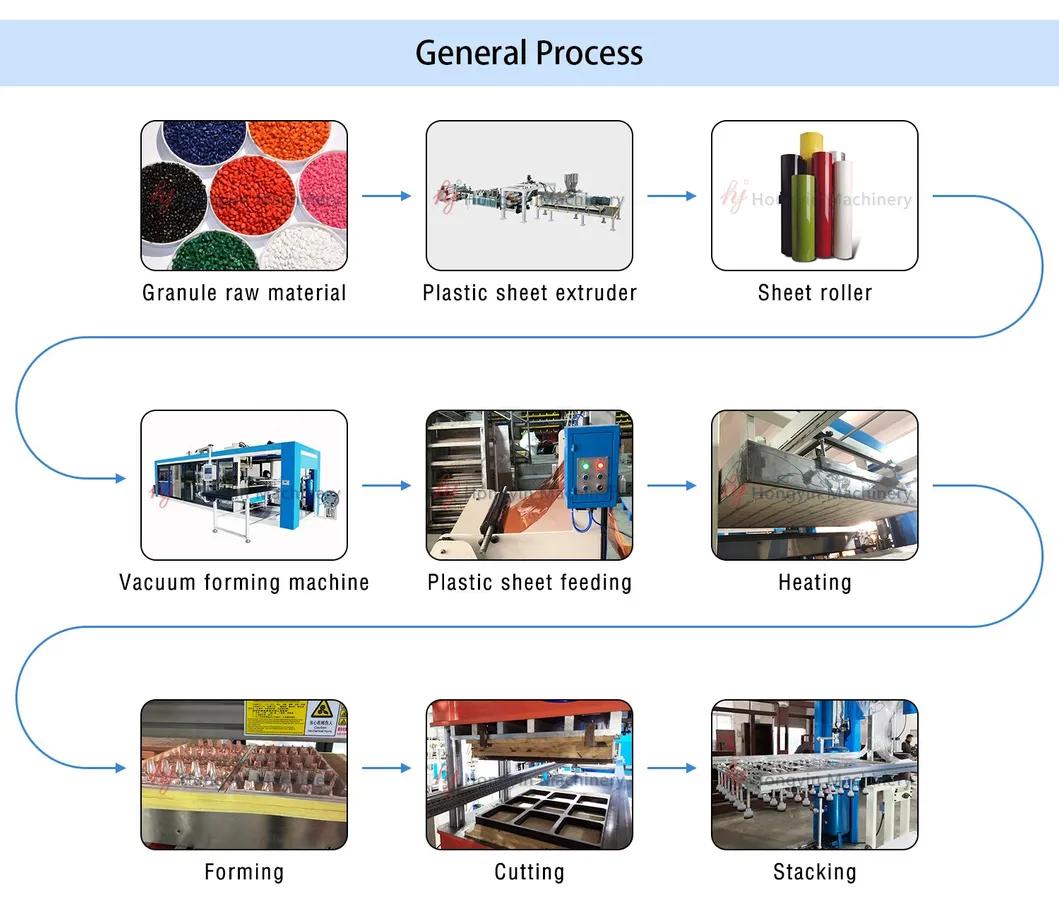

Integrated Process: It combines material sending, heating, forming, cutting, and stacking counting into a single seamless process. The machine offers three operation modes: manual, semi-automatic, and automatic, making it an ideal choice for modern packaging equipment requirements.
| Thermoforming Machine Parameters | |
|---|---|
| Forming area: 510×620mm | Forming depth: 100mm |
| Sheet thickness range: 0.1-1mm | Sheet roller diameter: 710mm |
| Cutting length: 6350mm | Air pressure: 0.7Mpa |
| Water consumption: 15-20ºC | Air consumption: 1200 Liters/min |
| Speed: 600-1500 cycles/hour | Power: 3-N AC380V ±10% |

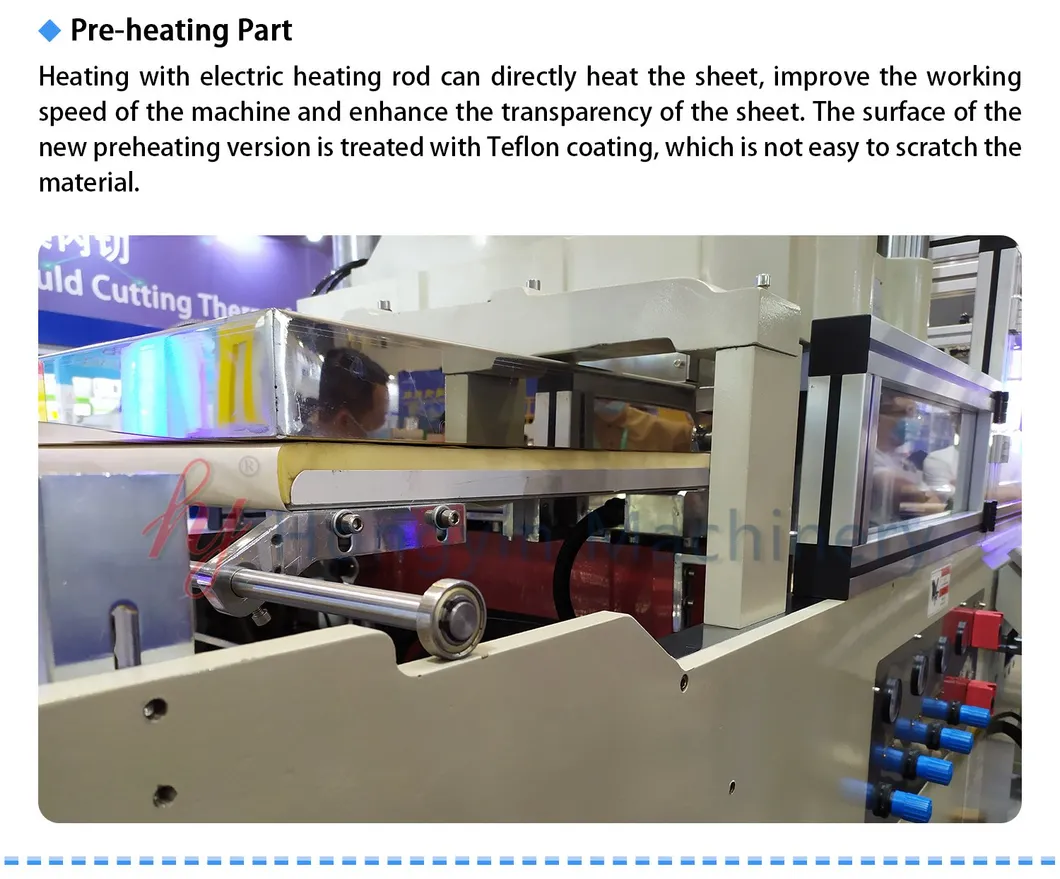

| Preheater power: 2kw | Mould plate heating power: 4.8kw |
| Heating plate power: 18kw | Sheet width: 650mm |

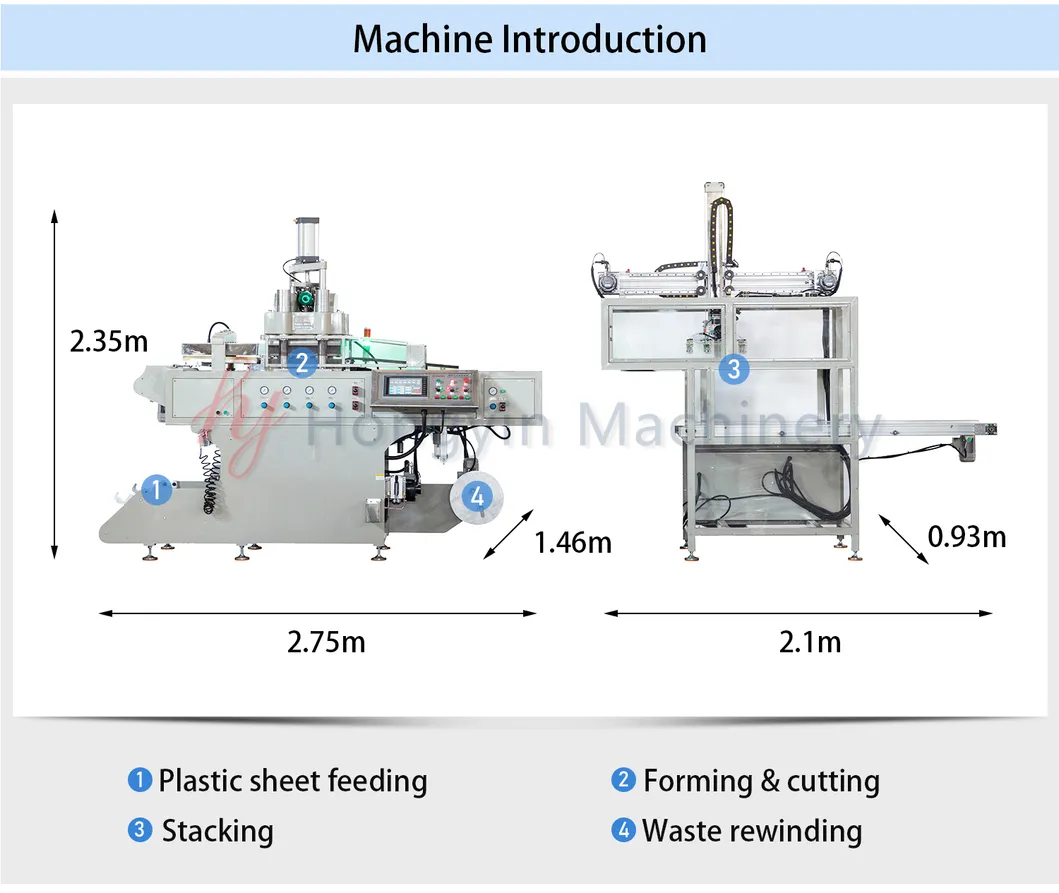

| Weight: 2500kg | Dimension: 2750×1410×2350 mm |

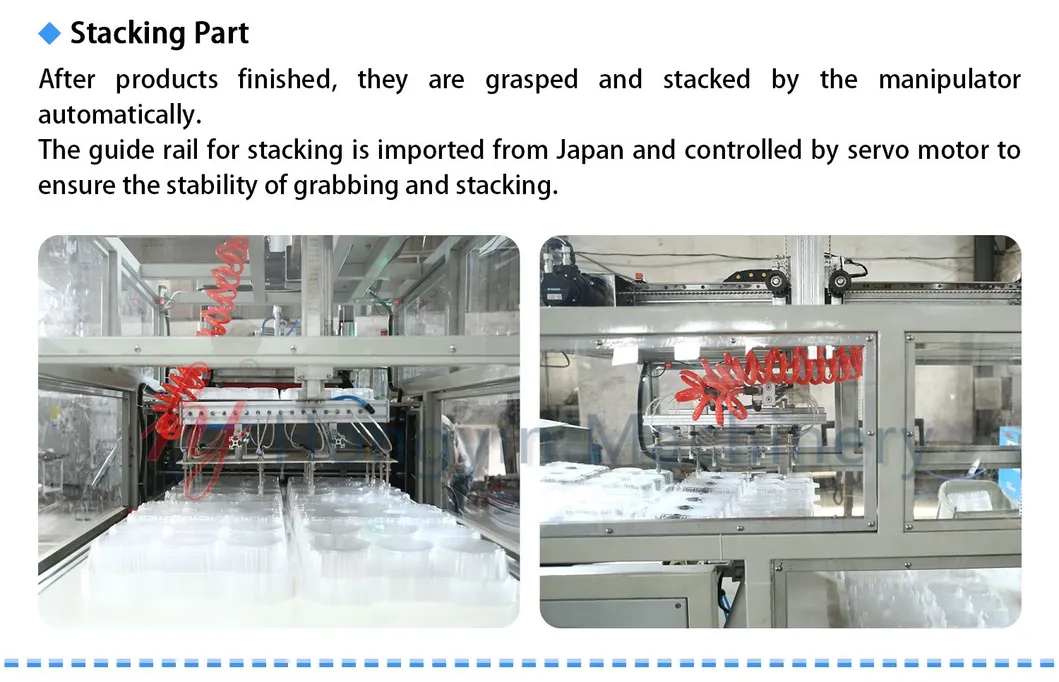

| Stacker Unit Parameters | |
|---|---|
| Stacking area: 510×620mm | Suitable depth: 100mm |
| Air consumption: 200 Liters/min | Power: 1.8kw |
| Weight: 300kg | Dimensions: 2530×2500×2100 mm |
Consultation & Purchase Service: Our efficient technical team provides specialized suggestions for your entire workflow. If you are new to the industry, sharing samples of your products allows us to provide professional equipment matching advice.
Installation Service: We provide technical coordination for installation, commissioning, and training. Technicians can be assigned to ensure your team is fully capable of operating the machinery effectively.
Warranty Service: A 12-month limited warranty is provided, starting from the date of arrival at the buyer's location (excluding wear parts). We ensure support for part replacements to maintain production continuity.
