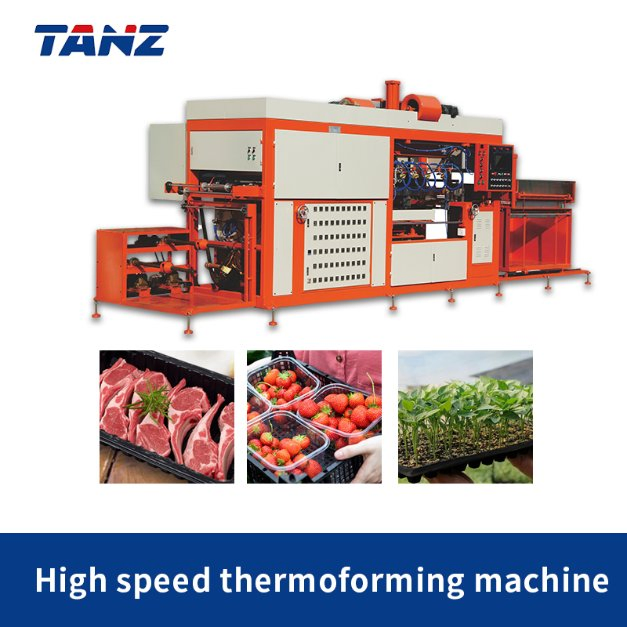

Tz-1220f Semi-Automatic Vacuum Forming Machine Plastic Plate Box Thermoforming Machine

1 / 5

Tz-1220f Semi-Automatic Vacuum Forming Machine Plastic Plate Box Thermoforming Machine

Customization:	Available
After-sales Service:	Lifetime Maintenance (Except Man-Made Damage and N
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Product Information

Model NO.

TZ-1220F

Certification

CE, ISO

Molding Method

Negative Pressure Forming

Automatic Grade

Automatic

Max. Forming Size

760*1220mm

Max. Forming Depth

160mm

Forming Thickness

0.16-2.0mm

Suitable Materials

PP, PS, HIPS, Pet, PVC, PLA

Rated Power

55kw

HS Code

8422400000

💡 Product Description

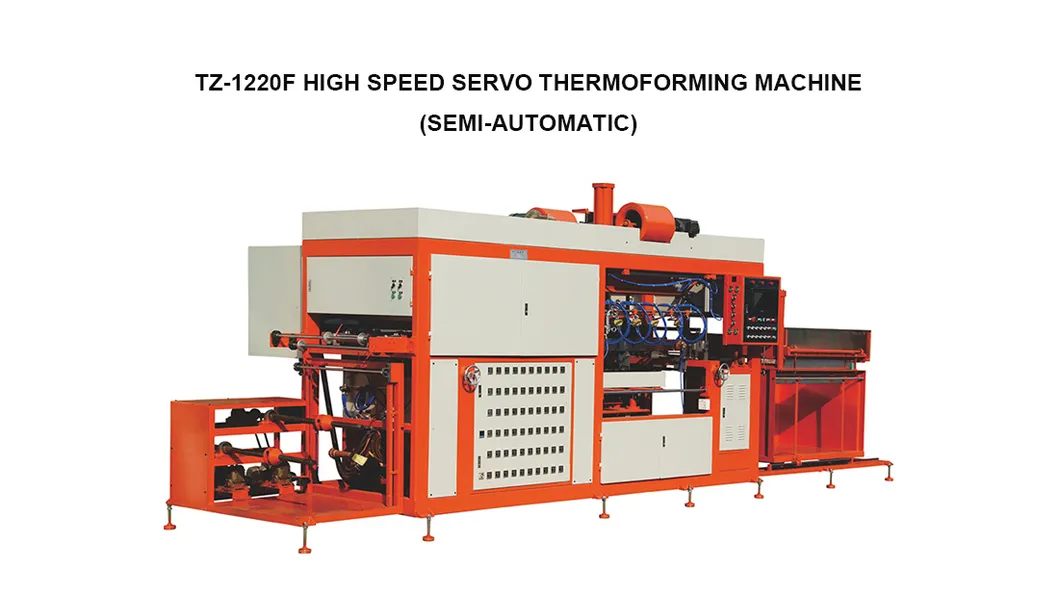

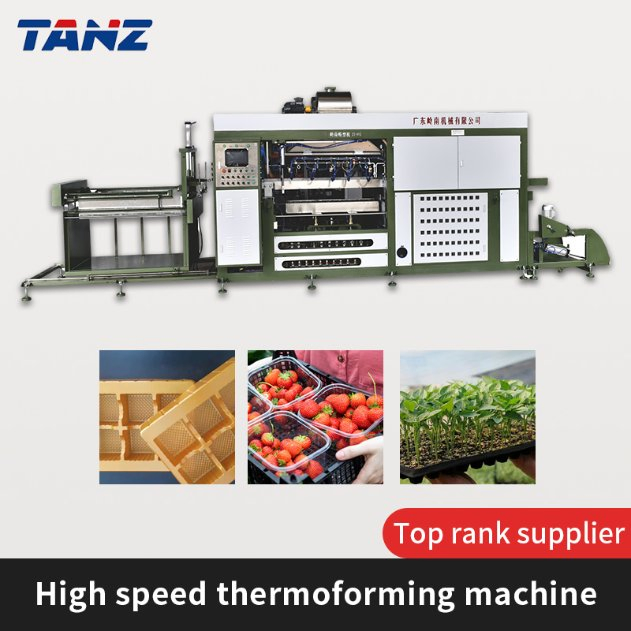

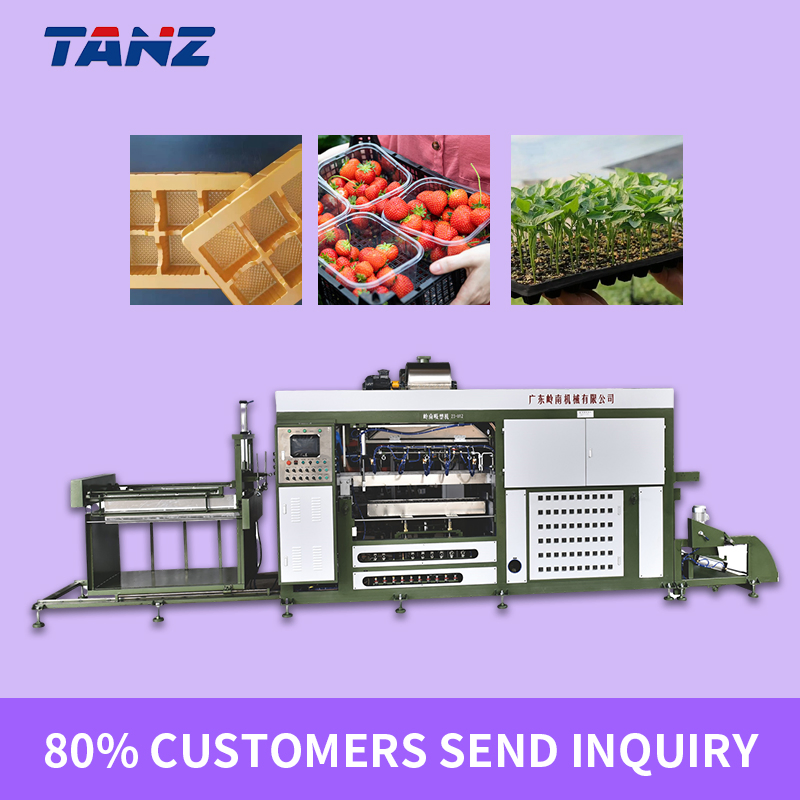

TZ-1220F Semi-automatic Vacuum Forming Machine Plastic Plate Box Thermoforming Machine

✔

Servo Drive and PLC Control: Features fully digitally controlled PLC with memory and calibration functions (±1mm precision) and film output capability to minimize waste.

✔

Vacuum Displacement Design: Utilizes a dual-valve and complementary valve design to ensure efficient forming of various materials and rapid shaping.

✔

Electric Furnace Design: Closed-loop horizontal reciprocating design with independent constant pressure temperature control, achieving over 40% energy savings.

✔

Cooling and Spray Functionality: Includes rapid cold water spray systems, improving production speed by over 40% compared to traditional machines.

⚙ Technical Parameters

High Speed Thermoforming Machine Specifications
Model	TZ-1220F
Forming Method	Negative pressure forming
Mould Size (Max.)	760*1220mm
Forming Depth (Max.)	180mm
Sheet thickness	0.16-2.0mm
Forming Speed (Max.)	6-15 times/min
Air pressure	0.6-0.8mpa
Suitable Sheet	PP, PS, HIPS, PET, PVC, PLA
Heating Area	39KW
Machine Weight	4.8T
Dimension	10.5 x 2.15 x 2.8m

Main Electrical Components
PLC	Siemens
Servo System	Inovance
Heater	ELSTEIN (Germany)
Temperature Control	Yamatake (Japan)
Solenoid Valve	CKD (Japan)
Solid State Relay	OMRON (Japan)
Circuit Breaker	SCHNEIDER (France)

📦 Scope of Application

Suitable for thermoforming thermoplastic materials (0.15 to 3.0mm), including PS, HIPS, PVC, PET, PP, PE, PS, KPS, GPET, and ABS. It is widely used in packaging for:

• Toys & Hardware

• Cosmetics & Electronics

• Food (Fruit trays, snack boxes)

• Pharmaceutical Packaging

📊 Relative Machines

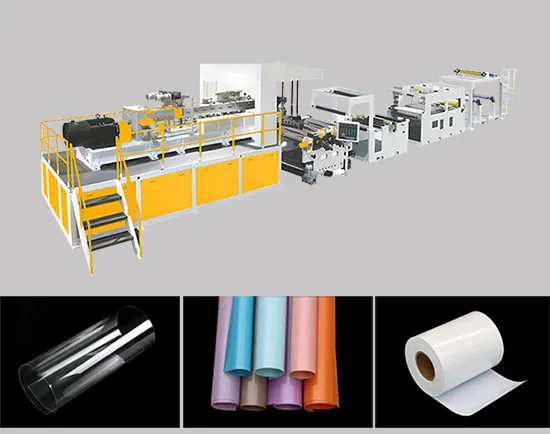

Plastic Sheet Extrusion Machines

Solutions for PET, PP, PE, PS, ABS, PC, PMMA, PLA extrusion lines, widely used in thermoforming industries.

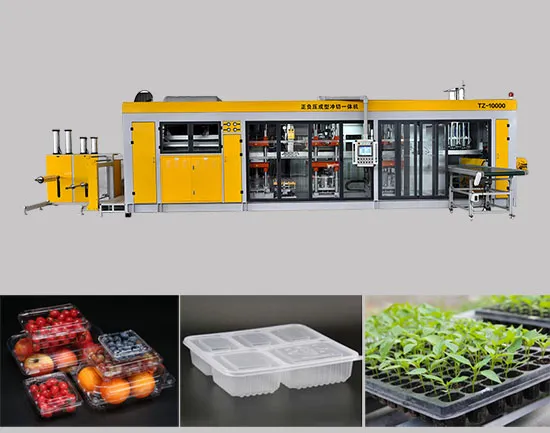

Plastic Sheet Thermoforming Machines

Professional production solutions for food containers, fruit egg trays, seedling trays, and electronic trays.

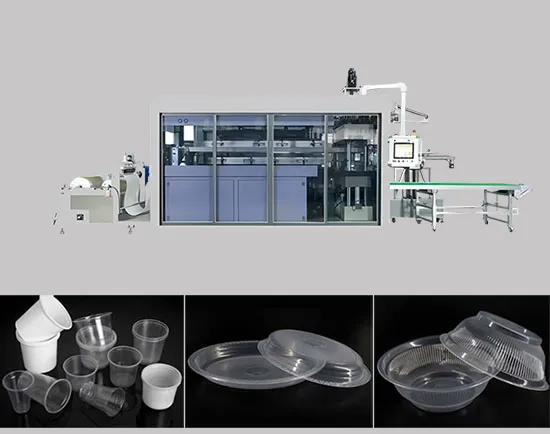

Plastic Cup Making Machine

Used for plastic milk tea cups, coffee cups, disposable water cups, fast food boxes, and lids.

🎖 Certifications

Frequently Asked Questions

Which plastic materials are compatible with the TZ-1220F?

The machine is compatible with a wide range of thermoplastic materials, including PP, PS, HIPS, PET, PVC, and eco-friendly PLA, with thicknesses ranging from 0.16mm to 2.0mm.

What is the maximum production speed of this thermoforming machine?

The TZ-1220F can reach a maximum forming speed of 6-15 times per minute, thanks to its high-efficiency vacuum system and rapid cooling spray functionality.

How much energy can be saved with the electric furnace design?

The independent constant pressure temperature control and closed-loop horizontal reciprocating design allow for over 40% energy savings compared to traditional forming machines.

Does the machine support precision adjustments for different mold shapes?

Yes, the fully digitally controlled PLC features memory and calibration functions with a precision of ±1mm, allowing for stable shaping of complex and irregular product geometries.

What are the primary applications for the products made by this machine?

Products are widely used in food packaging (fruit trays, egg trays, boxes), electronic trays, cosmetic containers, pharmaceutical packaging, and toy displays.

What key electrical components are used in the TZ-1220F?

The machine utilizes high-quality international components, including Siemens PLC, Inovance servo motors, OMRON relays, and Schneider circuit breakers to ensure long-term stability.
