| NO. | Technical Specification | Technical Parameters |
|---|---|---|
| 1 | Maximum molding area | 600mm×710mm |
| 2 | Minimum molding area | 340mm×410mm |
| 3 | Widest sheet | 780mm |
| 4 | Narrowest sheet | 340mm |
| 5 | Molding thickness | 0.2-2.0mm |
| 6 | Height of molding upper table | 120mm |
| 7 | Height of molding lower table | 120mm |
| 13 | Maximum cutting force | 80T |
| 14 | Cutting method | Laser wood molding/Aluminum frame with knives/Hardware Stamping |
| 18 | Total power of equipment | 146KW (Normal use: 60KW-90KW) |
| 20 | Molding cooling method | Water-cooled + Air-cooled |
| 26 | Machine Size | Approx. 12000 x 2500 x 2800mm |
| No. | Component Name | Brand & Description |
|---|---|---|
| 4 | Controller (PLC) | Delta (Taiwan) / Inovance (China) |
| 6 | Touchscreen | Delta 15 inch color touch screen |
| 7-12 | Servo Motors | Delta (Taiwan) Servo System |
| 13 | Beam Adjustment Motor | Siemens |
| 17-21 | Electrical Components | Schneider (France) |
| 22-23 | Sensors & Switches | OMRON (Japan) |
| 28-30 | Guides & Ball Screws | ABBA (Taiwan) |
| 35 | Chiller | 10HP Industrial chiller |
| 36 | Heating Brick | Far-infrared ceramic energy-saving bricks |

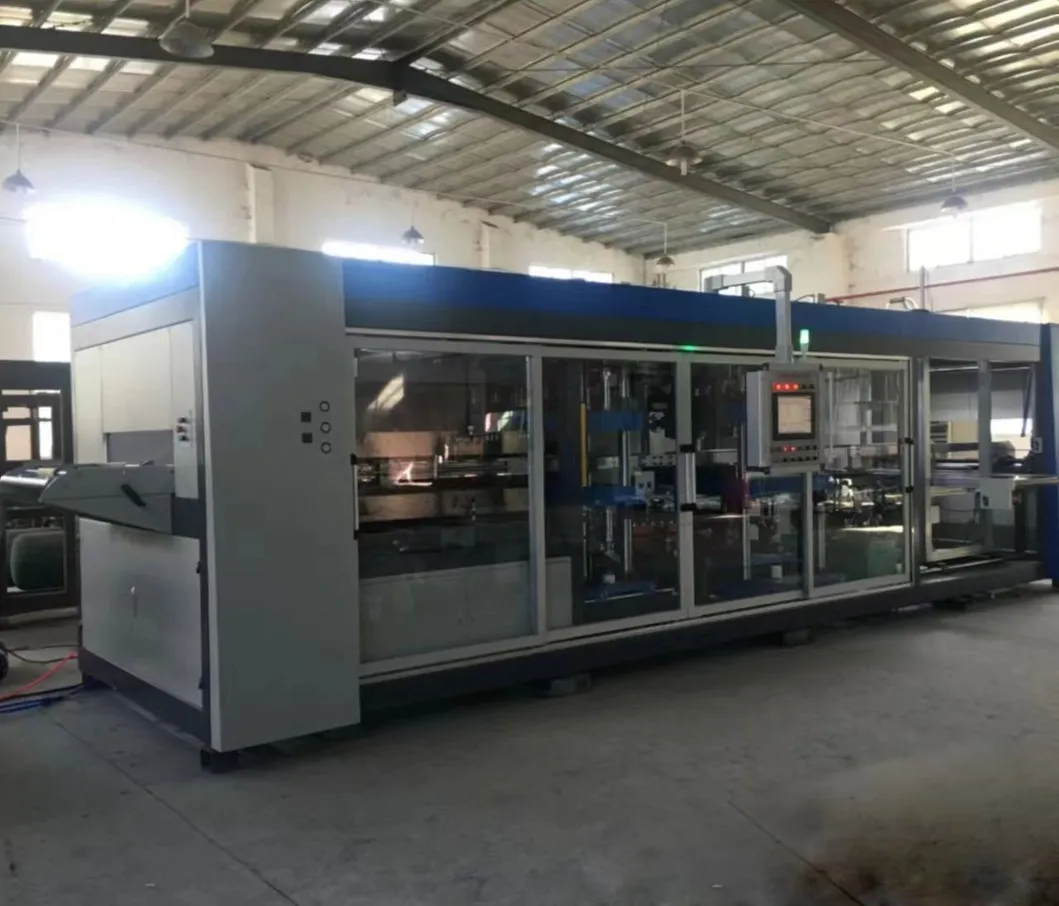

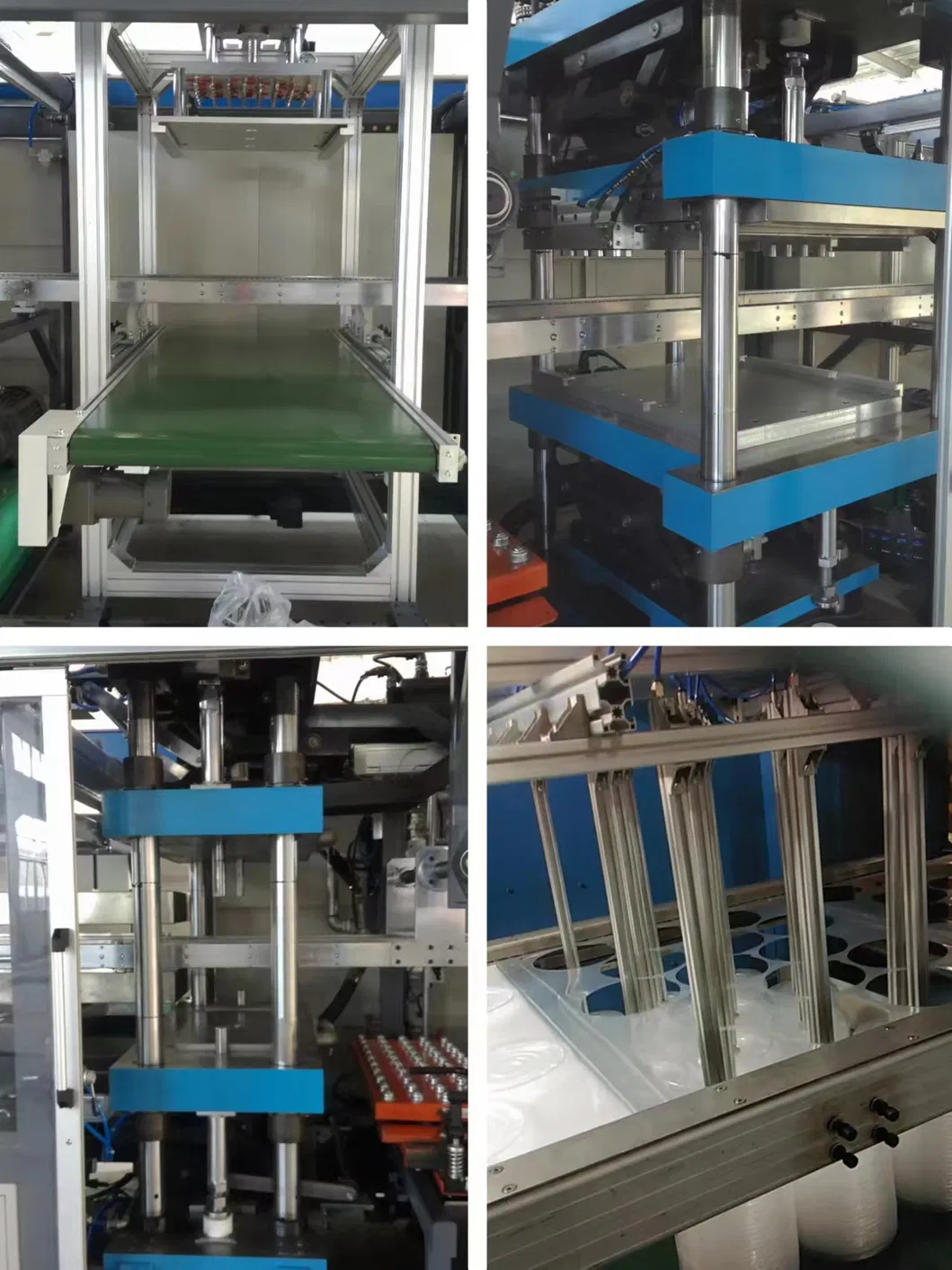

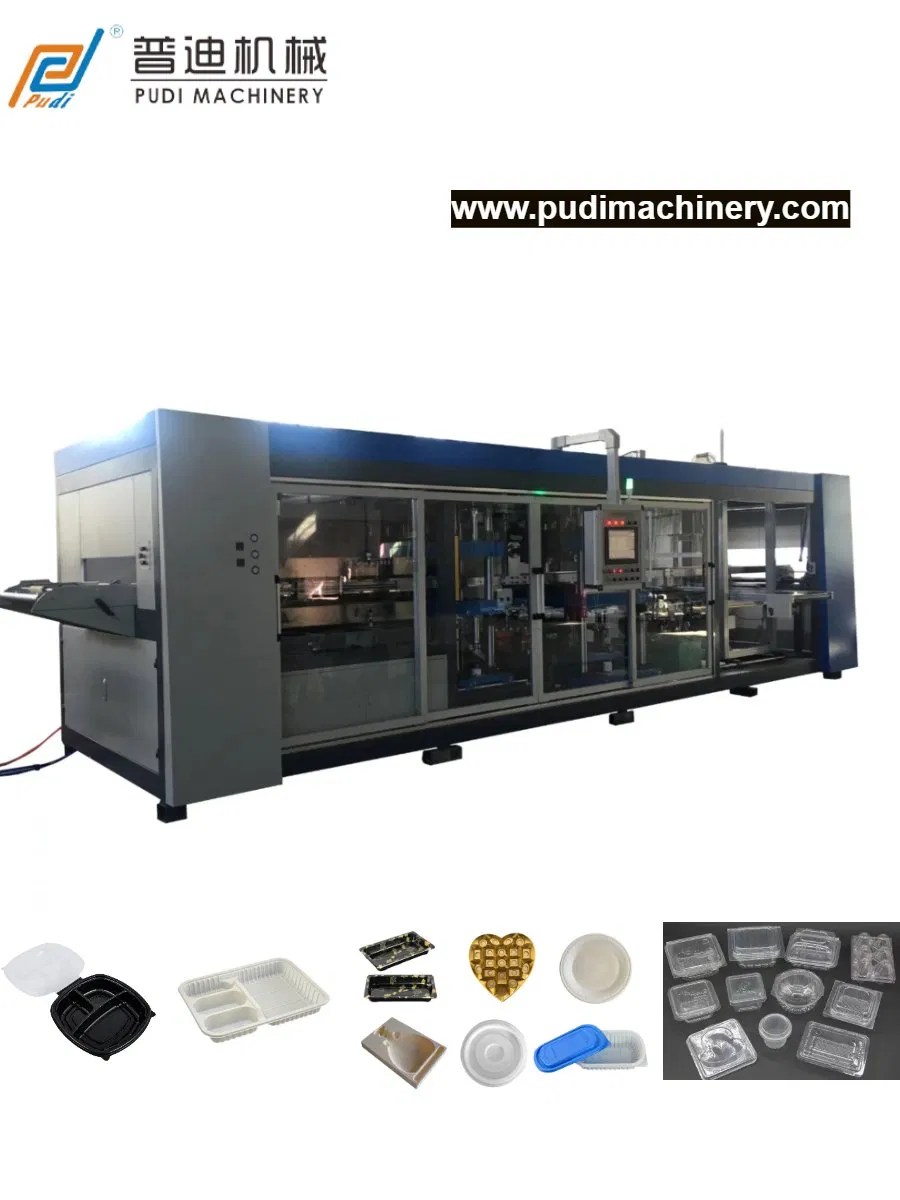

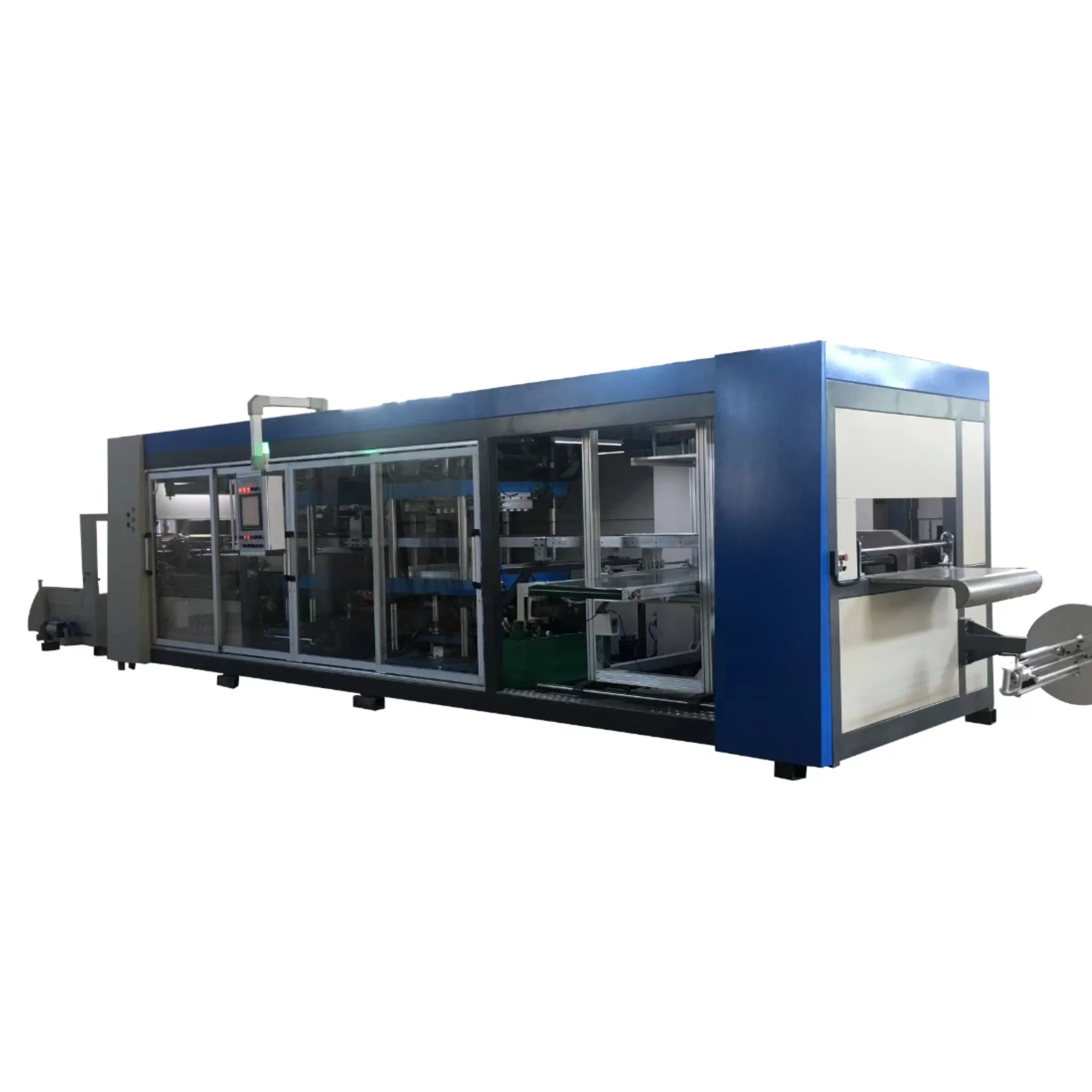

This high-efficiency equipment integrates plastic absorbing molding, temperature control, vacuum systems, heating, gas control, and computer control systems. It features a complete assembly line including finished product punching, cutting, and edge material self-rolling.
Suitable for HIPS, PS, PP, PVC, PET, ABS and other plastic sheets. Ideal for high stretch and irregular shapes.

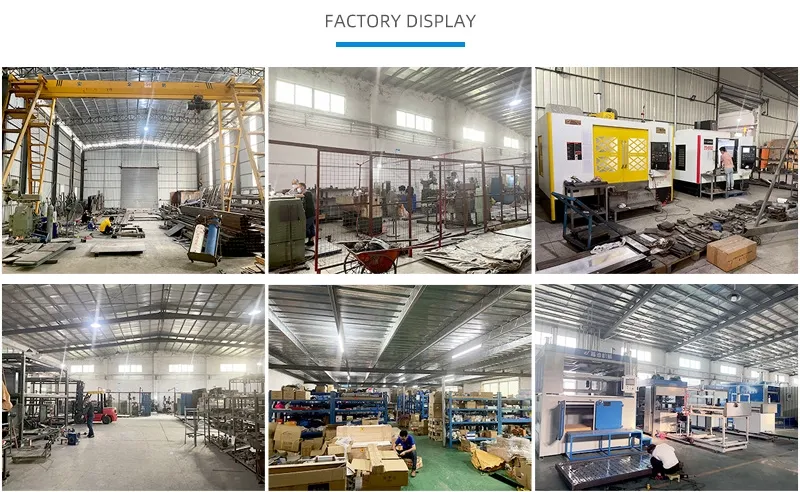

With 20 years of R&D experience, we provide professional technical teams, non-standard customized services, and comprehensive quality assurance. All mechanical parts are produced independently by CNC machining centers.
The machine is designed to handle a wide variety of plastic sheets, including HIPS, PS, PP, PVC, PET, and ABS. It is particularly effective for products requiring high stretch and transparency.

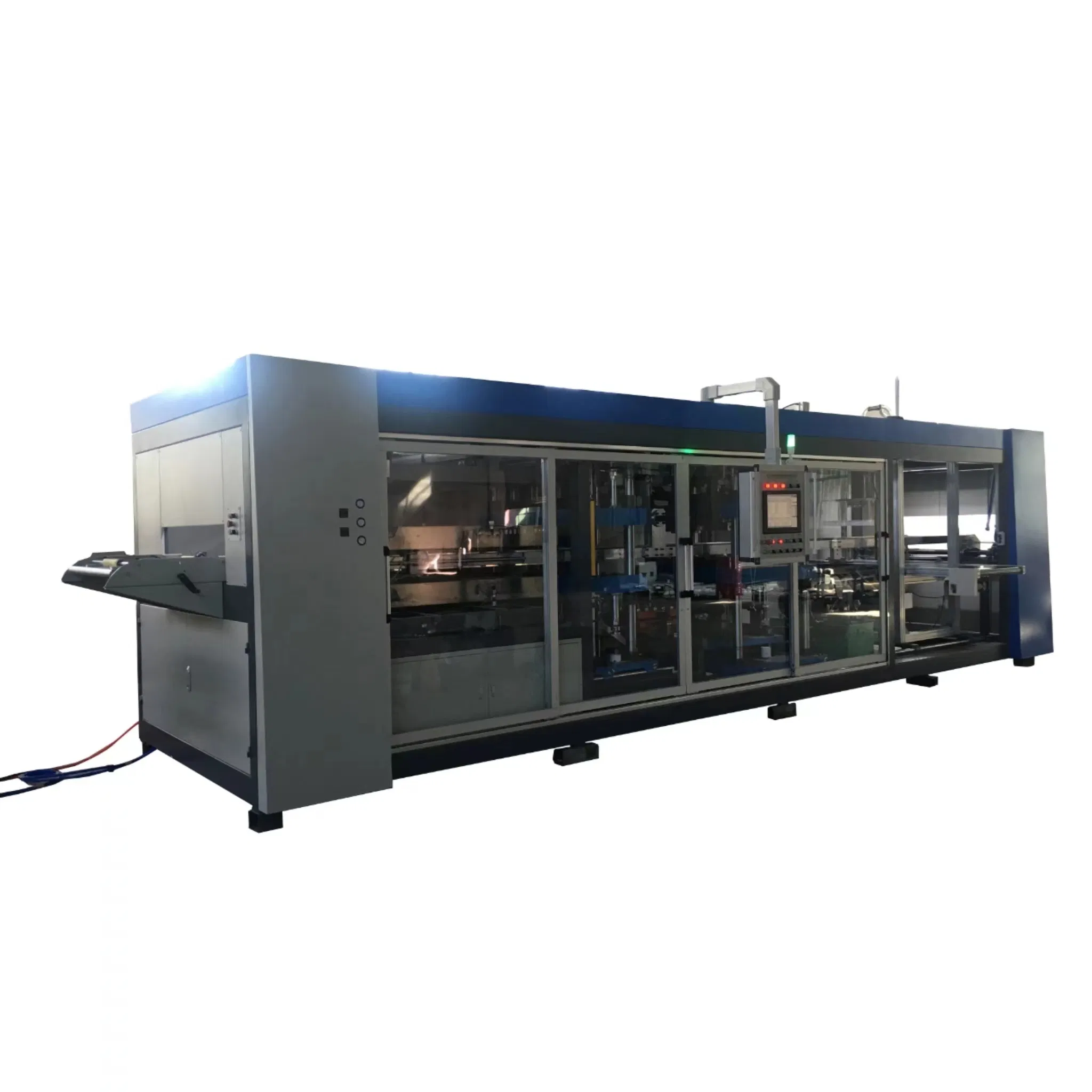

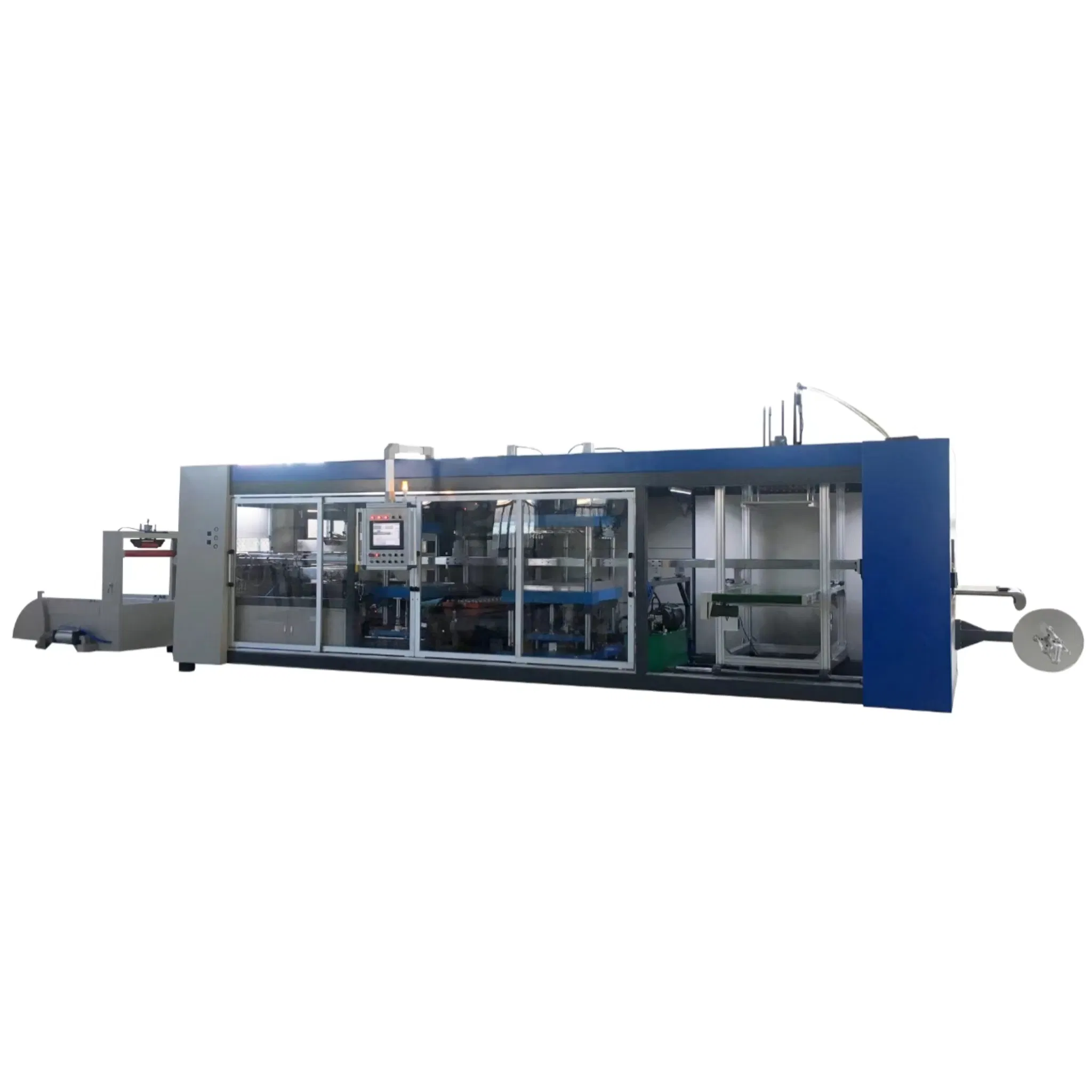

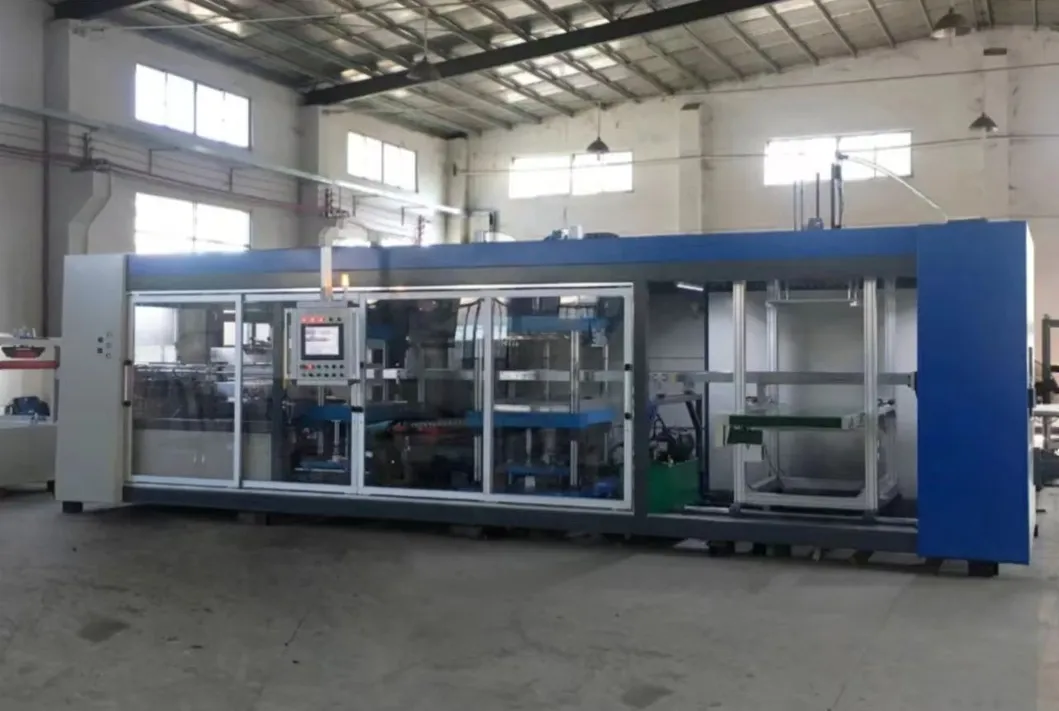

Yes, this model is a high-efficiency program-controlled plastic positive and negative pressure suction molding machine, utilizing the latest international molding process technology.
The PD-ZFY600 offers a maximum molding area of 600mm × 710mm and supports sheet thicknesses ranging from 0.2mm to 2.0mm.
It features a Delta (Taiwan) or Inovance (China) PLC integrated module control system paired with a 15-inch color touch screen HMI for easy operation.

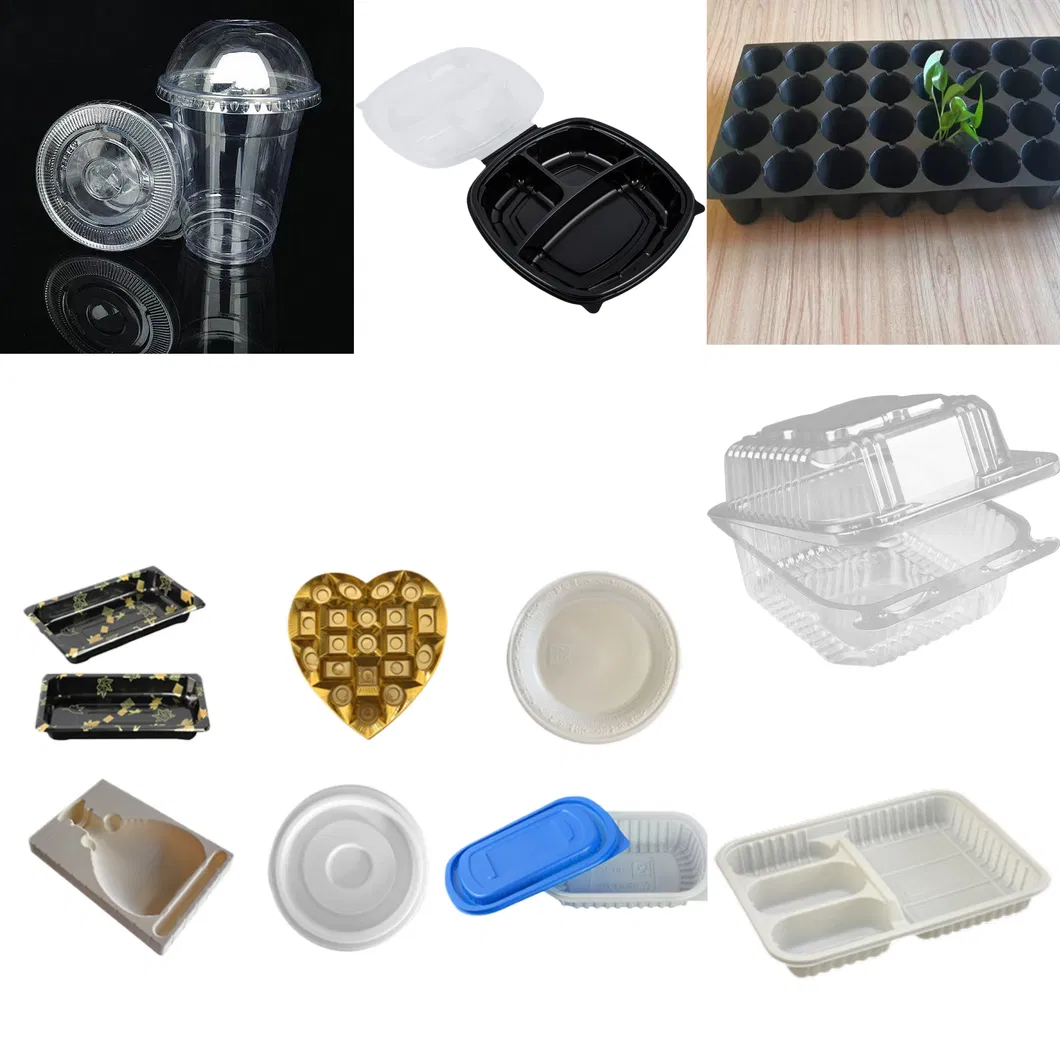

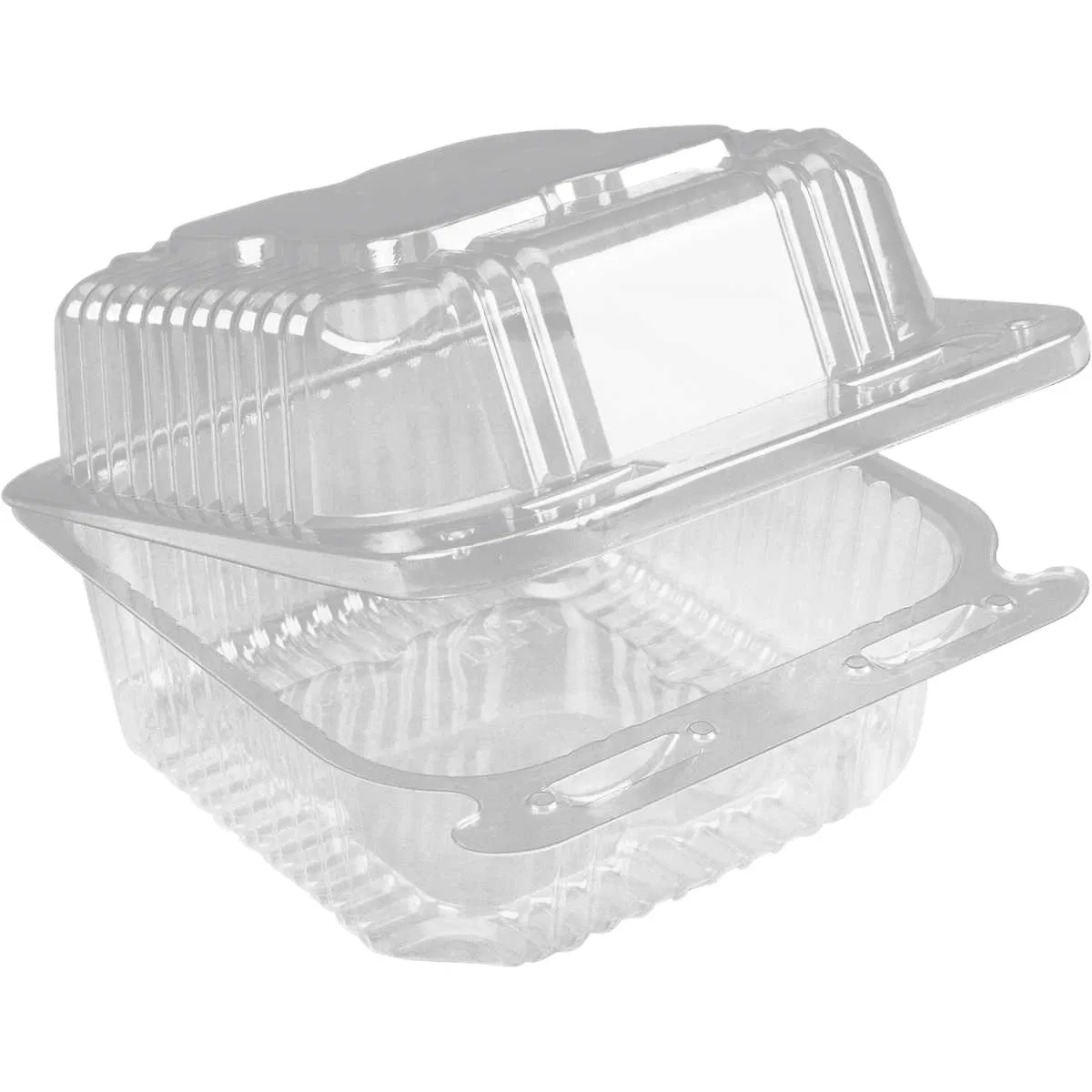

Our machines produce containers, trays, lids, bowls, and plates used primarily in food packaging, industrial packaging, and medical tray industries.
You will need a three-phase 380V power supply (normal use power 60KW-90KW) and a compressed air supply of 0.6-0.8 Mpa via a 1-inch interface.
